AIRTAC GC Series F.R.L Combination Air Treatment Unit Filter Regulator Lubricator 1/4

AIRTAC Type F.R.L Combination Air Treatment Unit Filter Regulator Lubricator 1/4" 3/8'' 1/2" Ports Compressed Air Filter Oil-Water Separator & Adjustable Regulator for Air Compressors


Size:	GC200-08 GC300-10 GC400-15
Availability:

Quantity:



Inquiry Add to Basket

AIRTAC F.R.L Combination GC Series is a compact, dual-function air preparation unit designed to deliver clean, dry, and pressure-stabilized compressed air for industrial pneumatic systems. Combining a high-efficiency oil-water separator with a pressure regulator, this unit ensures optimal performance and longevity of downstream equipment while minimizing installation space and maintenance costs.

Model:
GC Series
Brand:
WAALPC
Code:
8421299090

Product Description

1. Space-Saving Design

Combines three critical functions in one unit, reducing piping complexity.

2. Energy Efficiency

Precision pressure control cuts compressed air waste by up to 20%.

3. Extended Equipment Life

Protects valves, cylinders, and actuators from contamination and corrosion.

4. Cost-Effective

Lower maintenance costs with auto-drain and long-lasting filter elements.

5. Adjustable Pressure Regulation

Maintains stable output pressure (0.15–0.9 MPa) with a locking knob to prevent accidental adjustments.

Technical Parameters

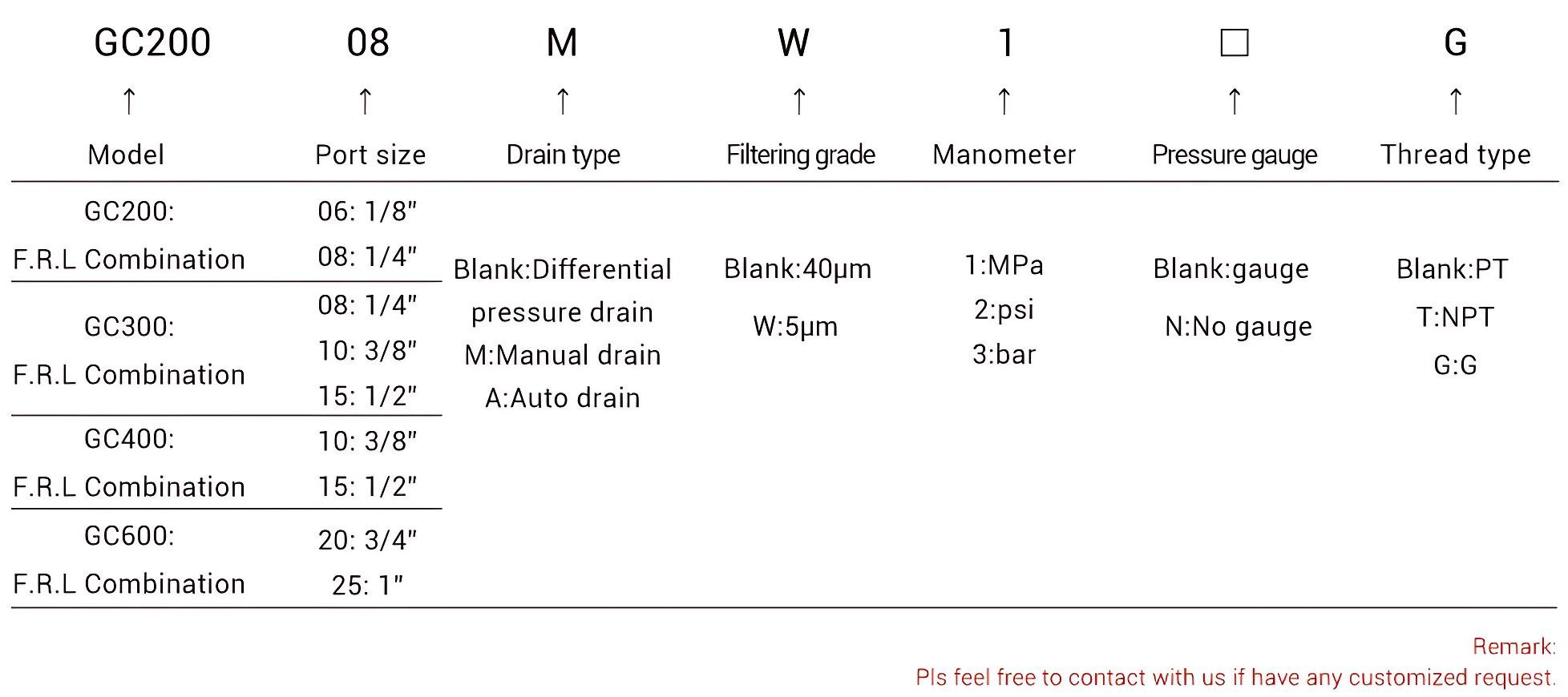

Ordering Code

Air filter regulator lubricator

DATA SHEET

Model	GC200-06	GC200-08	GC300-08	GC300-10	GC300-15	GC400-10	GC400-15	GC600-20	GC600-25
Working Medium	Air
Port Size(G)	1/8	1/4	1/4	3/8	1/2	3/8	1/2	3/4	1
Grade of Filtration	40um or 5um
pressure regulating range	Automatic and different pressure drain: 0.15~0.9Mpa; Manual drain: 0.05~0.9Mpa
Pressure Resistance	1.5MPa (215Psi)
Max. Opreating Pressure	1.0MPa(145Psi)
Operating temperature range	-5~70℃
Filter Cup Capacity	10CC		40CC			80CC		230CC
Lubricator Cup Capacity	25CC		75CC			160CC		380CC
Weight	580g		1300g			2360g		5550g
Recommended Oil	ISO VG32/equivalent oil

STRUCTURE

GC structure

Model	A	AB	BA	C	K	KA	KB	P	PA	PB	Q
GC200-06	147	62	30	133	5.5	50	8.5	G1/8	25	93
GC200-08	147	62	30	133	5.5	50	8.5	G1/4	25	93
GC300-08	188	72	41.5	188	6.5	64	9	PT1/4	35	143	G1/8
GC300-10	188	72	41.5	188	6.5	64	9	PT3/8	35	143	G1/8
GC300-15	188	72	41.5	188	6.5	64	9	PT1/2	35	143	G1/8
GC400-10	248	89	50	216	8.5	84	12	PT3/8	40	166.5	G1/4
GC400-15	248	89	50	216	8.5	84	12	PT1/2	40	166.5	G1/4
GC600-20	309	118	70	282	11	105	16	G1/4	50	219	G1/4
GC600-25	309	118	70	282	11	105	16	G1	50	219	G1/4

Specification Download
