Airtac Type Lubricator FR.L Combination Air Filter Regulator Combo Oil/Water Separator & Pressure Regulator 1/4" 3/8'' 1/2" Ports 5μm 40μm Filtration


Size:	GFC200-08 GFC300-10 GFC400-15
Availability:

Quantity:



Inquiry Add to Basket

Airtac Lubricator GFC Series is a compact, dual-function air preparation unit designed to deliver clean, dry, and pressure-stabilized compressed air for industrial pneumatic systems. Combining a high-efficiency oil-water separator with a pressure regulator, this unit ensures optimal performance and longevity of downstream equipment.

Model:
GFC Series
Brand:
WAALPC
Code:
8481804090

Product Description

1. Advanced Oil-Water Separation

Multi-stage filtration technology: Centrifugal pre-separation removes bulk liquids and particles. 5μm sintered filter element traps fine contaminants, including oil aerosols and dust.

2. Precision Pressure

Regulation Adjustable pressure range: 0.15–0.9 MPa with locking knob. Stable output ensures consistent equipment operation. Integrated gauge port for real-time monitoring (optional).

3. Maintenance-Optimized Design

Auto-drain system: Automatically discharges condensate without manual intervention. Transparent polycarbonate bowl: Visual inspection of water/oil levels and sediment buildup. Tool-free element replacement: Reduces downtime to under 2 minutes.

Technical Parameters

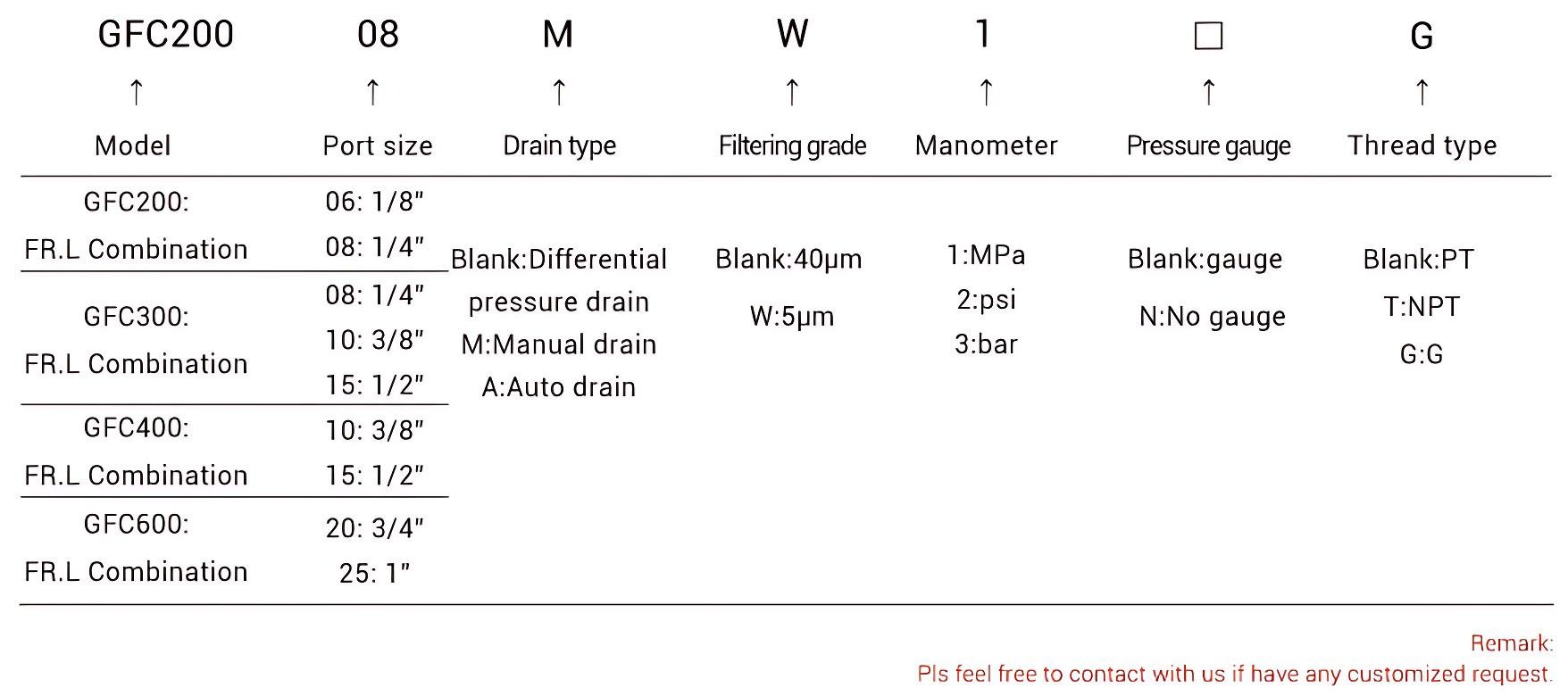

Ordering Code

Air filter regulator lubricator

DATA SHEET

Model	GFC200-06	GFC200-08	GFC300-08	GFC300-10	GFC300-15	GFC400-10	GFC400-15	GFC600-20	GFC600-25
Working Medium	Air
Port Size(G)	1/8	1/4	1/4	3/8	1/2	3/8	1/2	3/4	1
Grade of Filtration	40um or 5um
pressure regulating range	Automatic and different pressure drain: 0.15~0.9Mpa; Manual drain: 0.05~0.9Mpa
Pressure Resistance	1.5MPa (215Psi)
Max. Opreating Pressure	1.0MPa(145Psi)
Operating temperature range	-5~70℃
Filter Cup Capacity	10CC		40CC			80CC		230CC
Lubricator Cup Capacity	25CC		75CC			160CC		380CC
Weight	430g		980g			1950g		4320g
Recommended Oil	ISO VG32/equivalent

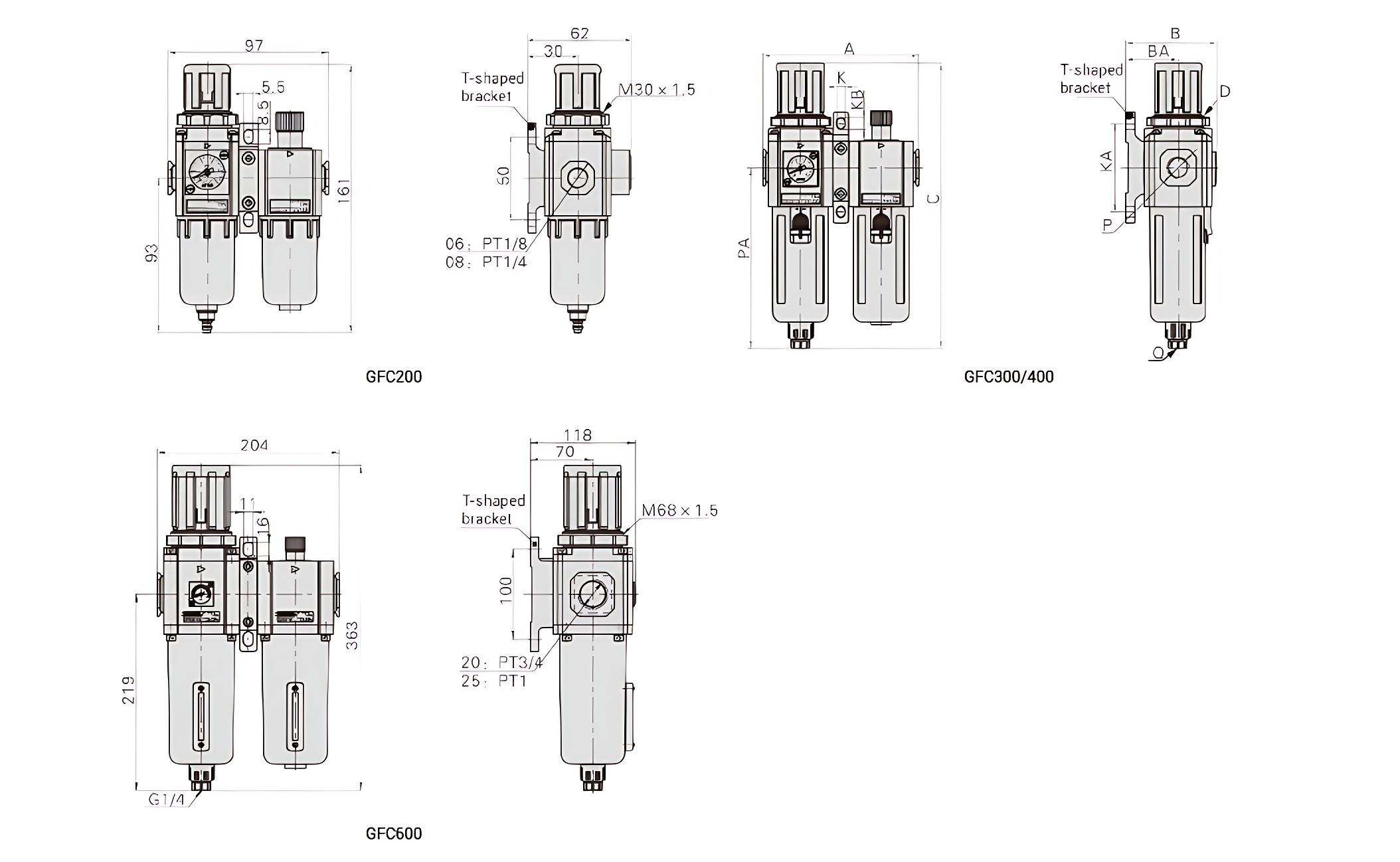

STRUCTURE

GFC structure

Model	A	AB	BA	C	D	K	KA	KB	P	PA	Q
GFC200-06	97	62	30	161	M30x1.5	5.5	50	8.5	G1/8	93
GFC200-08	97	62	30	161	M30x1.5	5.5	50	8.5	G1/4	93
GFC300-08	124	72	41.5	225.5	M40x1.5	6.5	70	9	G1/4	143	G1/8
GFC300-10	124	72	41.5	225.5	M40x1.5	6.5	70	9	G3/8	143	G1/8
GFC300-15	124	72	41.5	225.5	M40x1.5	6.5	70	9	G1/2	143	G1/8
GFC400-10	164	90	50	270.5	M55x2.0	8.5	80	12	G3/8	166.5	G1/4
GFC400-15	164	90	50	270.5	M55x2.0	8.5	80	12	G1/2	166.5	G1/4
GFC600-20	204	118	70	363	M68x1.5	11	100	16	G3/4	219	G1/4
GFC600-25	204	118	70	363	M68x1.5	11	100	16	G1	219	G1/4

Specification Download
