AL2000 white SMC Type 1/8′′ 1/4′′Pneumatic Air Pressure Valve Oil Fog Separator filter Lubricator with RoHS Automation equipment

Pneumatic Air Pressure Valve Oil Fog Separator Filter Lubricator with RoHS Automation Equipment AL2000 White SMC Type 1/8′′ 1/4′′

Pneumatic Air Pressure Valve Oil Fog Separator Filter Lubricator with RoHS Automation Equipment AL2000 White SMC Type 1/8′′ 1/4′′


Color:	Black⩔ange White
Availability:

Quantity:



Inquiry Add to Basket

Air Lubricator:

The lubricator introduces a fine oil mist into the compressed air. It then dispenses the mist on the moving pneumatic machine's parts. As a result, there is no friction, wear, or corrosion. This prolongs the lifespan of the equipment and ensures that they operate properly.

Model:
AL Series
Brand:
WAALPC
Code:
8421999000

Product Description

1. Light and compact structure, easy to install and use.
2. The pressure loss is low and the efficiency of oilmist separating is high.
3. The filter cup is designed to be transparent for observing the volume of oil.
4. Reduce starting resistance: Oil mist can reduce the starting resistance of pneumatic components and improve system efficiency.
Improve sealing performance: Oil mist can improve the lubrication of seals and improve sealing performance.
5. Good lubrication effect: oil mist can evenly adhere to the surface of pneumatic components, forming an oil film, which plays the role of lubrication, rust prevention and wear prevention.
6. Save lubricating oil: Compared with the traditional dripping lubrication method, oil mist lubrication can greatly reduce the consumption of lubricating oil and reduce production costs.
7. Extend the service life of equipment: Through effective lubrication, the service life of pneumatic equipment can be extended.
8. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
9. Port size optional: Thread G/PT/NPT available, M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4''.

Technical Parameters

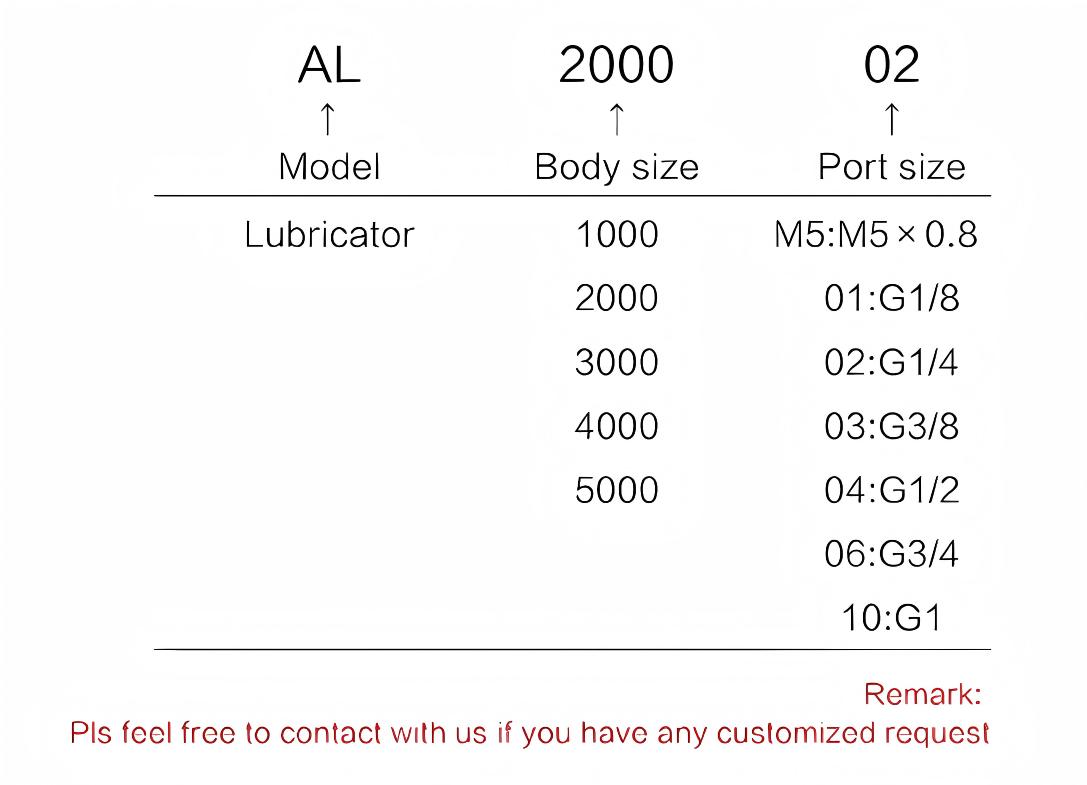

ODERING CODE

DATA SHEET

Type-name	Air Lubricator
Model	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10
Port Size (G)	M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover	AL1000-2000（W/O）			AL3000-5000（ W）
Working Medium	Air
Operating Temperature Range	5-60 ℃
Oil Cup Capacity	10	15	15	20	20	45	45	45	130	130
Recommended Oil	Oil for turbine 1 ISOVG32
Material	Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight	100g	160g	160g	330g	330g	570g	570g	620g	1130g	1130g

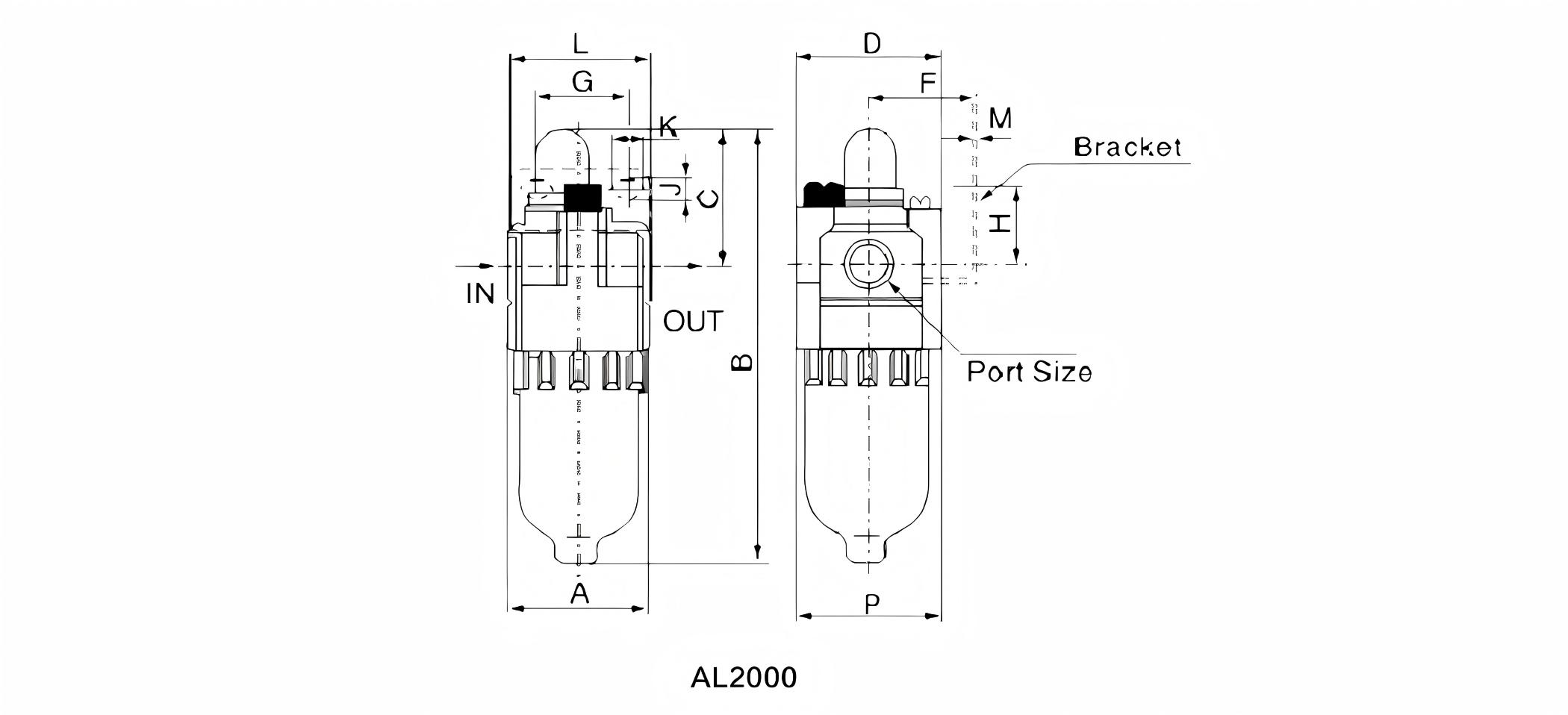

STRUCTURE

SMC Lubricator

DIMENSION(MM)

Model	Port size	A	B	C	D	F	G	H	J	K	L	M	P
AL1000	M5	25	81.5	25.5	25	-	-	-	-	-	-	-	127
AL2000	1/8-1/4	40	122	38	40	30	27	22	5.4	8.4	40	2.3	40
AL3000	1/4-3/8	53	142	38	53	41	40	23	6.5	8	53	2.3	56
AL4000	3/8-1/2	70	177	41	70	50	54	26	8.5	10.5	70	2.3	73
AL4000-06	3/4	75	177	39	70	50	54	25	8.5	10.5	70	2.3	73
AL5000	3/4-1	90	254	45	90	66.5	66	35	11	13	90	3.2	90

Specification Download
