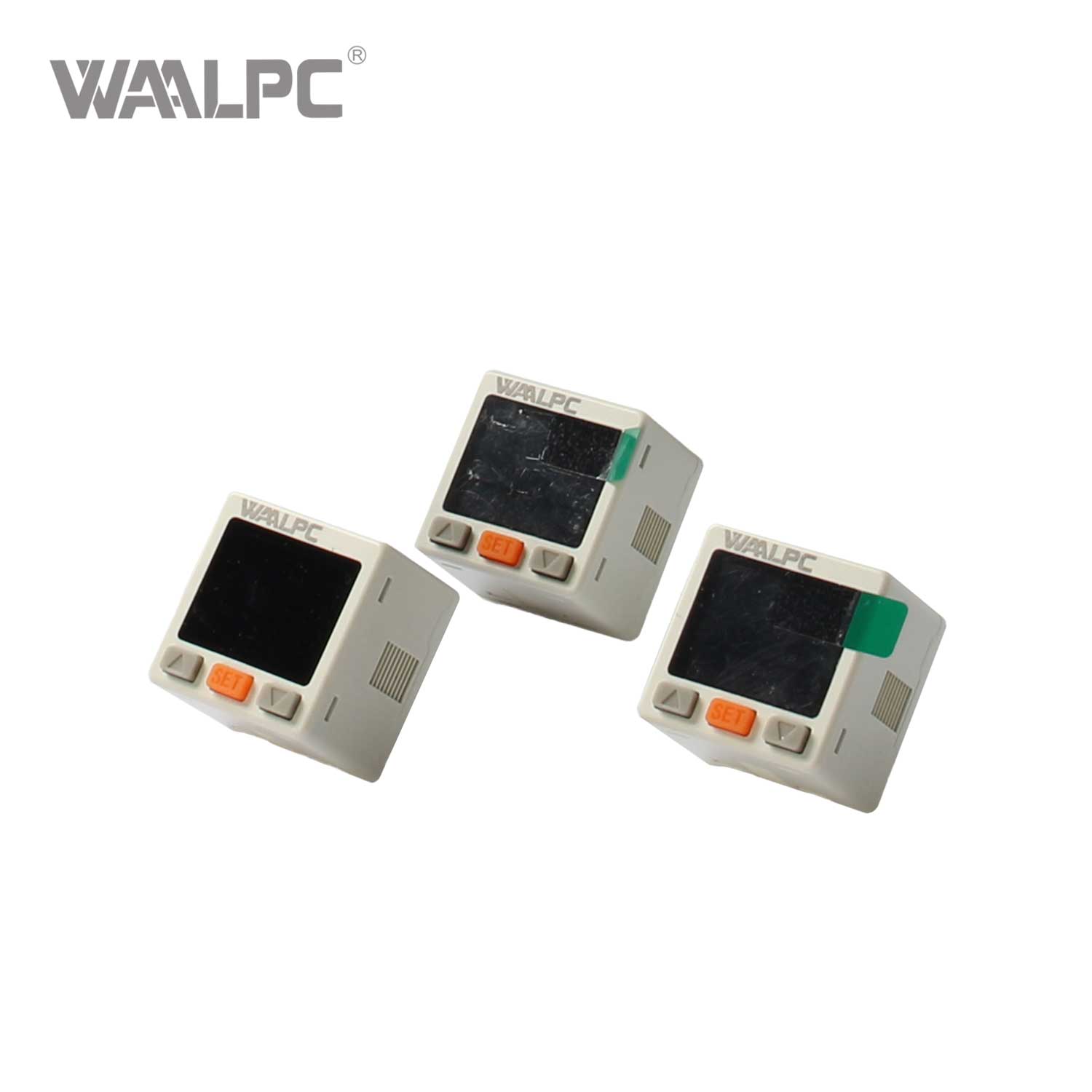

Electronic gauges
WAALPC
9026209090

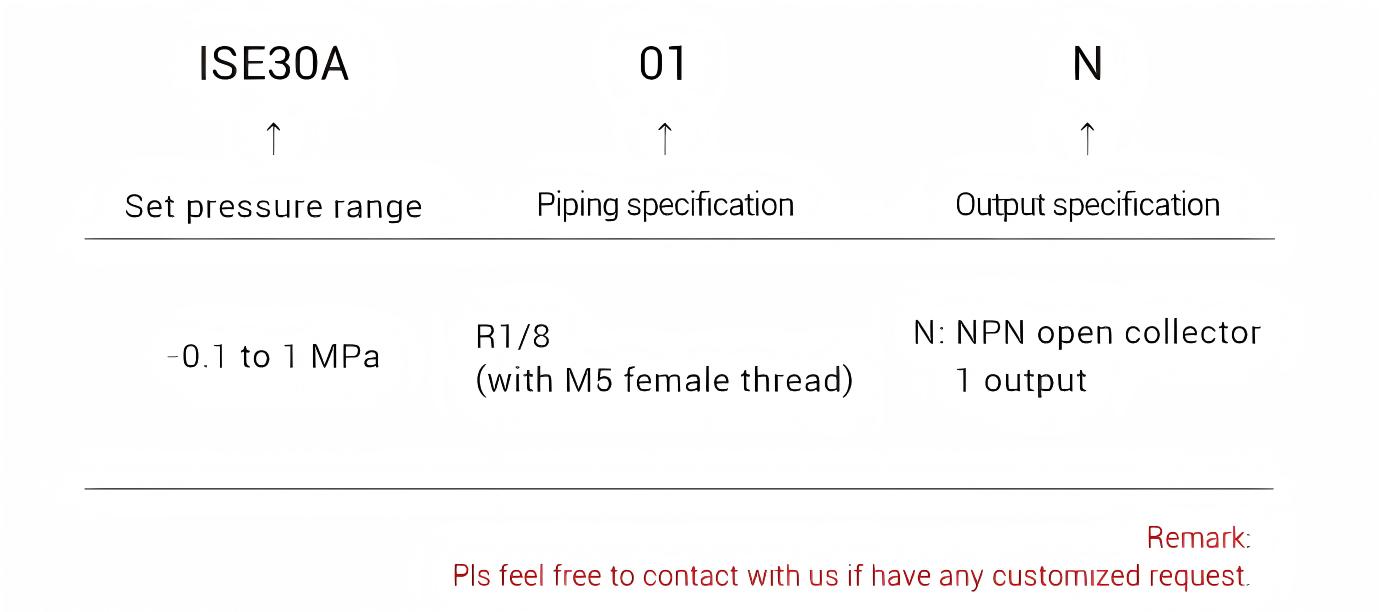

ORDERING CODE
DATA SHEET
| Model | ISE30A(positive pressure) | ||
| Rated pressure range | -0.100 to 1.000 MPa | ||
| Set pressure range | -0.105 to 1.050 MPa | ||
| Withstand pressure | 1.5MPa | ||
| Minimum display unit | 0.001MPa | ||
| Applicable fluid | Air, inert gases and incombustible gases | ||
| Power supply voltage | 12 to 24V DC±10%, ripple(p-p) 10% or less (protected against reverse connection) | ||
| Current consumption | 40 mA or less | ||
| Swtch output | NPN or PNP open collector output: 1 output NPN or PNP open collector output: 2 outputs (selectable) | ||
| Max. load current | 80 mA | ||
| Max. applied voltage | 28 V (NPN output) | ||
| Residual voltage | 1 V or less (at 80 mA load current) | ||
| Response time | 2.5 ms or less (with anti-chatter function: 20, 100, 500, 1000 or 2000 ms selected) | ||
| Short circuit protection | Provided | ||
| Repeatability | ±0.2%F.S. ± digit | ||
| Hysteresis | Hysteresis mode | 0 to variable*1 | |
| Window comparator mode | |||
| Analogue output | Output Voltage | 0.6 to 5 V ±2.5%F.S. | |
| Linearity | ±1%F.S. | ||
| Output impedance | approx. 1 kΩ | ||
| Output current (rated pressure range) | 2.4 to 20 mA ±2.5%F.S. | ||
| Linearity | ±1%F.S. | ||
| Load impedance | Max. load impedance: 300Ω (at power supply voltage of 12V DC) 600Ω (at power supply voltage of 24V DC) Min. load impedance: 50Ω | ||
| Display | 4digts, 7-segment, dual-colour display(red/green) | ||
| Display accuracy | ±2%F.S.±1digt (at ambient temperature 25 ±3 ℃) | ||
| Indicator LED | LED is ON when output is ON OUT1: Green Out2: Red | ||
| Environment | Enclosure | IP40 | |
| Ambient Temperature range | Operation: 0 to 50℃, Storage: -10 to 60℃ (no condensation or freezing) | ||
| Ambient humidity range | Operation, Storage: 35 to 85%RH (no condensation) | ||
| Withstand voltage | 1000 VAC, 1 minute between terminals and housing | ||
| Insulation resistance | 50 MΩ or more at 500V DC between terminals and housing | ||
| Temperature characteristics | ±2%F.S. (25℃ reference) | ||
| Lead wire | Oil resistant vinyl cabtyre cable 3 cores ø3.5, 2m 4 cores Sectional area of conductor: 0.15mm2(AWG26) Outside diameter of insulator: 1.0mm | ||
| Standard | CE marked (EMC directive, RoHS directive), UL/CSA | ||

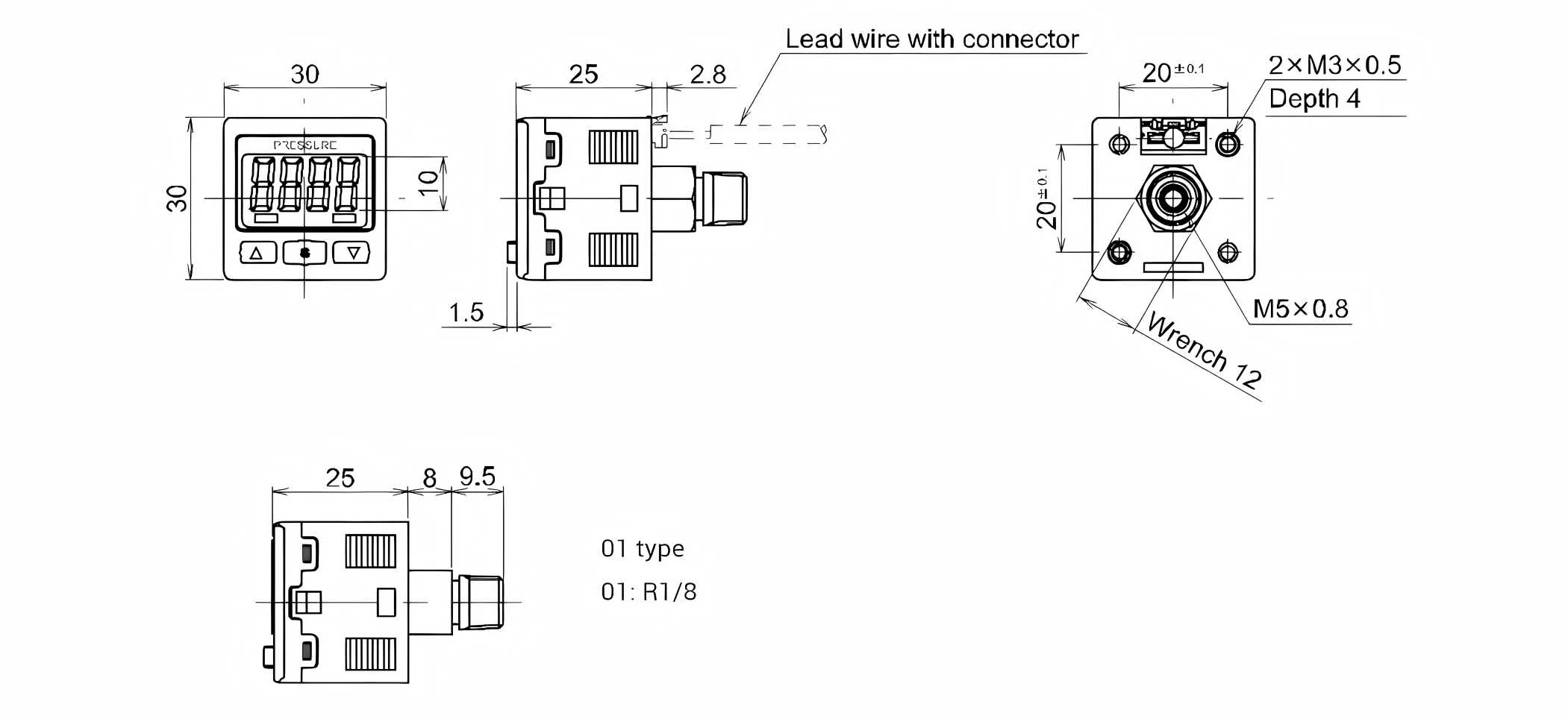

DIMENSION
