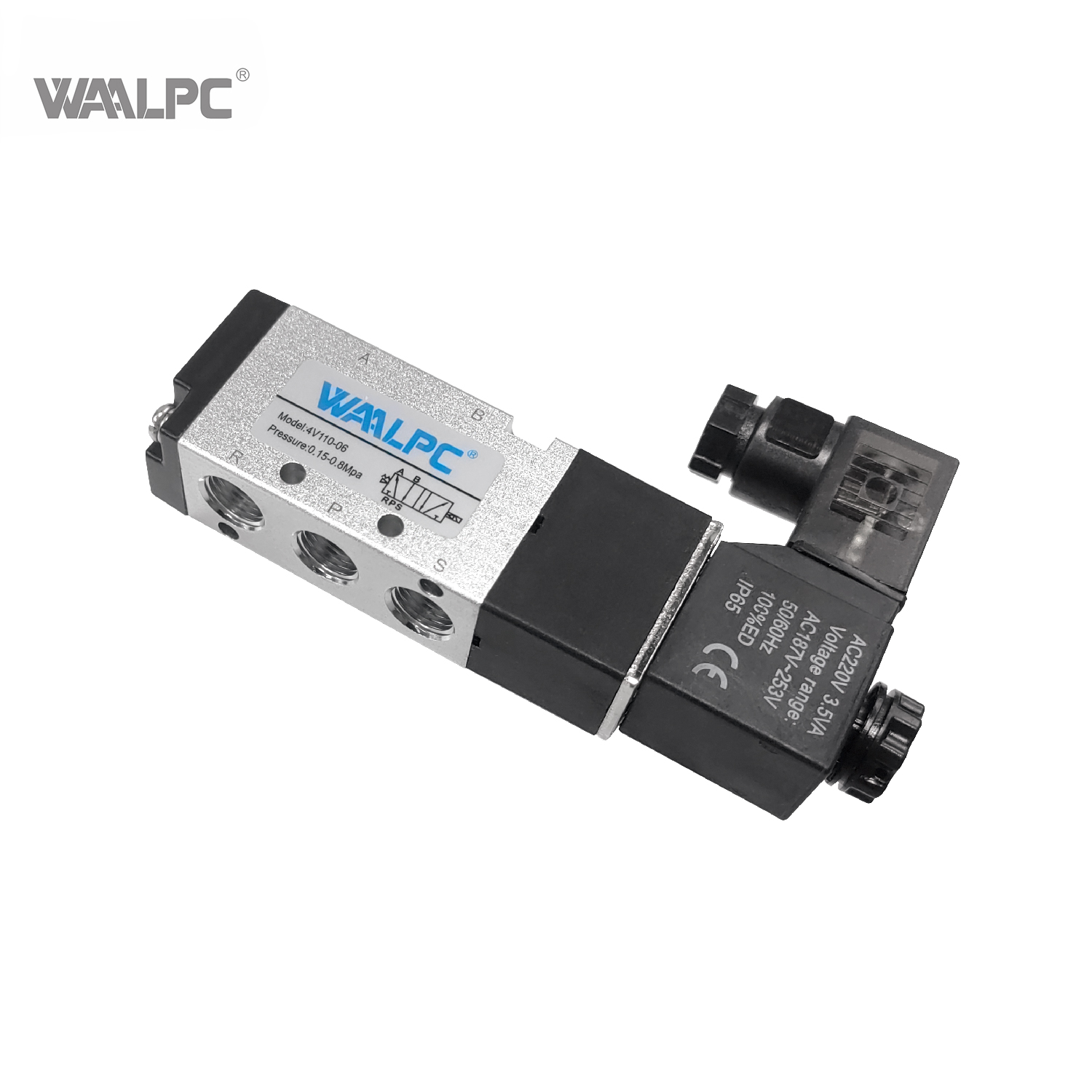

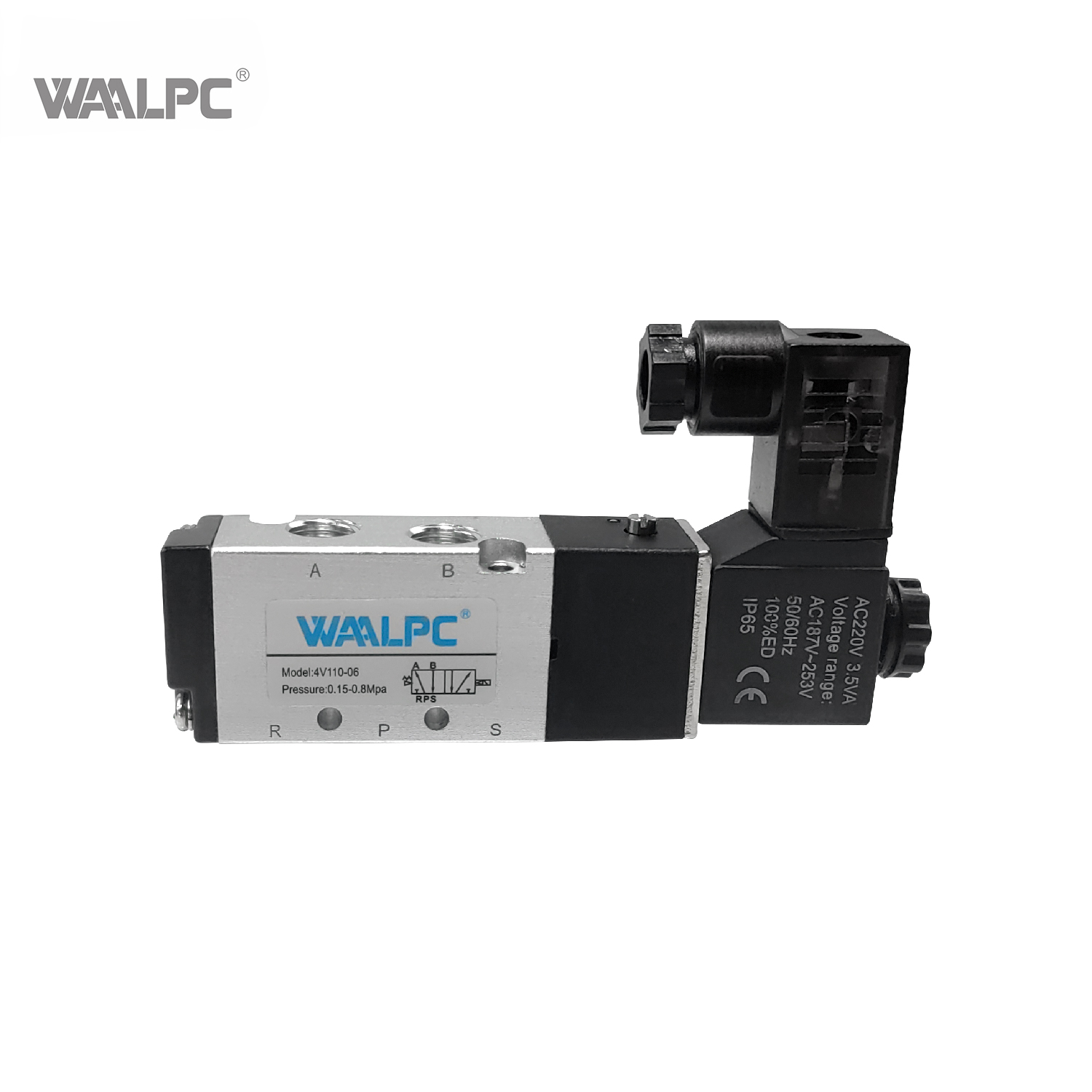

China Manufacturer Pneumatic Solenoid Valve Airtac 4V Series 2-position 5-way Directional Reversing Valve

China Manufacturer Pneumatic Solenoid Valve Airtac 2-position 5-way Directional Reversing Valve


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

Product feature:

1.Pilot-oriented mode:Internal pilot or external pilot.

2.Structure in sliding column mode:good tightness and sensitive reaction.

3.Three position solenoid valves have three kinds of central function for your choice.

4.Double control solenoid valves have memory function.

5.Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life.

6.No need to add oil for lubrication.

7.It is available to form integrated valve group with the base to save installation space.

8.Affiliated manual devices are equipped to facilitate installation and debugging.

9.Several standard voltage grades are optional.

Model:
4V110
Brand:
WAALPC
Code:
8481100090

Product Description

Pneumatic Solenoid Valve Advantages

Pneumatic Solenoid Valve

1. Ultra-Compact Design Space-saving footprint ideal for applications with limited installation space (e.g., compact machinery, medical devices, and robotics).

2. Robust Construction Durable aluminum alloy body with stainless steel core for corrosion resistance and long-term reliability. IP65 protection against dust, water jets, and industrial contaminants.

3. Versatile Compatibility Wide voltage options: 12V DC, 24V DC, 110V AC, 220V AC (customizable upon request). Multiple port sizes: M5, G1/8, or NPT threads to fit diverse pneumatic/hydraulic systems.

4. Easy Integration & Maintenance Standardized mounting holes for quick replacement and compatibility with existing setups. Manual override function for easy testing and troubleshooting without disassembly.

5. Cost-Effective Performance 10+ million cycle lifespan reduces downtime and replacement frequency. Interchangeable with major brand equivalents (e.g., Airtac Serie), offering a budget-friendly alternative.

Pneumatic Solenoid Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	4V110-M5 4V120-M5	4V130C-M5 4V130E-M5 4V130P-M5	4V110-06 4V120-06	4V130C-06 4V130E-06 4V130P-06
Fluid	Air (to be filtered by 40μm filter element)
Acting	Internal pilot or external pilot
Port size [Note1]	In=Out=M5		In=Out=1/8''
Orifice size (Cv) [Note4]	4V110-06,4V120-06:10.2mm²(Cv=0.6) 4V130C-06:8.6mm²(Cv=0.51)
Valve type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70℃
Lubrication [Note2]	Not required
Max.frequency [Note3]	5 cycle/sec	3cycle/sec	5 cycle/sec	3cycle/sec
Weight(g)	4V110-M5: 120 4V120-M5: 175	200	4V110-06: 120 4V120-06: 175	200

[Note1]PT thread, G thread and NPT thread are available.

[Note2]Once lubricated air is used,continue with same medium to optimise valve life span.Lubricants like ISOVG32or equivalent are recommended.

[Note3]The maximum actuation frequency is in the no-load state.

[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data.

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

solenoid valve

Specification Download

Solenoid Valve 4V100 Detailed page.png

Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.
What to do if there is a problem with the product?

We will give quick response and analyse reason of any customer complaint,we usually make replacement to customers. And we can discuss more detail depend on different requirement.

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
