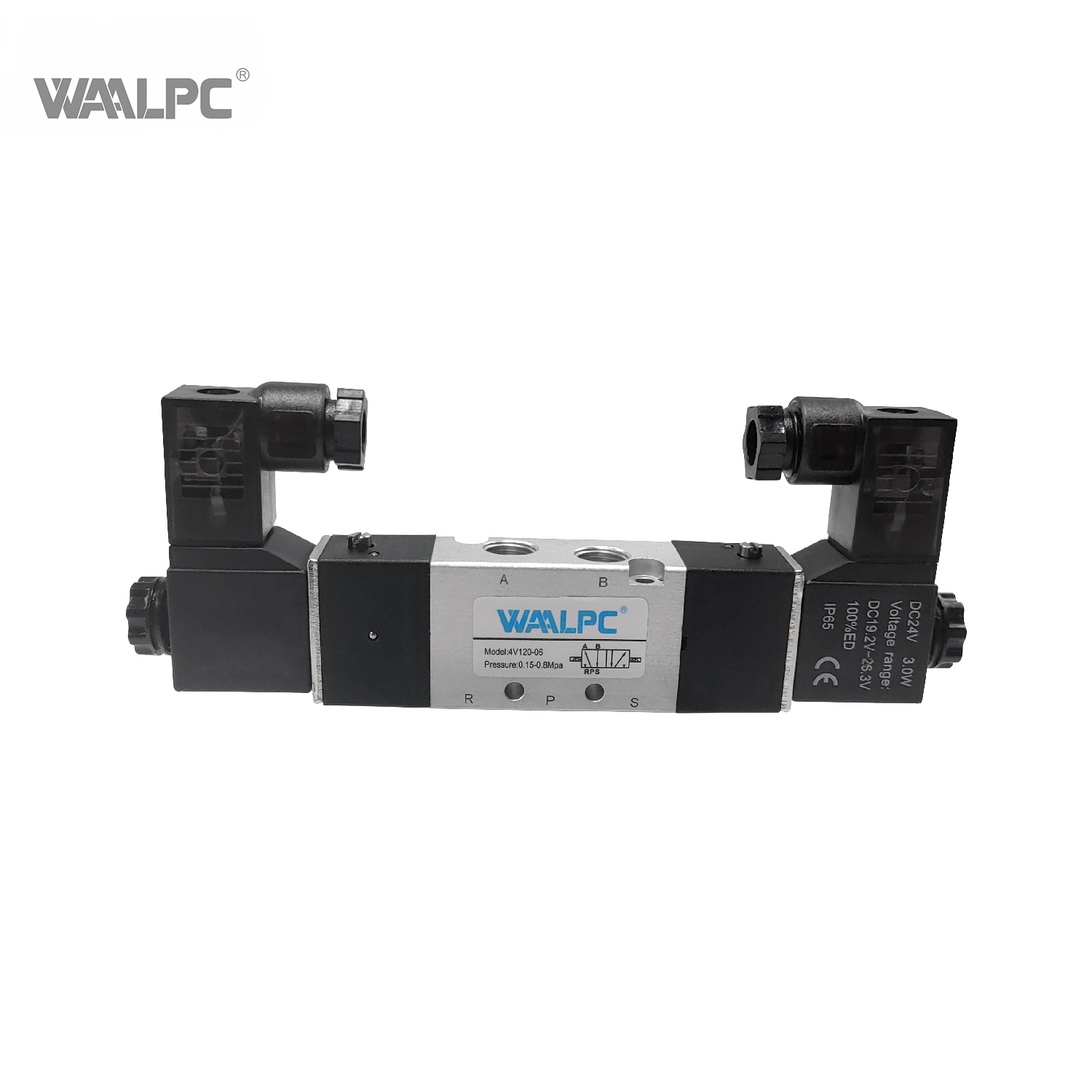

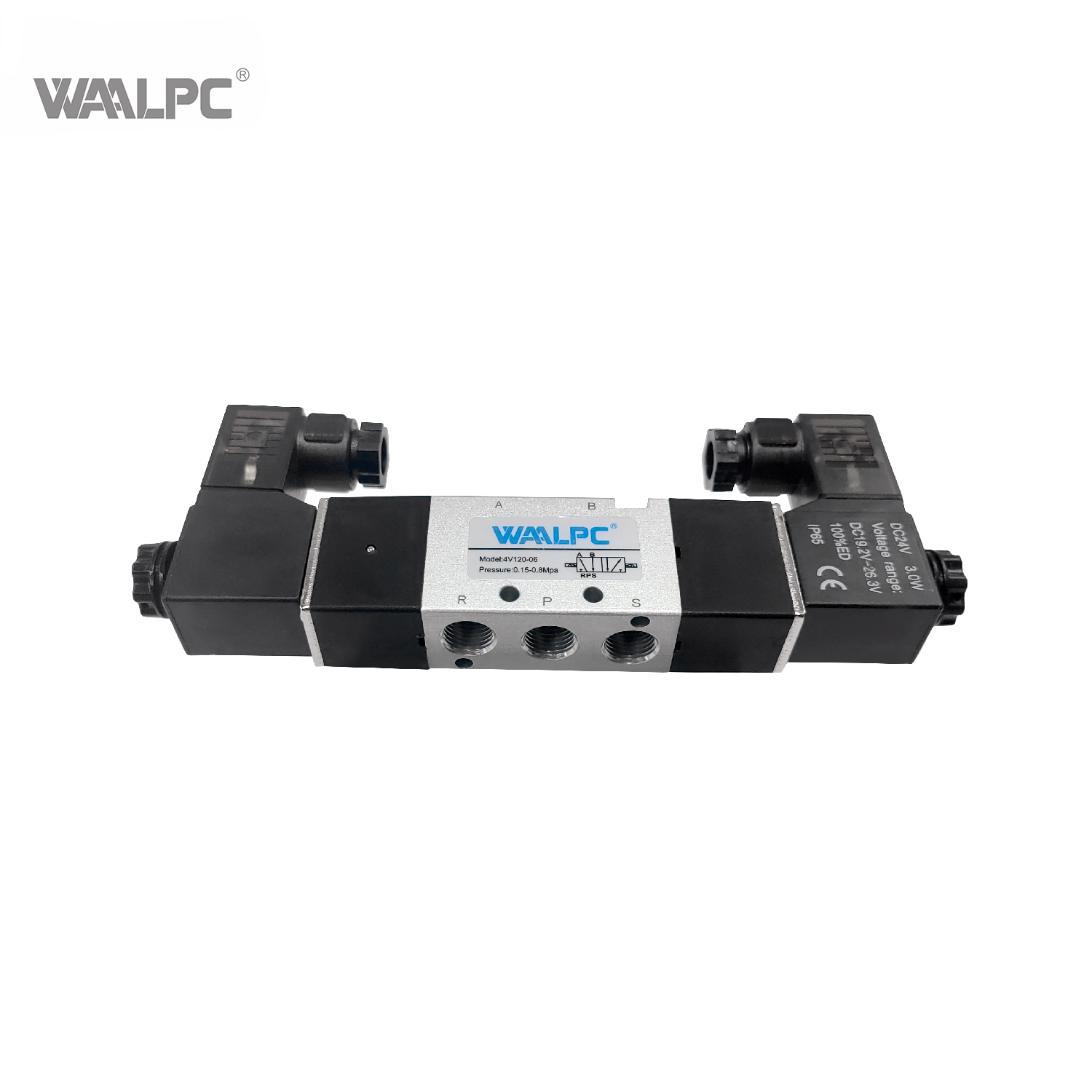

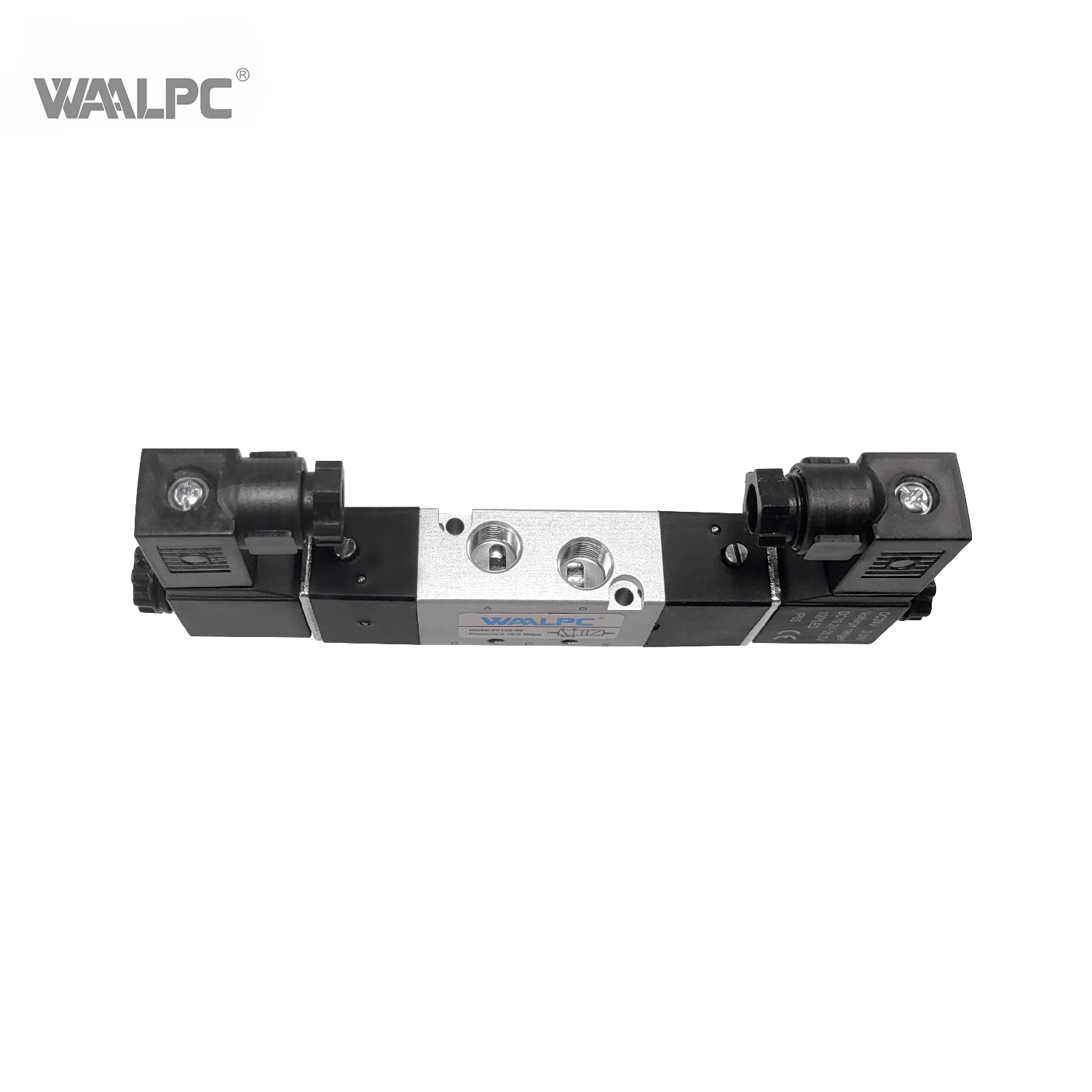

High Performance 5/2 Way Pneumatic Solenoid Valve with M5 Port for Precision Automation

China Manufacturer Pneumatic Solenoid Valve Airtac 4V Series 2-position 5-way Directional Reversing Valve

High Performance 5/2 Way Pneumatic Solenoid Valve with M5 Port for Precision Automation


Size:	Black White
Availability:

Quantity:



Inquiry Add to Basket

Product feature:

1.Pilot-oriented mode:Internal pilot or external pilot.

2.Structure in sliding column mode:good tightness and sensitive reaction.

3.Three position solenoid valves have three kinds of central function for your choice.

4.Double control solenoid valves have memory function.

5.Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life.

6.No need to add oil for lubrication.

7.It is available to form integrated valve group with the base to save installation space.

8.Affiliated manual devices are equipped to facilitate installation and debugging.

9.Several standard voltage grades are optional.

Model:
4V120
Brand:
WAALPC
Code:
8481100090

Product Description

Pneumatic Solenoid Valve Advantages

Airtac solenoid valve

1. Ultra-Compact Design Space-saving footprint ideal for applications with limited installation space (e.g., compact machinery, medical devices, and robotics).

2. Robust Construction Durable aluminum alloy body with stainless steel core for corrosion resistance and long-term reliability. IP65 protection against dust, water jets, and industrial contaminants.

3. Versatile Compatibility Wide voltage options: 12V DC, 24V DC, 110V AC, 220V AC (customizable upon request). Multiple port sizes: M5, G1/8, or NPT threads to fit diverse pneumatic/hydraulic systems.

4. Easy Integration & Maintenance Standardized mounting holes for quick replacement and compatibility with existing setups. Manual override function for easy testing and troubleshooting without disassembly.

5. Cost-Effective Performance 10+ million cycle lifespan reduces downtime and replacement frequency. Interchangeable with major brand equivalents (e.g., Airtac Serie), offering a budget-friendly alternative.

Pneumatic Solenoid Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	4V110-M5 4V120-M5	4V130C-M5 4V130E-M5 4V130P-M5	4V110-06 4V120-06	4V130C-06 4V130E-06 4V130P-06
Fluid	Air (to be filtered by 40μm filter element)
Acting	Internal pilot or external pilot
Port size [Note1]	In=Out=M5		In=Out=1/8''
Orifice size (Cv) [Note4]	4V110-06,4V120-06:10.2mm²(Cv=0.6) 4V130C-06:8.6mm²(Cv=0.51)
Valve type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70℃
Lubrication [Note2]	Not required
Max.frequency [Note3]	5 cycle/sec	3cycle/sec	5 cycle/sec	3cycle/sec
Weight(g)	4V110-M5: 120 4V120-M5: 175	200	4V110-06: 120 4V120-06: 175	200

[Note1]PT thread, G thread and NPT thread are available.

[Note2]Once lubricated air is used,continue with same medium to optimise valve life span.Lubricants like ISOVG32or equivalent are recommended.

[Note3]The maximum actuation frequency is in the no-load state.

[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data.

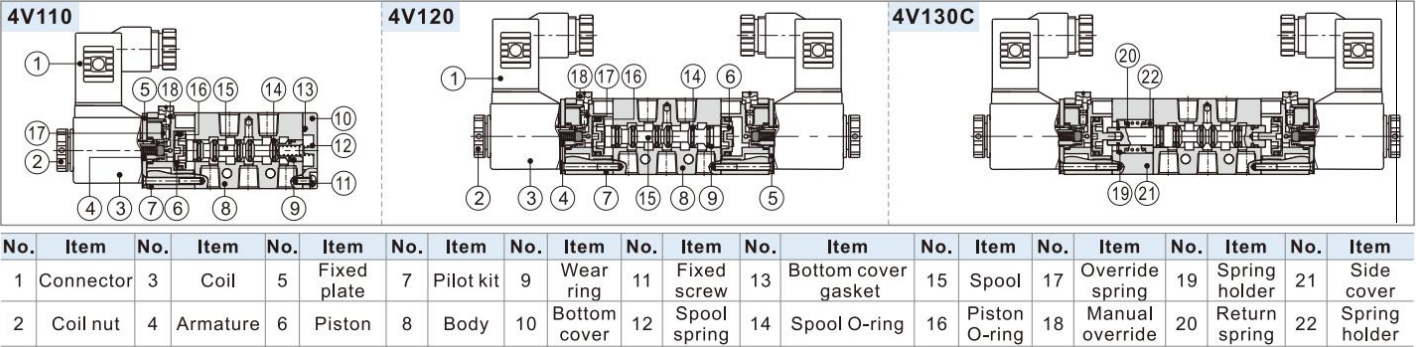

STRUCTURE

Pneumatic Solenoid Valve

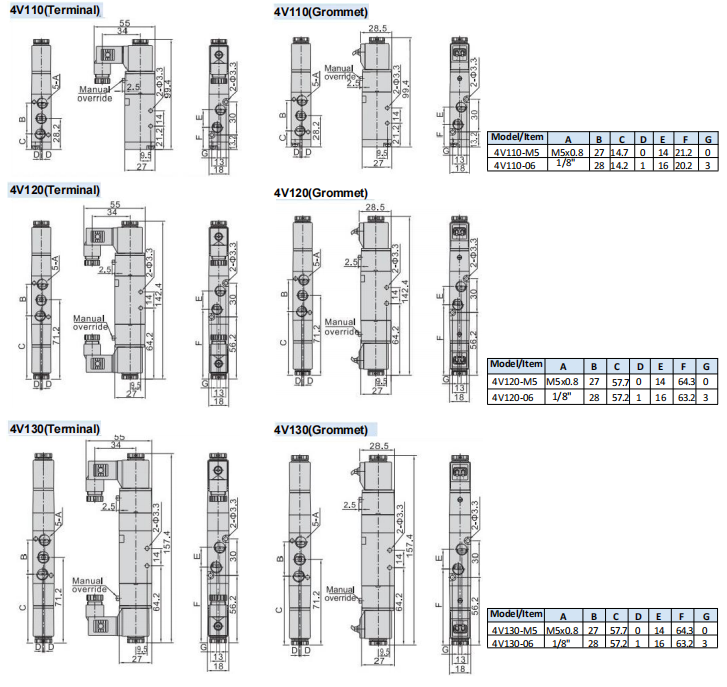

DIMENSION(MM)

Specification Download

Solenoid Valve 4V100 Detailed page.png

Production Process

Air source treatment supplier

Packing∇ivery
