High Performance 5/2 Way Pneumatic Solenoid Valve with PT1/4 Port for Industrial Automation

High Performance 4V200 Series 5/2 Way Pneumatic Solenoid Valve with PT1/4 Port for Industrial Automation

High Performance 5/2 Way Pneumatic Solenoid Valve with PT1/4 Port for Industrial Automation


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic Solenoid Valve 4V200 Serie is a range of pilot-operated pneumatic solenoid valves available in 5/2-way (2-position 5-port) and 5/3-way (3-position 5-port) configurations. Built with a sliding column structure, they ensure minimal friction and stable operation, even under fluctuating pressure conditions.

Model:
4V210
Brand:
WAALPC
Code:
8481202090

Product Description

Pneumatic Solenoid Valve Advantages

Pneumatic Solenoid Valve

1. Reliable Performance in Harsh Environments

IP65 Protection: Dust-tight and water-resistant, ideal for wet, dirty, or high-dust industrial environments.

Wide Operating Range:

Working Pressure: 0.15–0.8 MPa (2.17–11.6 psi)

Ambient Temperature:-20–70°C

Medium: Filtered air (40μm or finer)

Long Service Life: Over 10 million cycles with minimal wear, reducing downtime and replacement costs.

2. Precision Control & Rapid Response

0.05s Ultra-Fast Response: Instantaneous directional switching for high-speed automation processes.

Pilot Options: Choose between internal pilot (for systems with ≥0.15MPa starting pressure) or external pilot (for low-pressure applications) to match your setup.

5/3-Way Memory Function: Maintains valve position during power outages for safer, more stable operations.

3. Energy-Efficient & Low Maintenance

Low Power Consumption:

DC: 3.0W (12V/24V)

AC: 4.5VA (24V/110V/220V)

Lubrication-Free Design: Eliminates oil-related maintenance, reducing contamination risks in food, medical, or cleanroom applications.

Easy Installation: Compact design with DIN socket or lead wire electrical connections and standard port sizes for quick integration.

4. Versatile Configuration for Diverse Needs

Port Sizes: PT1/5, PT1/8 (models vary)

Voltage Options: Wide range of AC/DC voltages to fit global industrial standards.

Mounting Flexibility: Manifold-compatible design for space-saving multi-valve systems in complex setups.

Pneumatic Solenoid Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	4V210-06 4V220-06	4V230C-06 4V230E-06 4V230P-06	4V210-08 4V220-08	4V230C-08 4V230E-08 4V230P-08
Fluid	Air (to be filtered by 40μm filter element)
Acting	Internal pilot or external pilot
Port size [Note1]	In=Out=Exhaust=1/8''		In=Out=1/4''Exhaust=1/8''
Orifice size (Cv) [Note4]	4V210-08,4V220-08:17.0mm²(Cv=1.0) 4V230C-08:13.6mm²(Cv=0.8)
Valve type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70℃
Material of body	Aluminum alloy
Lubrication [Note2]	Not required
Max.frequency [Note3]	5 cycle/sec	3cycle/sec	5 cycle/sec	3cycle/sec
Weight(g)	4V210-06: 220 4V220-06: 320	360	4V210-08: 220 4V220-08: 320	360

[Note1]PT thread, G thread and NPT thread are available.

[Note2]Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISOVG32 or equivalent are recommended.

[Note3]The maximum actuation frequency is in the no-load state.

[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data.

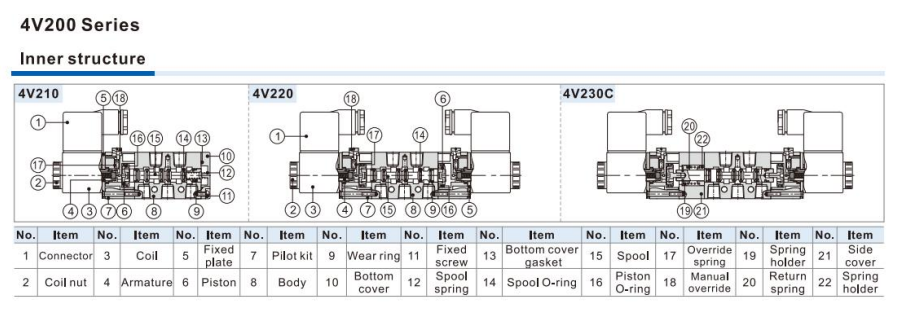

STRUCTURE

Pneumatic Solenoid Valve

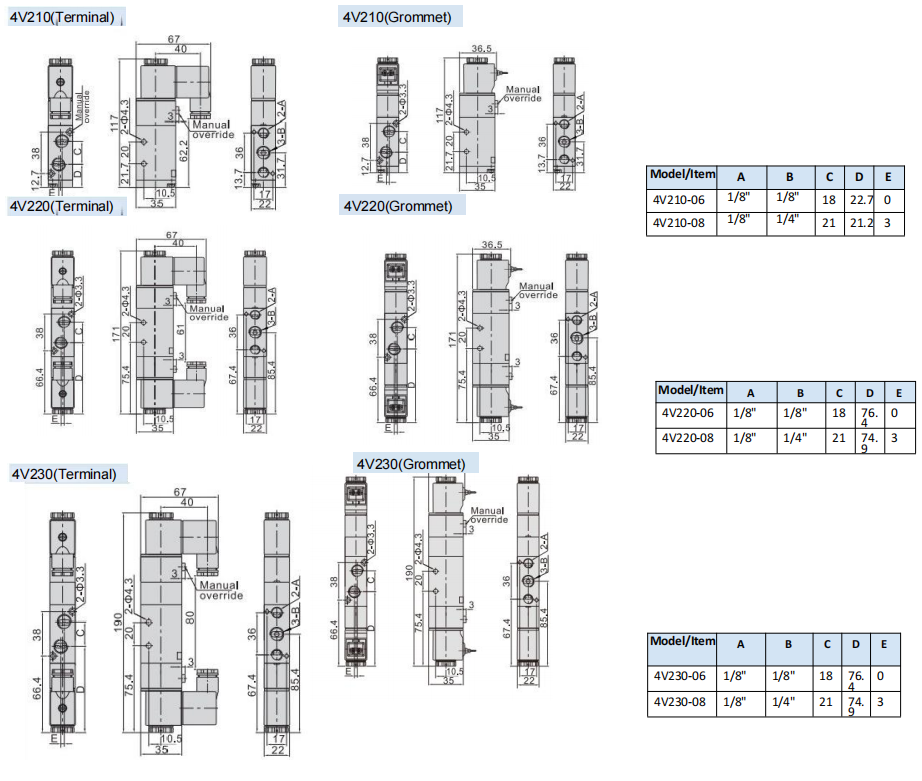

DIMENSION(MM)

Pneumatic Solenoid Valve

Specification Download

Solenoid Valve 4V200 Detailed page.png
