In industrial production, compressed air is often described as the fourth utility, alongside electricity, water, and gas. Yet unlike the others, compressed air systems are frequently designed with limited long-term planning. Many systems grow organically as new machines are added, resulting in instability, pressure fluctuations, and unpredictable performance. A stable and reliable compressed air system is not the result of oversized equipment but of thoughtful system design.
Designing stability into a compressed air system ensures consistent machine operation, protects pneumatic components, and reduces both energy waste and maintenance issues. Reliability is not achieved through redundancy alone but through balance across generation, storage, treatment, and distribution.
System stability refers to the ability of the compressed air network to deliver consistent pressure, flow, and air quality under varying operating conditions. This includes changes in demand caused by machine cycling, shift transitions, or production expansion.
An unstable system often shows symptoms such as pressure drops during peak demand, excessive compressor cycling, moisture carryover, or inconsistent actuator behavior. These issues reduce productivity and shorten component life.
A stable system, by contrast, absorbs demand fluctuations smoothly and maintains predictable operating conditions across all points of use.
The foundation of a stable compressed air system is a clear understanding of demand. Many systems are designed based on estimated or nameplate consumption rather than actual operating conditions. This often leads to poor sizing decisions and long-term instability.
Demand analysis should consider both average consumption and peak demand. Intermittent high-flow applications can destabilize systems if not properly managed. Measuring actual air usage over time provides valuable insight into system behavior.
Grouping equipment by demand profile also helps. Machines with similar consumption patterns can be supplied through dedicated branches, reducing pressure interactions across the system.
Compressors are the heart of any compressed air system, but stability depends on how they are selected and configured rather than simply their capacity. Oversized compressors tend to cycle inefficiently, while undersized units struggle to maintain pressure.
Using multiple compressors staged according to demand improves stability. Load and unload strategies or variable speed drives allow output to match consumption more closely, reducing pressure fluctuations.
Redundancy should be designed intelligently. Backup compressors should integrate seamlessly into the control strategy rather than operating as isolated units.
Air receivers are often undervalued, yet they play a crucial role in system stability. Properly sized storage tanks buffer short-term demand spikes and smooth pressure variations.
Storage also improves compressor efficiency by reducing frequent cycling. In systems with variable demand, strategically placed secondary receivers near high-consumption equipment can significantly improve performance.
Air storage should be considered an active system component rather than a passive accessory.
Air treatment directly affects both stability and reliability. Moisture, oil, and contaminants introduce variability into pneumatic performance and accelerate wear.
Primary air treatment should be installed downstream of compression and storage to ensure consistent air quality entering the distribution network. Additional point-of-use treatment may be necessary for sensitive applications.
Improper placement of dryers or filters often leads to uneven air quality and pressure drop, undermining system stability.
Distribution design determines how effectively compressed air reaches points of use. Poorly designed networks amplify instability caused by demand fluctuations.
Looped distribution systems are preferred in most industrial facilities. They provide multiple flow paths, reducing pressure drop and balancing supply across the network. Dead-end systems are simpler but more prone to pressure variation.
Pipe diameter selection is equally important. Undersized pipes restrict flow and magnify pressure changes. Proper sizing ensures stable delivery even during peak demand.
Uniform system pressure is rarely optimal. Different applications often require different pressure levels. Pressure zoning allows each area or machine to operate at its required pressure without affecting the rest of the system.

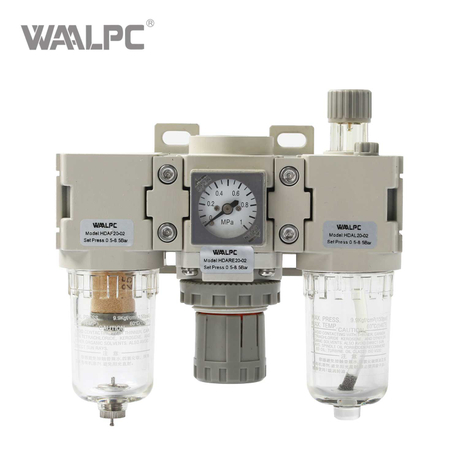

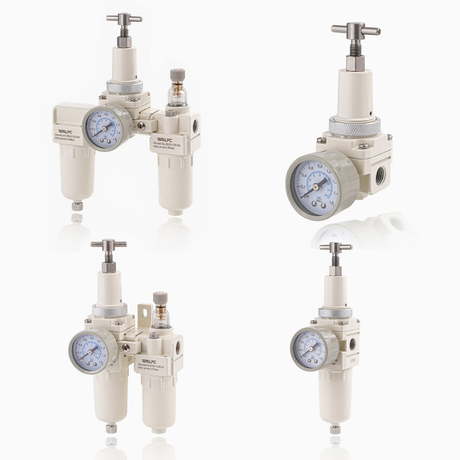

Local regulators provide fine control and isolate pressure fluctuations. This improves both stability and energy efficiency.
Over-reliance on a single central regulator often results in unstable downstream pressure, particularly in large facilities.
Moisture is a major destabilizing factor in compressed air systems. Temperature changes, pressure drops, and inadequate drying all contribute to condensation.
Stable systems manage moisture proactively through appropriate drying technology and proper drainage. Sloped piping and correctly positioned drains prevent water accumulation.
Ignoring moisture control leads to corrosion, valve sticking, and inconsistent performance.
Design Aspect | Unstable System | Stable System |
Demand analysis | Estimated | Measured |
Compressor control | On-off cycling | Staged or variable |
Air storage | Minimal | Properly sized |
Distribution layout | Dead-end | Loop system |
Pressure control | Central only | Zoned regulation |
This comparison illustrates how design decisions directly influence system stability.
Reliability is achieved by preventing problems rather than reacting to them. Stable compressed air systems reduce stress on components, extend service life, and lower maintenance frequency.
Designing for accessibility also improves reliability. Components that are easy to inspect and service are more likely to receive proper maintenance.
Standardized components and modular layouts further support long-term reliability.
OEMs benefit from stable compressed air systems because machine performance becomes more predictable across different installations. Factory operators benefit from reduced downtime and consistent product quality.
Stability also supports automation and digital monitoring initiatives by providing a consistent baseline for performance analysis.
A stable system delivers benefits throughout its lifecycle. Energy efficiency improves as pressure fluctuations are minimized. Maintenance costs decrease as components operate within optimal conditions. Production reliability increases, supporting higher output and better quality control.
These benefits accumulate over time, making stability a strategic investment rather than a technical detail.
Designing a stable and reliable compressed air system requires a holistic approach. Accurate demand analysis, intelligent compressor configuration, proper air storage, effective treatment, and well-planned distribution all contribute to system performance.
Stability is not achieved by oversizing or redundancy alone but by aligning system design with actual operating conditions and future requirements.
