In pneumatic automation, the solenoid valve is the critical link between electrical control signals and pneumatic actuation. It receives commands from a PLC or controller and directs compressed air to cylinders, actuators, and other pneumatic devices. The reliability, response speed, and flow capacity of the solenoid valve directly determine the performance of the entire system.
The WAALPC MVSC Series is a comprehensive family of solenoid valves designed for industrial pneumatic control. With body widths ranging from 180 to 600, valve configurations covering 3/2-way, 5/2-way, and 5/3-way, single and double coil options, and multiple center position functions, the MVSC Series provides a flexible, high-performance solution for virtually any pneumatic directional control requirement.
This guide covers the MVSC Series in detail — ordering code, technical specifications, working principles, flow characteristics, key features, application scenarios, installation, and selection criteria.
The MVSC Series is a family of electromagnetic directional control valves designed for compressed air systems. These valves control the direction of airflow to pneumatic actuators, enabling functions such as extending/retracting cylinders, switching vacuum lines, and controlling grippers.
Code | Valve Type | Description | Best For |
|---|---|---|---|
3/2-way, single coil | 3-port, 2-position, single solenoid | Single-acting cylinders, on/off control | |
5/2-way, single coil | 5-port, 2-position, single solenoid | Double-acting cylinders with spring return | |
4E2 | 5/2-way, double coil | 5-port, 2-position, double solenoid | Double-acting cylinders with memory function |
4E2 C.P.R | 5/3-way, double coil | 5-port, 3-position, double solenoid | Applications requiring mid-position stop |
The MVSC Series ordering code provides comprehensive information about the valve configuration.
MVSC - 220 - 4 - E2 - C - NC - [Port Size]
Position | Symbol | Description | Options |
|---|---|---|---|
① | MVSC | Series designation | MVSC |
② | Body Width | Valve body width series | 180, 220, 260, 300, 460, 600 |
③ | Valve Type | Number of ports/positions | 3 = Three Way (3/2), 4 = Four Way (5/2 or 5/3) |
④ | Coil Type | Solenoid configuration | E1 = Single Coil, E2 = Double Coil |
⑤ | Center Position | Middle position function (for 5/3 only) | C = Middle Position Close, P = Middle Position Ventilate, R = Middle Position Exhaust |
⑥ | Function | Normal state | NC = Normally Closed, NO = Normally Open |
⑦ | Port Size | Thread size | Blank = G1/4, 6A = G1/8 |
Model | Configuration |
|---|---|
MVSC-220-3E1-NC | 3/2-way, single coil, normally closed, G1/4 |

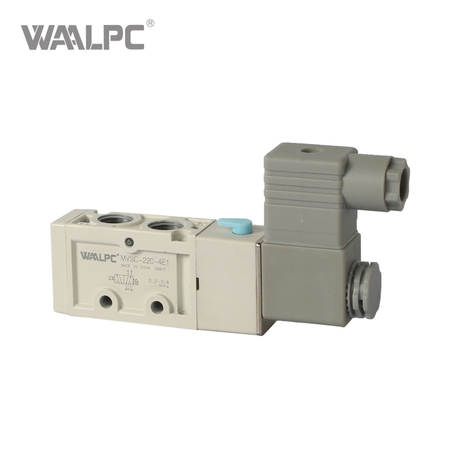

MVSC-220-4E1-NC | 5/2-way, single coil, normally closed, G1/4 |
MVSC-220-4E2-NC | 5/2-way, double coil, normally closed, G1/4 |
MVSC-220-4E2C-NC | 5/3-way, double coil, closed center, G1/4 |
MVSC-220-4E2P-NC | 5/3-way, double coil, pressure center, G1/4 |
MVSC-220-4E2R-NC | 5/3-way, double coil, exhaust center, G1/4 |
Body Width | Flow Capacity | Recommended Application |
|---|---|---|
180 | Compact | Small cylinders, space-constrained |
220 | Standard | General industrial automation |
260 | Medium | Medium-duty cylinders |
High | Large cylinders, high-flow | |
460 | Very High | Heavy-duty industrial |
600 | Maximum | High-volume, large actuators |
Parameter | Specification |
|---|---|
Model Series | MVSC |
Valve Types | 3/2-way (3E1), 5/2-way (4E1/4E2), 5/3-way (4E2 C.P.R) |
Port Size | G1/8, G1/4 |
Medium | Air |
Pressure Range | 0.2–0.8 MPa (3/2 & 5/2); 0.3–0.8 MPa (5/3) |
Proof Pressure | 1.0 MPa |
Effective Orifice | 18mm² (3E1/4E1/4E2); 16mm² (4E2 C.P.R) |
Response Time | 30ms (3E1/4E1/4E2); 40ms (4E2 C.P.R) |
Ambient Temperature | –5°C to +50°C (no freezing) |
Insulation Class | F Class |
Parameter | Specification |
|---|---|
Voltage Options | AC110V, AC220V, AC24V (50/60Hz); DC24V, DC12V |
Power Consumption (AC) | 4.8/4.4VA, 6/4.9VA, 6.7/5.4VA |
Power Consumption (DC) | 2W, 2.5W |
Available Voltage Range | ±10% |
Insulation Class | F Class |
The MVSC-220 series flow diagram shows the relationship between secondary pressure (MPa) and flow rate (Nl/min) . The curves demonstrate:
At lower flow rates, secondary pressure remains close to the primary pressure
As flow rate increases, secondary pressure drops proportionally
The valve maintains stable regulation across a wide flow range
Different primary pressure lines (0.1–0.8 MPa) are clearly differentiated
This data allows engineers to verify that the valve's flow capacity meets system requirements before installation.
A 3/2-way valve has 3 ports and 2 positions:
Port | Function |
|---|---|
1 (P) | Pressure inlet |
2 (A) | Working port (to actuator) |
3 (R) | Exhaust port |
Operation:
De-energized (NC): P blocked; A connected to R (actuator exhausts)
Energized: P connected to A; R blocked (actuator pressurizes)
A 5/2-way valve has 5 ports and 2 positions:
Port | Function |
|---|---|
1 (P) | Pressure inlet |
2 (A) | Working port 1 |
3 (R) | Exhaust port 1 |
4 (B) | Working port 2 |
5 (R2) | Exhaust port 2 |
Operation:
De-energized: P→A, B→R2 (cylinder extends or retracts depending on connection)
Energized: P→B, A→R (cylinder moves opposite direction)
Spring return: Returns to default position when power is removed
Same port configuration as 4E1, but with two solenoids:
Coil 1 energized: P→A, B→R2
Coil 2 energized: P→B, A→R
Memory function: Valve retains last position when power is removed
A 5/3-way valve has 5 ports and 3 positions. The center position can be configured in three ways:
Center Type | Code | Function | Application |
|---|---|---|---|
Closed Center | C | All ports blocked | Holding actuator mid-stroke |
Pressure Center | P | All ports pressurized | Holding with pressure on both sides |
Exhaust Center | R | All ports exhausted | Releasing actuator, free movement |
Operation:
Coil 1 energized: P→A, B→R
Both coils de-energized (center): Depends on C/P/R configuration
Coil 2 energized: P→B, A→R
The MVSC Series is available in six body widths (180, 220, 260, 300, 460, 600), allowing precise matching of flow capacity to application requirements. This eliminates the need to over-specify or under-specify, optimizing both performance and cost.
From simple 3/2-way on/off control to sophisticated 5/3-way with three center position options, the MVSC Series covers virtually every pneumatic directional control requirement.
30ms for 3/2 and 5/2 configurations
40ms for 5/3 configurations
This fast response enables high-cycle automation and precise actuator control.
The 18mm² effective orifice (16mm² for 5/3) provides generous flow for rapid cylinder actuation and efficient system operation.
Available in AC110V, AC220V, AC24V, DC24V, and DC12V — compatible with power supplies worldwide.
The F Class insulation (155°C) ensures reliable operation even under elevated temperature conditions, extending valve service life.
The combination of body sizes, valve types, and center position options makes the MVSC Series suitable for virtually any industrial pneumatic application.
MVSC Series solenoid valves are used across a wide range of industries:
Assembly lines, packaging machinery, and material handling
Robotic end-of-arm tooling and gripper control
Pick-and-place systems requiring fast, precise actuation
Machine tools: clamping, tool changing, and chip removal
Textile machinery: thread tensioning, fabric handling
Printing equipment: paper feed, registration, and roller control
Food and beverage: packaging, filling, and labeling
Pharmaceutical: cleanroom automation and filling lines
Chemical: reliable control in demanding environments
Assembly line pneumatic tools and fixtures
Testing and inspection equipment
Paint lines and material handling
5/3 closed center: Holding heavy loads mid-stroke
5/3 exhaust center: Safe release of actuators during emergency stop
5/3 pressure center: Maintaining pressure on both sides of an actuator
Verify the model: Confirm valve type, voltage, port size, and function match your requirements
Check the air supply: Ensure air is filtered (40μm or better) and within pressure range
Inspect the valve: Check for shipping damage
Verify electrical supply: Confirm voltage is within ±10% of coil rating
Mount the valve: Install using the body mounting holes or on a manifold
Connect piping: Follow port markings (P = inlet, A/B = working ports, R/R2 = exhaust)
Apply thread sealant: Use PTFE tape on male threads only, leaving the first thread bare
Tighten connections: Do not overtighten
Match voltage: Confirm coil voltage matches supply
Connect wiring: Follow the wiring diagram for the connector type
Check grounding: Ensure proper grounding for safety
Verify protection: Use appropriate fusing or circuit protection
Do | Do Not |
|---|---|
Use filtered air (40μm or better) | Use unfiltered or contaminated air |
Match voltage to coil specification | Apply incorrect voltage |
Provide clearance for maintenance | Install in confined spaces without access |
Use proper thread sealant | Allow sealant debris to enter the valve |
Depressurize before maintenance | Disassemble under pressure |
Frequency | Task |
|---|---|
Daily | Visual inspection for air leaks; check electrical connections |
Monthly | Verify valve operation; check for unusual noise or heat |
Quarterly | Inspect for signs of wear or contamination |
Annually | Replace seals if showing signs of aging |
Symptom | Possible Cause | Solution |
|---|---|---|
Valve does not shift | No power; incorrect voltage; coil burned out | Check power supply; verify voltage; replace coil |
Air leakage | Damaged seals; loose connections | Replace seals; tighten connections |
Slow response | Low voltage; contaminated air; low pilot pressure | Check power supply; clean/replace filter |
Coil overheats | Incorrect voltage; continuous duty exceeded | Verify voltage; check duty cycle |
Valve chatters | Low voltage; insufficient current | Check power supply |
Internal leakage | Worn spool or seals | Replace valve or service kit |
Manual override not working | Mechanical obstruction | Clean or replace override mechanism |
Air quality: Clean, dry, filtered air extends seal and spool life
Operating frequency: Higher cycling rates accelerate wear
Ambient conditions: Temperature extremes and contaminants reduce life
Power supply: Stable voltage prevents coil damage
Factor | Consideration |
|---|---|
Valve type | 3/2 (3E1), 5/2 single (4E1), 5/2 double (4E2), or 5/3 (4E2 C.P.R) |
Center position | C (closed), P (pressure), or R (exhaust) for 5/3 models |
Body width | 180, 220, 260, 300, 460, or 600 — match to flow requirement |
Port size | G1/8 or G1/4 |
Voltage | AC110V, AC220V, AC24V, DC24V, or DC12V |
Function | NC (normally closed) or NO (normally open) |
Operating pressure | Must be within 0.2–0.8 MPa (3/2 & 5/2) or 0.3–0.8 MPa (5/3) |
Application: Controlling a double-acting cylinder in an assembly machine, requiring mid-stroke stop capability, 0.5 MPa operating pressure, G1/4 ports, DC24V control.
Recommended model: MVSC-220-4E2C-NC (5/3-way, double coil, closed center, G1/4, DC24V)
Reasoning:
5/3 closed center allows stopping and holding the cylinder mid-stroke
220 body width provides standard flow capacity
G1/4 ports match system piping
DC24V compatible with PLC output
Requirement | Recommended |
|---|---|
Simple extend/retract with spring return | 3E1 or 4E1 |
Extend/retract with memory, remote control | 4E2 |
Mid-stroke stop with position holding | 4E2C (closed center) |
Mid-stroke stop with pressure release | 4E2R (exhaust center) |
Mid-stroke stop with pressure on both sides | 4E2P (pressure center) |
✅ Six body widths — 180, 220, 260, 300, 460, 600 for precise flow matching
✅ Comprehensive configurations — 3/2, 5/2, and 5/3-way options
✅ Three center positions — Closed (C), Pressure (P), Exhaust (R)
✅ Fast response — 30ms (3/2 & 5/2), 40ms (5/3)
✅ High flow capacity — 18mm² (16mm² for 5/3)
✅ Multiple voltage options — AC and DC available
✅ F Class insulation — Reliable at elevated temperatures
✅ Memory function — Double coil models retain position
✅ Manual override — For easy installation and debugging
✅ Wide pressure range — 0.2–0.8 MPa (3/2 & 5/2), 0.3–0.8 MPa (5/3)
✅ OEM support — Custom configurations available
The WAALPC MVSC Series solenoid valves provide a comprehensive, flexible, and high-performance solution for pneumatic directional control. With body widths from 180 to 600, valve configurations covering 3/2, 5/2, and 5/3-way, three center position options, and fast response times, the MVSC Series meets the demands of virtually any industrial pneumatic application.
Key takeaways:
3E1: 3/2-way single coil, 18mm² orifice, 30ms response
4E1: 5/2-way single coil, 18mm² orifice, 30ms response
4E2: 5/2-way double coil with memory, 18mm² orifice, 30ms response
4E2 C.P.R: 5/3-way double coil with closed/pressure/exhaust center, 16mm² orifice, 40ms response
Body widths: 180, 220, 260, 300, 460, 600
Port sizes: G1/8, G1/4
Pressure range: 0.2–0.8 MPa (3/2 & 5/2), 0.3–0.8 MPa (5/3)
Voltage options: AC110V, AC220V, AC24V, DC24V, DC12V
Applications: Industrial automation, manufacturing, process industries, automotive
By selecting the correct configuration for your application and following proper installation and maintenance procedures, WAALPC MVSC Series solenoid valves will deliver years of reliable, precise control.
For more information about WAALPC MVSC Series solenoid valves or to discuss your specific application requirements, please contact our technical sales team or visit www.waalpc.com.
