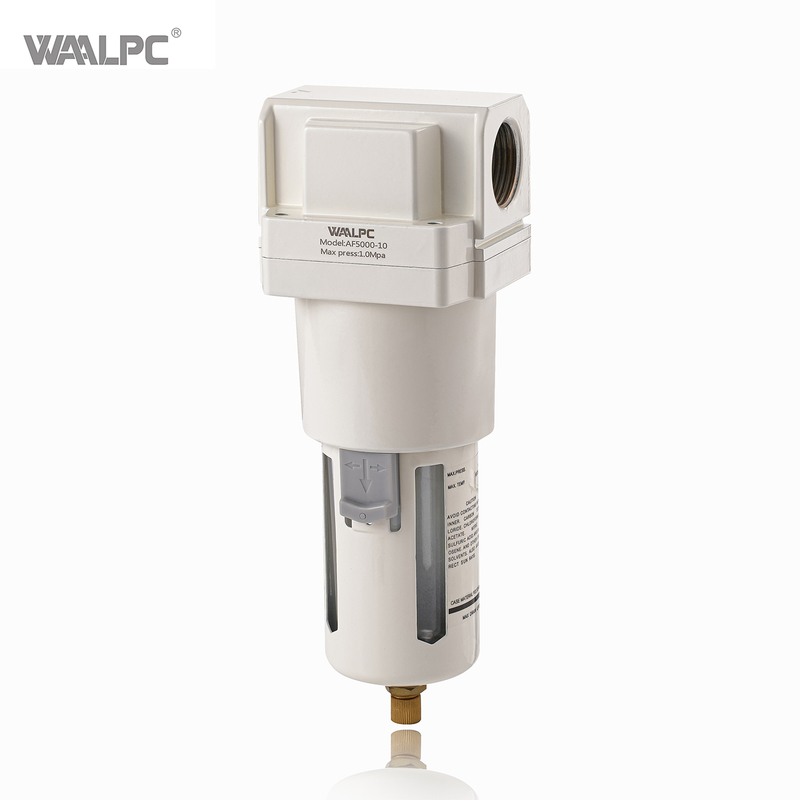

AF5000 white SMC Type 1′′ 3/4''Top Quality Industrial Pneumatic Compressed Pressure Air Filter with RoHS automation equipment Manual drain

Pneumatic Compressed Pressure Air Filter with RoHS Automation Equipment Manual Drain AF5000 White SMC Type 1′′ 3/4''Top Quality Industrial


Color:	Black∨ange White
Availability:

Quantity:



Inquiry Add to Basket

Air Filter:

The Filter removes the Dust, Oil, and Water vapor in the compressed air system and reduces the downstream from the damage, confirming the consistent performance in the complete Pneumatic system.

Model:
AF5000 white
Brand:
WAALPC
Code:
8421999000

Product Description

Product Advantages

SMC 3/4" 1'' AF5000 white Air Filter manufacturer

1. Light and compact structure, easy to install and use.
2. The pressure loss is low and the efficiency of water separating is high.
3. The filter precision includes 5µm and 40µm(optional).
4. Brass filter element: higher efficient filtration and long lifetime than the fiber filter element one.
5. The filter cup is designed to be transparent for observing the volume of water and oil.
6. Removal of particulate matter: Filter out dust, pollen, bacteria, viruses and other particulate matter in the air to reduce harm to the human body.
7. Extend the life of the equipment: Filter out particles in the air, reduce wear and tear on the equipment, and extend the life of the equipment.
8. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
9. Port size optional: Thread G, PT or NPT available, M5*0.8, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Air Filter
Model	AF1000-M5	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10
Port Size (G)	M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover	AF1000-2000（W/O）			AF3000-5000（ W）
Drain Type	Manual drain, auto drain and differential pressure drain (optional)
Grade Of Filtration	5µm , 25µm, 40µm optional
Working Medium	Air
Operating Temperature Range	5-60 ℃
Filter Cup Capacity	10	15	15	20	20	45	45	45	130	130
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight	100g	160g	160g	320g	320g	580g	580g	630g	1080g	1080g

STRUCTURE

AF2000 size

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	L	M	P
AF1000	M5	25	66	7	25	-	-	-	-	-	-	-	26.5
AF2000	1/8-1/4	40	97.5	11	40	17	30	27	22	5.4	40	2.3	40
AF3000	1/4-3/8	53	132.5	14	53	16	41	40	23	6.5	53	2.3	56
AF4000	3/8-1/2	70	168.5	18	70	17	50	54	26	8.5	70	2.3	73
AF4000-06	3/4	75	172.5	20	70	14	50	54	25	8.5	70	2.3	73
AF5000	3/4-1	90	247.5	24	90	23	66.5	66	35	11	90	3.2	90

Specification Download

SMC Series Air Source Treatments-Orange.pdf
