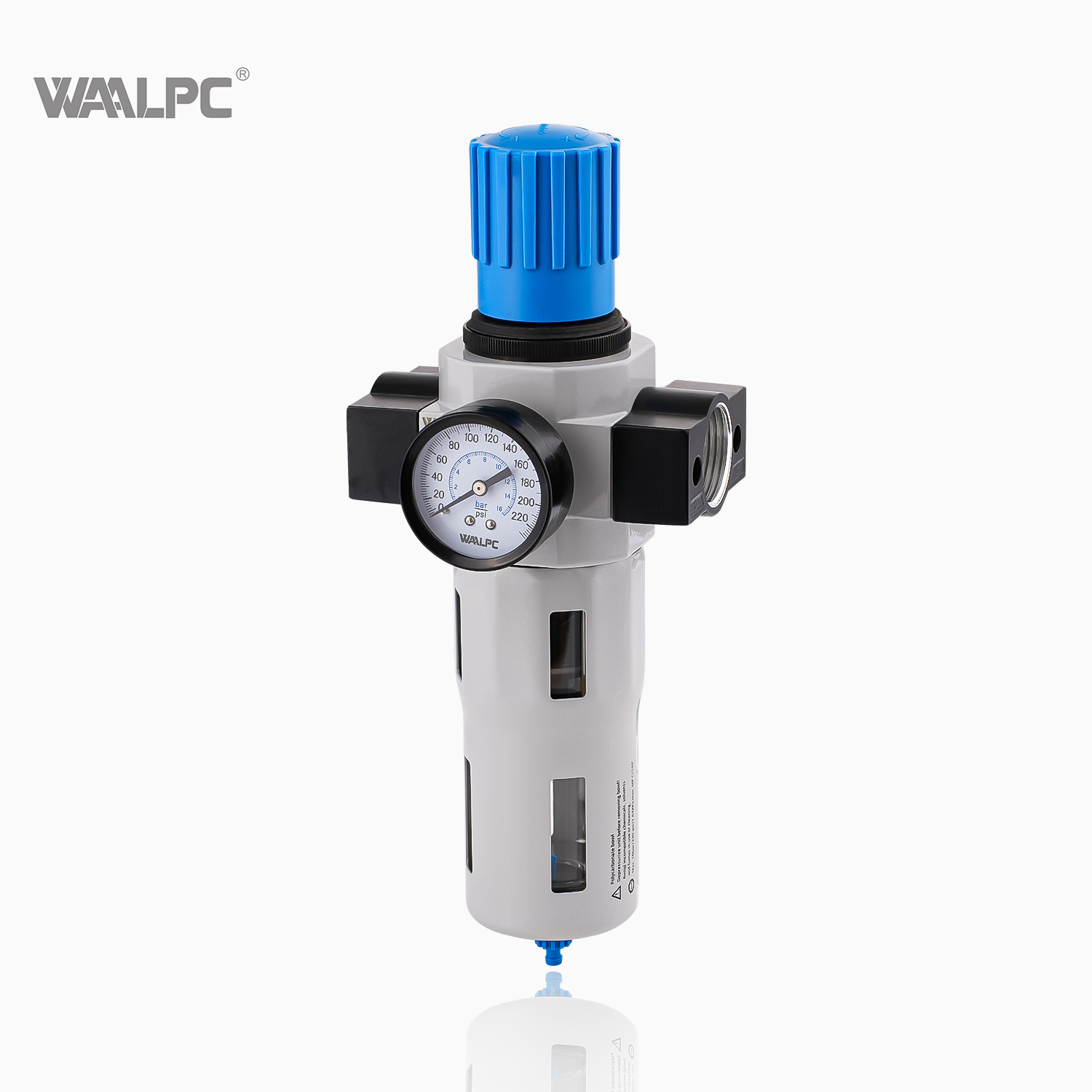

HFR-MAXI Waalpc Air Filter Regulator 1 3/4 Pneumatic Regulator Industrial Automation Air Source Treatment Distributor

FESTO air filter pressure regulator filter combination semi-automatic pneumatic components factory

FESTO air filter pressure regulator filter combination semi-automatic pneumatic components factory


Size:	Mini Middle Max
Availability:

Quantity:



Inquiry Add to Basket

The air treatment device is used to process the air source from the air compressor. It includes three parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting the air source pressure, and a lubricator for oil lubrication.

Model:
HFR-MAXI
Brand:
WAALPC
Code:
8481100090

Product Description

Product Advantages

1. Filter and pressure regulator combine a single unit,and cleans the compressed air of fluid oil,condensation and dirt particles.

2. The air filter with water separate cleans the compressed air of fluid oil, condensation and dirt particles, for special application, the standard 40μm filter element may easily be replaced by a 5μm filter element.

3. The regulator maintain inputting constant operating pressure despite fluctuation in line pressure & the amount of air consumed.

4. Different thread type can be offered according to customers' requirements, e.g.: PT, NPT etc.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Filter & Regulator

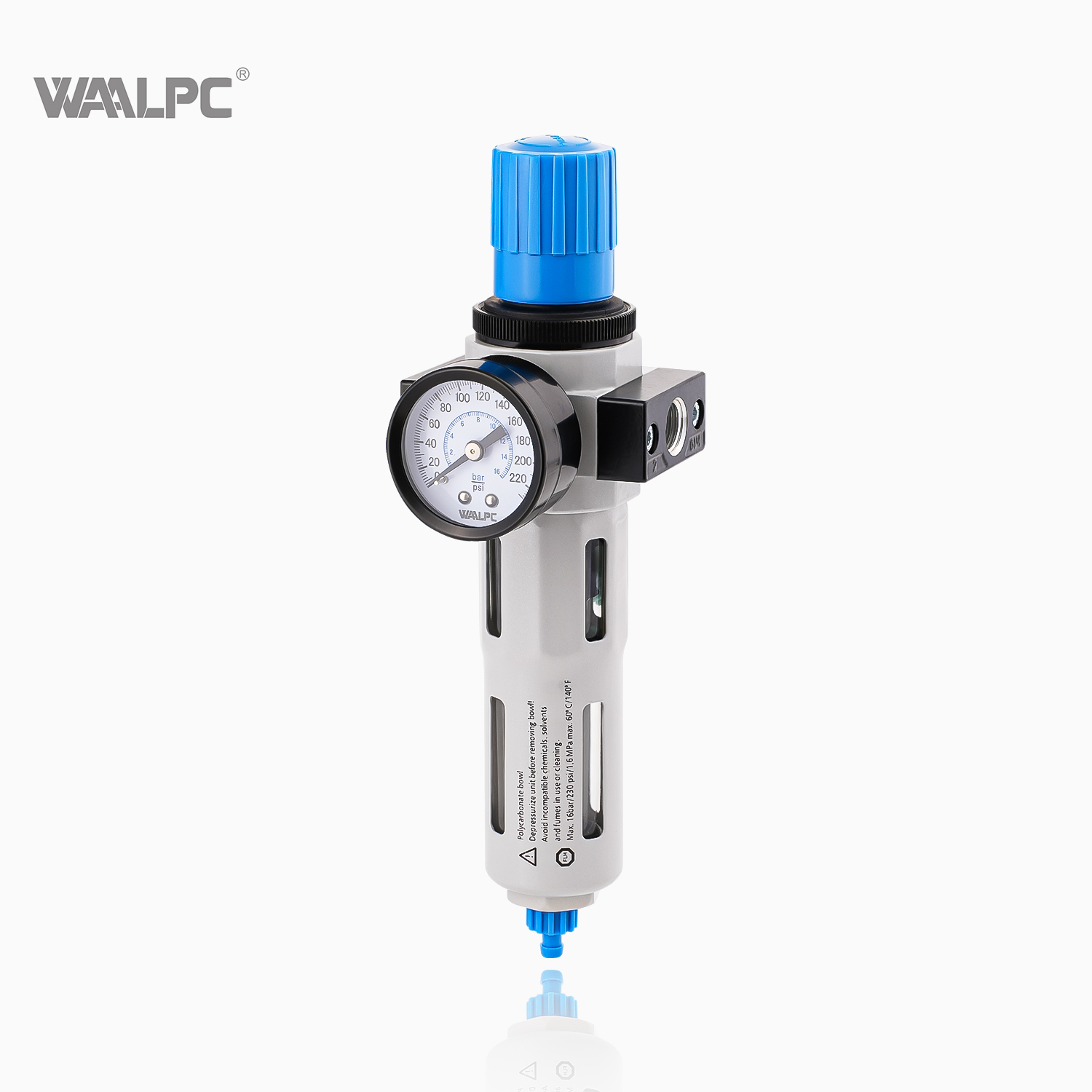

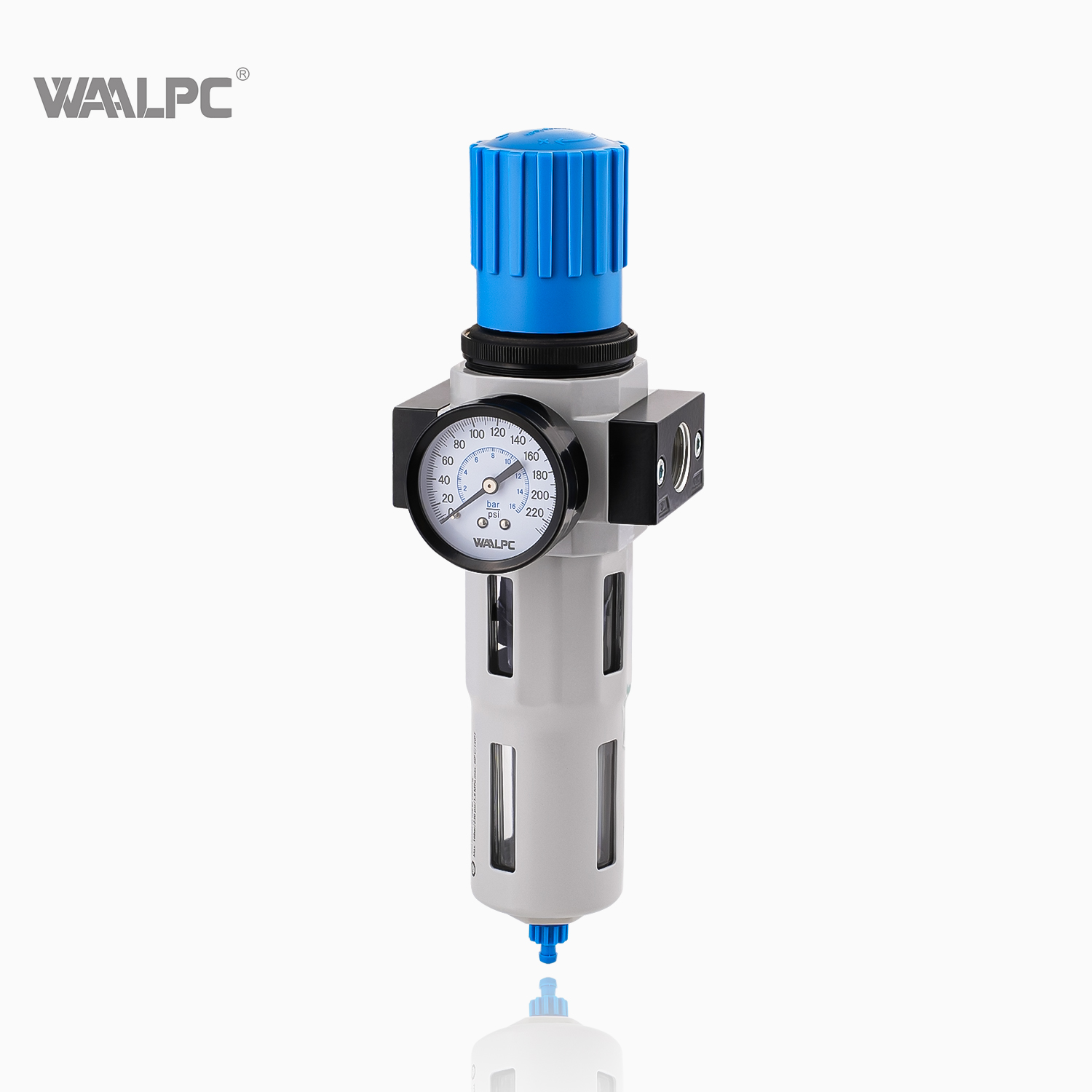

Model	MINI			MIDI				MAXI
	HFR-1/8	HFR-1/4	HFR-3/8	HFR-1/4	HFR-3/8	HFR-1/2	HFR-3/4	HFR-3/4	HFR-1
Port Size (G)	1/8	1/4	3/8	1/4	3/8	1/2	3/4	3/4	1
Rated Flow (L/min)	750	1400	1600	3100	3100	3400	3400	9000	10000
Cup protective cover	With cup protective cover
Drain Type	Manual drain, differential pressure drain, auto drain
Grade of Filtration	5µm, 40µm
Working Medium	Filter compressed air
Structure Features	Sintered filter with moisture clutch; MINI, MIDI: Diaphragm type pressure reducing valve; MAXI: piston type pressure reducing valve; Oil mist automatic variable throttling type.
Installation Type	Pipe installation or foot pedal installation
Operating Pressure	0.5-12bar,0.5-7bar
Input Pressure	Differential pressure drain: 1-16bar, manual drain valve: 1-16bar, auto drain valve: 1.5-12bar
Operating Temperature Range	0-60 ℃
Filter Cup Capacity	22ML			43ML				80ML
Pressure Gauge	Y40-01			Y50-02
Material	Housing: Die cast zinc; Filter cup and oil cup: PC; Metal protective cover: aluminum alloy; Sealing: nitrile rubber; Pressure regulating hand wheel: POM

STRUCTURE

FESTO air filter regulator

Model	E3	E4	E5	E6	E8	E9	F1	F2
HFR-MINI	143	132	40	39	76	95	G1/8,G1/4,G3/8	M39*1.5
HFR-MIDI	193	180	55	47	93	112	G3/8,G1/4,G1/2,G3/4	M52*1.5
HFR-MAXI	247	220	66	53	104	124	G3/4,G1	M52*1.5

Model	F3Φ	F4	F5Φ	F6Φ	L1	L2	L3	H1	H3	H4	H5	H6	H6
HFR-MINI	31	M4	4.5	40	44	35	11	194	69	17.5	20	20	15
HFR-MIDI	50	M5	5.5	52	71	60	22	250	98	24.5	32	32	15
HFR-MAXI	50	M5	5.5	63	71	60	22	252	80	24.5	32,40	32,40	15

Specification Download

H Series.pdf
