Electronics manufacturing is often associated with software, semiconductors, and advanced automation, yet behind every high-precision assembly line lies a carefully engineered pneumatic system. From PCB handling and component placement to testing, packaging, and inspection, pneumatics quietly enable motion that must be fast, repeatable, clean, and extremely precise.
Unlike heavy industries such as automotive or metal processing, electronics assembly lines operate under a very different set of constraints. Components are lightweight but fragile, tolerances are tight, contamination risks are high, and production cycles are relentless. In this context, pneumatic system design is less about raw force and more about control, stability, and consistency.
This article examines the key pneumatic system design considerations for high-precision electronics assembly lines. It is written for OEM equipment designers, automation engineers, manufacturing managers, and industrial buyers who need pneumatic solutions that support accuracy without introducing risk.
Despite the rise of electric actuators and servo systems, pneumatics continue to play a central role in electronics manufacturing. Their value lies not in competing with precision motion platforms, but in complementing them.
Pneumatics are widely used for tasks such as:
Pick-and-place assistance and component transfer
PCB clamping and positioning
Conveyor stops and indexing mechanisms
Test fixture actuation
Packaging and palletizing operations
These tasks benefit from pneumatics because compressed air systems provide fast response, inherent compliance, and fail-safe behavior. When properly designed, pneumatic motion can be both gentle and repeatable — a critical requirement when handling sensitive electronic components.
Designing pneumatic systems for electronics assembly begins with understanding the challenges that distinguish this industry from other manufacturing sectors.
One major factor is component sensitivity. Excessive force, vibration, or sudden motion can damage microelectronic parts, solder joints, or connectors. Pneumatic actuators must therefore deliver controlled, predictable motion rather than abrupt starts and stops.
Cleanliness is another defining requirement. Electronics assembly environments demand low particulate levels to prevent defects and contamination. Any pneumatic system that introduces oil mist, moisture, or debris into the workspace becomes a liability.
Additionally, electronics production lines often operate at high speed with short cycle times. Pneumatic systems must keep pace without sacrificing accuracy, which places strict demands on pressure regulation, valve response, and system stability.
High-precision electronics assembly lines typically rely on decentralized pneumatic architectures. Instead of routing air long distances from centralized valve banks, control elements are placed close to the point of actuation.
This approach minimizes pressure drop, reduces response delay, and improves repeatability. Shorter air paths also reduce the risk of contamination accumulation and simplify troubleshooting.
Another architectural consideration is functional separation. Pneumatic circuits responsible for delicate positioning tasks are often isolated from those driving higher-force auxiliary functions. This separation prevents pressure fluctuations or contamination in one area from affecting sensitive processes elsewhere on the line.
Actuator selection is one of the most critical decisions in electronics assembly pneumatics. Unlike heavy-duty applications, electronics manufacturing rarely requires large forces. Instead, it demands smooth motion, fine control, and long service life.
Compact pneumatic cylinders with low friction seals are commonly used for positioning and clamping. Their design must support consistent motion over millions of cycles without seal degradation that could introduce variability.
For applications involving delicate components, cylinders with built-in cushioning or external flow control help prevent sudden impacts at end-of-stroke. This controlled deceleration protects both components and fixtures.
Mounting accuracy also matters. Misalignment introduces side loads that reduce actuator life and compromise precision. Careful integration of mounting hardware ensures that cylinders operate within their intended mechanical limits.

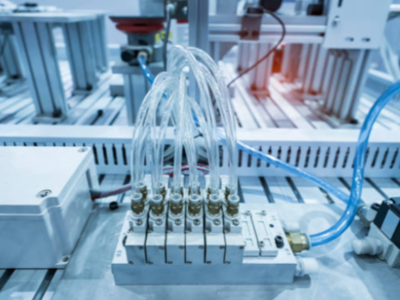

Directional control valves are responsible for timing, sequencing, and synchronization across electronics assembly processes. In precision environments, valve performance directly affects product quality.
Fast response time is essential, but so is repeatability. Inconsistent valve switching leads to variation in actuator timing and position, which can cascade into alignment errors or process defects.
Low internal leakage is another important consideration. Leakage causes pressure instability, particularly in low-force applications where small variations have a proportionally larger impact.
Electronics assembly equipment increasingly integrates pneumatic valves with digital control systems. Valves compatible with modern automation platforms enable better diagnostics, faster commissioning, and more reliable long-term operation.
In electronics manufacturing, air quality is not a performance enhancer — it is a baseline requirement. Poor air preparation introduces risks that extend beyond pneumatic system reliability to product yield and brand reputation.
Compressed air must be clean, dry, and stable. Moisture can corrode internal components and cause inconsistent actuation. Oil carryover can contaminate sensitive assemblies or attract airborne particles.
High-quality filtration removes particulates before they reach valves and actuators. Stable pressure regulation ensures that motion remains predictable even as upstream supply conditions change.
Many electronics manufacturers specify oil-free or near oil-free pneumatic operation. In such cases, lubricators are either eliminated or carefully controlled to avoid introducing contaminants into the environment.
FRL units play a central role in delivering consistent air quality to electronics assembly equipment. Their design and placement significantly influence system stability.
Filters must be fine enough to protect sensitive components without creating excessive pressure drop. Regulators should maintain precise pressure control, particularly for low-force applications where small deviations matter.
In cleanroom or semi-cleanroom environments, FRL units must also meet material and sealing requirements that minimize particle generation. Compact designs help conserve space and simplify integration into densely packed equipment frames.
Strategic placement of FRL units near critical machine sections improves local air quality control and simplifies maintenance without disrupting production.
In precision pneumatic systems, tubing and fittings have a disproportionate impact on performance. Long or oversized tubing increases air volume, reducing responsiveness and control accuracy.
Short, appropriately sized air lines improve system dynamics and reduce the delay between valve actuation and cylinder movement. Secure fittings prevent micro-leaks that can destabilize pressure in sensitive circuits.
Material choice is equally important. Tubing must resist kinking, abrasion, and chemical exposure while maintaining dimensional stability over time. In electronics environments, low outgassing materials are often preferred.
Thoughtful routing of air lines also supports cleanliness by reducing dust accumulation and simplifying cleaning procedures.
Maintenance in electronics assembly must be preventive rather than reactive. Even minor pneumatic issues can lead to scrap, rework, or line stoppages.
Regular inspection of air quality indicators, pressure stability, and actuator response helps detect problems early. Filters should be serviced before pressure drop affects performance, and regulators should be checked for drift.
Standardization across machines simplifies maintenance planning. When similar pneumatic components are used throughout a facility, spare parts inventory and technician training become more efficient.
Documentation and clear labeling further support fast, accurate maintenance interventions without disrupting sensitive production processes.
Electronics manufacturing environments evolve rapidly. Product changes, capacity expansions, and process upgrades are common. Pneumatic system design must accommodate this evolution without extensive rework.
Modular pneumatic architectures support scalability by allowing sections to be added or modified independently. Consistent air preparation standards ensure that new equipment integrates smoothly with existing systems.
Long-term stability depends on selecting components with proven durability and supplier support. In precision manufacturing, component obsolescence can be as disruptive as component failure.
High-precision electronics assembly lines place unique demands on pneumatic systems. Success depends not on maximum force or complexity, but on control, cleanliness, and consistency.
By carefully considering system architecture, actuator selection, air quality management, and maintenance strategy, manufacturers and OEMs can design pneumatic systems that support precision rather than undermine it.
In an industry where tolerances are tight and downtime is costly, well-engineered pneumatic solutions remain an essential part of reliable, high-quality electronics production.
For manufacturers, OEMs, and system integrators, selecting the right pneumatic components is not just a purchasing decision — it directly affects equipment stability, maintenance workload, and long-term operating costs.
