In industrial automation, manufacturing, and process control, pneumatic and hydraulic systems are two of the most widely used power transmission technologies. While both systems are designed to transmit energy and control motion, they differ significantly in operating principles, performance characteristics, maintenance requirements, and suitable application scenarios.
For engineers, plant managers, maintenance teams, and procurement professionals, understanding these differences is critical. Choosing the wrong system can lead to inefficiency, higher operating costs, safety risks, and premature equipment failure.
This article provides a clear, practical, and application-oriented comparison of pneumatic and hydraulic systems, helping industrial decision-makers select the right solution for their equipment and production environment.

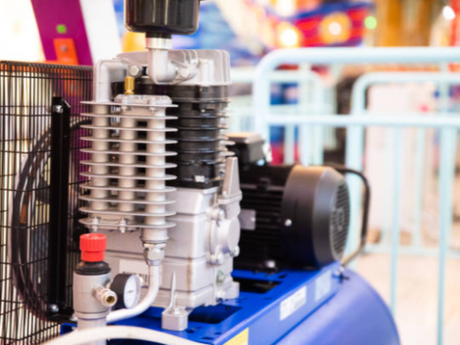

Pneumatic systems use compressed air as the power medium. Air is compressed by an air compressor, stored in a receiver tank, filtered and regulated, and then delivered to actuators such as cylinders or air motors to perform mechanical work.
Key characteristics of pneumatic systems:
Uses air (compressible)
Operates at relatively low pressures (typically 0.4–0.8 MPa)
Air is freely available and exhausts into the environment
Hydraulic systems rely on pressurized liquids, usually hydraulic oil, to transmit power. Because liquids are nearly incompressible, hydraulic systems can generate much higher forces with precise control.
Key characteristics of hydraulic systems:
Uses oil or specialized hydraulic fluids
Operates at high pressures (often 10–35 MPa or higher)
Requires sealed circuits and fluid recovery
One of the most significant differences between pneumatic and hydraulic systems is power density.
Lower force output due to air compressibility
Suitable for light to medium loads
Ideal for fast, repetitive motion
Extremely high force and torque output
Ideal for heavy-duty applications
Stable force even under varying loads
Parameter | Pneumatic System | Hydraulic System |
Typical pressure | 0.4–0.8 MPa | 10–35 MPa |
Force output | Low to medium | Very high |
Load capacity | Light-duty | Heavy-duty |
Motion stability | Moderate | Excellent |
Industrial insight:
If your application involves lifting heavy loads, pressing, clamping, or forming metal, hydraulic systems are usually the only viable choice. For pick-and-place, packaging, or assembly automation, pneumatics are often more efficient.
Compressed air allows for rapid acceleration and deceleration, making pneumatic systems ideal for:
High-speed automation
Short stroke movements
Repetitive cycles
However, air compressibility can cause slight position variation under load.
Hydraulic systems offer:
Smooth, controlled motion
Precise speed regulation
Stable operation under load changes
They are slower than pneumatics but far more consistent.
Precision requirements often determine which system is more suitable.
Pneumatics are less precise due to air compressibility and pressure fluctuations.
Hydraulics excel in applications requiring constant force, accurate positioning, and load holding.
Examples:
Pneumatics: conveyor diverters, sorting arms, simple automation
Hydraulics: injection molding, press brakes, heavy machining centers
Advantages:
Simple piping
Lighter components
Easier expansion and modification
Challenges:
Requires air preparation (filters, regulators, dryers)
Sensitive to air quality issues
Advantages:
Compact high-power designs
Fewer actuators needed for heavy loads
Challenges:
Complex piping
Leak prevention requirements
Oil reservoir, cooling, and filtration systems needed
Regular filter replacement
Moisture removal
Leak detection in air lines
Pros:
Clean medium
Low contamination risk
Minimal environmental impact
Cons:
Energy loss from air leaks
Compressor energy consumption
Oil contamination control
Seal replacement
Temperature management
Pros:
Long service life under heavy loads
High reliability when properly maintained
Cons:
Oil leaks can cause safety hazards
Higher maintenance skill requirements
Cleanliness is a critical factor in industries such as food processing, pharmaceuticals, electronics, and medical manufacturing.
Pneumatic systems are naturally cleaner, as air exhausts into the environment.
Hydraulic systems pose contamination risks if leaks occur.
This is why pneumatic systems dominate:
Clean rooms
Food-grade production lines
Medical device assembly
Safety Aspect | Pneumatic | Hydraulic |
Fire risk | Very low | Moderate |
Leak hazard | Minimal | Oil spill risk |
Overload behavior | Cushioned by air | Rigid force transmission |
Operator safety | High | Requires strict controls |
Pneumatics offer inherent safety advantages, especially in environments with frequent human interaction.
Initial Investment
Pneumatic systems: Lower upfront cost
Hydraulic systems: Higher initial equipment and installation cost
Long-Term Operating Cost
Pneumatics: Higher energy cost from compressed air generation
Hydraulics: Higher maintenance and fluid management cost
Choosing the right system depends on total cost of ownership, not just initial price.
Common Pneumatic Applications
Packaging machines
Assembly automation
Textile machinery
Food processing equipment
Light material handling
Common Hydraulic Applications
Construction machinery
Metal forming presses
Injection molding machines
Heavy industrial lifting systems
Ask these key questions:
How much force is required?
Is precision or speed more important?
What are the cleanliness requirements?
What is the operating environment?
What is the long-term maintenance capability?
In many modern factories, hybrid systems combining pneumatic and hydraulic components are also common.
One major reason pneumatic systems underperform is poor air quality. Contaminants such as moisture, oil, and particles reduce efficiency and shorten component lifespan.
This makes air filters, regulators, and lubricators (FRL units) essential for stable operation.
High-quality air preparation components ensure:
Consistent pressure
Longer actuator life
Reduced downtime
Lower maintenance costs
Pneumatic and hydraulic systems each play a vital role in modern industrial automation. Pneumatics offer speed, cleanliness, and simplicity, while hydraulics deliver power, precision, and stability. Understanding their fundamental differences allows engineers and buyers to make informed decisions that improve efficiency, safety, and cost control.
Selecting the right system is not about which technology is better—it’s about which technology fits your application best.
