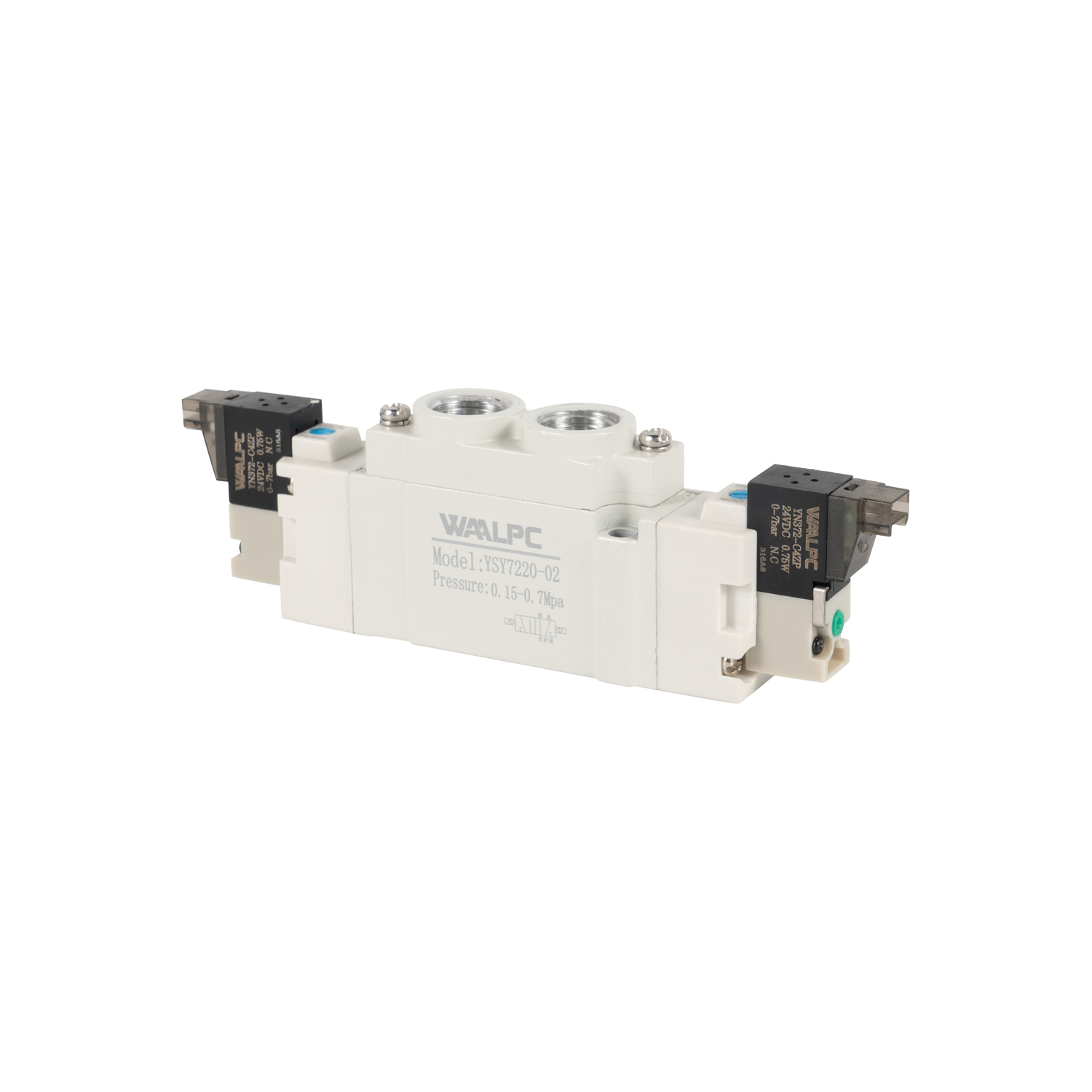

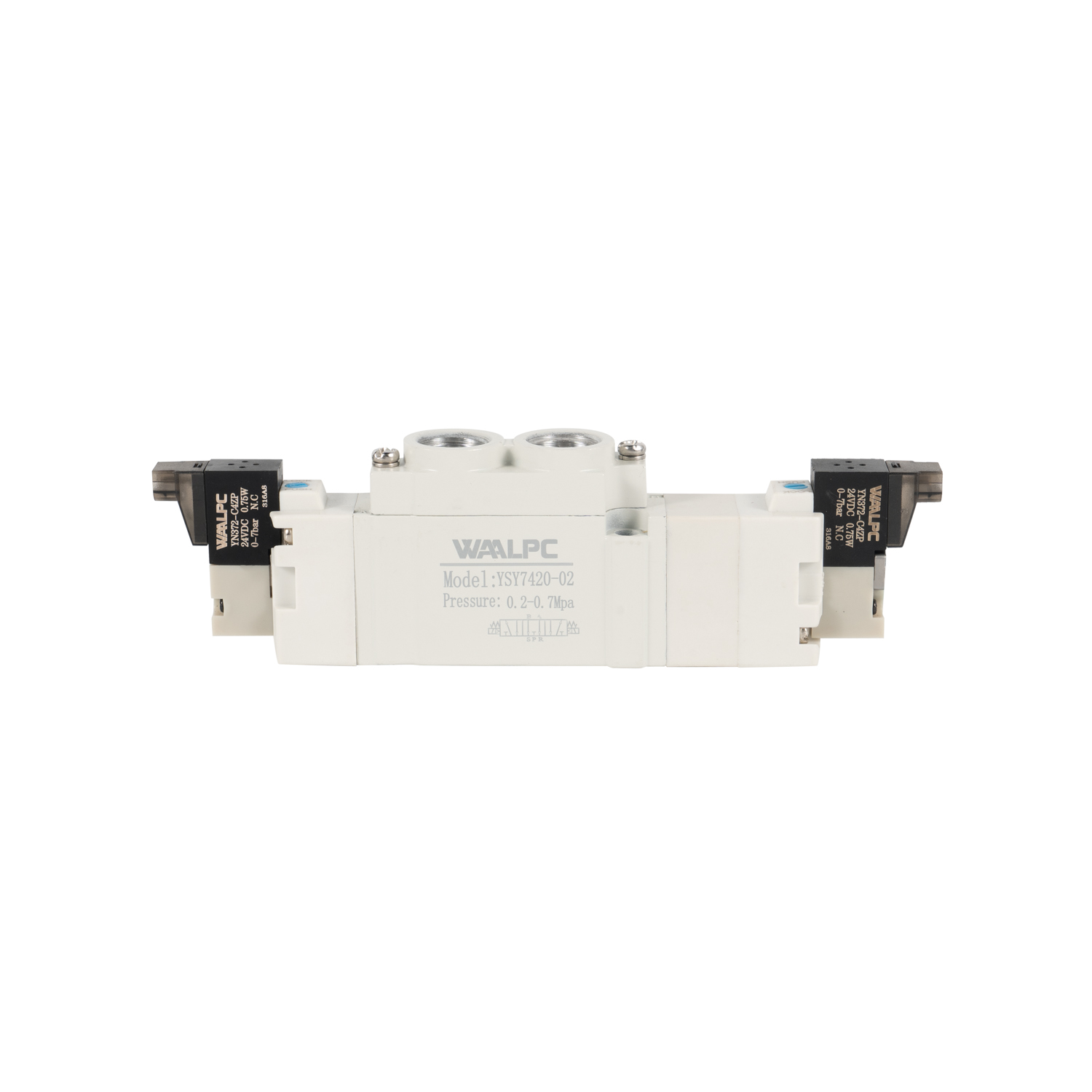

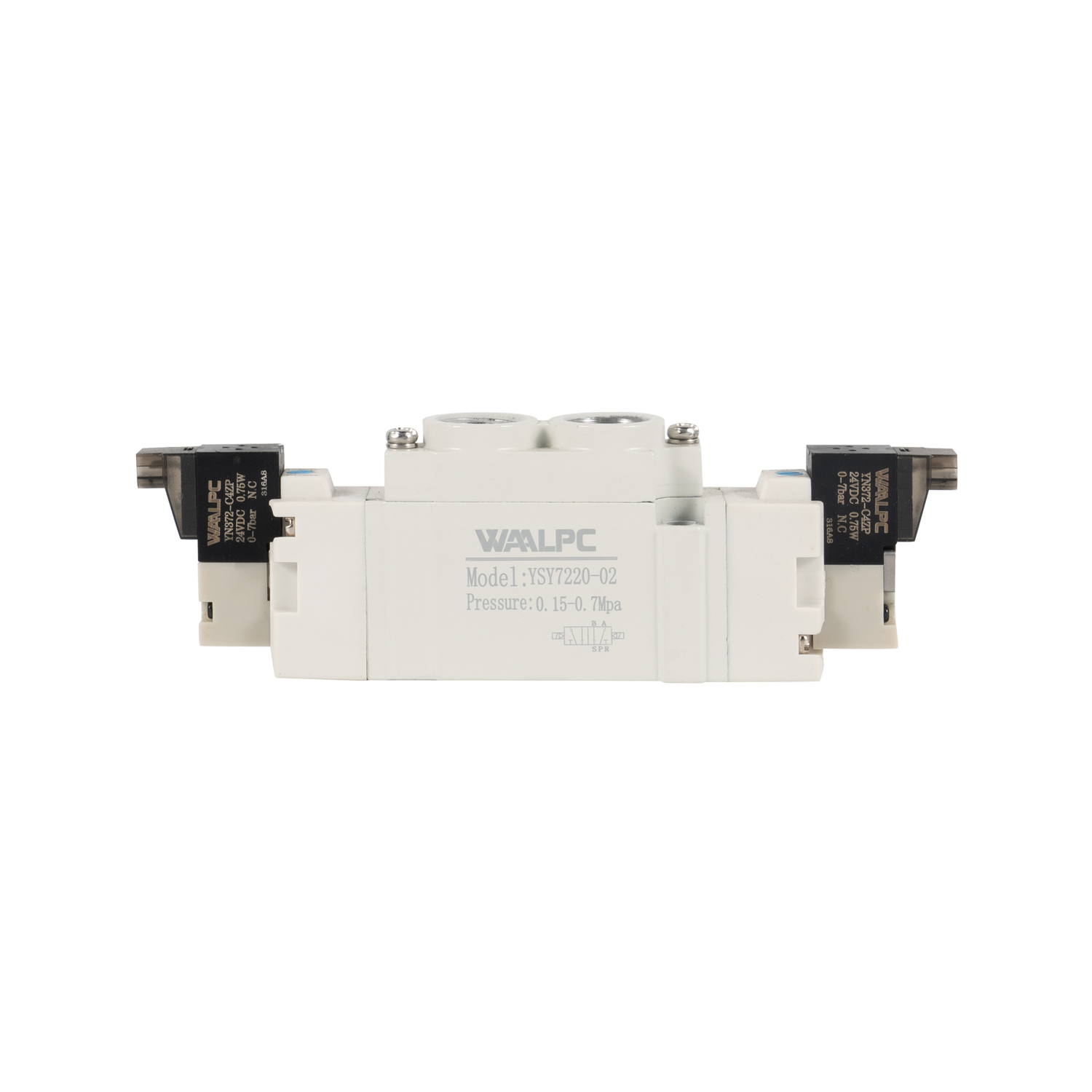

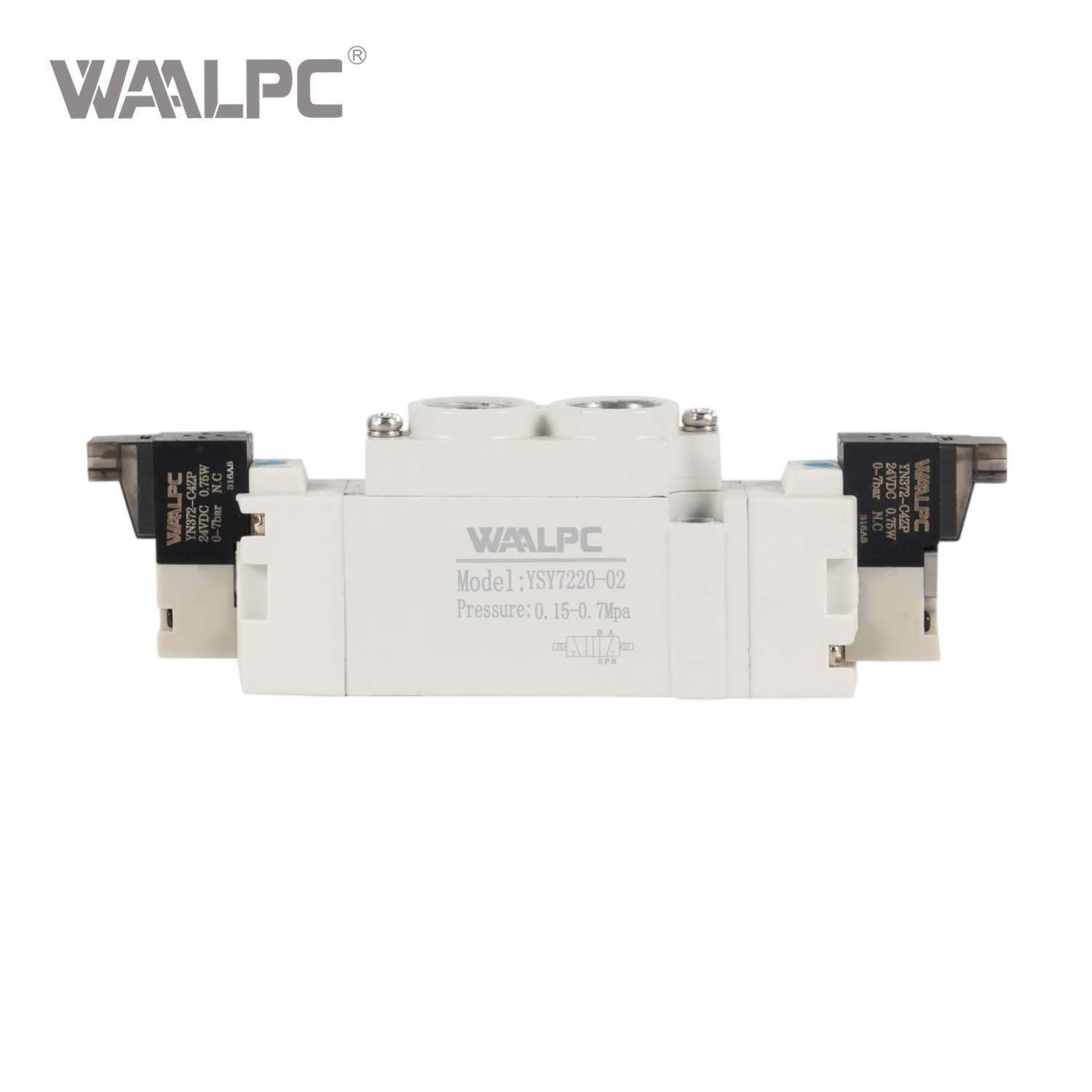

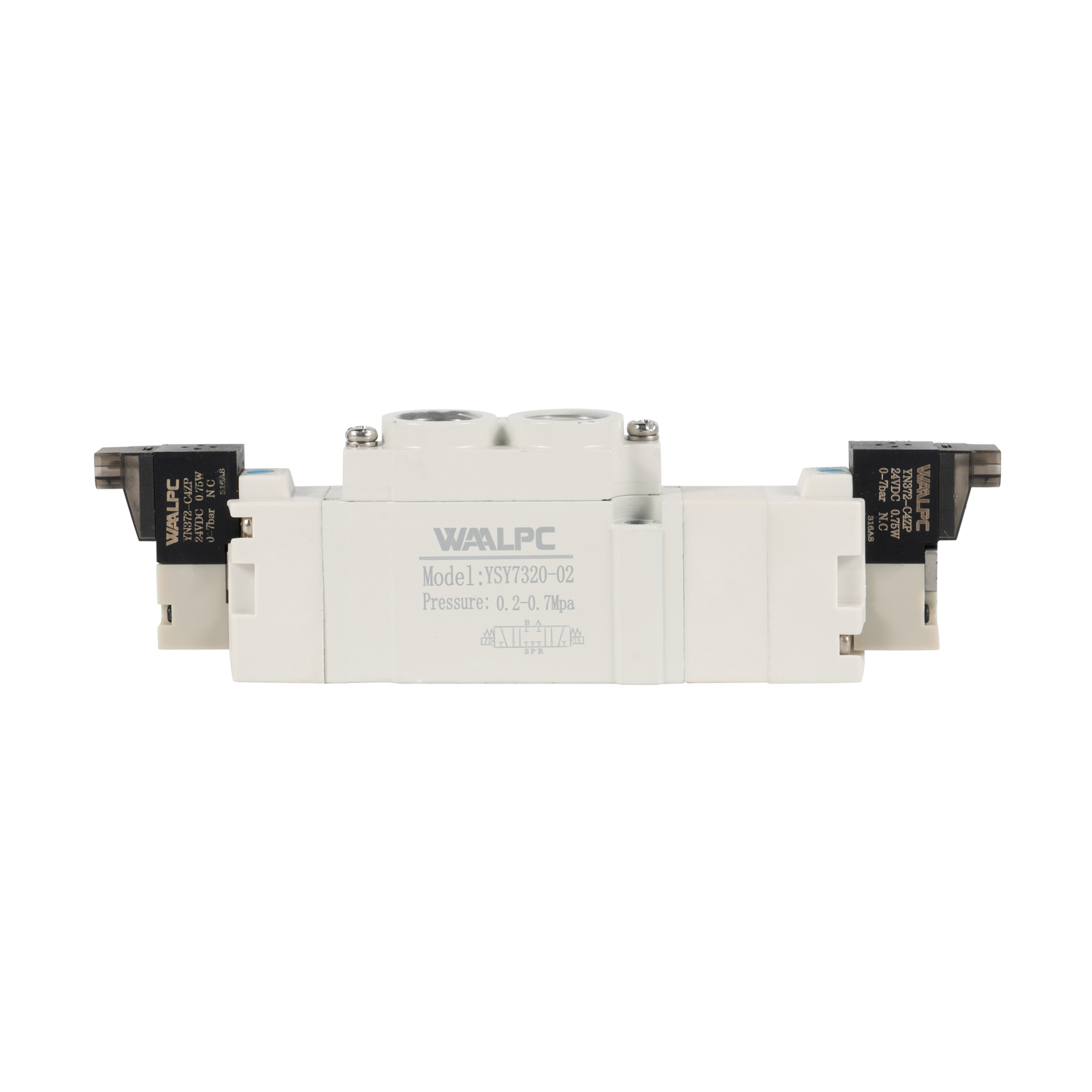

SMC alternative SY7220 solenoid valve is suitable for operating single acting or double acting pneumatic cylinders in pneumatic driven automation systems. Compact design, low consumption, 2 positions and 3 positions is optional. Connection type has DIN connector and lead wire type. Multiple solenoid valves can be mounted in air solenoid manifold, with more control options.
YSY7000 Series
WAALPC
8481804090
ORDERING CODE
YSY -7 1- 20- 5 L Z D- 02
① ② ③ ④ ⑤ ⑥ ⑦
Symbol | Content |
① | YSY7000 series |
② Function | 1: Two-position single electric control; 2: two-position double electric control; 3: three-position mid-sealed type; 4: three-position mid-leak type; 5: three-position mid-pressure type |
③ Voltage | 5: DC24V, 6: DC12V, V: DC6V, 3: AC110V, 4: AC220V |
④ Wire Lead-out Method | L: 90 right-angled line length 300mm, M: 180 horizontal line length 300mm, X: direct lead type |
⑤ Indicator Light | Z: With indicator light and over voltage protection Blank: Without indicator light |
⑥ Manual Operation Mode | D: Rotary locking type when the turning tool is pressed down, Blank: No |
⑦ A. B Interface Thread | 02: G1/4 |
DATA SHEET
Valve Position Function | Two-position five-way, Three-position five-way (mid sealed, mid leak,mid pressure) | Medium and Ambient Temperature | -5℃~50℃ (but not frozen) |
Operating Method | Cut-off | Working Medium | Filtered compressed air (filter accuracy grade meets IS08573-15.4.4) or inert gas |
Installation Method | Free Installation | Maximum Operating Frequency | 15HZ |
Nominal Flow | 370L/min(P-A) | Response Time | ≤12ms |
Voltage | DC6V, DC12V, DC24V, AC110V, AC220V | Work Cycle | 100% continuous operation |
Voltage Tolerance | ± 10% | Electrical Connections | Socket or direct lead |
Power Consumption | 0.4W | Lubrication | Unnecessary |
Experimental Life | 70 million times | ||

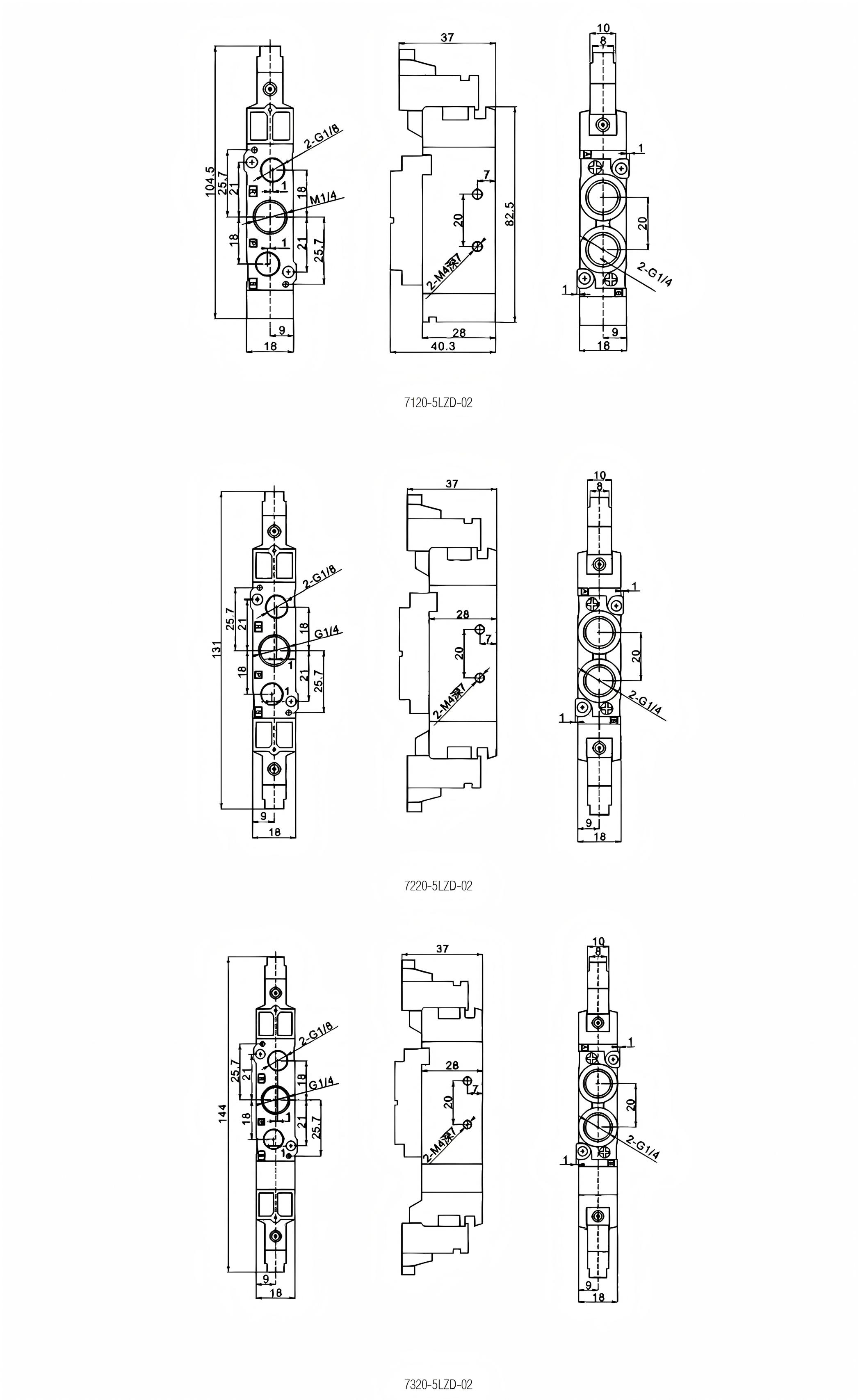

STRUCTURE
