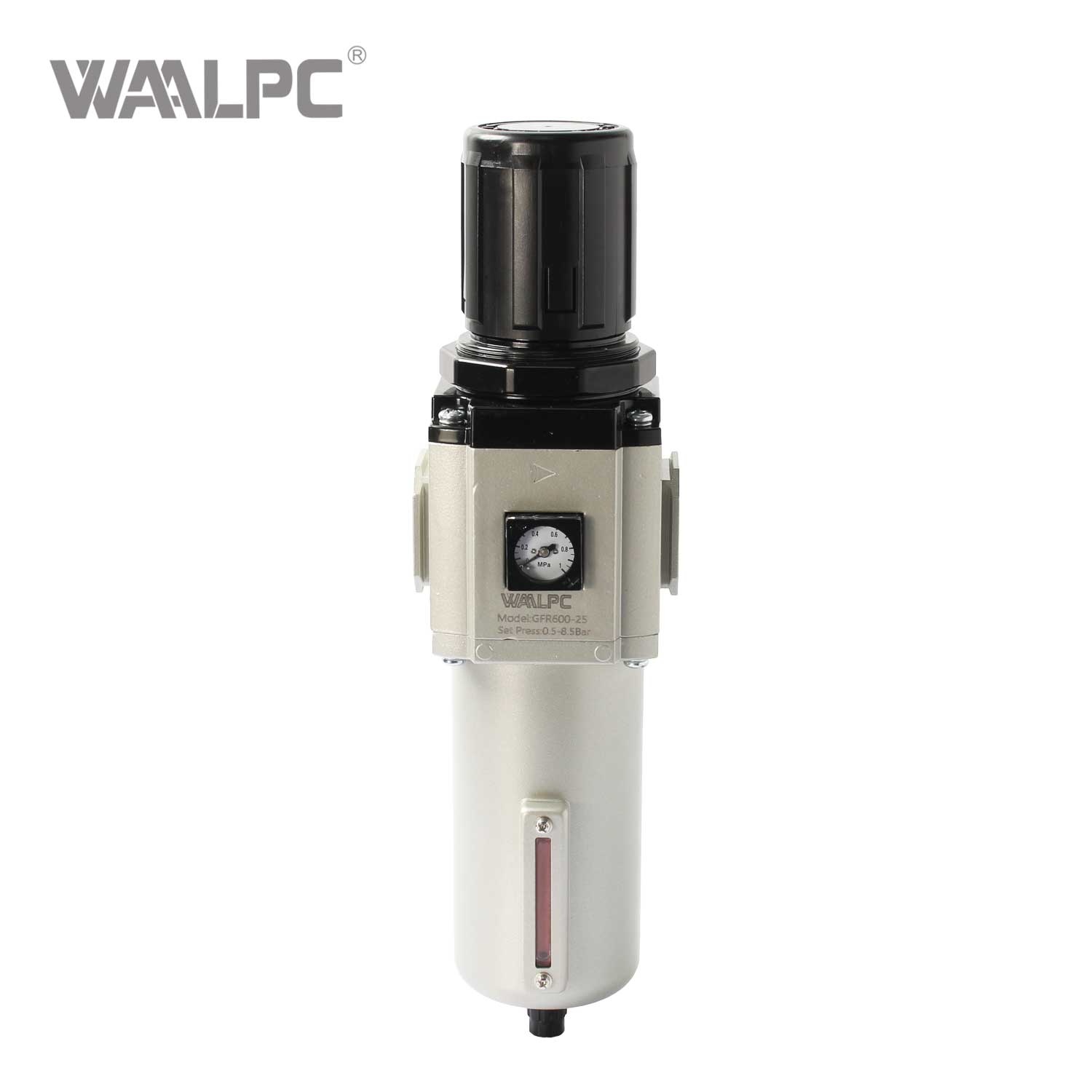

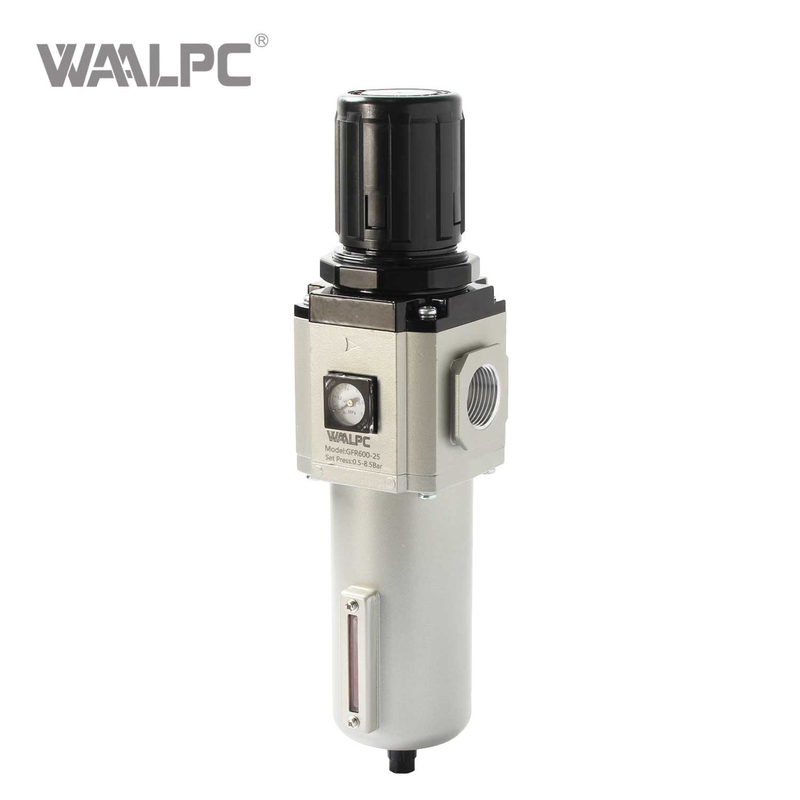

Waalpc Airtac G Series Gfr600 3/4 1′′ OEM Industrial Pneumatic Compressor Pressure Reducing Valve Regulator Air Filter Water Separator Frl

Waalpc Airtac G Series Gfr600 3/4 1′′ OEM Industrial Pneumatic Compressor Pressure Reducing Valve Regulator Air Filter Water Separator Frl


Size:	GFR600 GFR600-25
Availability:

Quantity:



Inquiry Add to Basket

The Airtac GFR600 Series Filter Regulator Valve is an all-in-one solution meticulously engineered for efficient air source treatment in industrial pneumatic systems. Combining advanced filtration capabilities with precise pressure regulation, this series ensures clean, stable, and reliable compressed air supply, essential for the optimal performance of downstream equipment.

Model:
GFR600-25
Brand:
WAALPC
Code:
8481804090

Product Description

The Airtac GFR Series Filter Regulator Valve Advantages

The Airtac Filter Regulator Valve

1. Adopting embedded square pressure gauges to save installation space
(external circular pressure gauges can also be used as an option)
2. Press in self-locking mechanism can prevent abnormal movement of the set pressure
caused by external interference
3. The pressure regulating mechanism adopts a balanced design, which makes pressure regulation
more stable, with small drift and good pressure characteristics
4. The unique flow guiding structure generates appropriate rotation of the flowing gas,
thereby more effectively separating liquids in the gas and reliably filtering solid particles
5. In addition to the standard form,there is also alow-pressure type available for selection
(with a maximum adjustable pressure of 0.4MPa)
6. Grade of Filtration:5um,40μm
7. There are three drainage forms to choose from: manual, differential pressure,and automatic drainage
8. Port size optional: Thread G, PT or NPT 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

The Airtac GFR Series Filter Regulator Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	GFR200-06	GFR200-08	GFR300-08	GFR300-10	GFR300-15	GFR400-10	GFR400-15	GFR600-20	GFR600-25
Port Size	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2	PT3/4	PT1
Grade of Filtration	40um or 5um
pressure regulating range	Automatic and different pressure drain: 0.15~0.9Mpa; Manual drain: 0.05~0.9Mpa
Pressure Resistance	1.5MPa (215Psi)
Max. Opreating Pressure	1.5MPa(215Psi)
Operating temperature range	-5~70℃
Pressure regulating range	0.05~0.9Mpa (7-130Psi)
Filter Cup Capacity	10CC		40CC			80CC		230CC
Weight	220g		500g			1030g		2400g

STRUCTURE

The Airtac GFR Series Filter Regulator

Model	A		AB	AC	B	BA	BC	C	D	K	KA	KB	KC	P	PA	Q
GFR300-08		60	53	38	72	41	31	225.5	M40X1.5	6.5	40	8	46	PT1/4	143	G1/8
GFR300-10		60	53	38	72	41	31	225.5	M40X1.5	6.5	40	8	46	PT3/8	143	G1/8
GFR300-15		60	53	38	72	41	31	225.5	M40X1.5	6.5	40	8	46	PT1/2	143	G1/8
GFR400-10		80	72	52	90	50	40	270.5	M55X2.0	8.5	52	11	53	PT3/8	166.5	G1/4
GFR400-15		80	72	52	90	50	40	270.5	M55X2.0	8.5	52	11	53	PT1/2	166.5	G1/4
GFR600-20		99	90	64	118	70	48	363	M68x1.5	11	66	13	76	PT3/4	219	G1/4
GFR600-25		99	90	64	118	70	48	363	M68x1.5	11	66	13	76	PT1	219	G1/4
