FRL units (Filter-Regulator-Lubricator) are often treated as small accessories in pneumatic systems, but they quietly determine how clean, stable, and well-protected the entire downstream equipment will be. When FRLs are properly selected and maintained, valves, cylinders, and tools last longer, fail less often, and keep your production lines running with fewer surprises.

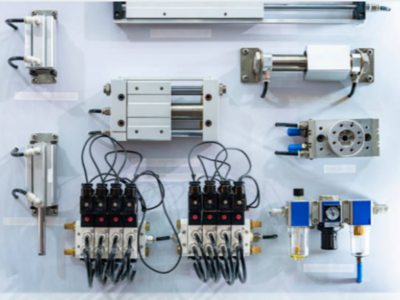

An FRL unit combines three core air preparation functions in one assembly: filtration, pressure regulation, and lubrication. Each function protects downstream components from a different kind of stress or contamination.
Filter (F): Removes solid particles (dust, rust, pipe scale) and condensed water droplets from compressed air before they reach valves, cylinders, and actuators.
Regulator (R): Stabilizes outlet pressure to a defined range, regardless of upstream fluctuations, so that actuators operate consistently and repeatably.
Lubricator (L): Provides a controlled mist of oil (when required) to lubricate internal moving surfaces in older or specific pneumatic devices, reducing friction and wear.
In many systems, these three functions are built into a compact modular assembly that can be mounted at the main air inlet, at a machine zone inlet, or close to a critical piece of equipment. The location and sizing of the FRL have a direct impact on the performance and protection level that downstream components receive.
Compressed air is rarely as clean as users assume; it often carries fine dust, compressor oil, pipe rust, and water droplets. These contaminants gradually damage sensitive internal surfaces in valves and cylinders, even if problems are not visible at first.
Protecting sealing surfaces: Particles can scratch or indent sealing faces, O-rings, and spools, causing increased leakage, sticking, or complete malfunction over time.
Avoiding blockage: Small orifices, flow controls, and pilot passages can be partially blocked by dirt or rust, leading to slow response, unstable movement, or erratic behaviour in actuators.
By removing particles down to a defined micron size, the filter stage of an FRL acts like a barrier that prevents abrasive contamination from entering precision components. This reduces internal wear, extends the effective sealing life, and lengthens the time between overhauls or replacement.
Even when the air is clean, unstable or excessive pressure can shorten the life of pneumatic components and mechanical structures. A regulator in the FRL is the first line of defence against these issues.
Limiting mechanical stress: Over-pressure creates higher-than-necessary forces in cylinders, which can overstress linkages, bearings, and stops, and can accelerate wear on seals and guides.
Improving repeatability: Pressure swings translate directly into speed and force variations, increasing impact forces at end positions and causing inconsistent motion profiles.
A correctly sized regulator smooths these fluctuations, maintaining pressure in a defined band that is sufficient for the task but not excessive. Over the life of a machine, this reduction in mechanical shock and excess load significantly reduces fatigue on both pneumatic and mechanical components.
Not all modern pneumatic components require external lubrication, but for devices that do, the lubricator section of an FRL is essential. Its purpose is to feed a fine oil mist into the airflow at a controlled rate so that internal moving parts stay lubricated without creating excessive contamination.
Reducing friction and wear: Sliding seals, pistons, spools, and mechanical joints experience less direct contact stress when a thin lubricating film is present.
Preventing stick-slip: Proper lubrication helps avoid stick-slip behaviour in cylinders and valves, improving motion smoothness and reducing the risk of sudden jerks that can damage mechanisms.
In oil-sensitive or clean applications (e.g., certain food, pharma, or electronics processes), external lubrication may be avoided by design, and the "L" section is either omitted or bypassed. However, in tools, older cylinders, and some heavy-duty actuators, correct lubrication is still an important factor in achieving long service life.
The link between FRL units and equipment life is ultimately reflected in the total cost of ownership (TCO) of a pneumatic system. When air preparation is neglected or undersized, hidden costs accumulate year after year in the form of failures, downtime, and high spare-parts consumption.
Fewer component failures: Clean, dry, pressure-controlled air reduces premature failures of valves, cylinders, regulators, and tools, cutting replacement and labour costs.
Longer maintenance intervals: Components stay closer to their original performance for longer periods, so maintenance intervals can be extended and planned more comfortably.
From a financial perspective, the cost of a correctly selected and maintained FRL is usually small compared to the cost of unplanned downtime and repeated component replacement. Over the lifespan of a machine, proper air preparation often pays for itself many times over.
Many "random" pneumatic failures can be traced back to inadequate air preparation once the system is investigated. Understanding these failure modes makes the value of FRL units more concrete for engineers and buyers.
Valve sticking and slow response: Often caused by contamination or moisture within the valve body; proper filtration and water removal reduce this risk.
Cylinder leakage and loss of force: Accelerated seal wear due to contamination or over-pressure leads to internal or external leaks and reduced effective force output.
By addressing root causes through FRL selection and maintenance, plants can transform recurring troubleshooting into a preventive strategy, improving reliability and extending the life of installed assets.
To get the full life-extension benefits, FRLs must be considered early in system design, not added as an afterthought. Placement, sizing, and configuration all influence how effective the unit will be in protecting downstream components.
Strategic placement: Designers should specify main FRL units at the plant or machine inlets and, where necessary, local air preparation units for particularly sensitive or high-precision sections.
Proper sizing: Filters and regulators must be selected based on actual flow requirements and acceptable pressure drop, ensuring that protection does not compromise performance.
Treating FRL selection as part of the core design process helps ensure that air quality and pressure stability are matched to the needs of the equipment, rather than relying on generic or undersized units.
Even the best FRL cannot protect a system if it is ignored after installation. Simple, routine maintenance keeps the unit working as intended throughout the lifespan of the equipment it protects.
Regular checks: Monitor differential pressure, bowl condition, and automatic drains to ensure the filter is not clogged and water is being removed effectively.
Filter element replacement: Replace filter elements at recommended intervals or when pressure drop exceeds an acceptable limit, rather than waiting for visible performance issues.
Where lubricators are used, oil levels and feed rates should be checked regularly, and the correct oil type should be maintained to avoid varnish or sludge formation. These small actions contribute directly to keeping valves, cylinders, and tools in serviceable condition for much longer periods.
From a lifecycle perspective, FRL units are less an optional accessory and more a strategic protection system for pneumatic equipment. They transform raw compressed air—which is often dirty, wet, and unstable—into a controlled medium that components can handle reliably over years of operation.
By specifying appropriate FRL units from the start and integrating simple maintenance routines, OEMs and industrial users can measurably extend the life of their pneumatic equipment while reducing maintenance cost and downtime. For buyers and engineers working with suppliers like WAALPC, putting air preparation and FRL selection on the same level of importance as valves and cylinders is a practical way to protect both equipment investment and production performance.
