In pneumatic systems, pressure control is one of the most critical factors affecting machine performance, energy consumption, and equipment safety. A small but essential component that makes pressure monitoring possible is the Pneumatic Pressure Gauge.
Pressure gauges are widely installed on air preparation units, filter regulators, compressors, manifolds, cylinders, and automation equipment to ensure compressed air systems operate within the correct pressure range.
Most industrial pneumatic gauges use a Bourdon tube mechanism.
Working principle:
When compressed air enters the gauge:
Internal pressure acts on the curved metal tube
The tube slightly deforms
Mechanical linkage transfers movement to the pointer
The dial displays the pressure value
This design provides stable measurement without external power.

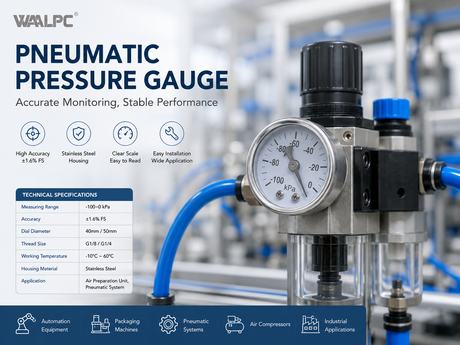

Typical pneumatic pressure gauge specifications:
Parameter | Standard Range |
Measuring Range | 0–1 MPa |
Alternative Ranges | 0–0.4 MPa / 0–0.7 MPa / 0–1.6 MPa |
Accuracy | ±1.6% FS |
Dial Diameter | 40mm / 50mm / 63mm |
Thread Type | M5 / G1/8 / G1/4 / NPT1/8 |
Operating Temperature | -10°C to 60°C |
Housing Material | Steel / Stainless Steel / Plastic |
Window Material | Polycarbonate |
Different regions use different pressure units:
1 MPa=10 bar≈145 psi1\ MPa = 10\ bar \approx 145\ psi1 MPa=10 bar≈145 psi
Examples:
0.4 MPa = 4 bar = 58 psi
0.6 MPa = 6 bar = 87 psi
0.8 MPa = 8 bar = 116 psi
This helps engineers and international buyers quickly understand pressure requirements.
Most commonly used on FRL units.
Suitable for front panel installation.
Offers high-precision electronic monitoring.
Compact size for space-limited installations.
Recommended operating pressure in typical pneumatic applications:
Application | Recommended Pressure |
|---|---|
Pneumatic Cylinders | 0.4–0.7 MPa |
Solenoid Valve Systems | 0.15–0.8 MPa |
Vacuum Generators | 0.45–0.6 MPa |
Packaging Machines | 0.5–0.7 MPa |
Robotic Automation | 0.5–0.8 MPa |
Proper pressure monitoring can reduce compressed air waste by 10–20% in many industrial systems through optimized pressure settings.
When selecting a gauge, consider:
Choose a range 1.5–2 times your working pressure.
Example:
If working pressure is 0.6 MPa, a 0–1 MPa gauge is usually ideal.
Confirm whether your system uses:
Metric
BSP
NPT
Larger dials improve readability.
For humid or corrosive environments, stainless steel gauges are recommended.
To ensure long-term accuracy:
✔ Avoid continuous overpressure
✔ Protect from strong vibration
✔ Check for pointer drift regularly
✔ Replace damaged gauges immediately
✔ Verify thread sealing during installation
A Pneumatic Pressure Gauge may be a small component, but it plays a major role in pneumatic system safety, efficiency, and reliability.
With typical operating ranges from 0–1 MPa, accuracy up to ±1.6% FS, and compatibility with global pressure units such as MPa, bar, and psi, pressure gauges remain an indispensable part of modern industrial automation.
Choosing the right pressure gauge helps improve process stability, reduce energy costs, and protect your pneumatic equipment for years of reliable operation.
