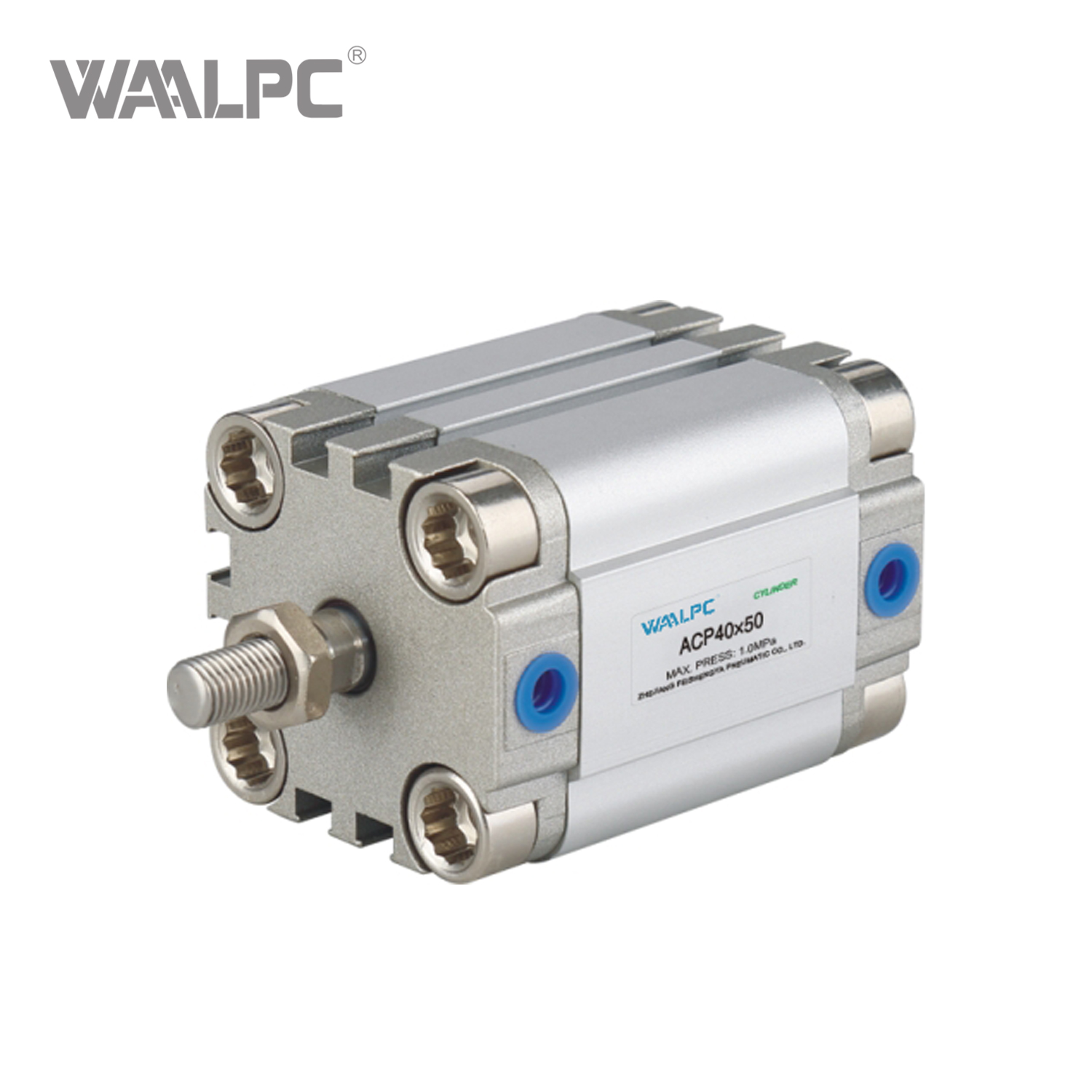

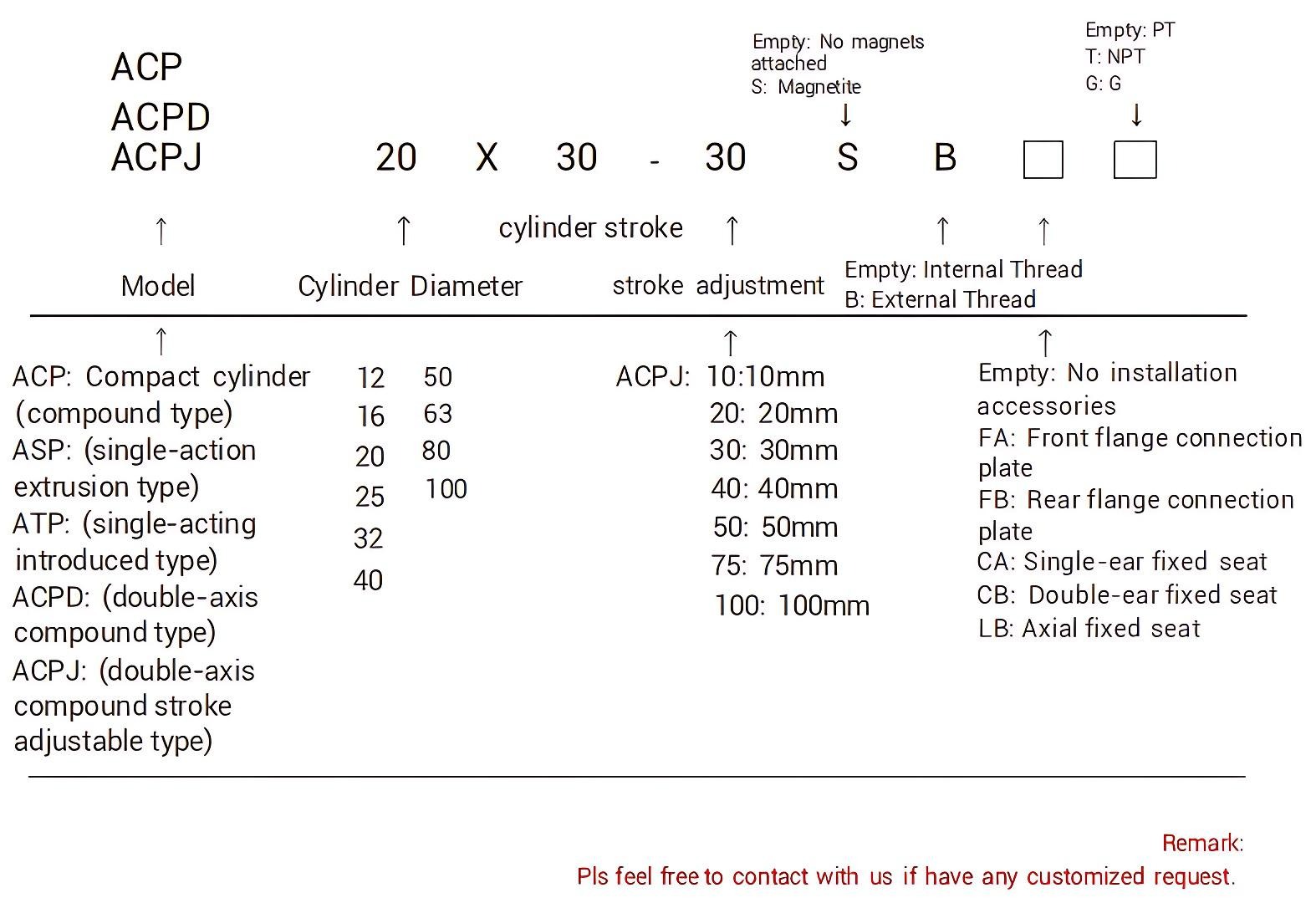

ORDERING CODE
SPECIFICATION
Inner Diameter(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Action pattern | Compound type, single-action extrusion type, single-acting introduced type | |||||||||
| Operating pressure range | Compound type: 0.15-1.0MPa(22-145Psi)(1.0-10.0bar); Single- action type: 0.2-1.0MPa(28-145Psi)(2.0-10.0bar) | |||||||||
| Compression resistance | 1.5MPa(215Psi)(15bar) | |||||||||
| Operating temperature range | -20-70℃ | |||||||||
| The rate range of use | Compound type: 30-500mm/s; Single-action type: 50-500mm/s | |||||||||
| Buffer type | Anti-collision pad | |||||||||
| Pipe connection diameter | M5x0.8 | G1/8 | G1/4 | |||||||
CYLINDER STROKE
| Inner diameter(mm) | Standard stroke(mm) | Maximum stroke | Minimum stroke | |
12 16 | Compound type | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 95 100 110 | 200 | 200 |
| 120 125 150 160 175 200 | 200 | 200 | ||
| single- action type | 5 10 | 10 | - | |
20 25 | Compound type | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 95 100 110 | 200 | 200 |
| 120 125 150 160 175 200 | 200 | 200 | ||
| single- action type | 5 10 15 20 25 | 25 | - | |
32 40 50 63 | Compound type | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 95 100 110 | 300 | 300 |
| 120 125 150 160 175 200 225 250 275 300 | .300 | 300 | ||
| single- action type | 5 10 15 20 25 | 25 | - | |
80 100 | Compound type | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 95 100 110 | 400 | 400 |
| 120 125 150 160 175 200 225 250 275 300 325 350 375 400 | 400 | 400 | ||
| single- action type | 5 10 15 20 25 | 25 | - | |
