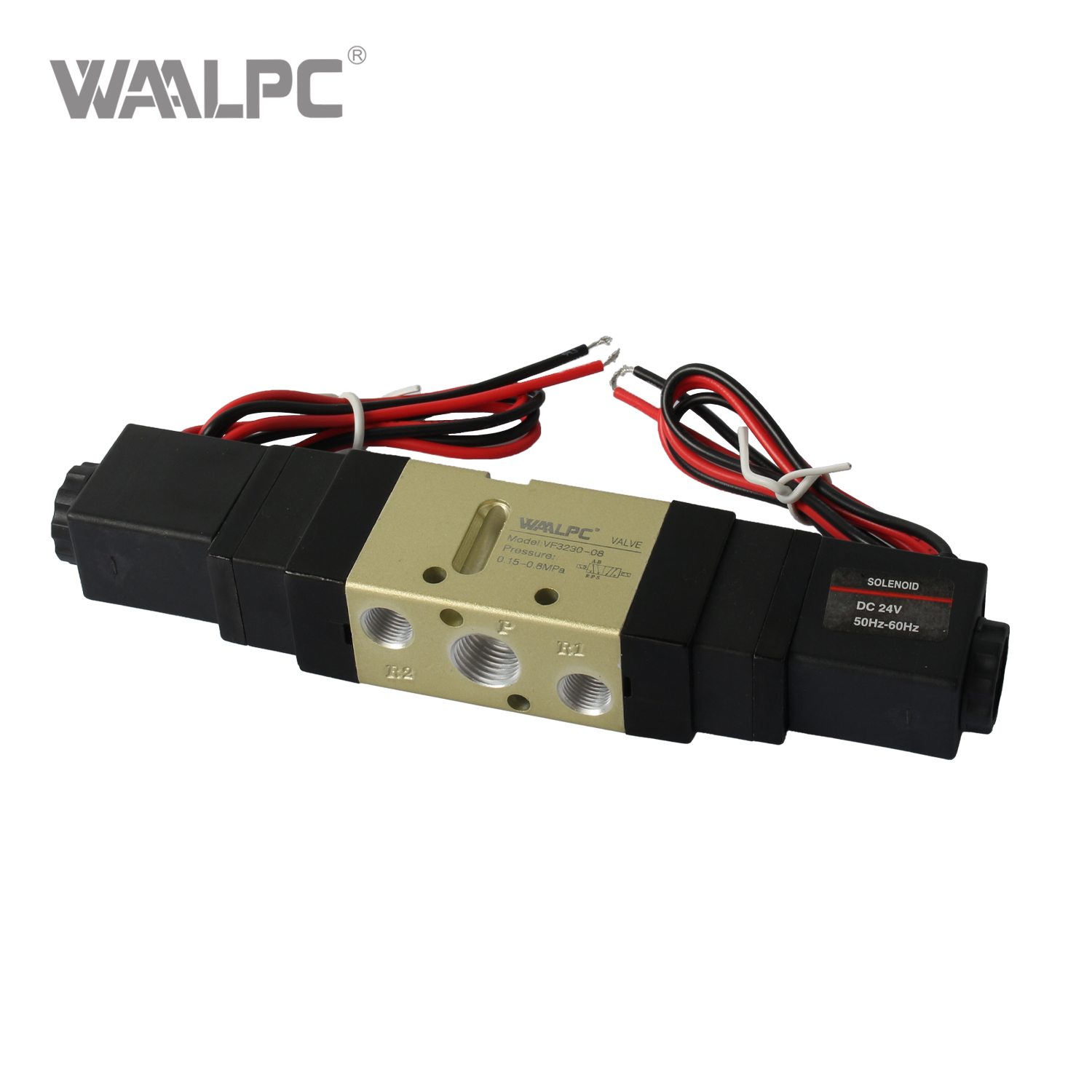

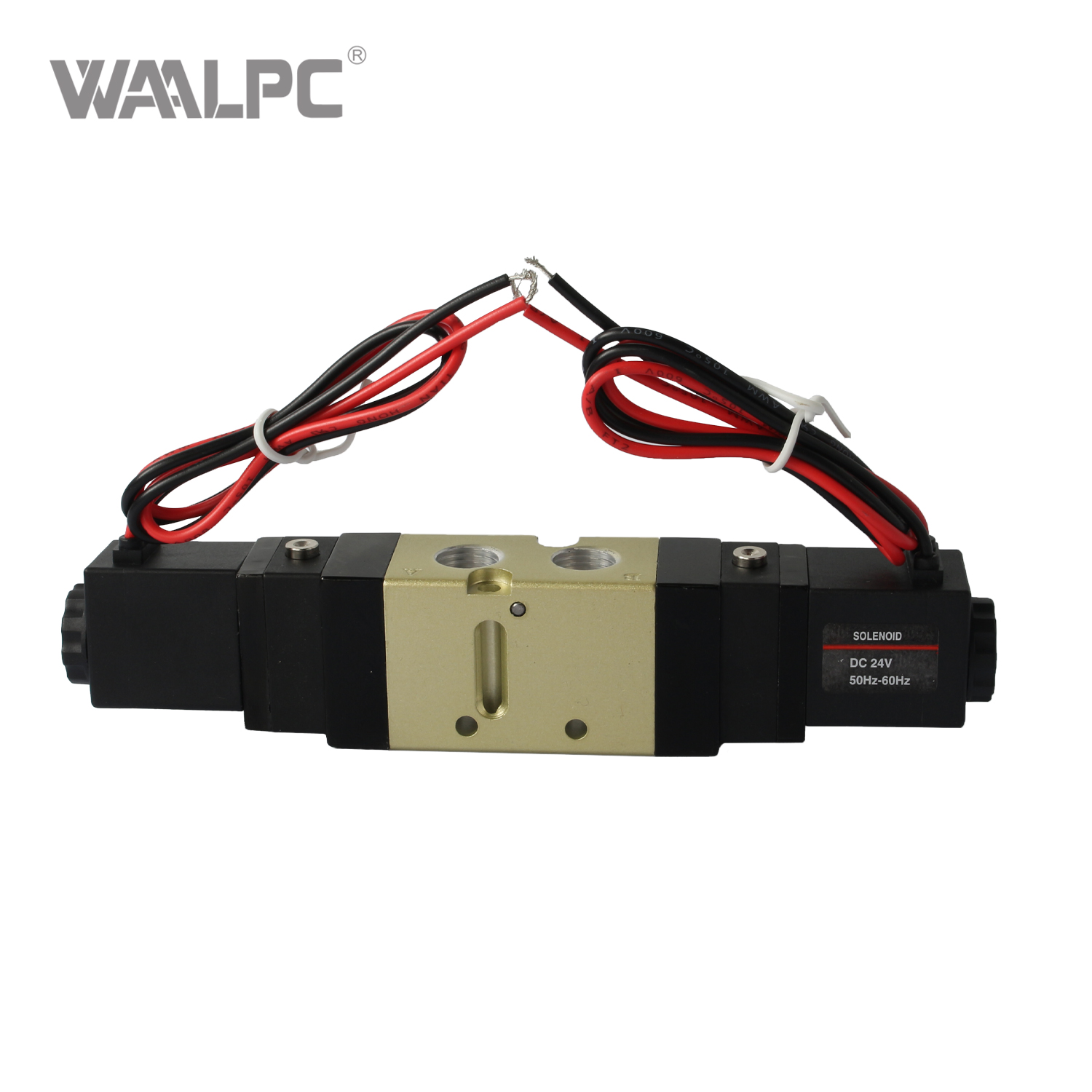

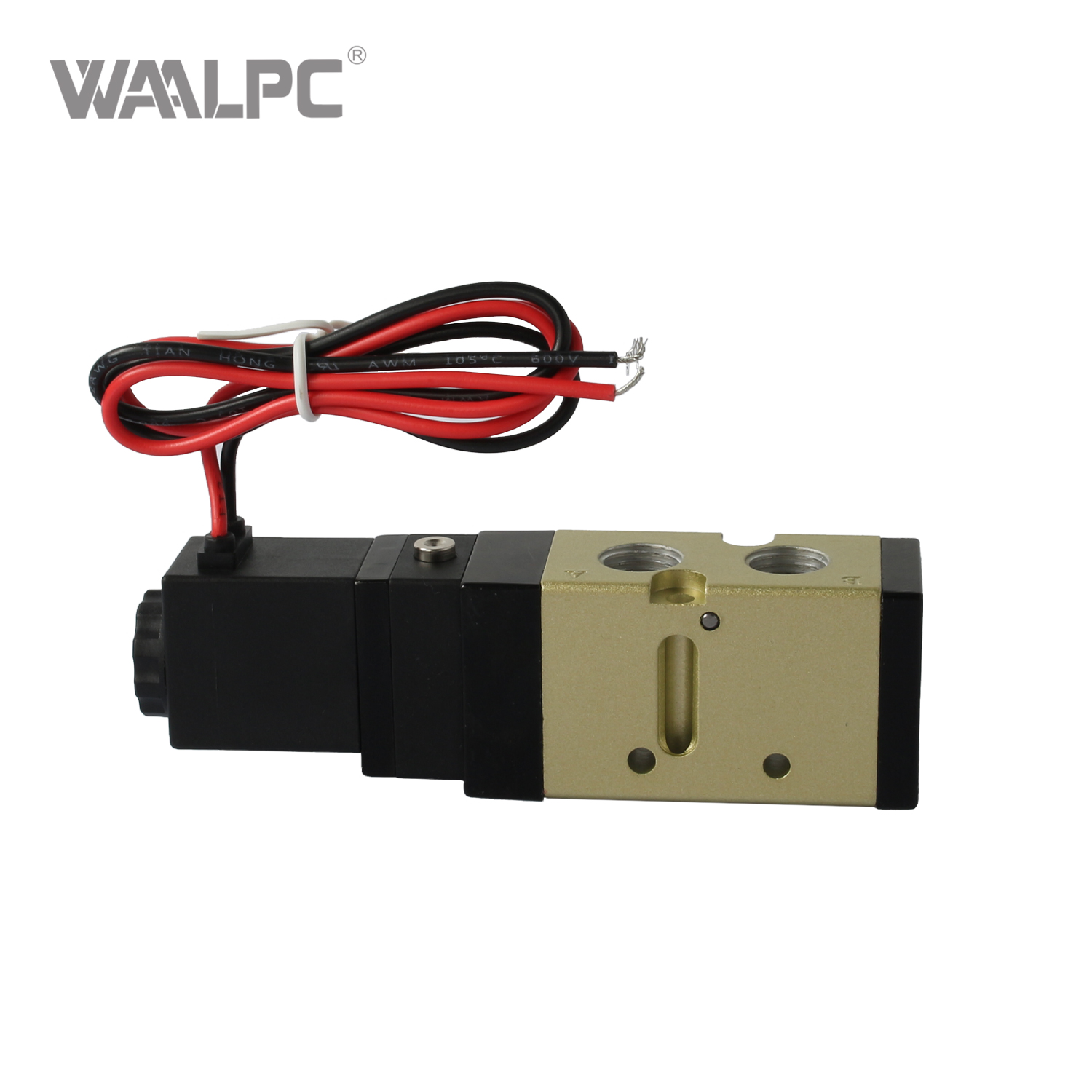

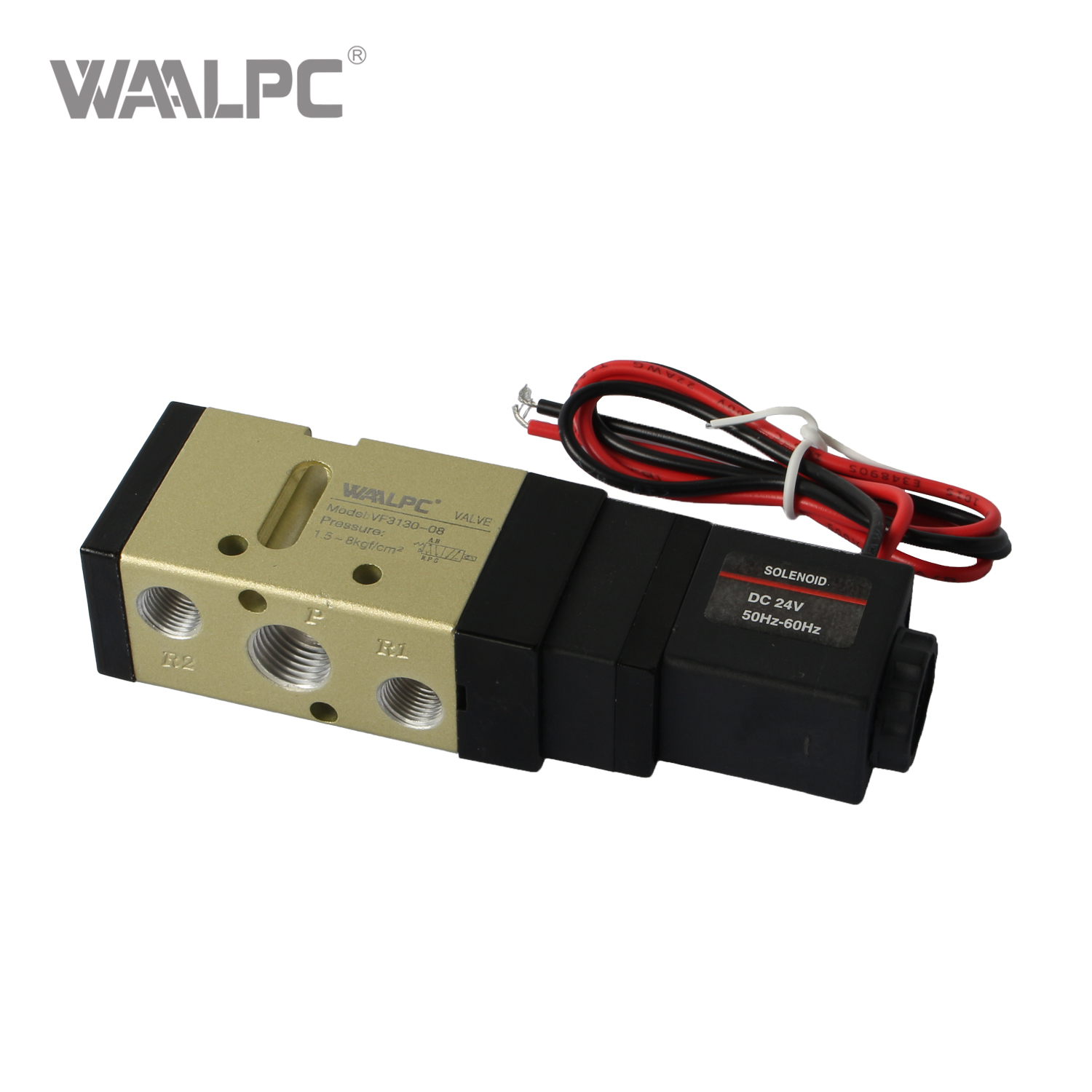

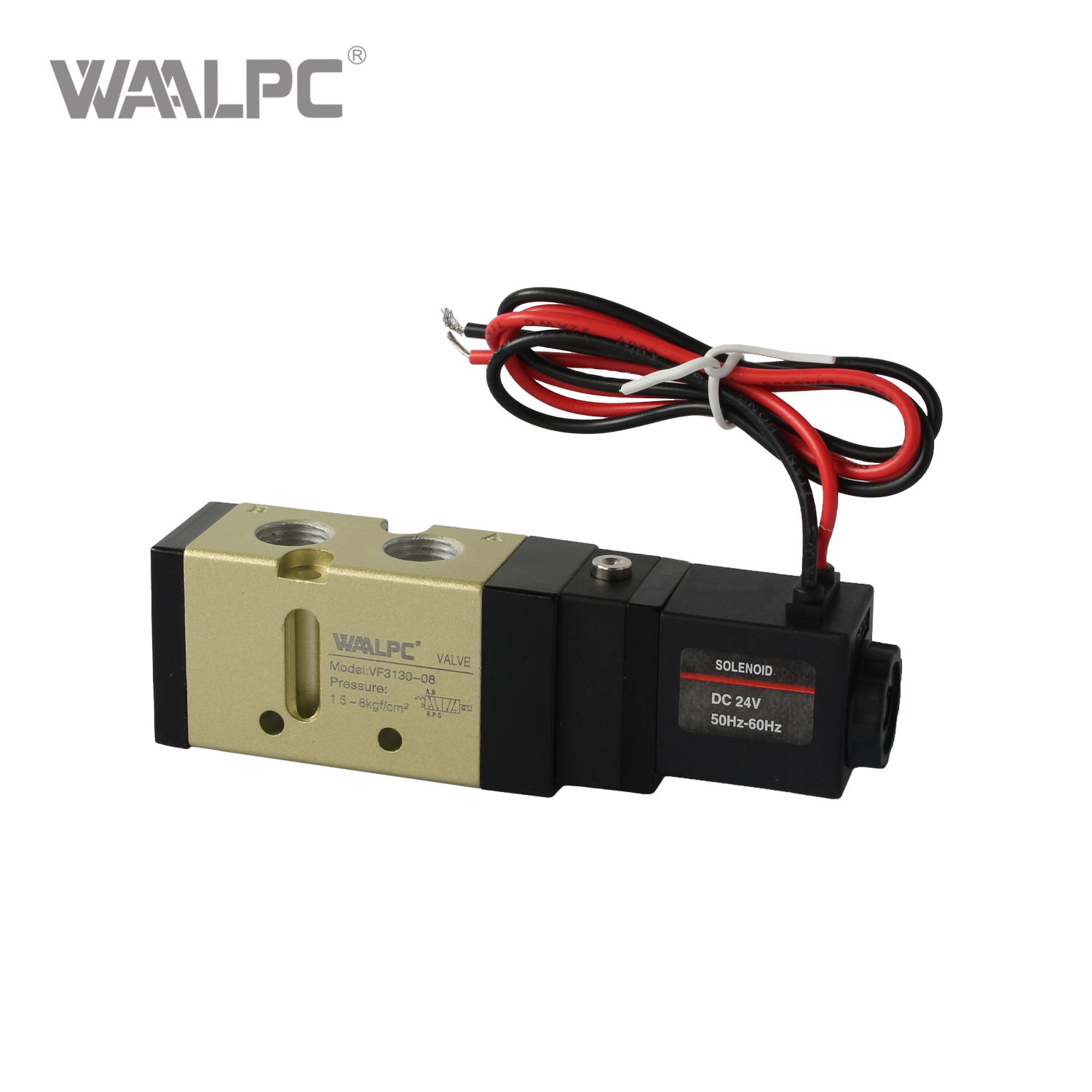

AIRTAC VF Series Solenoid Valve | 5/2 5/3 Way Pneumatic Valve G1/8 To G1/2


Availability:

Quantity:



Inquiry Add to Basket

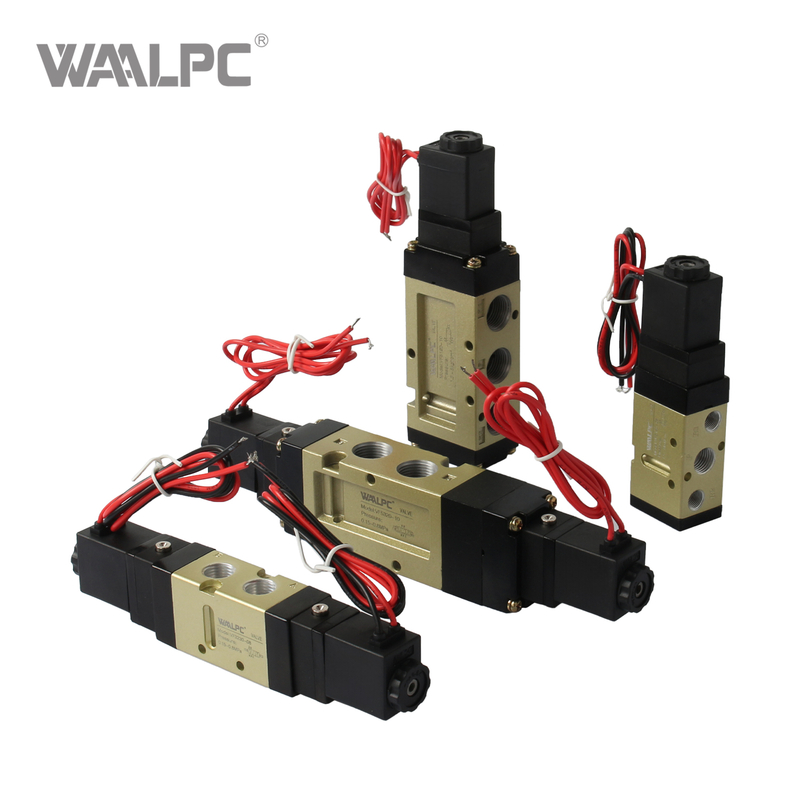

The AIRTAC VF Series is a line of high-performance pilot-operated 5-port solenoid valves designed for reliable and efficient control of compressed air in industrial automation systems . Available in 2-position and 3-position configurations (single solenoid or double solenoid), these valves provide versatile solutions for a wide range of pneumatic control applications.

Model:
VF
Brand:
WAALPC
Code:
8481202090

Product Description

Pilot-Operated Design – Ensures reliable switching even at low pressures, with stable performance across the entire operating pressure range.
Multiple Valve Functions – Available in 5/2-way single/double solenoid and 5/3-way (closed center, exhaust center, pressure center) configurations to suit different control requirements.
High Flow Capacity – Large effective orifice area provides excellent flow rates (up to 981 NL/min for VF3000 series) for efficient system performance.
Low Power Consumption – DC coils consume as low as 1.8W, and AC coils consume as low as 4.5VA/3.5VA (with built-in full-wave rectifier for AC types), making them energy-efficient and suitable for PLC direct drive.

Technical Parameters

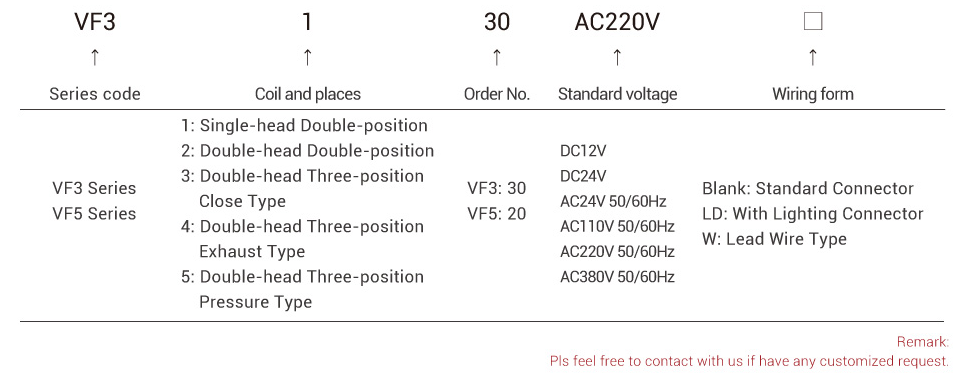

ORDERING CODE

VF solenoid valve

DATA SHEET

Model	VF3130	VF3230	VF33(4/5)30	VF5120	VF5220	VF53(4/5)20
Position and Way NO.	Two-position Five-way		Three-position Five-way	Two-position Five-way		Three-position Five-way
Effective Section Area	16mm2(CV=0.89)		12mm²(CV=0.67)	25mm²(CV=1.40)		18mm²(CV=1.00)
Working Medium	40 Micron filtered air
Motion Pattern	Inner guide type
Working Pressure	0.15~0.8MPa
Max. Pressure Resistance	1.2MPa
Operating Temperature	-20~70℃
VoltageRange	±10%
Power Consumption	AC:5.5VA DC:4.8W
Insulation&Protection Class	IP65/F Class.IP65
Wiring Form	Lead wire or connector type
Highest Action Frequency	5 Cycle/Sec
Shortest Excitation Time	0.05 Second

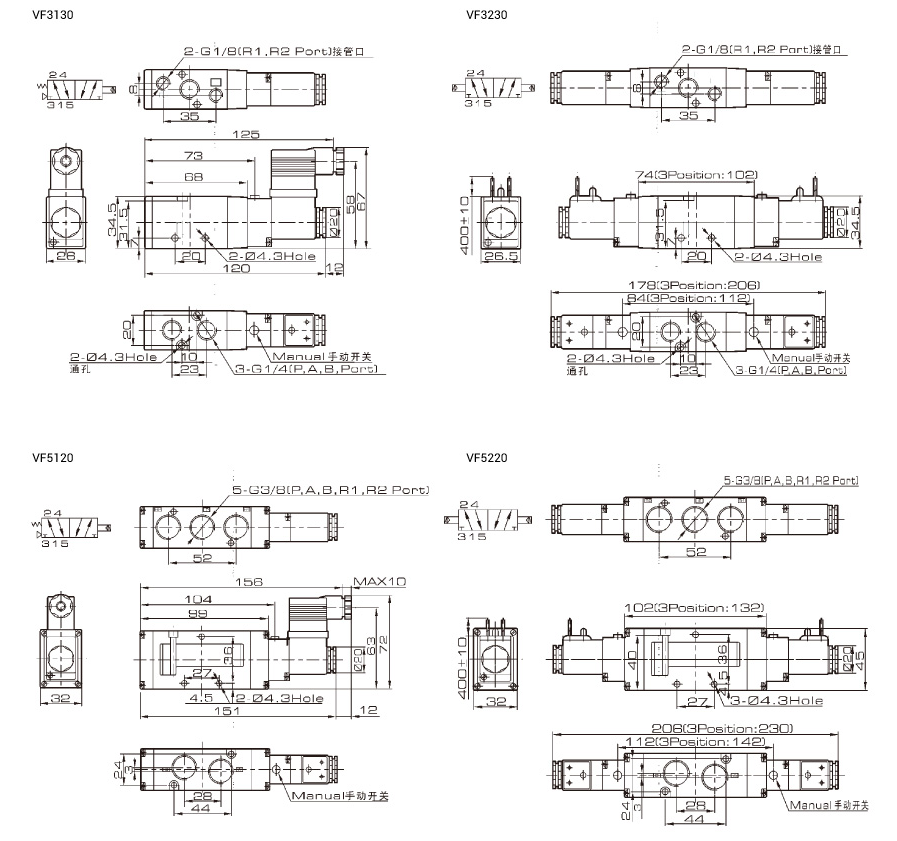

STRUCTURE&DIMENSION(MM)

VF solenoid valve

Specification Download

VF Solenoid Valve.pdf
