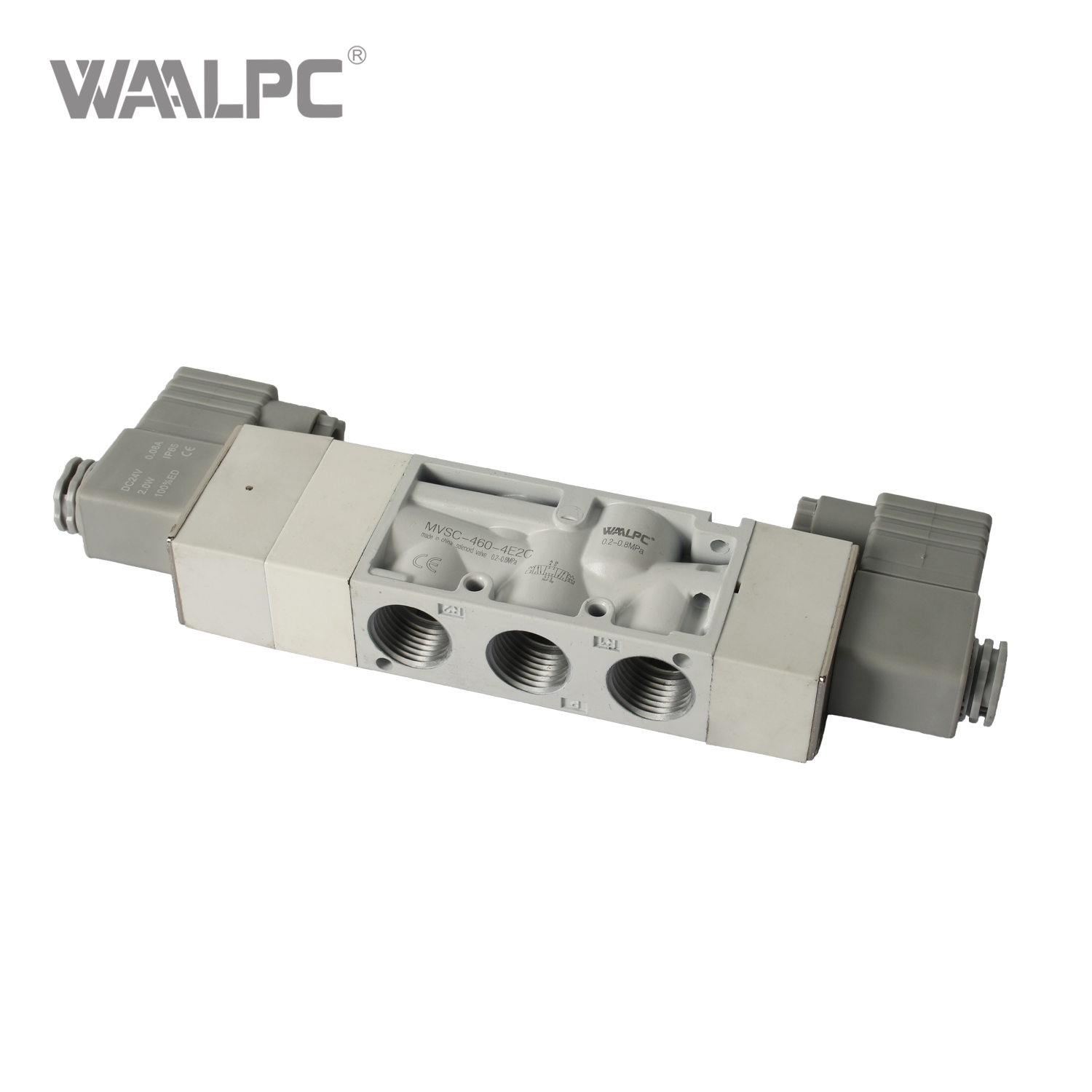

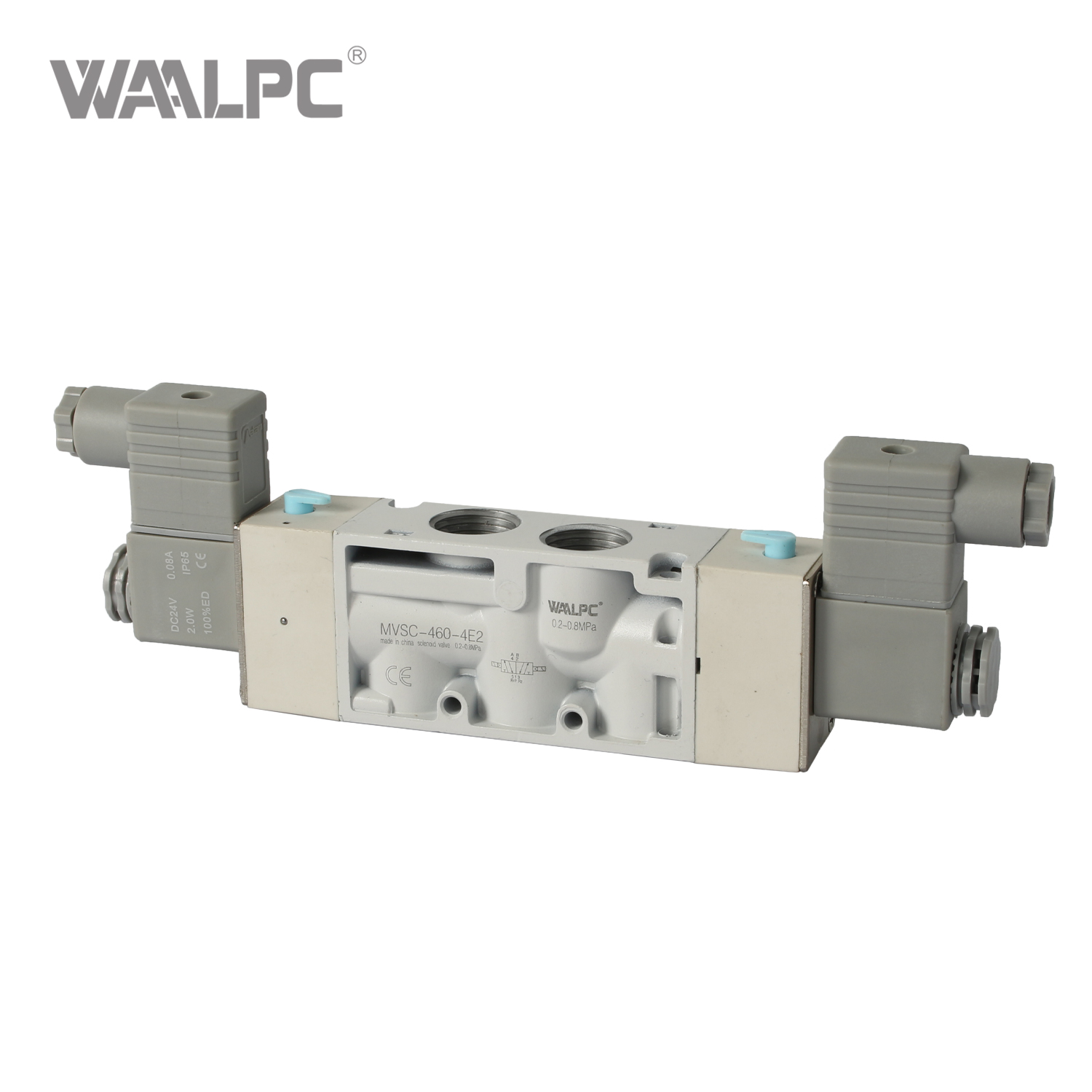

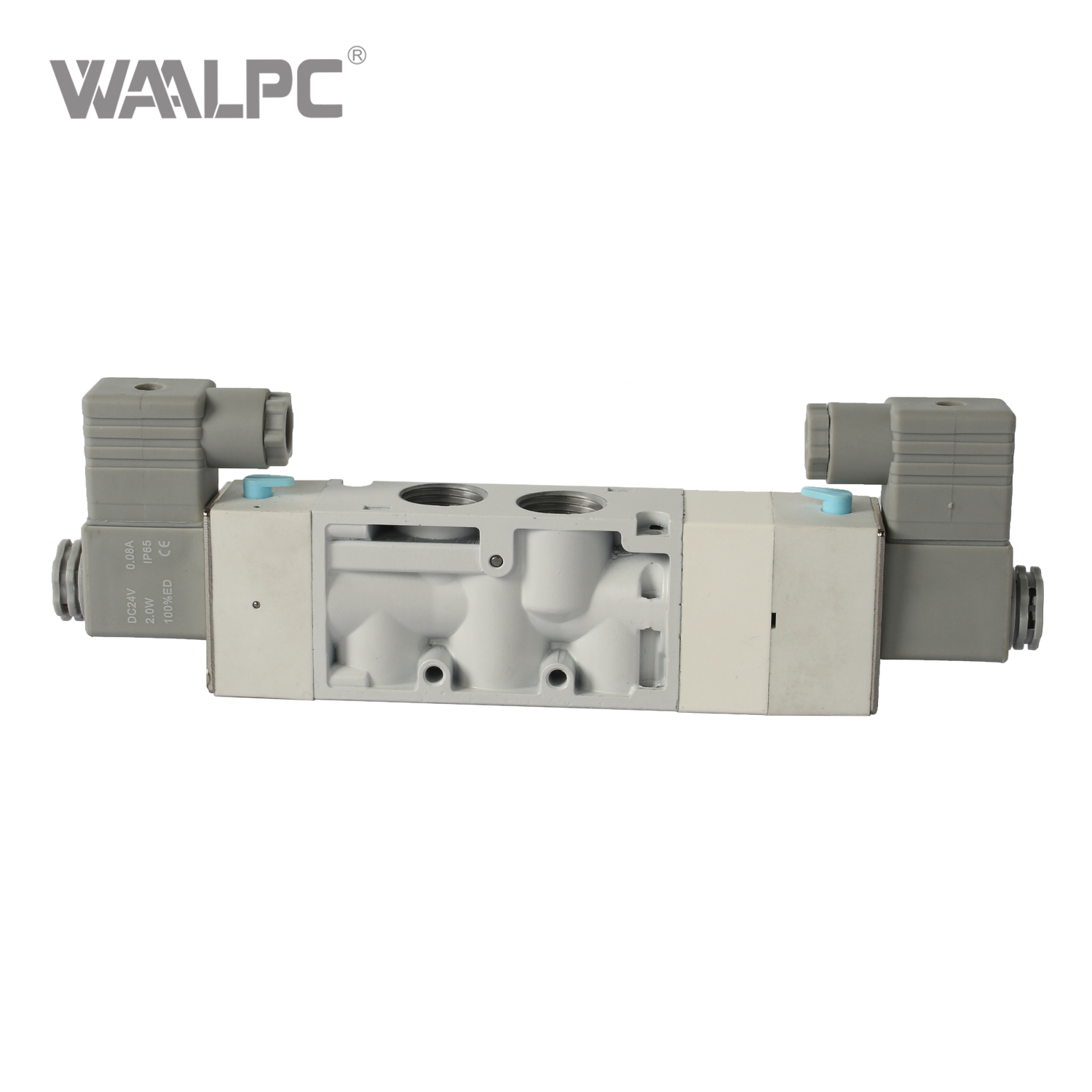

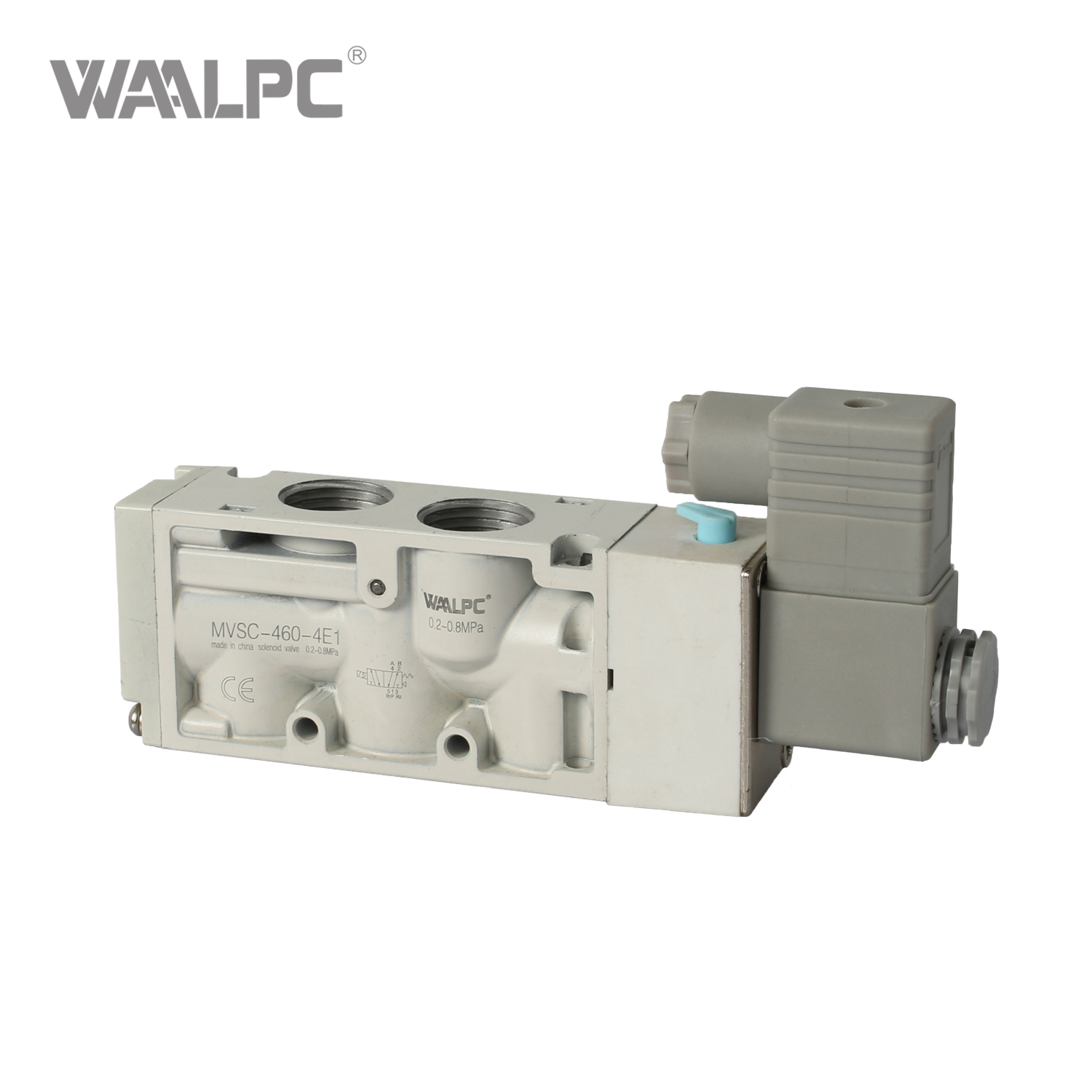

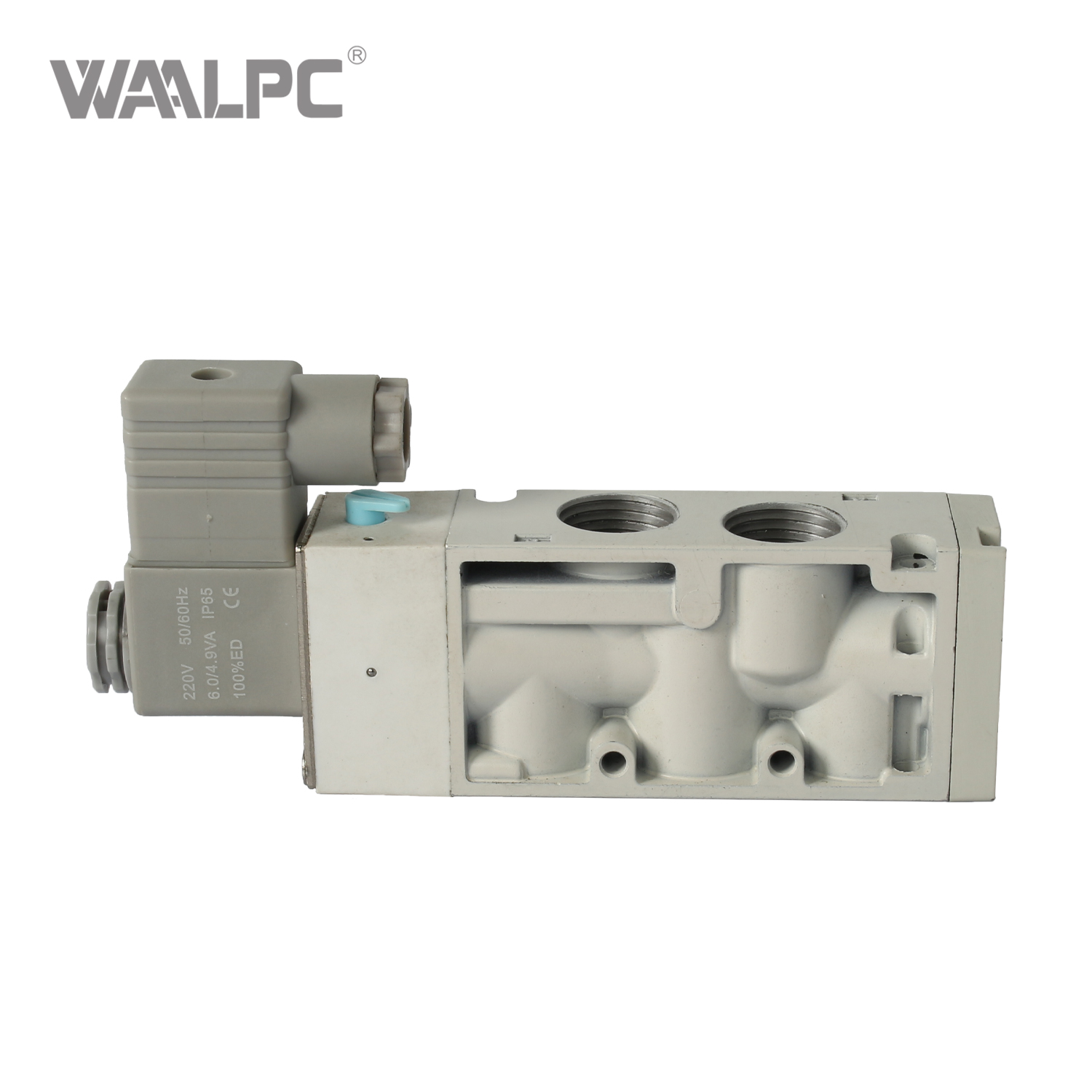

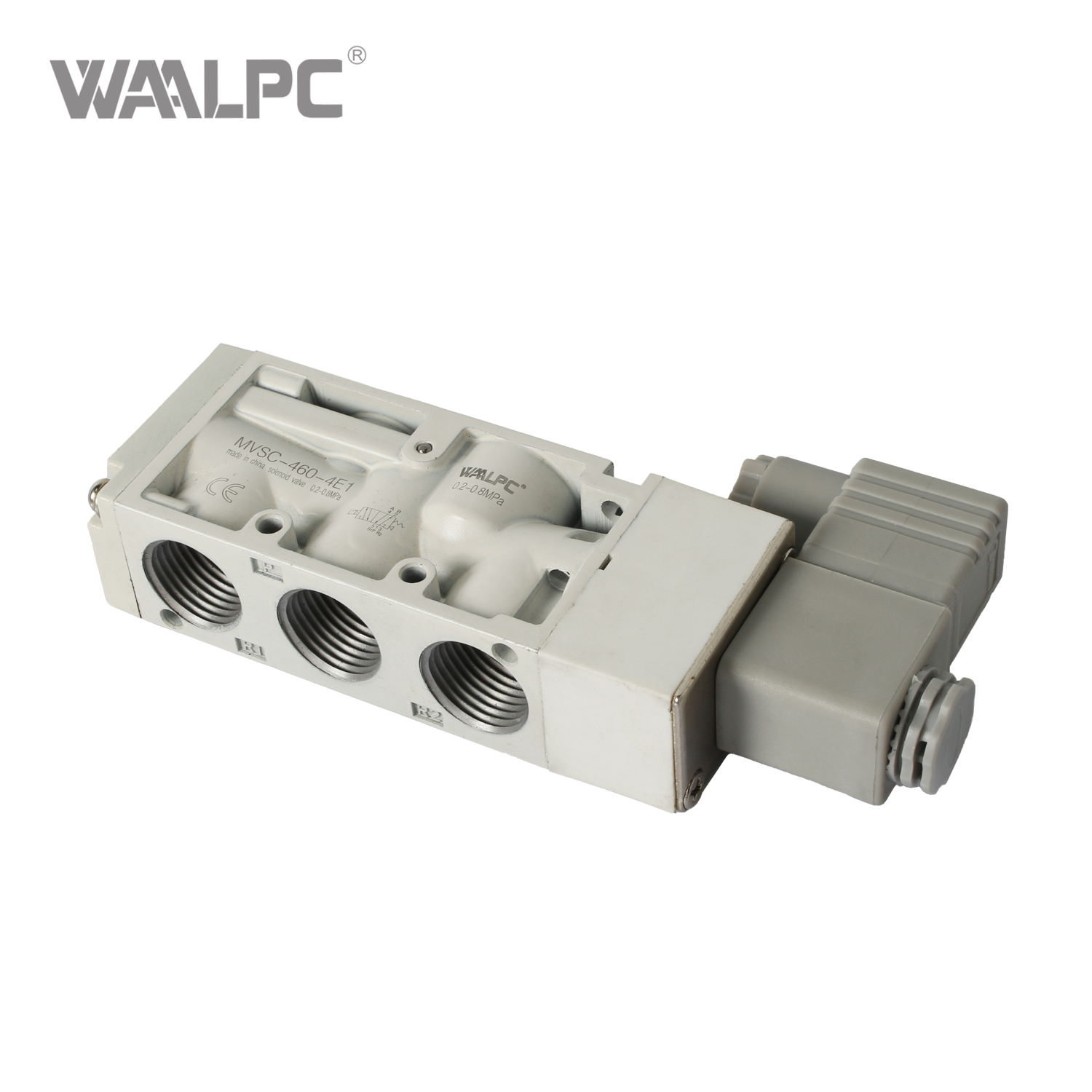

MVSC460 Series, 5/2-Way Or 5/3-Way Solenoid Valve


Availability:

Quantity:



Inquiry Add to Basket

The MVSC Series represents a line of high-performance, industrial-grade solenoid valves engineered for exceptional reliability and versatility in fluid control applications. Designed with a compact and robust housing, these valves are built to deliver precise and dependable operation in demanding environments.

Model:
MVSC460
Brand:
WAALPC
Code:
8481202090

Product Description

Superior Durability: Features an IP67-rated enclosure, providing excellent protection against dust ingress and water immersion, ensuring long-term performance even in harsh conditions.
Wide Compatibility: Engineered to handle a broad spectrum of media, including compressed air, water, light oils, and neutral gases.
Electrical Flexibility: Supports a wide range of AC and DC voltages, simplifying integration into diverse control systems and reducing inventory complexity.
Optimized Performance: Utilizes an efficient magnetic circuit design for low power consumption and fast response times, enabling accurate and energy-efficient system control.
Compact & Standardized Design: Its space-saving form factor and standardized mounting interfaces allow for easy installation and replacement, ideal for both OEM machinery and system upgrades.

Technical Parameters

ORDERING CODE

Solenoid Valve

DATA SHEET

Model	4E1	4E2	4E2 C.P.R
Port Size	1/2
Valve type	5 port 2 position		5 port 3 position
Medium	Air
Pressure Range	0.2~0.8MPa		0.3~0.8MPa
Proof Pressure	1.0MPa
Effective Orifice	50mm2		30mm2
Reponse Time	50ms
Ambient Temperature	-5~+50℃(No freezing)
Voltage	AC110V, 220V, 24V(50/60)Hz, DC24V, 12V
Power Consumption	AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Available Voltage Range	±10%
Insulation Class	F class

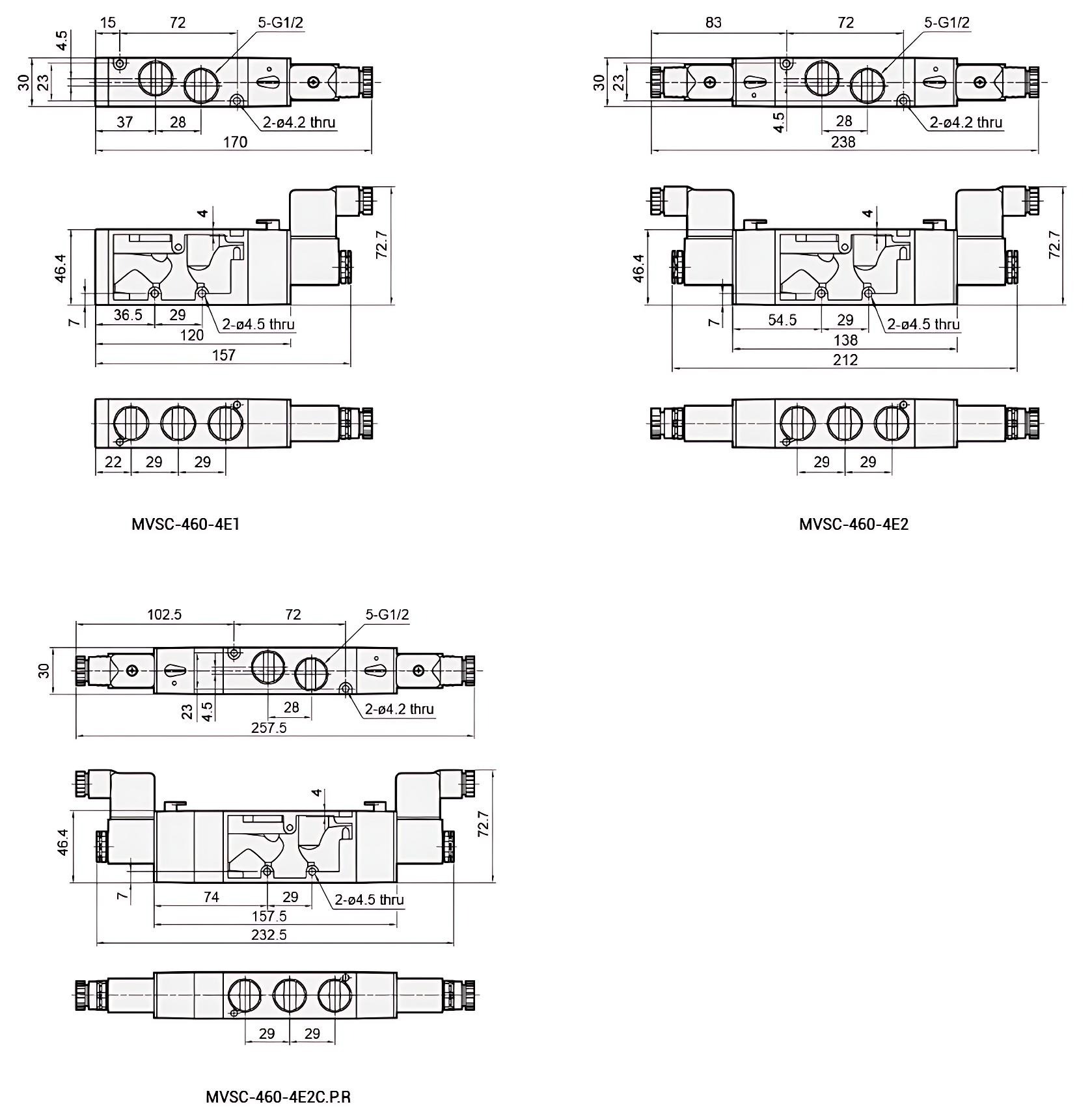

STRUCTURE&DIMENSION(MM)

MVSC460 solenoid valve

Specification Download

MVSC Series Solenoid Valve.pdf
