Industrial compressed-air systems with large pipelines, high-demand pneumatic equipment or multiple air-consuming machines require more than a standard compact regulator.
When the regulator is undersized, the system may experience excessive pressure drop, unstable downstream pressure, slow actuator response and insufficient air supply during peak demand.

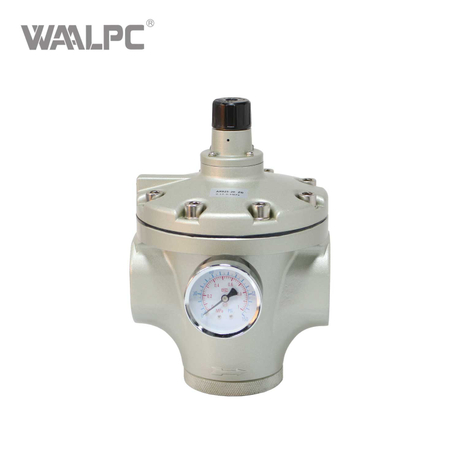

The WAALPC AR Series high-flow pilot-operated air regulator is designed for large-volume compressed-air applications requiring stable pressure regulation and low flow restriction. With G1½, G2 and G3 connection sizes and rated flow capacities up to 28,000 L/min, the series is suitable for central air-supply lines, large pneumatic machinery, automated production systems and industrial air-distribution networks.
Available models include:
· AR825-15: G1½
· AR925-20: G2
· AR1200-30: G3
The series provides a practical, cost-effective sourcing option for distributors, OEM machine builders, system integrators and industrial maintenance companies looking for a high-flow pilot-operated regulator.
A pressure regulator is not selected only according to pipe diameter or maximum inlet pressure.
In a high-demand compressed-air system, the regulator must also provide sufficient flow while maintaining acceptable downstream pressure under changing air consumption.
A conventional small direct-acting regulator may become a bottleneck when installed in:
· Large compressed-air main lines
· Systems supplying several machines simultaneously
· Large pneumatic cylinders
· Continuous air-blowing equipment
· Industrial coating and spraying lines
· Packaging and processing machinery
· High-capacity pneumatic production equipment
The WAALPC AR Series uses an internal pilot-operated construction. The pilot mechanism controls the main valve, allowing the regulator to handle higher flow rates than many conventional compact regulators.
This design helps maintain more consistent outlet pressure when downstream air demand changes.
The AR Series is available in three body sizes, with rated flow capacities from 12,000 to 28,000 L/min. This makes the series suitable for large compressed-air pipelines and equipment with high instantaneous or continuous air demand.
Model | Port Size | Rated Flow |
AR825-15 | G1½ | 12,000 L/min |
AR925-20 | G2 | 20,000 L/min |
AR1200-30 | G3 | 28,000 L/min |
Actual usable flow depends on inlet pressure, set outlet pressure, allowable pressure drop, piping conditions and compressed-air quality.
The internal pilot mechanism uses a small pilot valve to control the larger main valve.
Compared with many direct-acting regulators, this construction is better suited to large flow requirements because the main valve can respond to changes in downstream pressure without relying only on the manual adjusting spring.
The result is:
· Better suitability for large-volume air supply
· Reduced pressure fluctuation under changing demand
· More stable downstream pressure
· Easier regulation of large pipeline systems
· Improved pneumatic equipment consistency
The standard pressure-regulating range is 0.05 to 0.85 MPa.
This range covers many industrial compressed-air applications, including machine tools, pneumatic automation, packaging equipment, air-blowing systems and plant air distribution. The maximum operating pressure is 1.0 MPa, and the pressure resistance is rated at 1.5 MPa.
Three connection sizes are available for different pipeline capacities:
· G1½ for medium-to-large compressed-air supply lines
· G2 for high-flow machinery and central air distribution
· G3 for very large air-demand systems and main pipelines
The larger port sizes help reduce unnecessary flow restriction when the regulator is correctly matched to the piping system. Thread standard should be confirmed before ordering, especially when replacing an existing regulator with G, Rc or NPT connections.
The regulator is equipped with a 1/4-inch pressure-gauge port. A pressure gauge can be installed for direct monitoring of regulated outlet pressure, helping operators:
· Set the required working pressure
· Check downstream pressure during operation
· Identify abnormal pressure changes
· Simplify system commissioning
· Improve preventive maintenance
The standard reference gauge is G46-10-02 or an equivalent configuration, subject to order requirements.
The AR Series uses an internal pilot relieving-type construction. When downstream pressure rises above the set value, the relieving function can discharge a limited amount of excess secondary pressure through the regulator.
This function is useful in applications where downstream pressure may increase because of temperature changes, actuator return forces or system pressure variation.
Safety Note The relieving function is not intended to replace a safety relief valve. A separate certified safety device should be used wherever system safety regulations require one. |
The regulator is designed for compressed-air systems operating within a temperature range of -5°C to 60°C, with no freezing.
It can be used in many general industrial environments, provided that the compressed air is properly filtered and the regulator is protected from freezing, corrosive media, excessive vibration and external mechanical damage.
Specification | AR825-15 | AR925-20 | AR1200-30 |
Product Type | Pilot-operated air regulator | Pilot-operated air regulator | Pilot-operated air regulator |
Port Size | G1½ | G2 | G3 |
Working Medium | Compressed air | Compressed air | Compressed air |
Maximum Operating Pressure | 1.0 MPa | 1.0 MPa | 1.0 MPa |
Pressure Resistance | 1.5 MPa | 1.5 MPa | 1.5 MPa |
Pressure-Regulating Range | 0.05-0.85 MPa | 0.05-0.85 MPa | 0.05-0.85 MPa |
Operating Temperature | -5°C to 60°C, no freezing | -5°C to 60°C, no freezing | -5°C to 60°C, no freezing |
Construction | Internal pilot relieving type | Internal pilot relieving type | Internal pilot relieving type |
Pressure-Gauge Port | 1/4 inch | 1/4 inch | 1/4 inch |
Rated Flow | 12,000 L/min | 20,000 L/min | 28,000 L/min |
Approximate Weight | 2.5 kg | 4.5 kg | 8.0 kg |
Because the regulator uses an internal pilot bleeding design, a small amount of pilot air is continuously discharged during normal operation.
The specified pilot air consumption is approximately 5 L/min ANR at maximum pressure.
This small continuous bleed is a normal operating characteristic of the pilot control design and should not automatically be treated as an external air leak.
Model | A | B | C | D | E | F |
AR825-15 | 126 mm | 216 mm | 75 mm | 110 mm | 94.5 mm | 5 mm |
AR925-20 | 160 mm | 241 mm | 90 mm | 140 mm | 109.5 mm | 10 mm |
AR1200-30 | 210 mm | 274 mm | 125 mm | 190 mm | 140 mm | 25 mm |
Before replacing an existing regulator, compare the complete installation dimensions, port position, pressure-gauge location, flow direction and required maintenance clearance.
When the adjusting knob is turned clockwise, the adjusting spring applies force to the pilot diaphragm.
The pilot valve then allows controlled air pressure to enter the main pilot chamber. This pilot pressure acts on the main diaphragm and opens the main valve, allowing compressed air to flow from the inlet to the outlet.
Downstream pressure is fed back to the control diaphragm. When the outlet pressure reaches the selected value, the pilot force, spring force and feedback pressure reach equilibrium.
If downstream air consumption increases, outlet pressure begins to decrease. The pilot mechanism responds by opening the main valve further to supply additional air.
If downstream air consumption decreases, the valve opening is reduced to maintain the selected outlet pressure.
This operating principle allows a relatively small pilot mechanism to control a much larger main flow path.
The AR Series can be installed in plant air-distribution systems to reduce main-line pressure to the required downstream working pressure. It is suitable for production facilities where one regulator supplies several machines or branch pipelines.
Large cylinders may require a significant volume of compressed air during extension and retraction. A high-flow regulator helps reduce pressure starvation and slow cylinder movement caused by an undersized pressure-control component.
The regulator can support pneumatic automation systems containing multiple valves, cylinders, grippers and air-operated devices. Stable air pressure helps improve cycle consistency and equipment repeatability.
Industrial painting lines, coating equipment and air-assisted production systems often require stable compressed-air pressure. The regulator can be used upstream of properly selected filtration and air-treatment equipment.
Large packaging, filling, sealing and material-handling systems may include many pneumatic actuators operating simultaneously. The high-flow design helps provide sufficient air during peak production cycles.
Continuous air knives, blow-off nozzles and industrial air-cleaning systems may consume large volumes of compressed air. Correct regulator sizing helps minimize excessive pressure loss.
Large production machines often combine cylinders, clamping devices, air jets and pneumatic control elements. The AR Series can serve as a main pressure-control component for these systems.
The product can also be used in workshops, assembly plants, equipment rooms and local compressed-air distribution stations.
When multiple machines operate simultaneously, air demand may exceed the capacity of the existing regulator.
Recommended solution: Calculate the total peak air consumption and select AR825-15, AR925-20 or AR1200-30 according to required flow, inlet pressure and acceptable pressure drop.
Installing a small-port regulator in a large pipeline creates an unnecessary bottleneck.
Recommended solution: Use a regulator with a port size closer to the main pipeline size and verify the required flow using the regulator’s flow curve.
Slow or inconsistent cylinder movement may be caused by insufficient flow, excessive pressure drop, undersized tubing or an incorrectly selected regulator.
Recommended solution: Check the complete air-supply path, including compressor capacity, receiver volume, filters, dryers, piping, fittings, valves and regulator flow capacity.
Pressure fluctuation may be caused by sudden changes in air consumption, incorrect regulator sizing, unstable inlet pressure or excessive flow through the regulator.
Recommended solution: Select a pilot-operated regulator with sufficient reserve capacity and maintain stable upstream pressure.
Maintenance companies and distributors may need a more economical sourcing option for non-critical replacement projects, OEM machinery or price-sensitive markets.
Recommended solution: Evaluate the WAALPC AR Series as a technical cross-reference option after confirming port size, thread, pressure range, flow capacity, dimensions and installation conditions.
The WAALPC AR825-15 and AR925-20 are designed for applications in the same general product category as large SMC AR-series pilot-operated regulators.
They can provide a cost-effective option for:
· Industrial distributors
· Pneumatic wholesalers
· OEM machine manufacturers
· Equipment repair companies
· System integrators
· Private-label brands
· Industrial maintenance departments
However, model numbers alone should never be used to confirm interchangeability.
Before selecting a WAALPC regulator as an alternative to an SMC unit, verify the following:
Selection Item | What to Confirm |
Port Size | G1½, G2 or G3 |
Thread Standard | G, Rc or NPT |
Maximum Inlet Pressure | System pressure must remain within the regulator rating |
Outlet Pressure Range | Required minimum and maximum regulated pressure |
Required Flow | Peak flow at the actual operating pressure |
Pressure Drop | Acceptable downstream pressure reduction |
Overall Dimensions | Available installation space |
Flow Direction | Inlet and outlet orientation |
Gauge Position | Required gauge mounting location |
Working Medium | Standard product is for compressed air |
Temperature | -5°C to 60°C, no freezing |
Certifications | Confirm any market-specific compliance requirements |
Recommended Wording Describe the WAALPC unit as a cost-effective cross-reference alternative for selected applications, subject to technical verification. Avoid claiming automatic or universal interchangeability. |
· The required port size is approximately G1½
· The expected rated flow is within 12,000 L/min
· Installation space is limited compared with larger models
· The system supplies medium-to-large pneumatic machinery
· The required port size is approximately G2
· The system requires up to 20,000 L/min rated flow
· Several machines or high-demand actuators share one air supply
· The regulator is installed in a large branch or main air line
· The required connection is approximately G3
· The system has very high air demand
· A rated flow of up to 28,000 L/min is required
· The regulator is installed in a large central distribution line
Final selection should be based on actual operating conditions rather than port size alone.
1. Confirm the flow direction marked on the regulator body.
2. Remove dirt, sealing residue and metal particles from the piping before installation.
3. Install an appropriate filter and water separator upstream.
4. Ensure that thread sealant does not enter the regulator.
5. Support large pipelines independently to avoid transferring pipe stress to the regulator body.
6. Leave sufficient space for pressure adjustment and maintenance.
7. Install pressure gauges where operators can safely read them.
8. Increase outlet pressure gradually while monitoring the gauge.
9. Do not exceed the specified operating pressure or temperature.
10. Do not operate the regulator above the verified flow range.
11. Prevent freezing of moisture inside the regulator.
12. Depressurize the system before maintenance or disassembly.
Where system over-pressure could create a safety risk, install a separately selected safety relief valve.
The published flow value should be used as a model-selection reference. Actual flow depends on:
· Inlet pressure
· Outlet set pressure
· Pressure differential
· Pipe diameter
· Pipe length
· Filter pressure drop
· Fitting restrictions
· Air temperature
· Required pressure stability
· Allowable downstream pressure reduction
For critical applications, provide WAALPC with the actual inlet pressure, required outlet pressure and maximum air consumption.
The standard working medium is compressed air. Do not use the standard product with oxygen, combustible gas, corrosive gas, steam, water, hydraulic oil or other fluids without written technical confirmation.
The regulator’s pilot circuit continuously consumes a small amount of compressed air. This controlled bleed is part of the internal pilot operating principle and is not necessarily a product fault.
WAALPC supports industrial distributors, equipment manufacturers and pneumatic brands requiring a flexible high-flow regulator supply program.
Available cooperation may include:
· WAALPC-branded supply
· Customer private-label branding
· Customized product labels
· Customized packaging
· Model cross-reference support
· Export carton design
· Distributor product documentation
· Technical parameter confirmation
· Sample evaluation
· Batch-order supply
Customization availability depends on order quantity and technical requirements.
To recommend the correct model, please provide:
· Required connection size
· Required thread standard
· Maximum inlet pressure
· Required outlet pressure
· Normal air consumption
· Peak air consumption
· Acceptable pressure drop
· Working temperature
· Installation dimensions
· Flow direction
· Required pressure gauge
· Quantity
· OEM or WAALPC branding requirement
Providing these details allows our engineers to identify the most appropriate configuration more accurately.
It may be considered for selected cross-reference applications, but it should not be treated as an automatic direct replacement. Port size, thread standard, pressure range, flow performance, dimensions, materials, installation method and required certifications must be checked before replacement.
The rated flow is 12,000 L/min for AR825-15, 20,000 L/min for AR925-20 and 28,000 L/min for AR1200-30. Actual flow depends on operating pressure and allowable pressure drop.
The standard datasheet range is 0.05 to 0.85 MPa. Final pressure-range configuration should be confirmed on the quotation and product label.
The regulator uses an internal pilot bleeding design. A small amount of pilot air is continuously consumed during normal operation.
No. The standard working medium is compressed air. Other media require separate technical evaluation.
A gauge or gauge option can be configured according to the selected model and order requirements. Confirm the final configuration before ordering.
Thread requirements should be confirmed during quotation. Do not assume that a G-thread product can be installed directly into an NPT or Rc pipeline.
OEM and private-label services may be available depending on order quantity, packaging requirements and branding documentation.
The WAALPC AR Series high-flow pilot-operated air regulator is designed for large compressed-air systems that require high flow capacity, broad pressure adjustment and stable downstream pressure control.
With G1½, G2 and G3 body sizes, rated flow up to 28,000 L/min and an internal pilot relieving construction, the series is suitable for central compressed-air lines, pneumatic machinery, automated production systems and industrial air-distribution applications.
For customers evaluating alternatives to large branded pilot-operated regulators, the WAALPC AR Series offers a practical balance of performance, customization flexibility and procurement cost.
Contact WAALPC with your inlet pressure, required outlet pressure, port size and maximum flow demand for model selection and quotation support.
