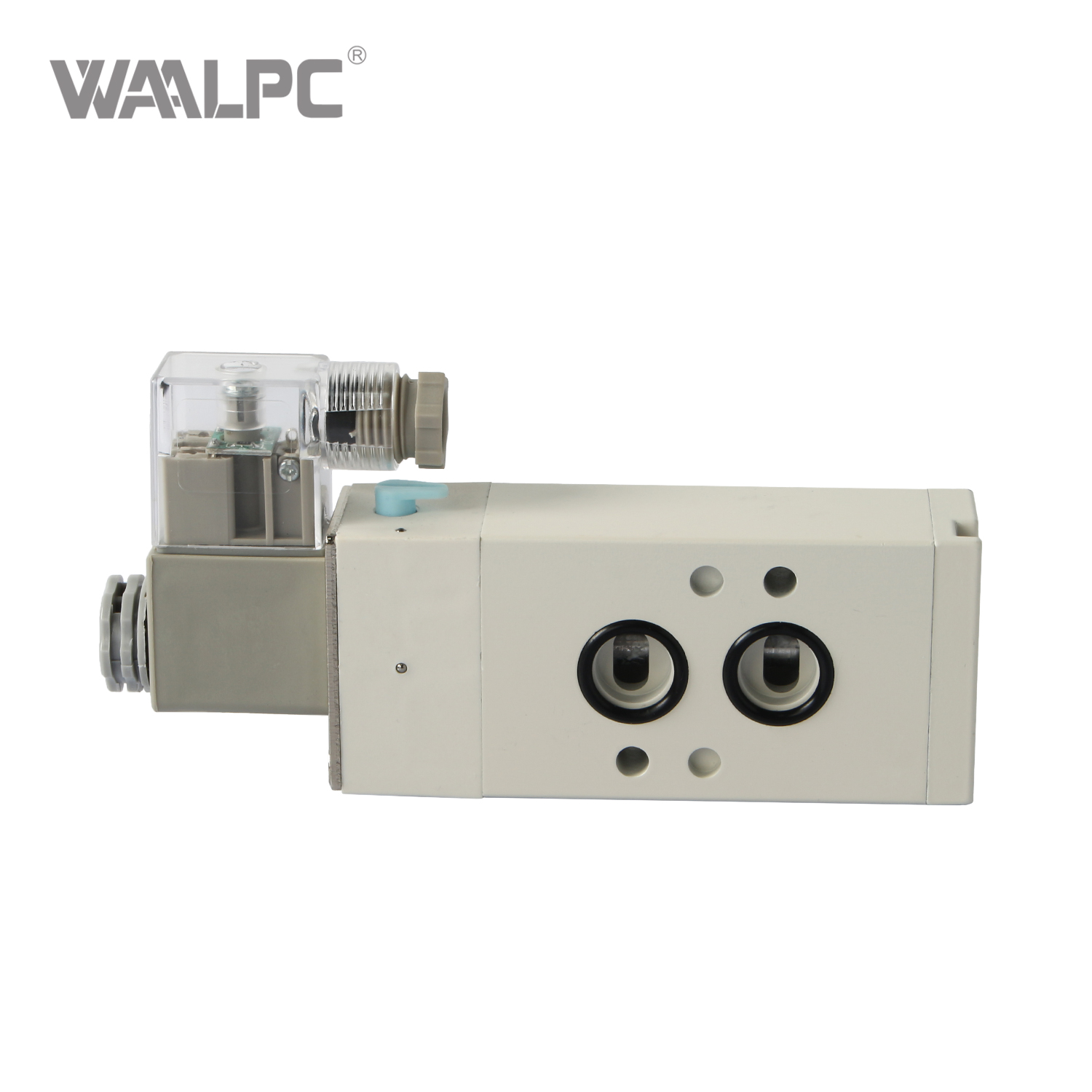

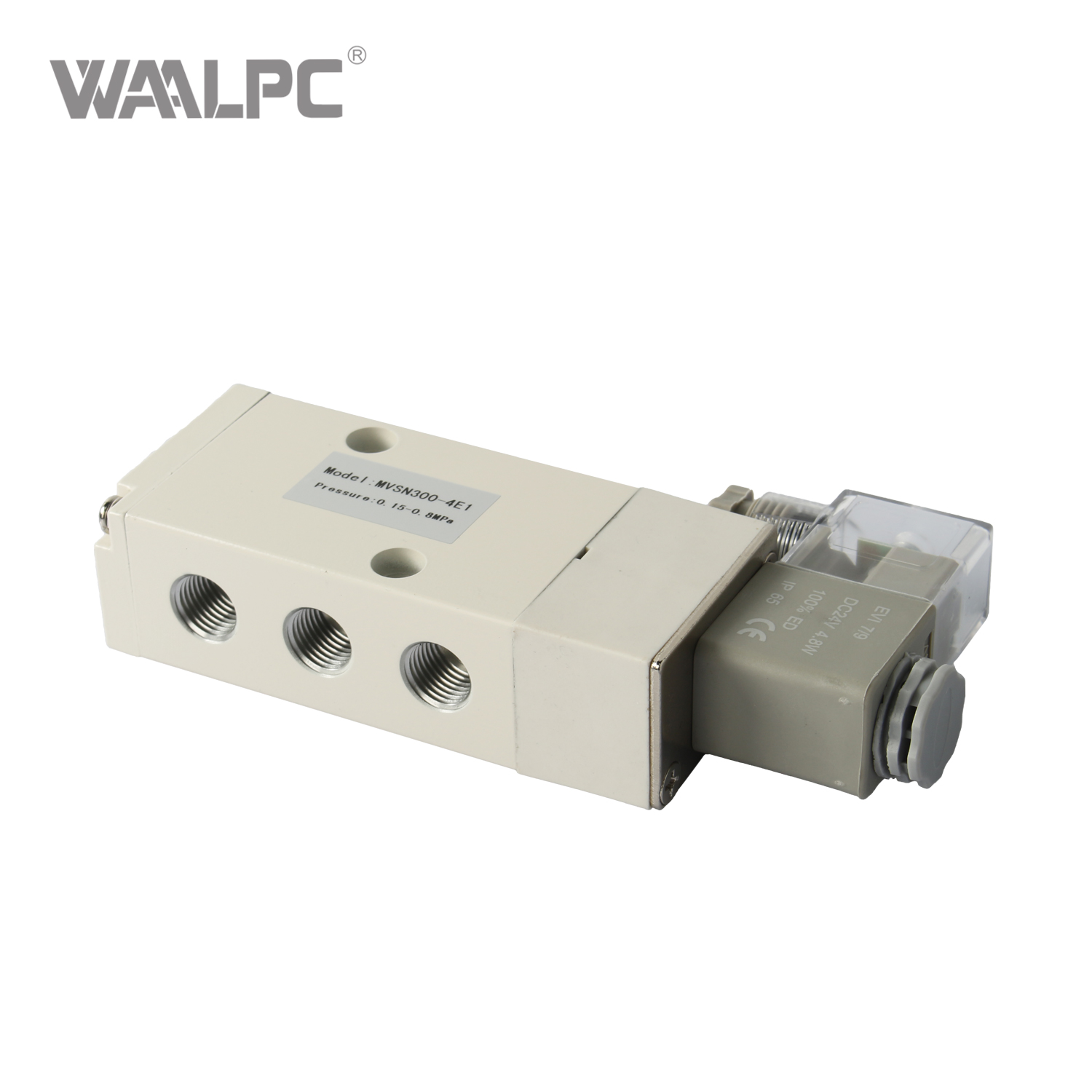

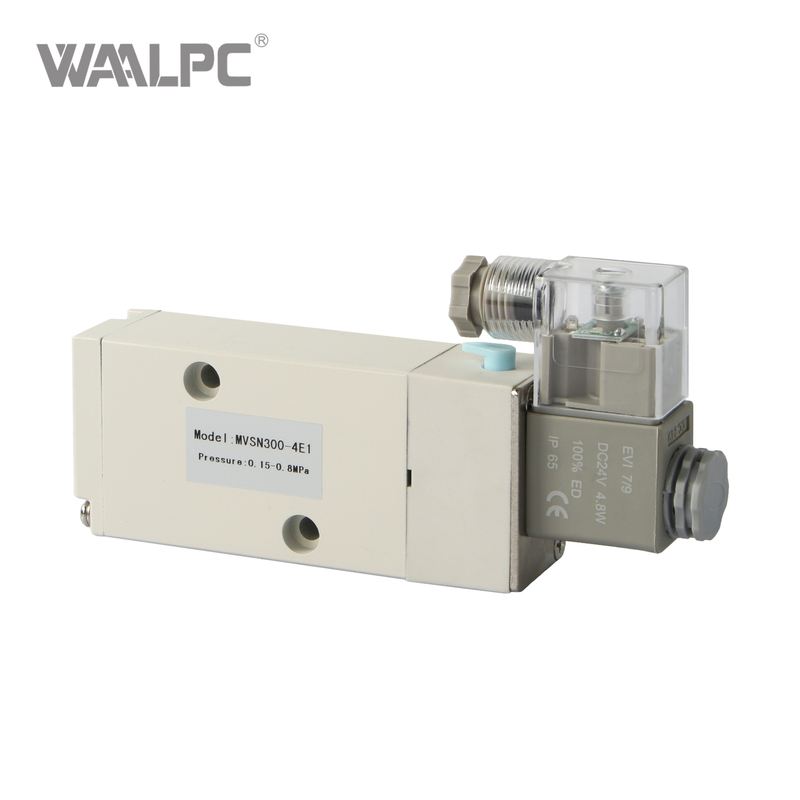

Airtac Type Mvsn-300-4e1 Solenoid Valve 5/2 Way Single Solenoid 1/4" Port DC24V/AC220V Pneumatic Valve

Airtac Type Mvsn-300-4e1 Solenoid Valve 5/2 Way Single Solenoid 1/4" Port DC24V/AC220V Pneumatic Valve


Availability:

Quantity:



Inquiry Add to Basket

The AIRTAC Type MVSC Series is a line of pilot-operated or direct-acting solenoid valves designed for reliable and efficient control of compressed air in industrial automation systems . These valves are available in 2-position 3-way, 2-position 5-way, and 3-position 5-way configurations to meet diverse application requirements.

Model:
MVSN
Brand:
WAALPC
Code:
8481202090

Product Description

Multiple Valve Functions – Available in 5/2-way single/double solenoid and 5/3-way (closed center, exhaust center, pressure center) configurations to suit different control requirements.
Compact and Lightweight Design – Space-saving construction with body widths ranging from 15mm to 30mm, allowing easy integration into tight spaces.
Pilot-Operated or Direct-Acting Options – Depending on the model, offers either pilot-operated or direct-acting operation for optimal performance across various pressure ranges.
Wide Operating Pressure Range – Typically operates from 0.15 to 0.8 MPa (1.5–8 kgf/cm²), with some models supporting lower pressures.
High Flow Capacity – Effective orifice sizes from 3.8 mm² to 18 mm², with flow rates reaching up to 980 Nl/min for efficient system performance.

Technical Parameters

ORDERING CODE

MVSN solenoid valve

DATA SHEET

Model	4E1	4E2	4E2 C.P.R
Valve type	5 port 2 position		5 port 3 position
Medium	Air
Pressure Range	0.2~0.7MPa		0.3~0.7MPa
Proof Pressure	1.0MPa
Effective Orifice	22mm2		20mm2
Reponse Time	40ms
Ambient Temperature	-5~+50℃(No freezing)
Voltage	AC110V, 220V(50/60), DC24V
Power Consumption	AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W
Available Consumption	±10%
Insulation Class	F class

STRUCTURE&DIMENSION(MM)

Specification Download

MVSN Series.png
