Are Pressure Regulating Valve Filters Used for Air Pumps?

Yes, pressure regulating valves and filters usually need to be used in conjunction with air pumps (air compressors). Together, they form the "protective barrier" and "stable core" of the pneumatic system. The following is a detailed analysis:

The core role and functional positioning of pressure regulating valves + filters in air pump systems

Air pumps (air compressors): generate compressed air, but the output air often contains moisture, oil mist, dust, and the pressure is unstable.

Filters: filter impurities and liquid water in the air to protect subsequent pneumatic components (such as cylinders and solenoid valves) from contamination.

Pressure regulating valve: stabilize the high-pressure air output by the air pump to the pressure required by the equipment to avoid pressure fluctuations that cause equipment failure.

Necessity analysis

✅ Protect equipment: Unfiltered compressed air will clog pneumatic components and shorten their life (for example, cylinders get stuck and solenoid valves leak).

✅ Stabilize pressure: The pressure directly output by the air pump may be too high or fluctuate, and the pressure regulating valve can accurately control it (such as 0.4~0.6MPa).

✅ Improve efficiency: Clean, stable air can ensure accurate and reliable operation of the equipment and reduce downtime maintenance.

Typical installation location and process

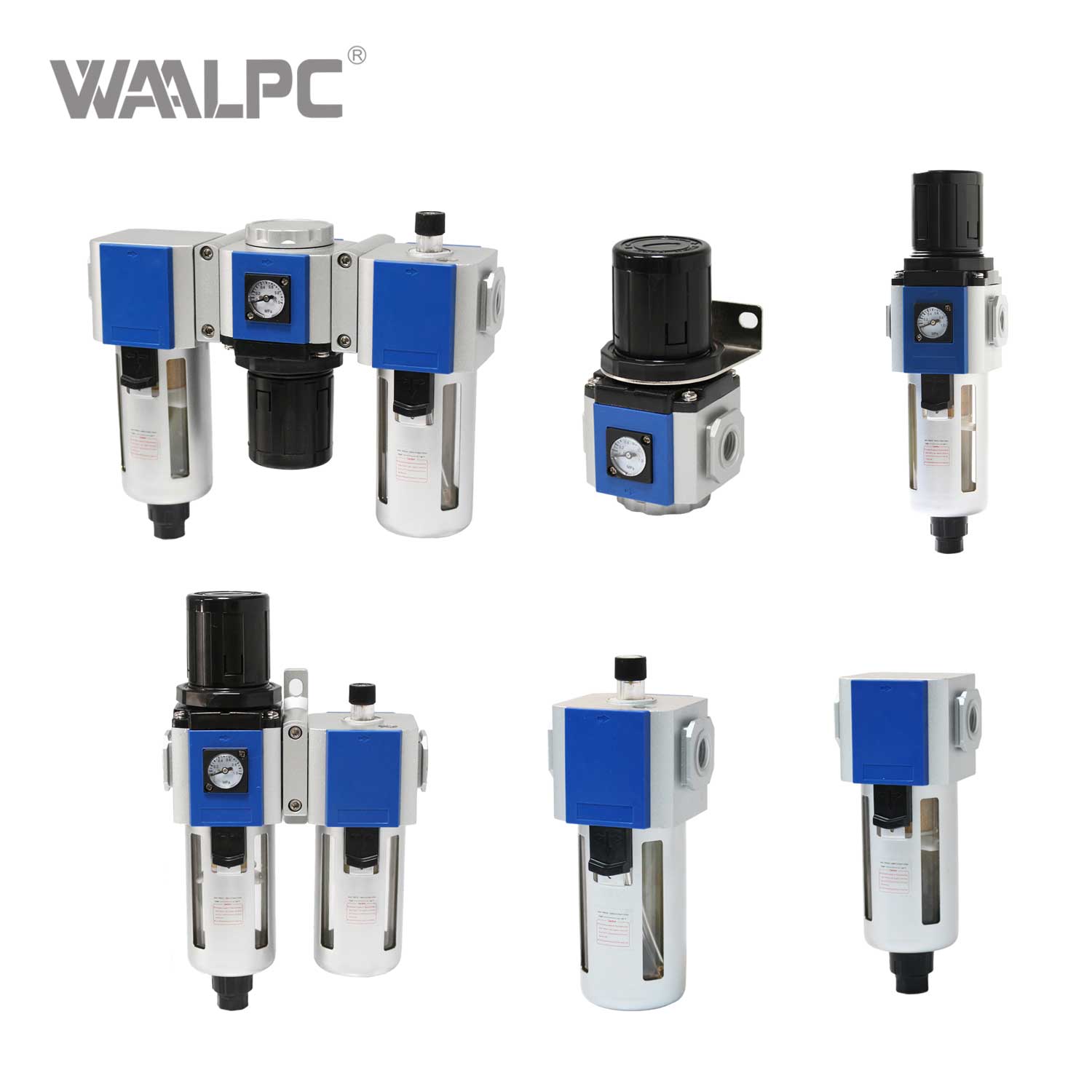

Air pump → air tank → filter → pressure regulating valve → lubricator (optional) → pneumatic equipment

(Note: The filter is usually installed in front of the pressure regulating valve to prevent impurities from affecting the accuracy of the pressure regulating valve.)

Selection and use suggestions

Filter accuracy

General working conditions: Select 5μm grade filtration (filter oil, water, and large particles).

Precision equipment (such as medical and electronics): 0.01μm precision filter or even adsorption dryer is required.

Pressure regulating valve matching

Select the valve body pressure range according to the maximum output pressure of the air pump (such as 1.0MPa) and the required pressure of the equipment.

Pressure regulating valves with pressure gauges are easier to adjust on site.

Maintenance points

Regularly drain the water at the bottom of the filter (manual or automatic drainage).

Replace the filter element in time when it is clogged (pressure differential gauge prompts or flow rate drops).

FAQ

❓ The air pump has its own filtering function, do I need to install it additionally?

→ The air pump primary filter can only intercept large particles, and fine filtering still requires an external filter.

❓ Can the pressure regulating valve be installed directly at the outlet of the air pump?

→ Not recommended! The pressure pulsation should be buffered by the air tank first, and then the pressure regulating valve should be connected.

Summary: The pressure regulating valve and filter are the "must-have partners" of the air pump system, which can significantly improve the quality of the air source and the stability of the system, and neither is indispensable! Choosing the appropriate configuration according to the specific working conditions can minimize the equipment failure rate.
