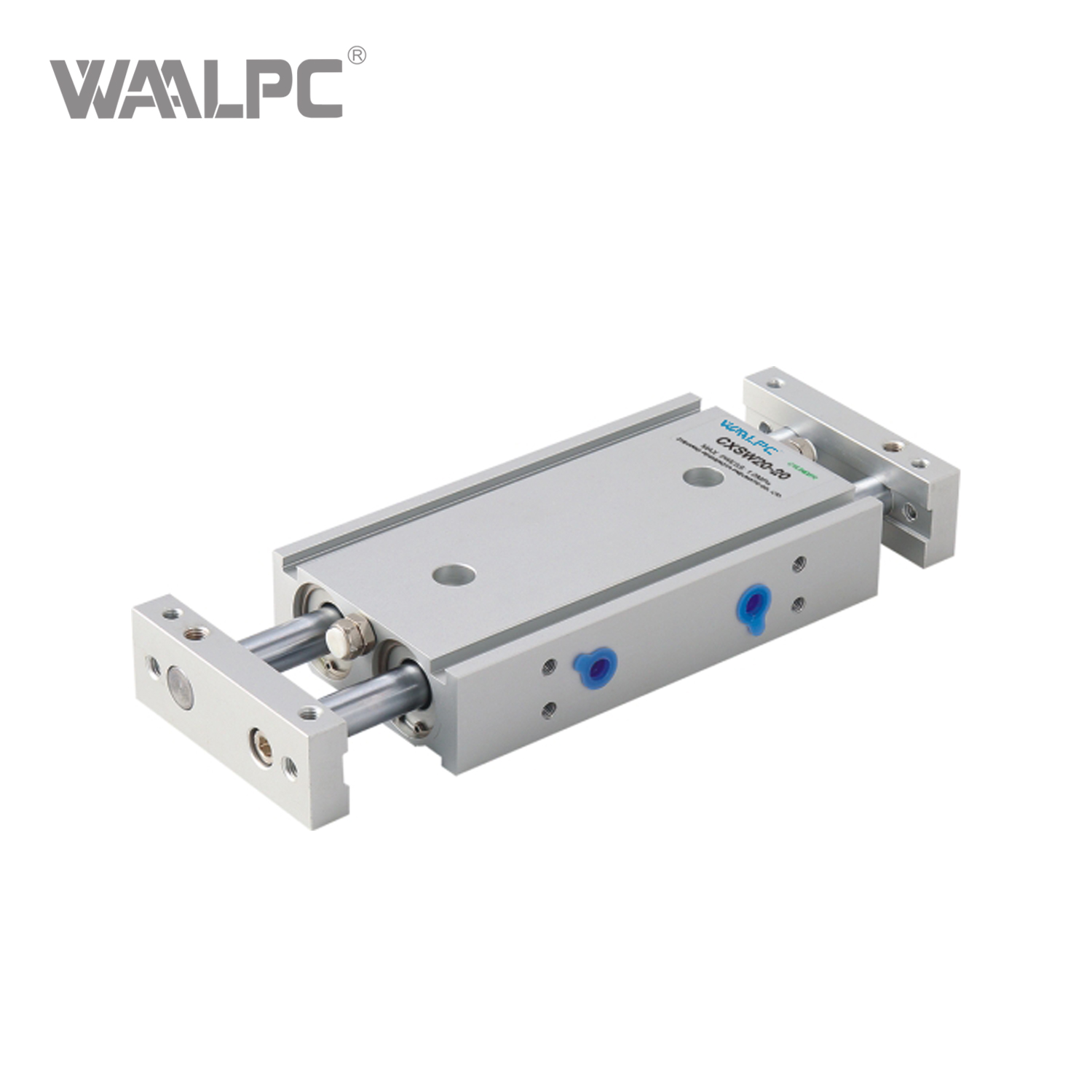

CXSW Series Double Rod Cylinder Double Acting with Standard Magnetic Sensor Groove Unique Air Cushion Structure And 0 To -5mm Stroke Adjustment

• High Rigidity & Load Capacity: The dual rod design offers exceptional resistance to moment and lateral loads, with a maximum allowable load 2 to 3 times greater than the standard CXS series .  This ensures stable operation even under significant side forces.

• Exceptional Non-Rotation Accuracy: The series guarantees high non-rotating accuracy of ±0.1°, which is crucial for precision alignment and assembly tasks.

• Versatile Bearing Options: The CXSW series is available with different bearing types for the guide mechanism.  Models with the suffix 'M' (e.g., CXSWM) feature sliding (bronze bushing) bearings, while models with the suffix 'L' (e.g., CXSWL) are equipped with ball bushing bearings for smoother motion and potentially higher speeds.

• Flexible Three-Side Workpiece Mounting: The design allows for workpieces to be mounted from three sides, offering significant flexibility for integration into various machine designs.

• Unique Air Cushioning: It incorporates a special air cushion structure without a buffer sleeve, providing effective shock absorption at both ends of the stroke for smoother operation and longer life.

• Stroke Adjustment: The cylinder comes with a standard stroke adjustment range of 0 to -5 mm (some sources mention 0 to -10 mm), allowing for fine-tuning of the end positions.

• Lubrication-Free Operation: Designed to operate without the need for lubrication, reducing maintenance requirements.

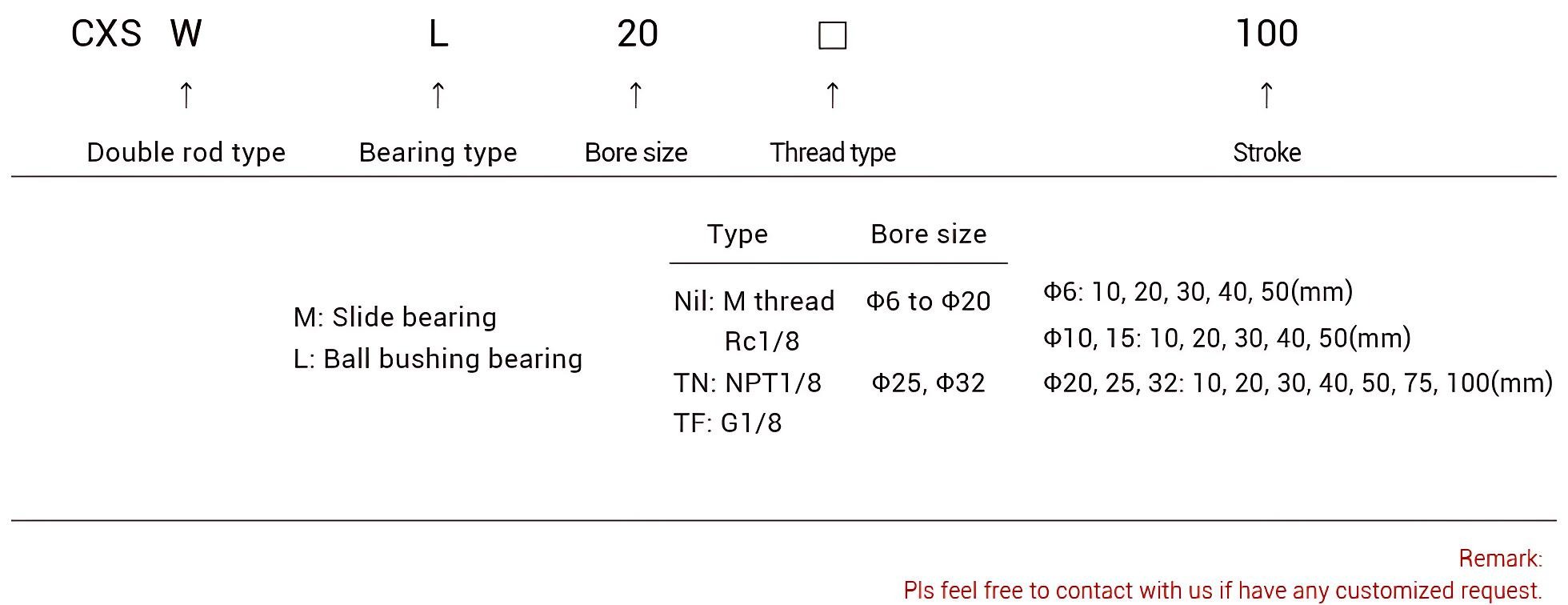

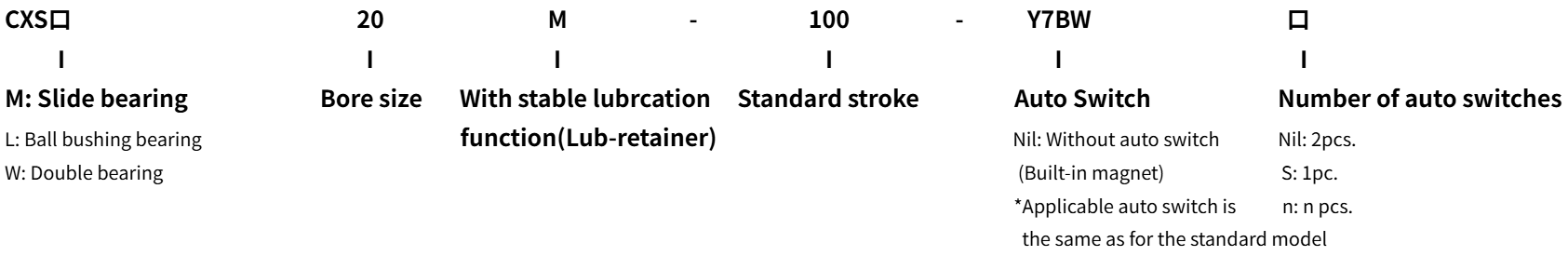

ORDERING CODE

SPECIFICATION

Bore size(mm)	6	10	15	20	25	32
Fliud	Air (Non-lube)
Proof pressure	1.05 MPa
Maximum operating pressure	0.7 MPa
Minimum operating pressure	0.15 MPa			0.1 MPa
Ambient and fluid temperature	-10 to 60℃ (No freezing)
Piston speed	50 to 500 mm/s
Cushion	Bumper is standard on both ends
Stroke adjustable range	0 to -10mm compared to the standard stroke (Extended end: 5mm, Retracted end: 5mm)
Port size	M5x0.8				Rc 1/8
Bearing type	Slide bearing, Ball bushing bearing(Same dimensions for both)

OVERALLDIMENSION&STRUCTURE

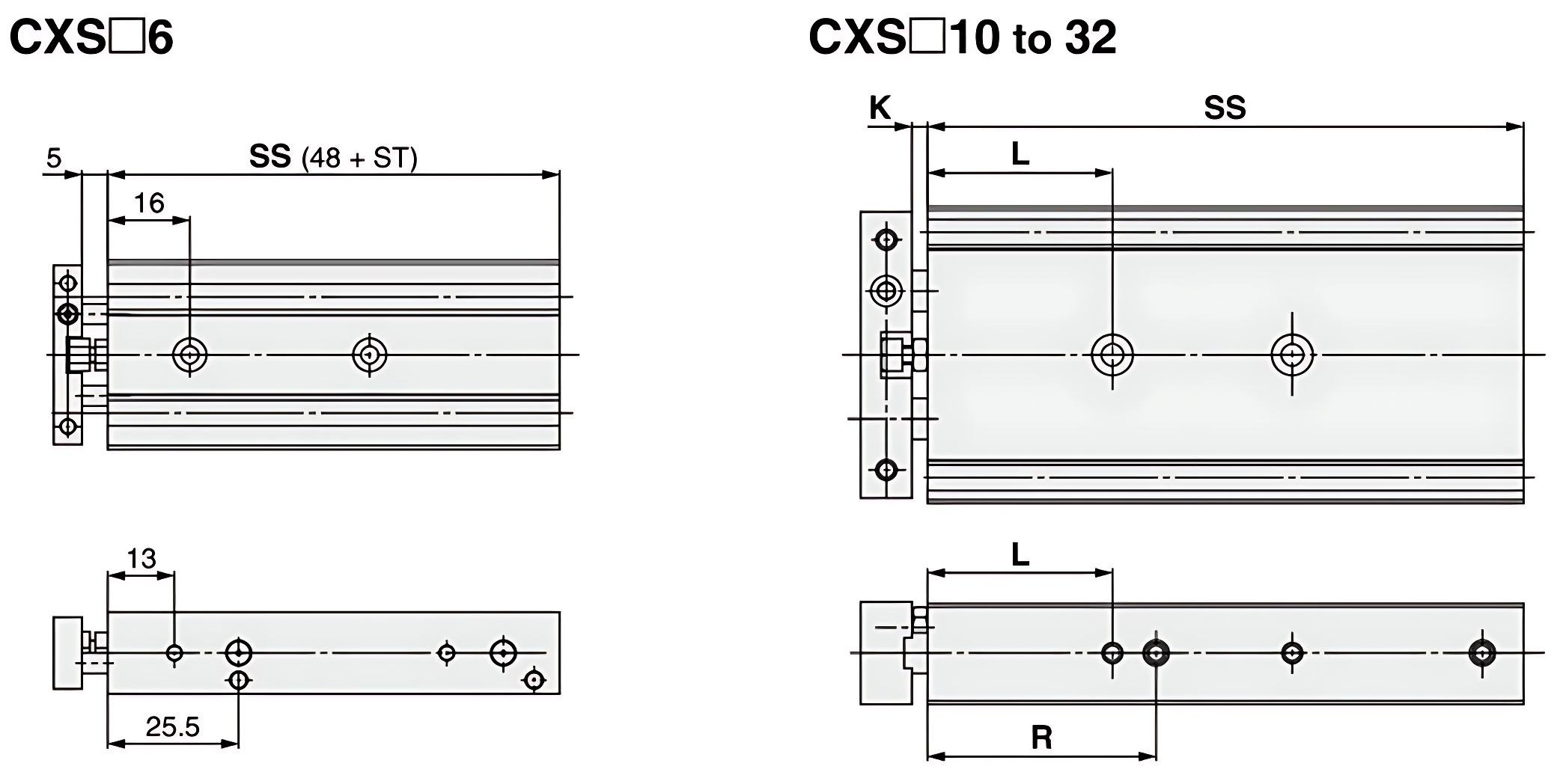

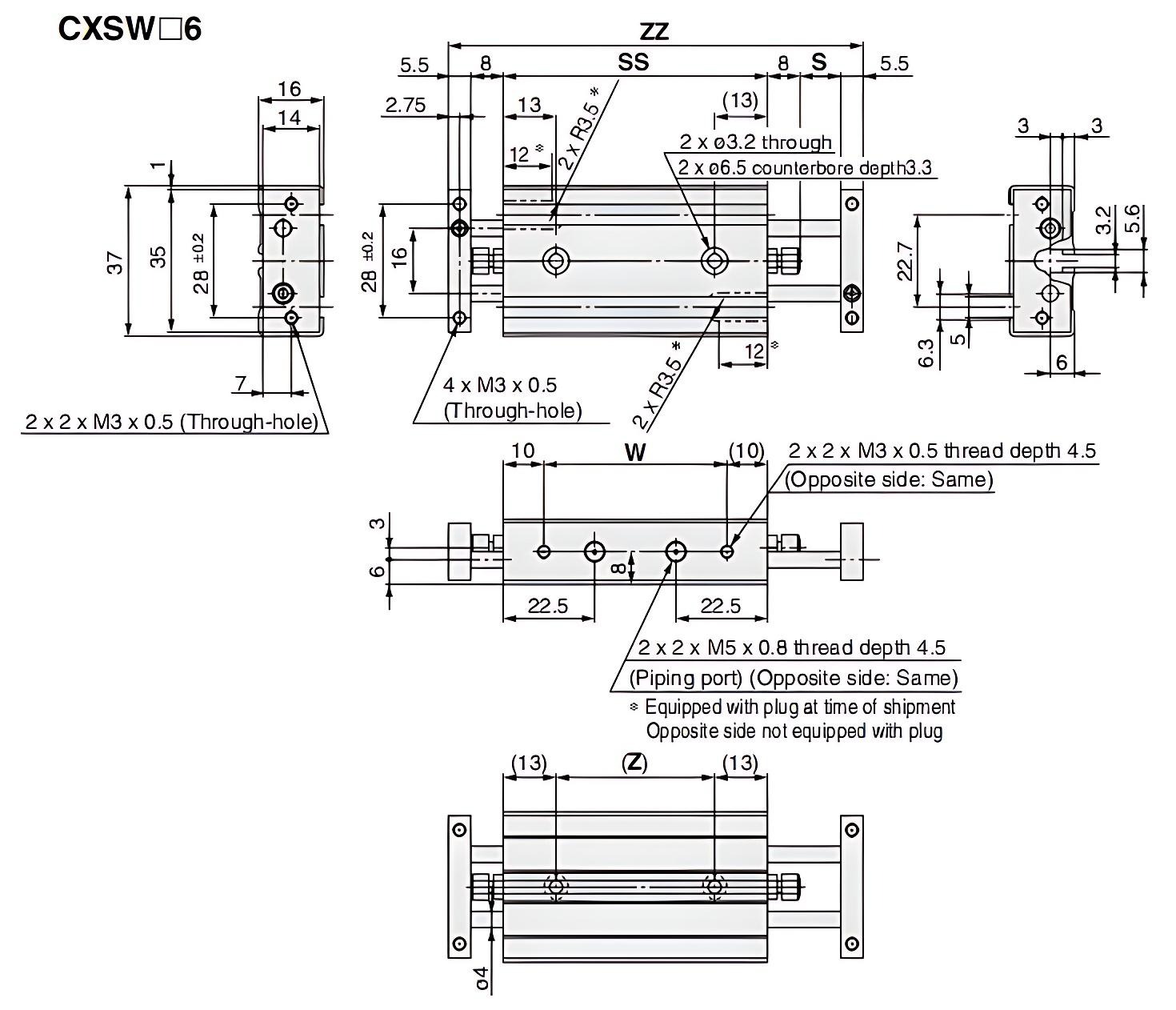

Model	S	SS	ZZ	Z	W
CXSW口6-10	10	66	103	40	46
CXSW口6-20	20	76	123	50	56
CXSW口6-30	30	86	143	60	66
CXSW口6-40	40	96	163	70	76
CXSW口6-50	50	106	183	80	86

*Only the CXSW口6-10 and the CXSW口6-20 have a groove cut out for installing auto switches. (The dimensions are marked *.)

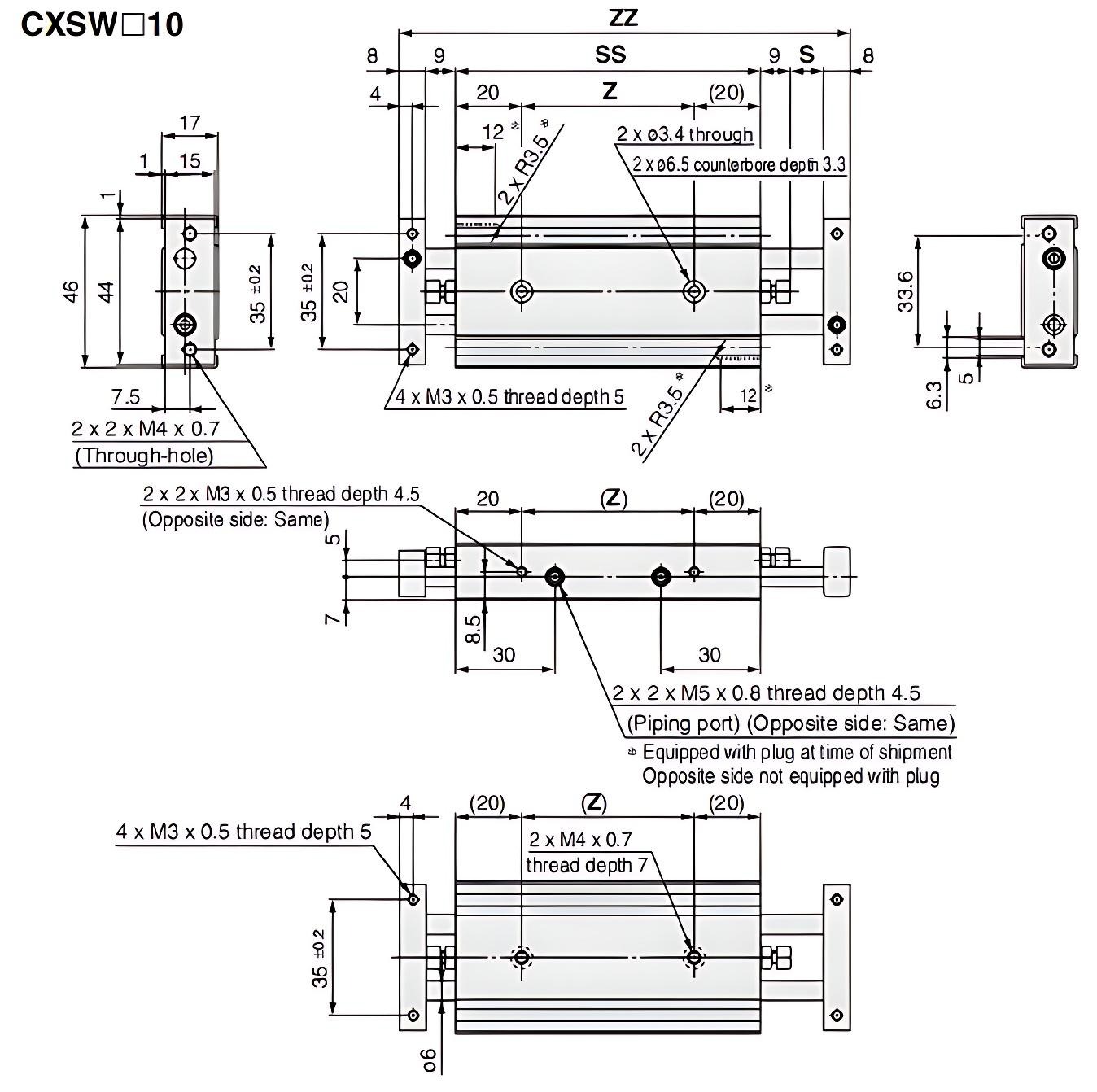

	Model	S	SS	ZZ	Z
Standard Stroke	CXSW口10-10	10	92	136	52
	CXSW口10-20	20	102	156	62
	CXSW口10-30	30	112	176	72
	CXSW口10-40	40	122	196	82
	CXSW口10-50	50	132	216	92
Long Stroke (-XB11)	CXSW口10-75	75	157	266	117
	CXSW口10-100	100	182	316	142
	CXSW口10-125	125	207	366	167
	CXSW口10-150	150	232	416	192

*Only the CXSW口10-10 and the CXSW口10-20 have a groove cut out for installing auto switches. (The dimensions are marked *.)

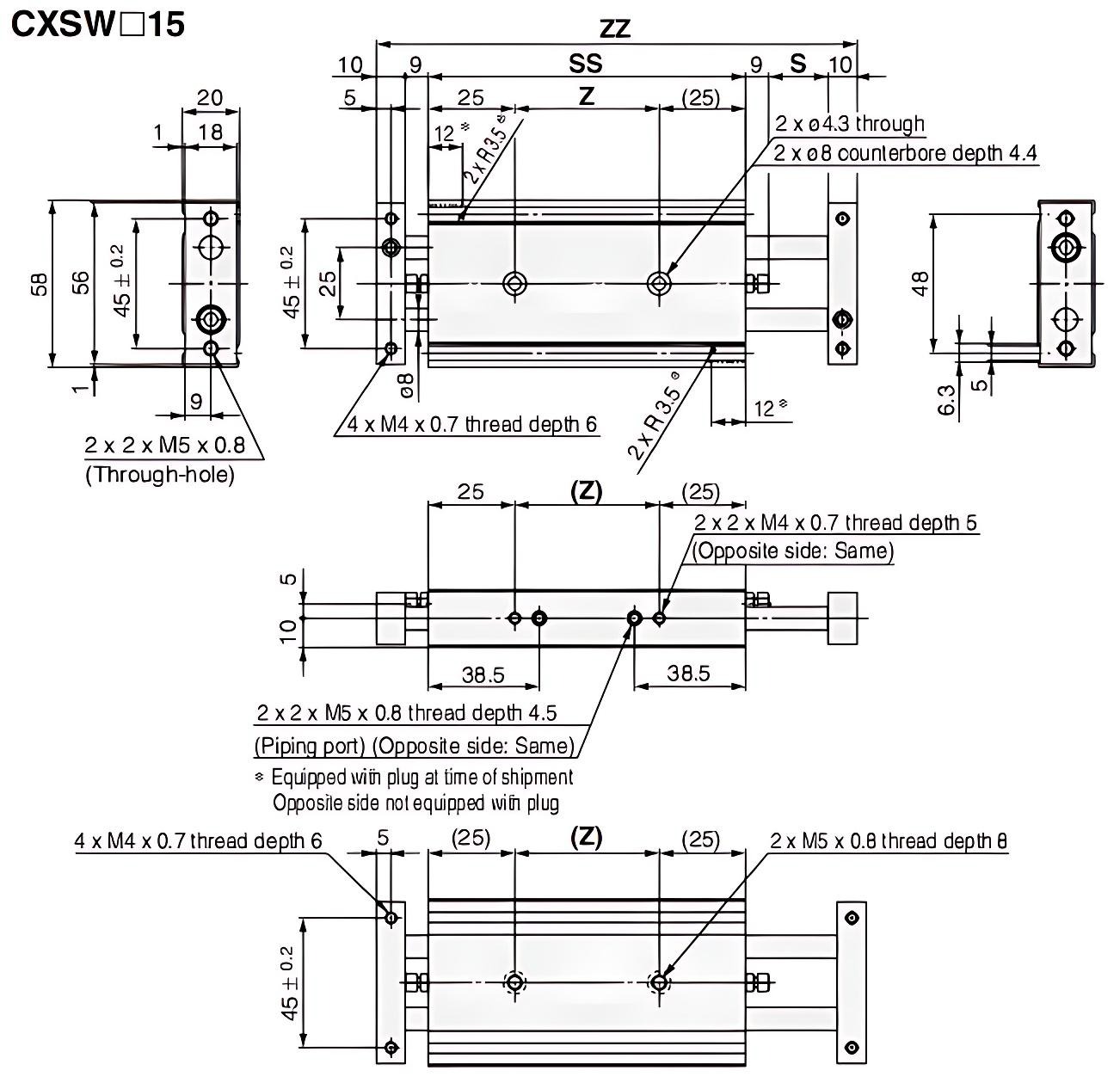

	Model	S	SS	ZZ	Z
Standard Stroke	CXSW口15-10	10	105	153	55
	CXSW口15-20	20	115	173	65
	CXSW口15-30	30	125	193	75
	CXSW口15-40	40	135	213	85
	CXSW口15-50	50	145	233	95
Long Stroke (-XB11)	CXSW口15-75	75	170	283	120
	CXSW口15-100	100	195	333	145
	CXSW口15-125	125	220	383	170
	CXSW口15-150	150	245	433	195

*Only the CXSW口15-10 and the CXSW口15-20 have a groove cut out for installing auto switches. (The dimensions are marked *.)

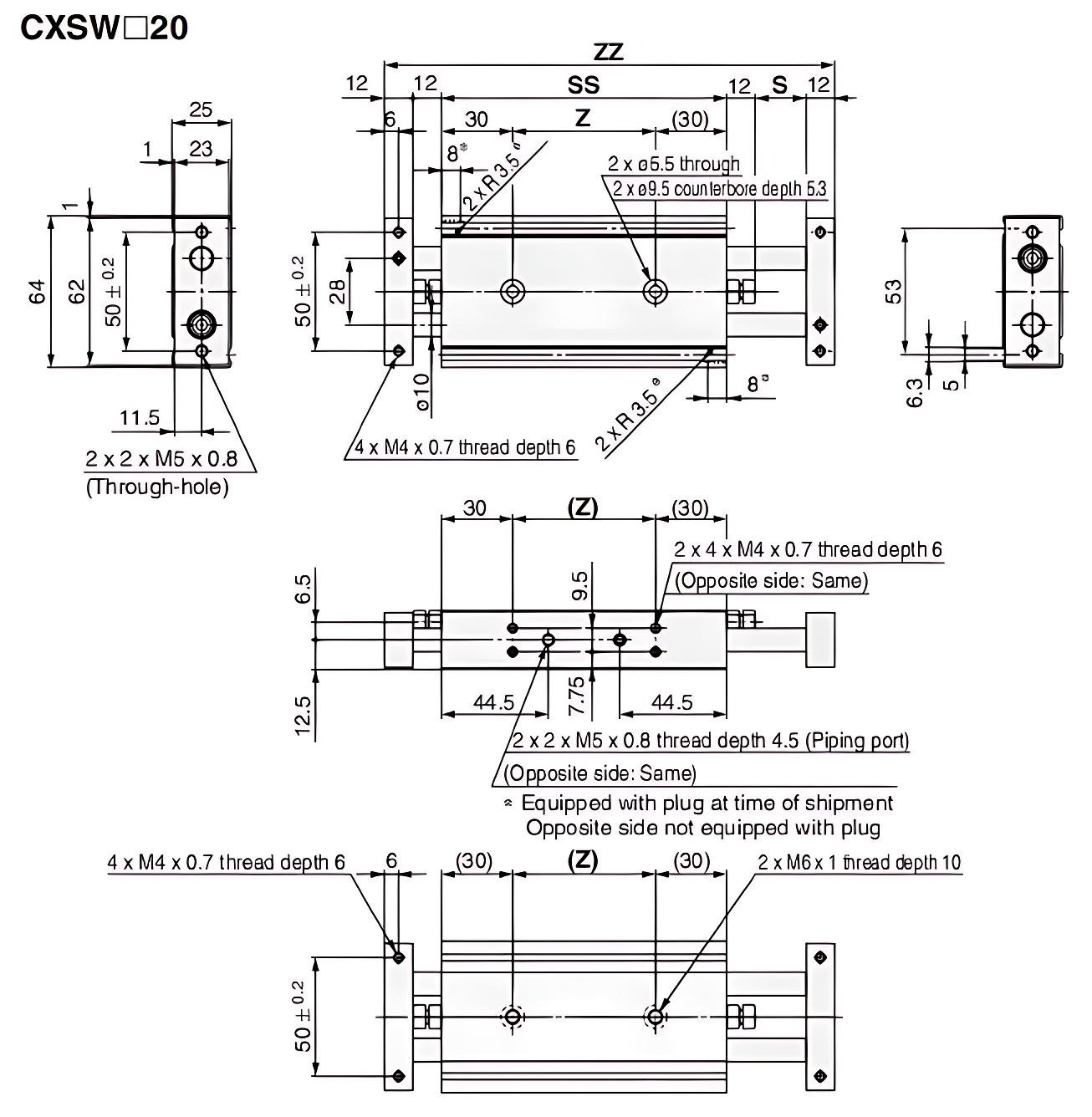

	Model	S	SS	ZZ	Z
Standard Stroke	CXSW口20-10	10	120	178	60
	CXSW口20-20	20	130	198	70
	CXSW口20-30	30	140	218	80
	CXSW口20-40	40	150	238	90
	CXSW口20-50	50	160	258	100
	CXSW口20-75	75	185	308	125
	CXSW口20-100	100	210	358	150
Long Stroke (-XB11)	CXSW口20-125	125	235	408	175
	CXSW口20-150	150	260	458	200
	CXSW口20-175	175	285	508	225
	CXSW口20-200	200	310	558	250

*Only the CXSW口20-10 have a groove cut out for installing auto switches. (The dimensions are marked *.)

	Model	S	SS	ZZ	Z
Standard Stroke	CXSW口25-10	10	122	180	62
	CXSW口25-20	20	132	200	72
	CXSW口25-30	30	142	220	82
	CXSW口25-40	40	152	240	92
	CXSW口25-50	50	162	260	102
	CXSW口25-75	75	187	310	127
	CXSW口25-100	100	212	360	152
Long Stroke (-XB11)	CXSW口25-125	125	237	410	177
	CXSW口25-150	150	262	460	202
	CXSW口25-175	175	287	510	227
	CXSW口25-200	200	312	560	252

*Only the CXSW口25-10 have a groove cut out for installing auto switches. (The dimensions are marked *.)

	Model	S	SS	ZZ	Z
Standard Stroke	CXSW口32-10	10	143	213	83
	CXSW口32-20	20	153	233	93
	CXSW口32-30	30	163	253	103
	CXSW口32-40	40	173	273	113
	CXSW口32-50	50	183	293	123
	CXSW口32-75	75	208	343	148
	CXSW口32-100	100	233	393	173
Long Stroke (-XB11)	CXSW口32-125	125	258	443	198
	CXSW口32-150	150	283	493	223
	CXSW口32-175	175	308	543	248
	CXSW口32-200	200	333	593	273

*Only the CXSW口32-10 have a groove cut out for installing auto switches. (The dimensions are marked *.)
