Do You Know What Common Pneumatic Accessories Are?

Pneumatic technology is widely used in industrial automation, and pneumatic accessories, as the core component of the pneumatic system, directly affect the performance and efficiency of the equipment. Whether it is small equipment or large machinery, common pneumatic accessories play an indispensable role. So, do you know what common pneumatic accessories are? This article will introduce you to several common types and their functions in detail.

1. Cylinder: The core of power output

The cylinder is the most common basic accessory in the pneumatic system, mainly used to convert the energy of compressed air into mechanical motion. According to different application scenarios, the cylinder is divided into single-acting cylinder and double-acting cylinder. The single-acting cylinder is reset by a spring and is suitable for simple push-pull actions; while the double-acting cylinder can be driven in both directions and is often used in occasions that require greater force. For example, in packaging machinery, the cylinder drives the fixture to complete the grasping and placement of items. Its simple structure and long life are deeply favored by industrial users.

2. Solenoid valve: Intelligent switch of airflow

The solenoid valve is known as the "commander" of the pneumatic system, responsible for controlling the flow direction, pressure and switch status of compressed air. It achieves rapid response through electromagnetic signals and is often used for precise control of automated production lines. For example, in electronic assembly, solenoid valves can control the action rhythm of the cylinder to ensure the accuracy of the patch process. Common solenoid valves include two-position three-way and two-position five-way models. Users can choose the appropriate specifications according to their needs.

3. Pneumatic connector: a bridge of connection

Although the pneumatic connector is small, it is crucial. It is used to connect the air pipe, cylinder and valve to ensure that the air path is unobstructed and leak-free. Common types of connectors include quick connectors, straight connectors and elbow connectors. For example, on a multi-station production line, quick connectors can achieve rapid disassembly and assembly of the air pipe, greatly improving maintenance efficiency. Choosing connectors made of pressure-resistant and corrosion-resistant materials can extend the service life of the entire system.

4. Air pipe: the lifeblood of transmission

The air pipe is a pipe that transmits compressed air in a pneumatic system, usually made of flexible and durable materials such as polyurethane (PU) or nylon. Its diameter and length directly affect the pressure and speed of the airflow. For example, in equipment with a small space, small air pipes can be flexibly routed, while in heavy machinery, larger diameter air pipes are required to ensure sufficient air flow. High-quality air pipes are not only wear-resistant and pressure-resistant, but also effectively prevent aging.

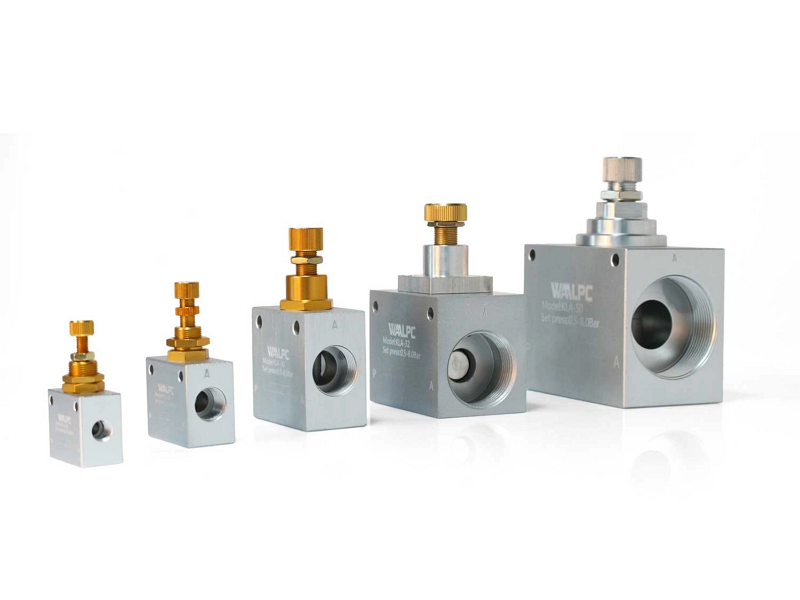

5. Pressure regulating valves and filters: protectors of the system

Pressure regulating valves and filters are the "protective umbrellas" of pneumatic systems. Pressure regulating valves are used to adjust the pressure of compressed air to ensure that the system operates within a safe range; while filters are responsible for removing moisture, oil and impurities in the air to prevent pneumatic components from being damaged by contamination. The two are usually used in combination, especially in precision industries such as semiconductor manufacturing, which can significantly improve the stability and life of equipment.

Conclusion

Cylinders, solenoid valves, pneumatic connectors, air pipes, pressure regulating valves and filters, these commonly used pneumatic accessories each have their own functions, and together they constitute an efficient and reliable pneumatic system. They are ubiquitous in industrial production, from simple mechanical movements to complex automated control, these "small and powerful" accessories are indispensable. Understanding the functions and characteristics of these accessories can not only help users better select and maintain equipment, but also optimize production processes. In the future, with the development of pneumatic technology, these accessories will continue to upgrade and provide more possibilities for industrial intelligence. Do you know which pneumatic accessories are used in your equipment? Why not check it out!
