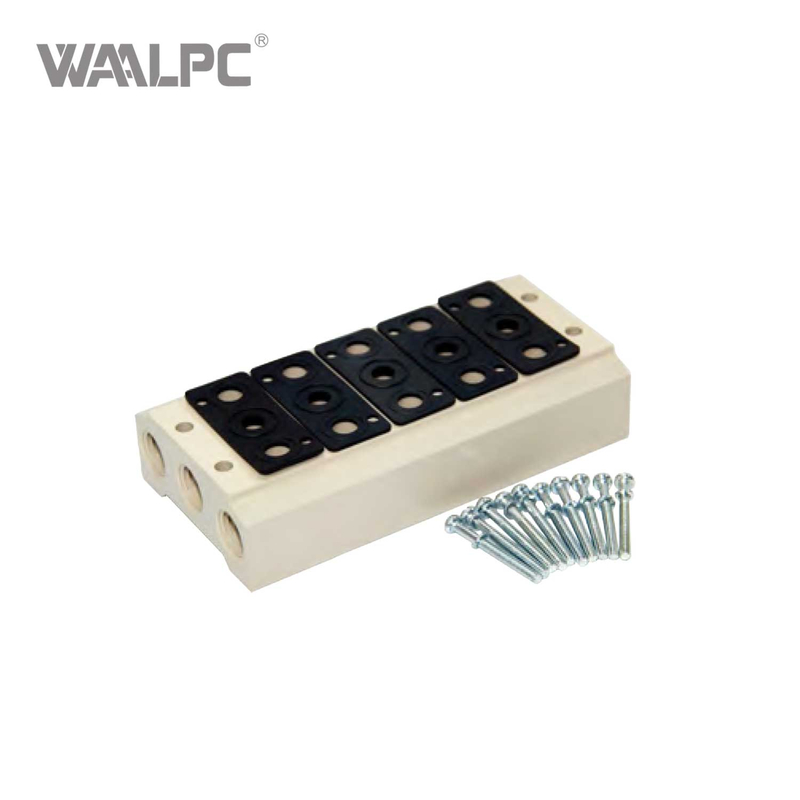

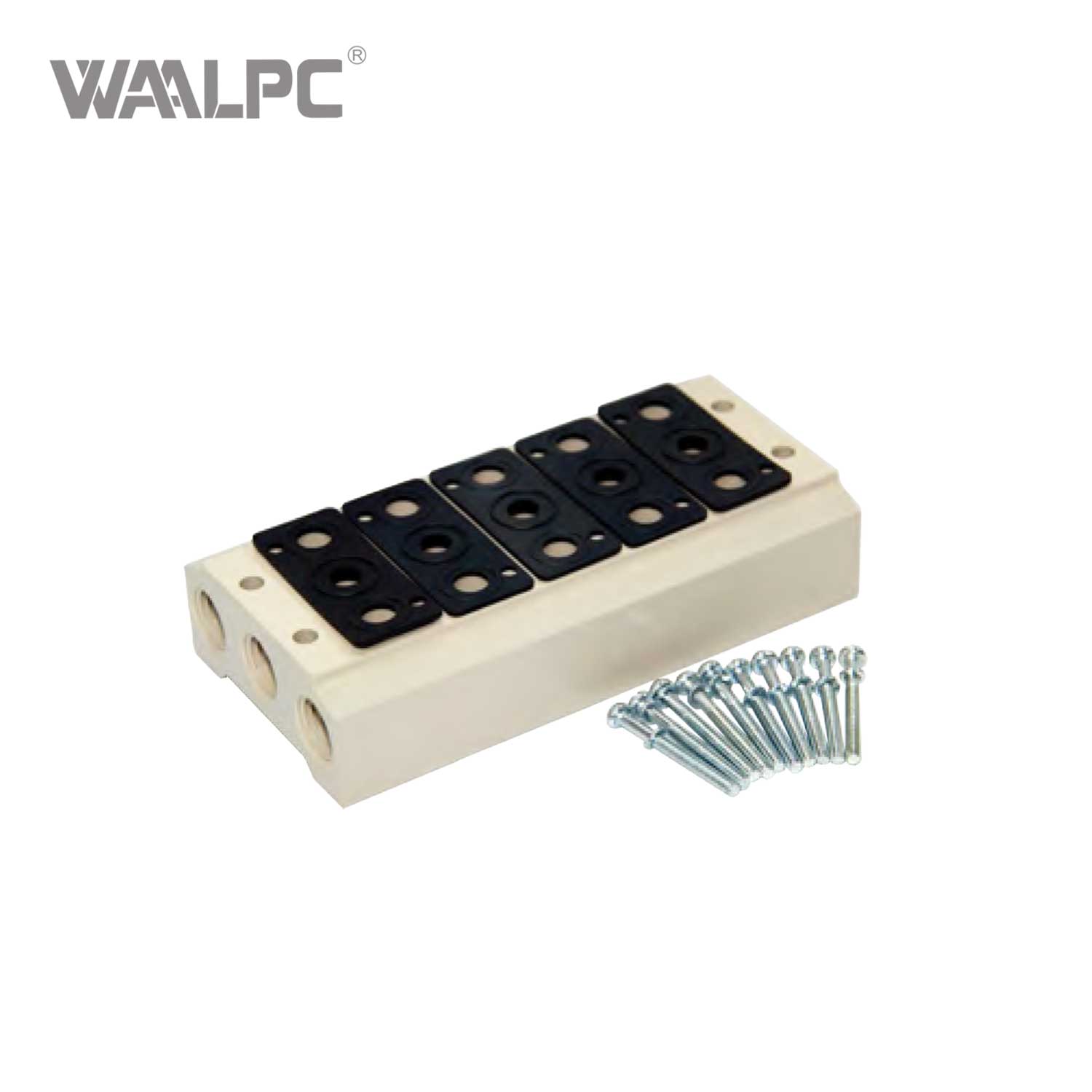

High Efficiency Solenoid Valve Base 4V100 Series Plate Streamlined Pneumatic Connections Pressure Reducing Valve

High Efficiency Solenoid Valve Base 4V100 Series Plate Streamlined Pneumatic Connections Pressure Reducing Valve


Availability:

Quantity:



Inquiry Add to Basket

The AIRTAC 4V Series Manifold Valves revolutionize industrial automation by integrating multiple solenoid valves into a single, space-saving modular platform. Designed for high-density pneumatic systems, these manifolds deliver centralized control while slashing installation time by 70%.

Model:
4V100
Brand:
WAALPC
Code:
8481901000

Product Description

1. Space Optimization

Unified valve block replaces individual valve mounting
80% reduced footprint vs. discrete valve setups
Ideal for confined machinery (e.g., robotics, assembly cells)

2. Plug-and-Play Efficiency

Integrated air supply/distribution galleries
DIN-standard electrical connectors (IP65 protected)
Tool-free valve cartridge replacement in <3 minutes

3. Performance Reliability

Leak-proof laser-welded aluminum alloy body
Operating pressure: 0.1~0.8 MPa | Temp: -20°C to 70°C

Technical Parameters

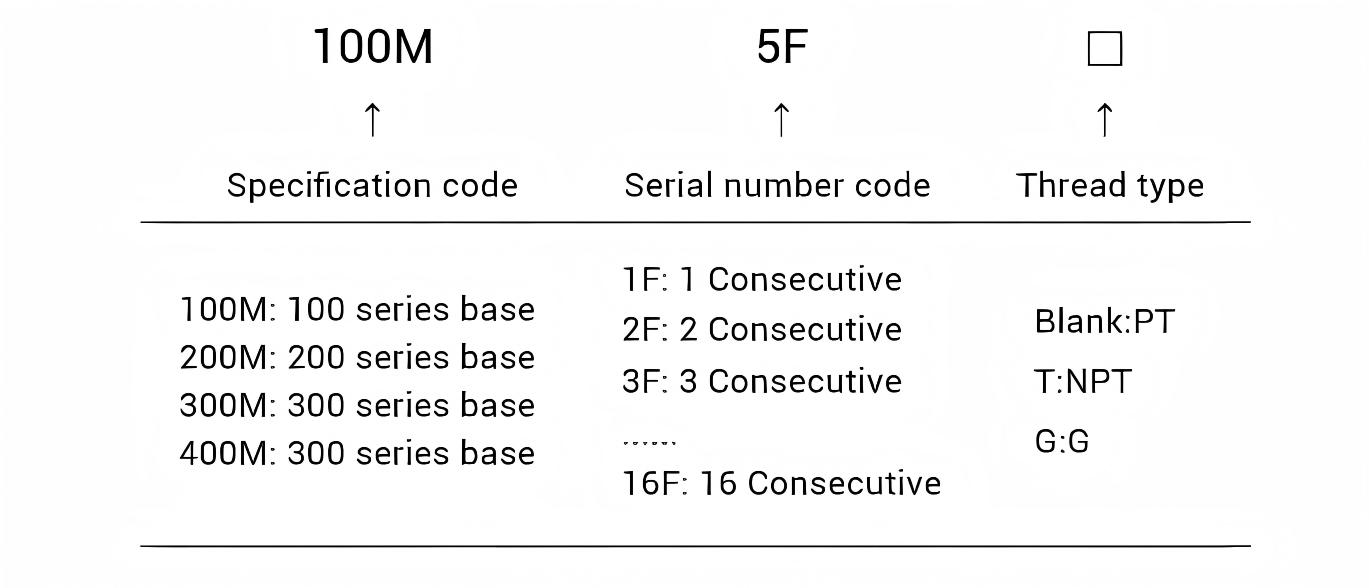

ORDERING CODE

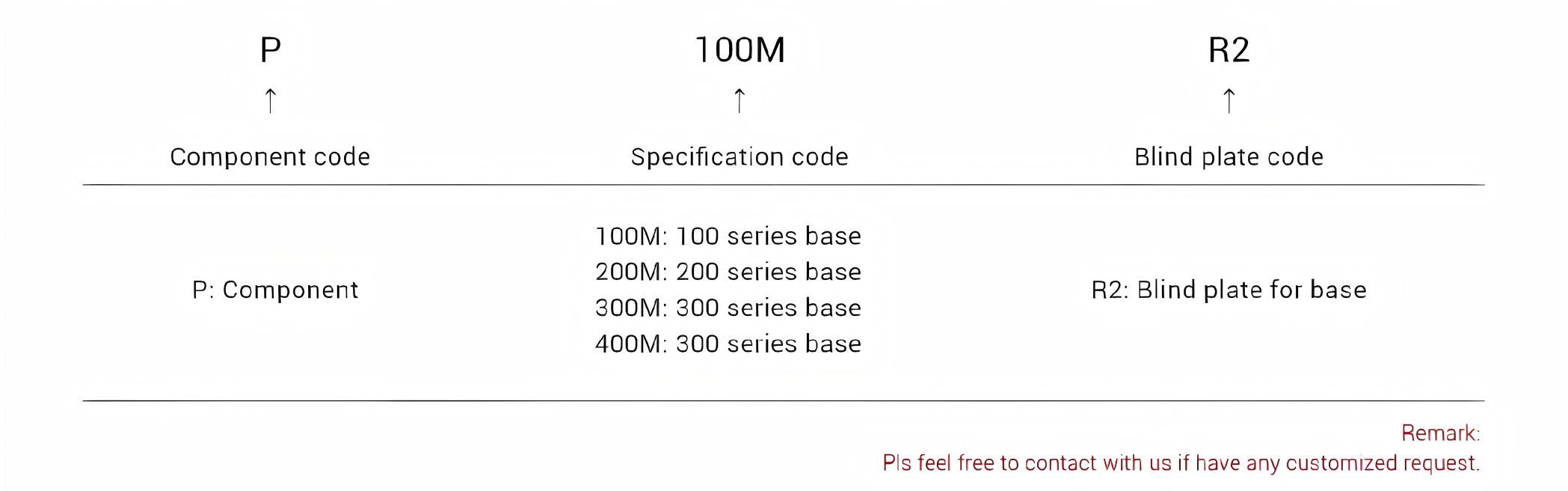

BLIND PLATE ORDERING CODE

DATA SHEET

Model	100M	200M		300M	400M
Working Medium	Air（Filter through a filter screen of 40um or above)
Operating Temperature Range	-20~70℃
Applicable Valve Body Series	4V 100 series		4V 200 series	4V 300 series	4V 400 series
	5V 100 series		5V 200 series	5V 300 series	5V 400 series

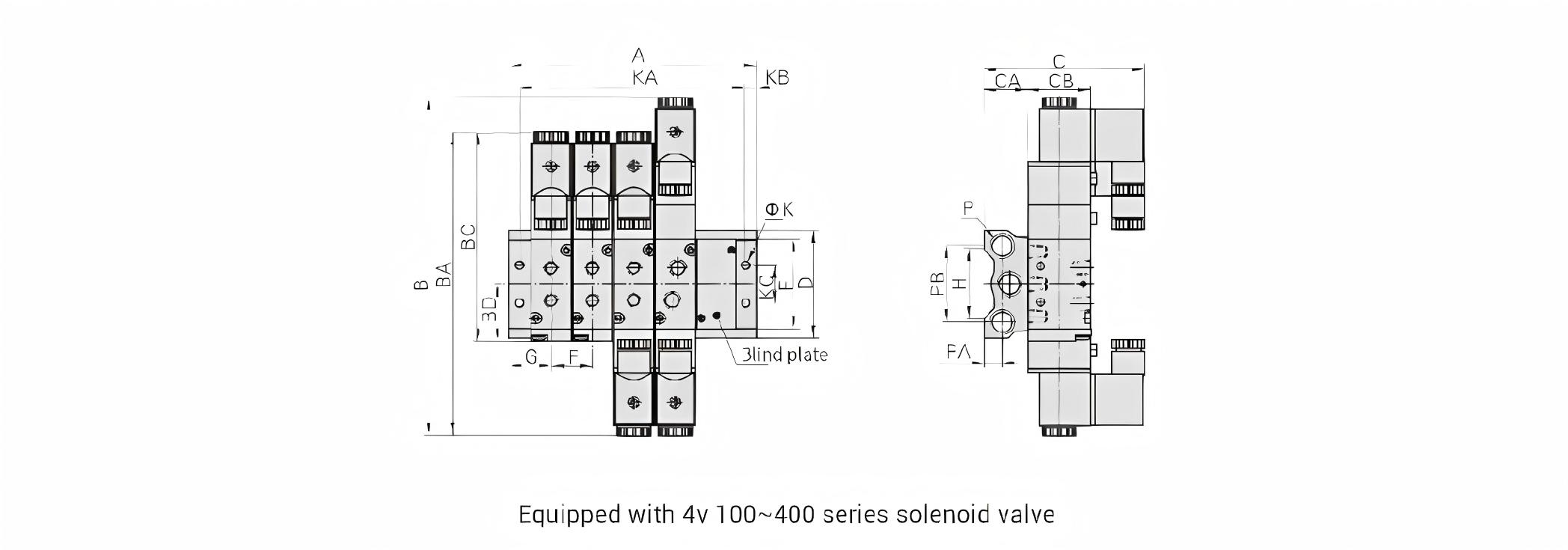

OVERALLDIMENSION&STRUCTURE

4V Series Solenoid Valve Base

Model	B	BA	BC	BD	C	CA	CB	D	E	F	G	H	K	KB	KC	P	PA	PB
100M口F	154.5	142.5	99.5	28	77	22	27	57.5	43	19	19	36	4.5	5	20	PT1/4	10	40
200M口F	189	171	117	31.7	91	24	35	60	52	23	22	38	4.5	5	21	PT1/4	10	42
300M口F	208	190	135	40	97	28	40	75	64	28	26	54	4.5	5	26	PT3/8	13.5	53
400M口F	243	223	168.5	57	107	33	50	100	94	35	30.5	75	5.5	6	32	PT1/2	15	68

Model	A
Model	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F
100M口F	38	57	76	95	114	133	152	171	190	209	228	247	266	285	304	323
200M口F	44	67	90	113	136	159	182	205	228	251	274	297	320	343	366	389
300M口F	52	80	108	136	164	192	220	248	276	304	332	360
400M口F	61	96	131	166	201	236	271	306

Model	KA
Model	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F
100M口F	28	47	66	85	104	123	142	161	180	199	218	237	256	275	294	313
200M口F	34	57	80	103	126	149	172	195	218	241	264	287	310	333	356	379
300M口F	42	70	98	126	154	182	210	238	266	294	322	350
400M口F	49	84	119	154	189	224	259	294
