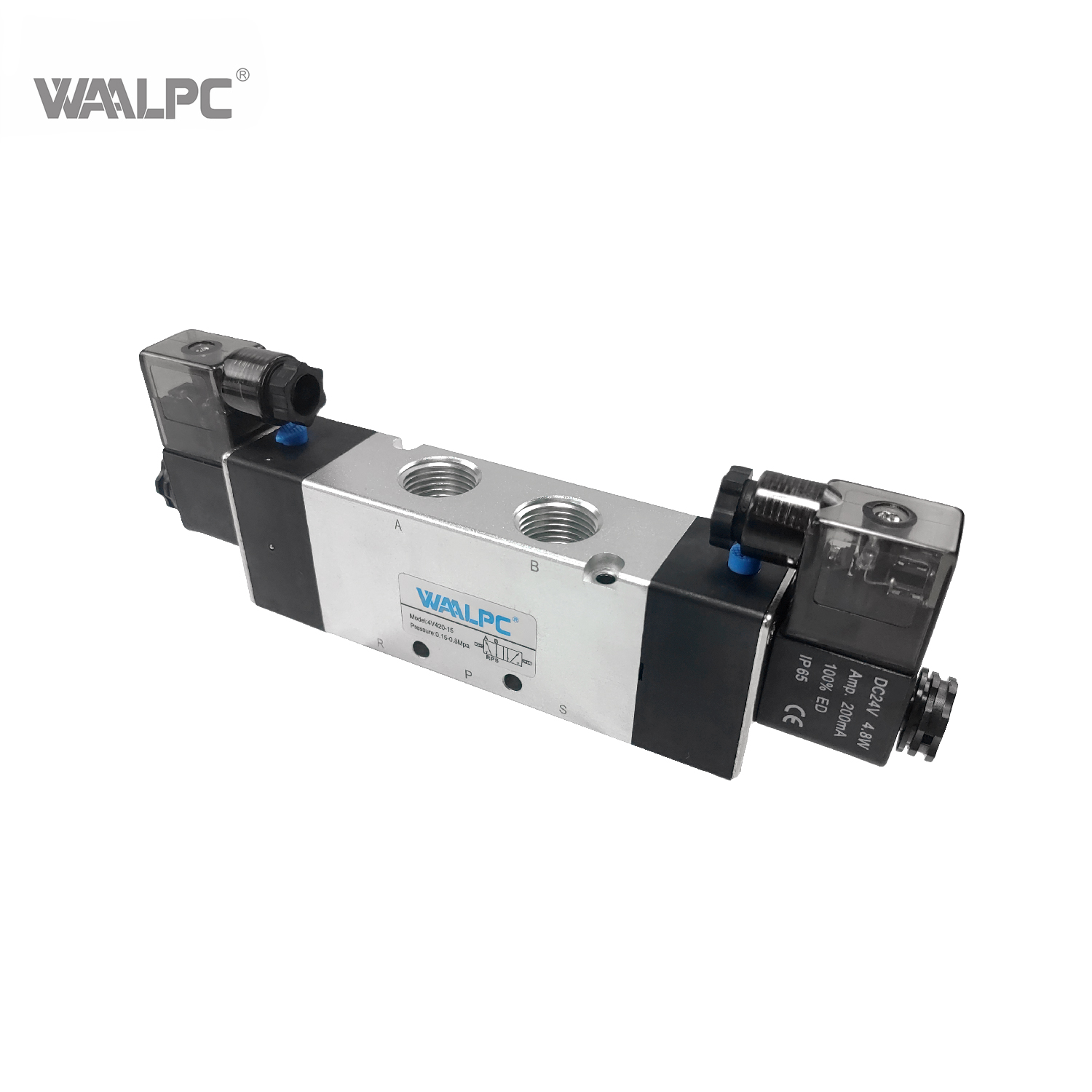

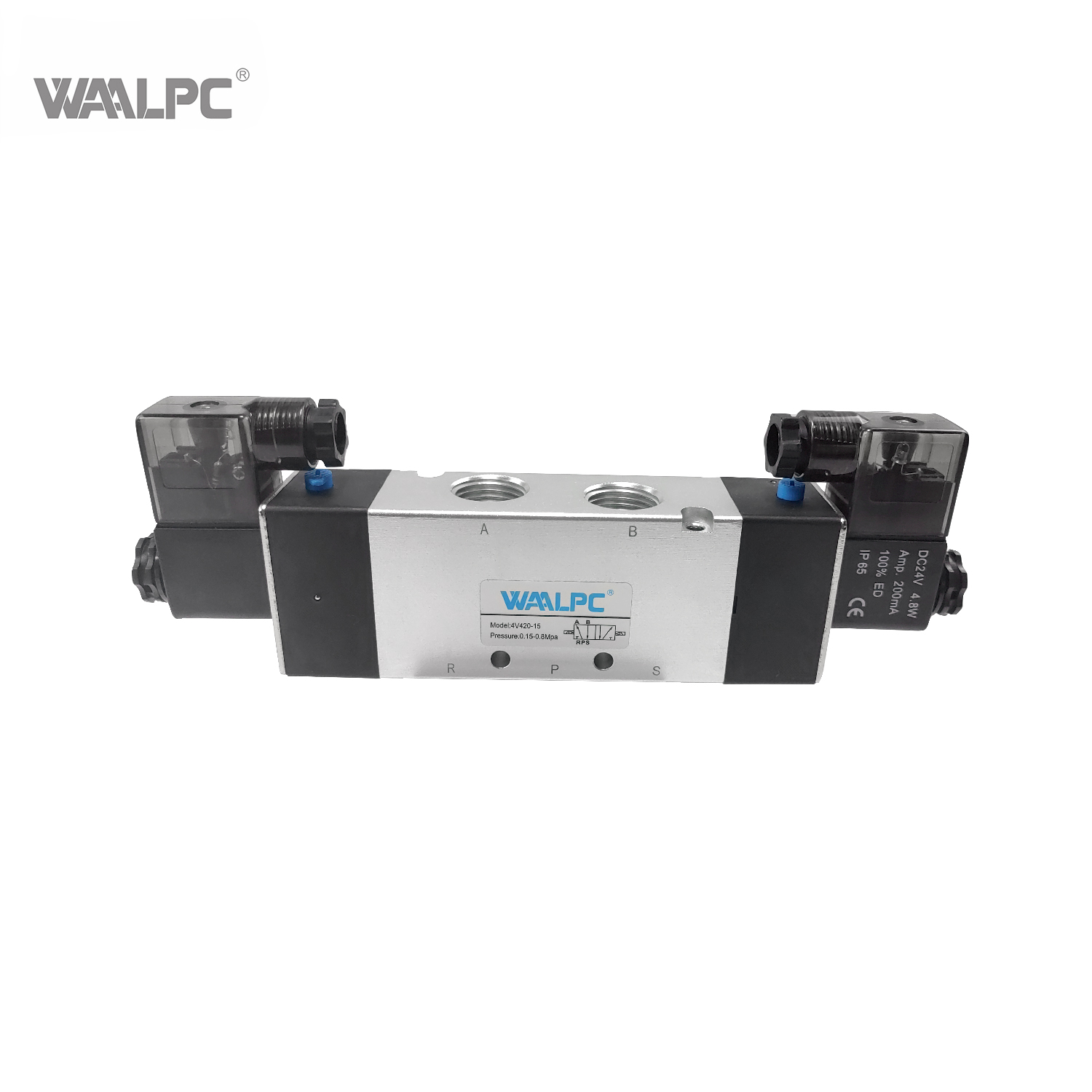

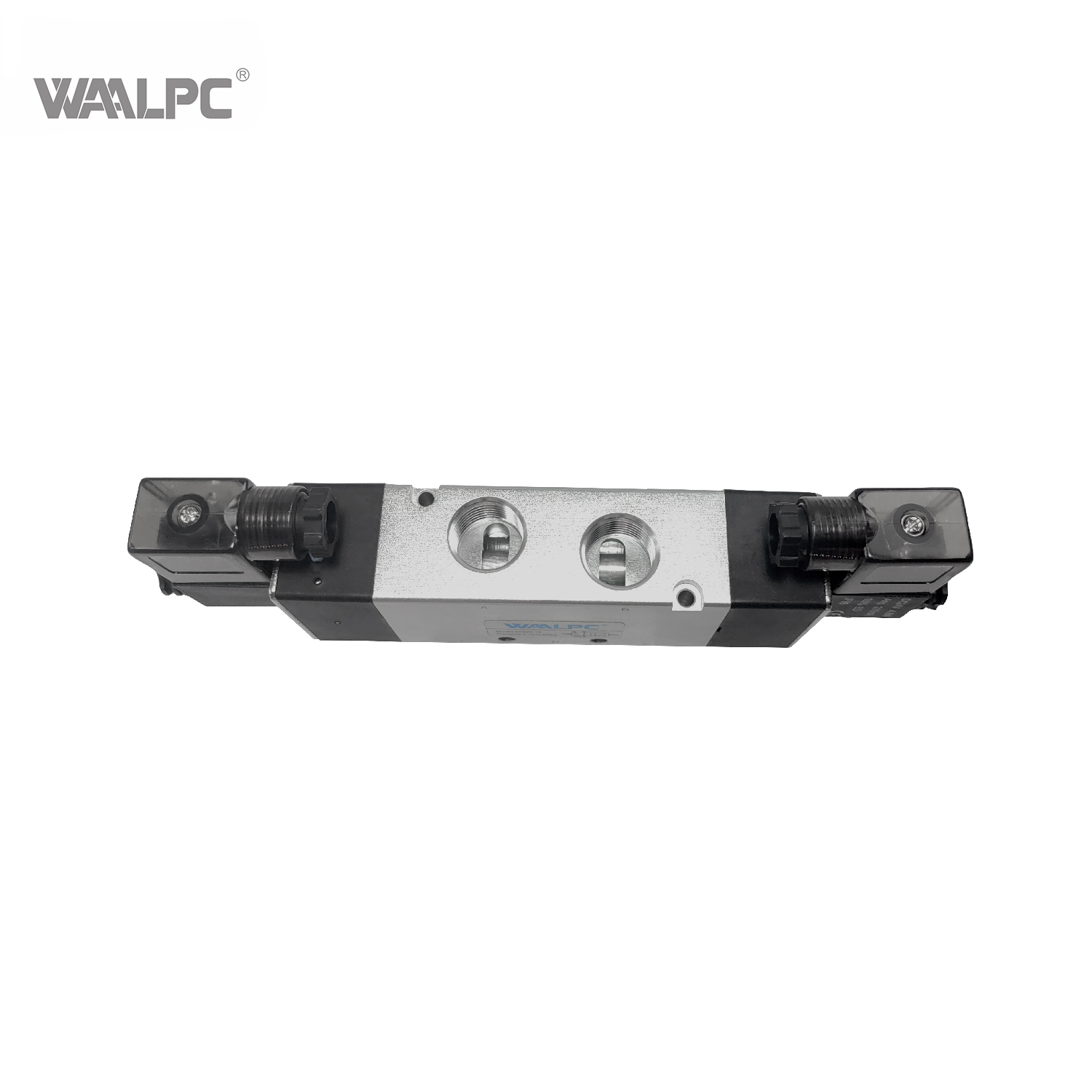

4V420
WAALPC
8481202090
| 1. Industrial-Grade Durability for Harsh ConditionsExtended Operating Range: Working Pressure: 0.15–0.8 MPa Ambient Temperature: -20°C–70°C Medium: Filtered air (40μm or finer) for reliable performance in rugged settings. 20+ Million Cycle Life: Engineered for minimal wear, reducing replacement frequency and downtime in 24/7 operations. 2. Precision Control & Unmatched Speed0.02s Ultra-Responsive Performance: Instantaneous directional switching for high-speed machinery and precision automation, minimizing cycle times. Dual Pilot Design: Choose internal pilot (for systems with ≥0.15MPa pressure) or external pilot (for low-pressure applications) to adapt to diverse operational needs. High-Flow Capability: 48mm² effective cross-sectional area ensures rapid air transfer, critical for large-scale pneumatic systems. 3. Energy-Efficient & Low MaintenanceCost-Saving Performance: Low power consumption (DC 24V: 3.0W; AC 220V: 4.5VA) reduces energy costs, while a lubrication-free design eliminates oil-related maintenance and contamination risks in food, pharmaceutical, or cleanroom environments. Easy Integration: Manifold-compatible design with DIN socket or lead wire connections enables space-saving installations and quick retrofitting into existing systems. |
Industrial Production
Automation Equipment
Mechanical Equipment
Food Industry
Medical and Health Care
Electronic Industry
Textile Machinery
Packaging Machinery
DATA SHEET
Model | 4V410-15 | 4V420-15 | 4V430C-15 | 4V430E-15 | 4V430P-15 | ||||
Fluid | Air (to be filtered by 40μm filter element) | ||||||||
Acting | Internal pilot or external pilot | ||||||||
Port size [Note1] | In=Out=Exhaust=1/2'' | ||||||||
Orifice size (Cv) [Note4] | 4V410-15, 4V420-15: 48.0mm²(Cv=2.82) 4V430C-15: 40.0mm²(Cv=2.35) | ||||||||
| Valve type | 5 port 2 position | 5 port 3 position | |||||||
Operating pressure | 0.15~0.8MPa(21~114psi) | ||||||||
| Proof pressure | 1.2MPa(175psi) | ||||||||
Temperature | -20~70℃ | ||||||||
| Material of body | Aluminum alloy | ||||||||
Lubrication [Note2] | Not required | ||||||||
Max.frequency [Note3] | 3cycle/sec | ||||||||
| Weight(g) | 590 | 720 | 770 | ||||||
[Note1]PT thread, G thread and NPT thread are available.
[Note2]Once lubricated air is used, continue with same medium to optimise valve life span. Lubricants like ISOVG32 or equivalent are recommended.
[Note3]The maximum actuation frequency is in the no-load state.
[Note4]Equivalent orifice Sand Cv are all calculated from the flow rate data.
STRUCTURE
DIMENSION(MM)
