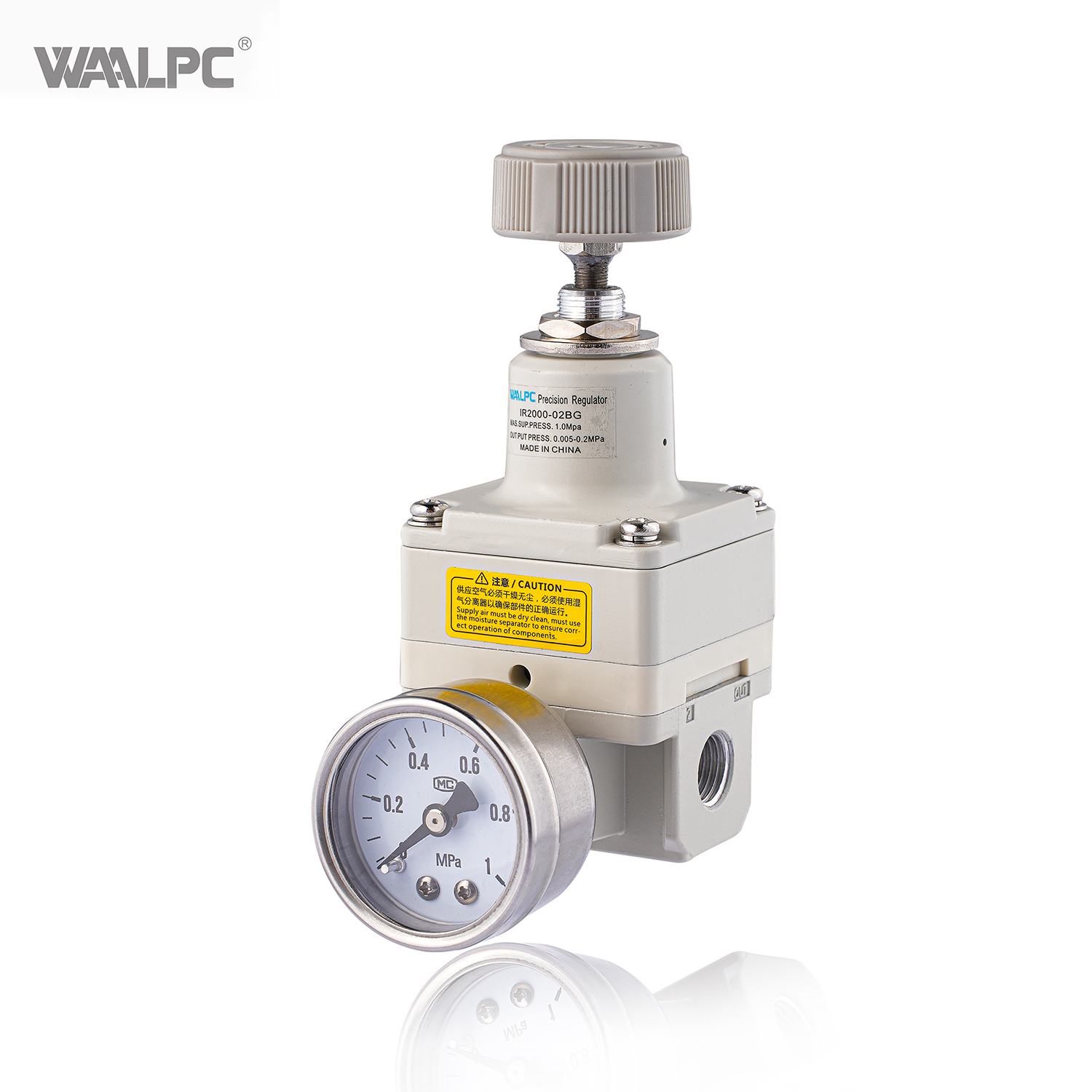

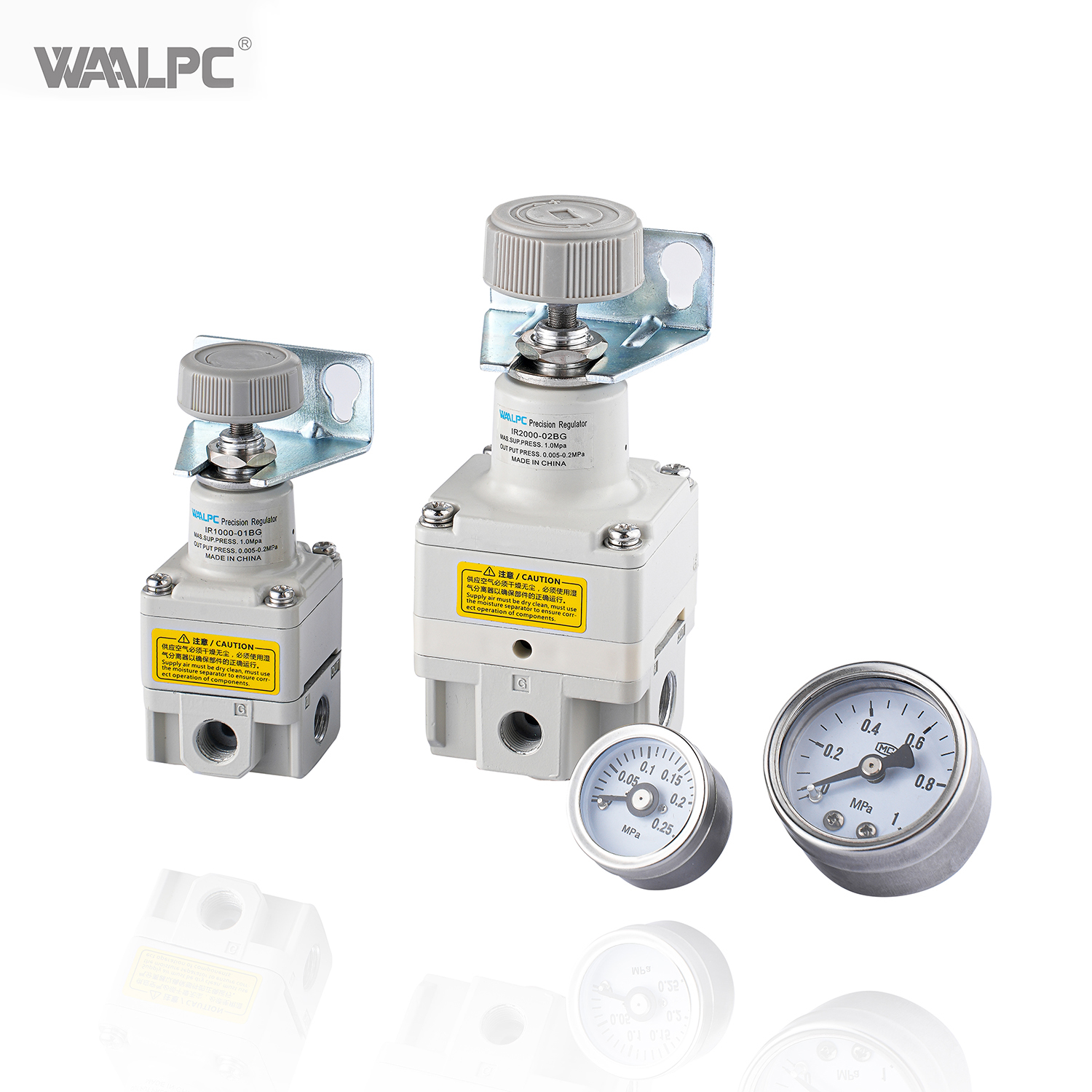

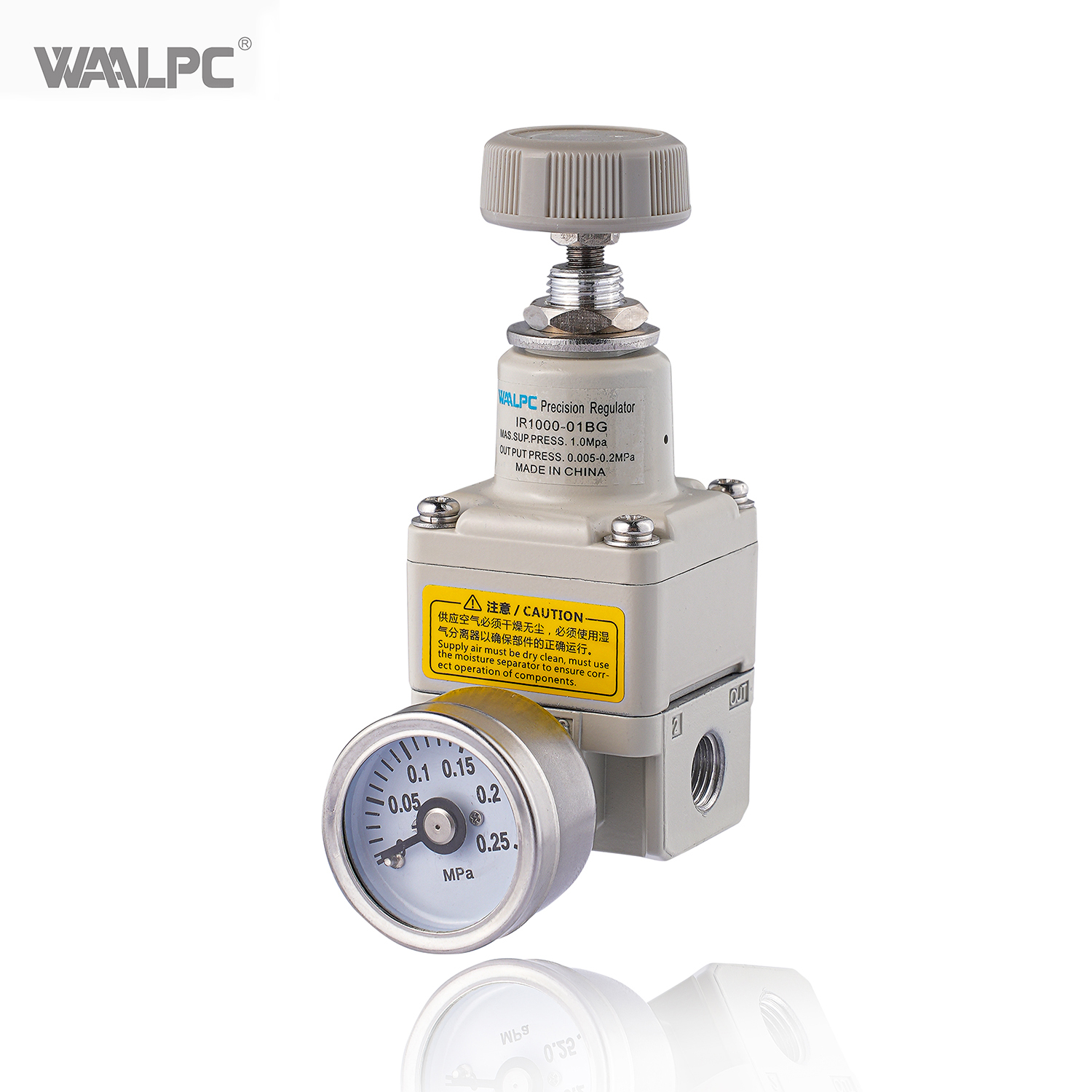

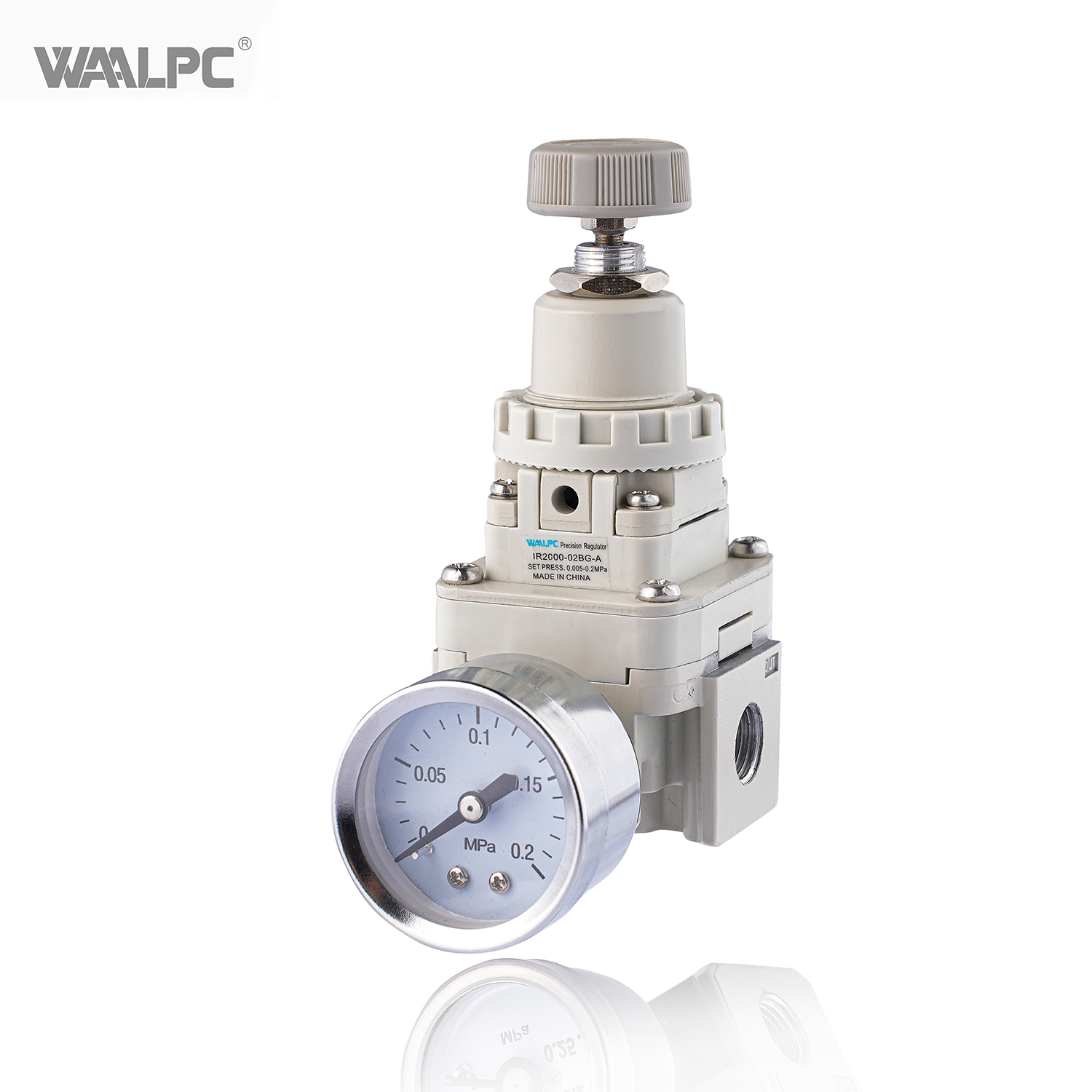

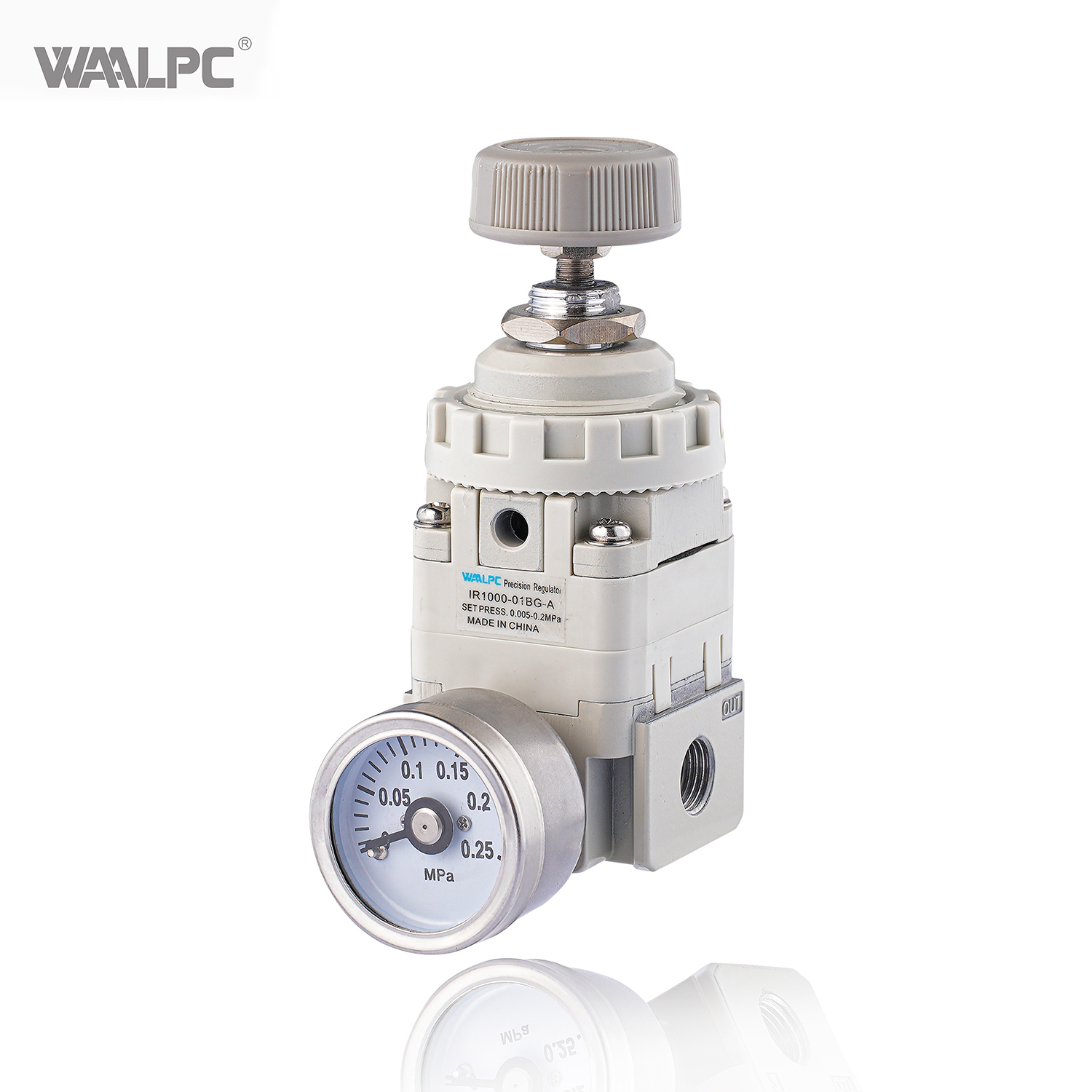

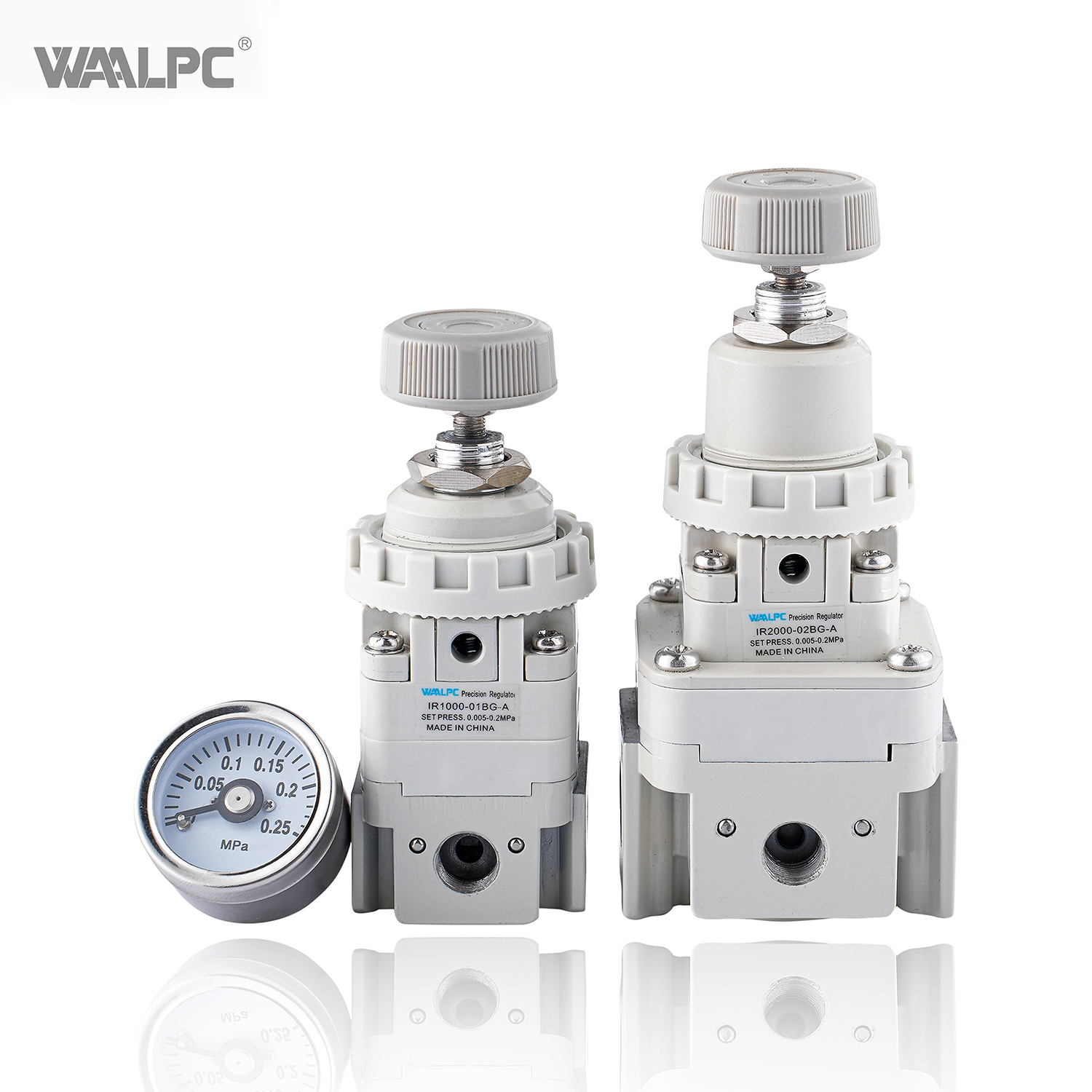

IR2000-02BG
WAALPC
Product Advantages
| 1. High-precision control: The IR1000-01B Precision Pressure Reducing Valve is capable of tension control and contact pressure control with setting sensitivity within 0.2% F.S. and repeatability within ±0.5% F.S. The IR1000-01B Precision Pressure Reducing Valve is capable of tension control and contact pressure control with setting sensitivity within 0.2% F.S. and repeatability within ±0.5% F.S. 2. Wide Pressure Setting Range: A wide pressure setting range is provided, with the IR1000/2000 series having a setting range of 0.005 to 0.2 MPa and the IR3000 series having a setting range of 0.01 to 0.2 MPa. 3. Lightweight design: Compared with its predecessor, the weight is reduced by a maximum of about 27%, while air consumption is reduced by a maximum of about 90%. 4. Easy to install and maintain: Compact design with 1/8-inch pipe diameter and Rc threads for easy installation and maintenance. 5. 5. Bracketed design: Annex B indicates that the pressure reducing valve is bracketed for easy installation and fixing. |
Applications
Industrial Production
Automation Equipment
Mechanical Equipment
Food Industry
Medical and Health Care
Electronic Industry
Textile Machinery
Packaging Machinery
MODEL INDICATION METHOD
Model | Basic Type | Air Control Type | ||||||
IR10□0 | IR20□0 | IR30□0 | IR2120 | IR3120 | ||||
| IR | 2 口 口 0 - 口 02 口 - 口 - 口 - 口 | |||||||
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ | ||||||||
Mark | Content | ||
①Valve Size | 1 | IR1000 series | |
2 | IR2000 series | ||
3 | IR3000 series | ||
②Setting Method | 0 | Basic type (manual) | |
1 | Air control type (IR2000/3000) | ||
③Setting Pressure Range Note1 | 0 | IR1000/2000: 0.005-0.2MPa | IR3000:0.01-0.2MPa |
1 | IR1000/2000: 0.01-0.4MPa | IR3000:0.01-0.4MPa | |
2 | IR1000/2000: 0.01-0.8MPa | IR3000:0.01-0.8MPa | |
④Thread Type | No mark | Rc | |
N | NPT note 2 | ||
F | G note 2 | ||
⑤Tube Diameter | 01 | 1/8 | |
02 | 1/4 | ||
03 | 3/8 | ||
04 | 1/2 | ||
⑥Accessories | No mark | None | |
B | Bracket | ||
G note 3 | With pressure gauge | ||
⑦Mark 1 | No mark | — | |
T | For high temperature environment (-5~100℃) (Max.80℃ when equipped with pressure gauge) | ||
L note 4 | For low temperature environment (-30~60℃) | ||
⑧Mark 2 | No mark | — | |
R note 5 | Pressure gauge, bracket and nameplate are installed on the back | ||
⑨Customized specifications Note 6 | X1 | Grease-free specifications | |
X170 | Corresponding to the new modular connection (with modular connector) | ||
X465□ | With digital pressure switch (ISE30A) | ||
Note 1: Air control type is only available in IR2120/IR3120
Note 2: Quasi-standard product
Note 3: "G" cannot be selected for low temperature environments
Note 4: Except IR1000, IR3000 can’t combine with "L" and "X1"
Note 5: The standard installation position is SUP side on the left, OUT side on the right, the pressuregauge can be seen from the front, and the bracket is on the back
Note 6: Clean room specifications can be matched with connector models ( 10-). Copper-free andfluorine-free specifications can be matched with connector models (20-). Ozone-resistant specifications can be matched with connector models (80-). IR1000 and IR2000 are available in manifold specifications. (Except IR2120 and IR3000)
SPECIFICATION
Max. Supply Pressure | MAX.1.0 MPa | ||||||||
Min. Supply Pressure Note 1 | Setting pressure+0.05MPa | Setting pressure +0.1MPa | Setting pressure +0.05MPa | Setting pressure +0.1MPa | |||||
Setting Pressure Range | IR1000;0.005~0.2MPa IR1010:0.01~0.4MPa IR1020:0.01~0.8MPa | IR2000:0.005~0.2MPa IR2010:0.01~0.4MPa IR2020:0.01~0.8MPa | IR3000:0.01~0.2MPa IR3010:0.01~0.4MPa IR3020:0.01~0.8MPa | 0.01~0.8MPa | 0.01~0.8MPa | ||||
Input Signal Pressure Note 2 | 0.01~0.8MPa | 0.01~0.8MPa | |||||||
Sensitivity Note 3 | Within 0.2% of full range | ||||||||
Repeatability Note 3 | Within 0.5% of full range | ||||||||
Straightness note 4 | Within 1% of full range | ||||||||
Air Consumption Note 5 (When supply pressure is 1.0 MPa) | Within 1% of full range | Within 4.4L/min(ANR) | Within 11.5L/min(ANR) | Within 4.4L/min(ANR) | Within 11.5L/min(ANR) | ||||
Tube Diameter | Rc1/8 | Rc1/4 | Rc1/4,3/8,1/2 | Rc1/4 | Rc1/4,3/8,1/2 | ||||
Pressure Connecting Diameter | Rc1/8 (2 points) | ||||||||
Environment Temperature and Fluid Temperature | 5~60℃(no frozen) | ||||||||
Weight (KG) | 0.14 | 0.30 | 0.64 | 0.35 | 0.71 | ||||
Note 1: The condition is that there is no flow on the output side. The m in. differential pressure from the set pressure must be guaranteed to be 0.05 MPa for IR1000 and IR2000, and 0.1 MPa for IR3000.
Note 2: Applicable only to air control type IR2120 and IR3120, excluding basic type.
Note 3: The characteristic values do not include changes over time or temperature changes.
Note 4: Indicates the linearity of the output pressure relative to the input signal pressure.
Note 5: The amount that is normally discharged into the atmosphere from the normal vent or exhaust port.

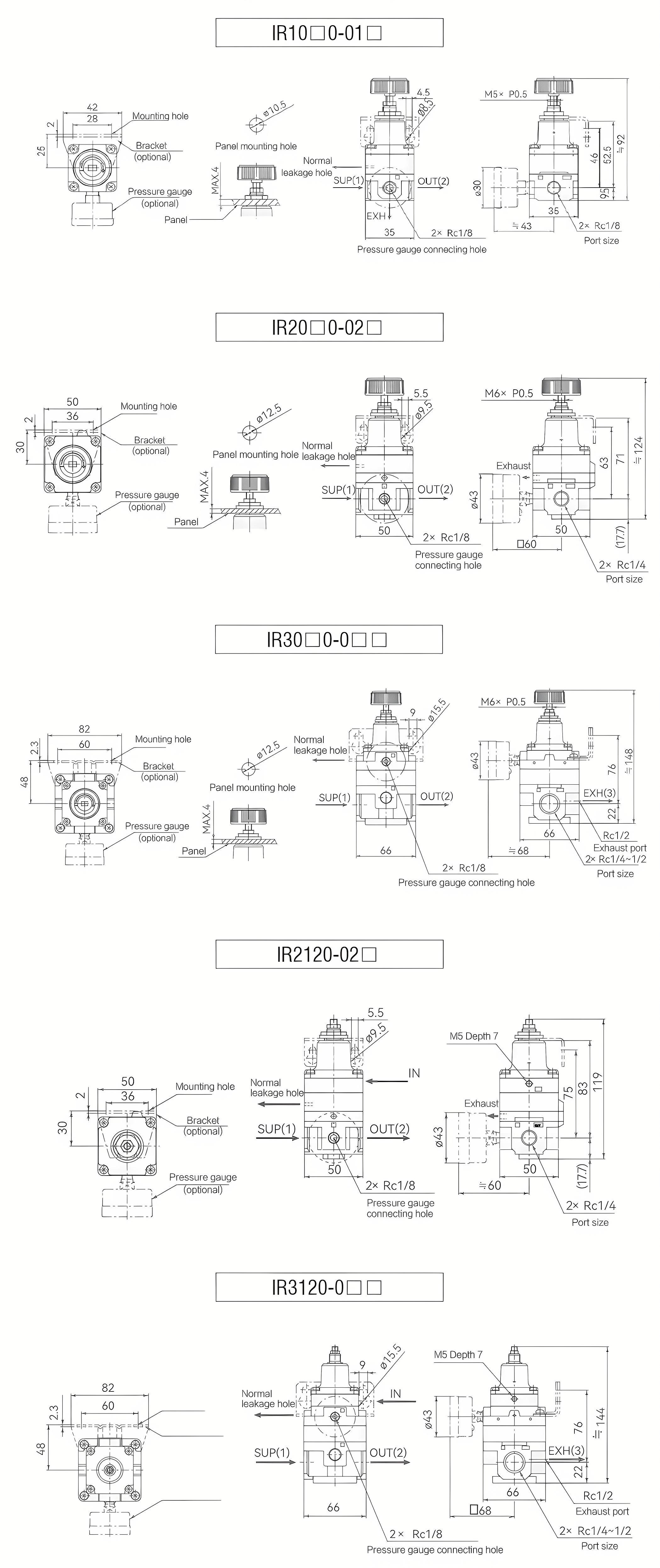

DIMENSIONS
