WAAL 1/8′ ′ IR1000-A NPT Pneumatic Precision Air Pressure Valve Gauge Regulating Valve for Industrial

Precision Pressure Reducing Valve Is A Gas Control Device with High Efficiency, Stability, Safety, Energy Saving And Low Noise.


Size:	RPE1000-08-07
Availability:

Quantity:



Inquiry Add to Basket MIC

The main function of the precision regulator is to accurately control the pressure and ensure that the system pressure remains at a stable and safe level.
They use high-precision sensors and actuators to automatically adjust the regulator opening according to changes in system pressure, thereby stabilizing the system pressure.

Model:
RPE1000-08-07
Brand:
WAALPC

Product Description

Product Advantages

Precision pressure reducing valve

1. High-precision control: The IR1000-01B Precision Pressure Reducing Valve is capable of tension control and contact pressure control with setting sensitivity within 0.2% F.S. and repeatability within ±0.5% F.S. The IR1000-01B Precision Pressure Reducing Valve is capable of tension control and contact pressure control with setting sensitivity within 0.2% F.S. and repeatability within ±0.5% F.S.

2. Wide Pressure Setting Range: A wide pressure setting range is provided, with the IR1000/2000 series having a setting range of 0.005 to 0.2 MPa and the IR3000 series having a setting range of 0.01 to 0.2 MPa.

3. Lightweight design: Compared with its predecessor, the weight is reduced by a maximum of about 27%, while air consumption is reduced by a maximum of about 90%.

4. Easy to install and maintain: Compact design with 1/8-inch pipe diameter and Rc threads for easy installation and maintenance. 5.

5. Bracketed design: Annex B indicates that the pressure reducing valve is bracketed for easy installation and fixing.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

MODEL INDICATION METHOD

MODEL	RP1000-8-02	RP1000-8-04	RP1000-8-07	RPE1000-8-07
RP	E 1000 8 02 G49PB3
① ② ③

	Mark	Content
①Tube Diameter	8	Rc1/4
②Pressure Setting Range	02	MAX.0.2Mpa
	04	MAX.0.4Mpa
	07	MAX.0.7Mpa
③Accessories	No mark	None
	G49P	Pressure gauge (G49D-6- )
	B3	L bracket
	R2	Digital display pressure sensor

正在上传... Note 1: Comes with pressure gauge, digital display pressure sensor, and support

Note 2: Comes with a pressure gauge corresponding to the pressure range of the pressure reducing valve

Note 3: The product comes with 1 R1/8 plug

SPECIFICATION

Model	RP1000-8-02	RP1000-8-04		RP1000-8-07		RPE1000-8-07
Fluid	Compressed clean air
Max. Operating Pressure MPa	1.0
Min. Operating Pressure MPa	Setting pressure +0.1 note: 1
Pressure Resistance MPa	1.5
Environment Temperature and Fluid temperature	5~60℃(no frozen) note: 3
Setting Pressure: MPa	0.003~0.2	0.005~0.4		0.01~0.7		0.01~0.7
Sensitivity	Within 0.1% of full range			Within 0.2% of full range
Repeatability	Within 0.5% of full range
Gas consumption e/min(ANR) Note: 2	Less than 1.3		Less than 3.4		Less than 0.2
Tube Diameter	Rc1/4
Pressure gauge Tube Diameter	Rc1/8
Weight: g	250

Note 1: Under the condition that the secondary measured flow is zero.

Note 2: Based on the premise of a single-measurement pressure of 0.7 MPa, air is always exhausted.

Note 3: When using a digital display pressure sensor, the temperature is -5 to 50°C

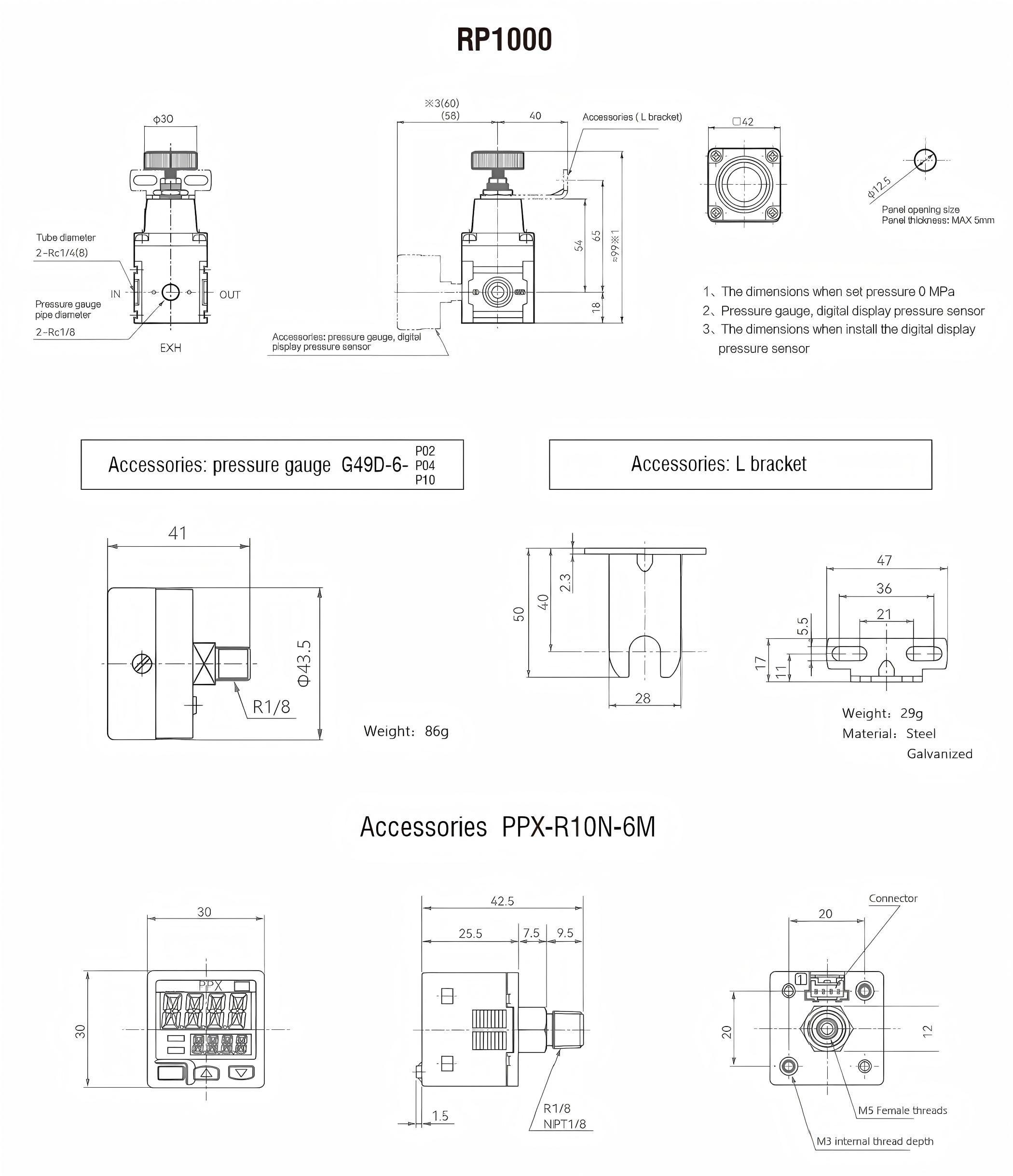

DIMENSONS

Precision pressure reducing valve

Specification Download

Energy-saving precision regulators.pdf
