Modular air treatment units are more than just convenient combinations of filters, regulators, and lubricators. When correctly selected and configured, they help assembly lines become easier to design, quicker to install, and faster to maintain, directly improving production efficiency and reducing downtime.

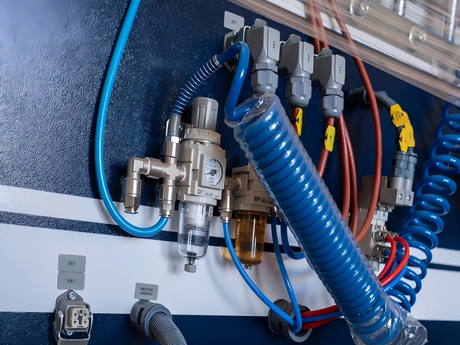

Modular air treatment units combine several air preparation functions into one compact, configurable assembly. Typical modules include filters, water separators, pressure regulators, lubricators, and sometimes soft start valves or shutoff valves. Each module is designed with standardized interfaces so units can be added, removed, or rearranged without redesigning the whole air circuit.
For machine builders and maintenance teams, this modular structure means that different machines or stations can share a common platform while still being customized to their specific air quality, pressure, and lubrication needs.
Compared to building air preparation from individual components, modular units significantly simplify design and assembly work. Key advantages include:
Standardized building blocks reduce engineering time spent selecting and matching separate filters, regulators, and lubricators.
Predefined mounting and connection options make it easier to integrate units into panels or machine frames.
Fewer individual parts and fittings mean fewer potential leak points and faster assembly at the machine builder or integrator.
Instead of designing each station's air preparation from scratch, engineers can define a small number of modular configurations that cover most use cases, then apply them repeatedly across product families or lines.
The impact of switching from discrete air preparation components to modular units can be illustrated through a qualitative "before and after" comparison for an assembly line project.
Aspect | Separate, Discrete Components | Modular Air Treatment Units |
Engineering design time | Higher, each station designed individually | Lower, reused modular configurations |
Bill of materials complexity | Many small items, varied part numbers | Fewer items, standardized modules |
Assembly and installation time | Longer, more fittings and brackets | Shorter, units mount as a single assembly |
Leak risk and troubleshooting | Higher, many threaded joints | Lower, fewer joints and standardized interfaces |
Future modifications and upgrades | More rewiring and repiping work | Easier, modules can be added or swapped with minimal changes |
Assembly lines often have limited space for equipment and maintenance access. Modular air treatment units support more compact and organized layouts:
Vertical stacking and side-by-side options allow air treatment to fit into narrow cabinets or tight machine frames.
Clean, integrated assemblies reduce clutter and free up space around workstations.
Clear labeling and consistent appearance make it easier for operators and technicians to identify functions quickly.
Better use of space not only improves ergonomics and safety, it also makes assembly cells easier to duplicate and scale when production volume increases.
Modular air treatment units also contribute to assembly efficiency by simplifying maintenance work. When filters, regulators, and lubricators are integrated into one modular platform, maintenance teams benefit from:
Quick access to elements that need periodic replacement, such as filter elements and lubricator bowls.
Standardized spare parts across multiple machines and stations, simplifying inventory and purchasing.
The ability to isolate and replace a single module without disturbing the rest of the assembly.
These features help reduce the time required for routine servicing and emergency interventions, allowing assembly lines to return to production more quickly after maintenance.
For multi station assembly lines, standardizing on a few modular air treatment configurations can significantly speed up both initial build and later expansion. A typical approach might divide stations into categories such as:
Station Type | Typical Air Treatment Needs | Modular Unit Configuration Example |
Light actuation and sensing | Clean, dry air, low flow, dry operation | Filter plus regulator, no lubricator |
General cylinder actuation | Clean, regulated air with moderate flow | Filter, regulator, optional lubricator module |
High speed or demanding actuation | Higher flow, finer filtration, stable pressure | High capacity filter, regulator, additional coalescing filter |
Assembly lines often evolve over time as products change or capacity requirements grow. Modular air treatment units make it easier to adapt pneumatic circuits to new conditions:
Additional modules, such as finer filters or extra regulators, can be added without redesigning the entire air supply system.
Existing modules can be resized or replaced to support higher flow or new operating pressures.
Lines can be rebalanced by moving or reconfiguring standardized modular units between stations.
This flexibility supports continuous improvement initiatives and helps protect the initial investment in air preparation hardware.
