Introduction

In any pneumatic system, the pressure gauge is the operator‘s window into system performance. It provides real-time visual feedback on compressed air pressure, enabling operators to verify that the system is operating within safe and optimal parameters. Without accurate pressure indication, even the most sophisticated pneumatic circuit becomes a black box—leaving equipment vulnerable to under‑pressurization, over‑pressurization, and undetected leaks.

The WAALPC W Series pressure gauge is designed specifically for pneumatic applications, offering reliable performance, durable construction, and a comprehensive range of configurations to suit diverse installation requirements. With a pressure range of up to 16 bar (approximately 232 PSI), multiple housing materials, and various mounting options, the W Series provides a versatile solution for industrial compressed air monitoring.

This guide covers the working principle of pressure gauges, detailed product specifications, selection criteria, installation best practices, maintenance procedures, and troubleshooting—helping you choose and maintain the right pressure gauge for your pneumatic system.


1. What Is a Pneumatic Pressure Gauge?

A pneumatic pressure gauge is a mechanical instrument that measures the pressure of compressed air or gas within a pneumatic system and displays the reading on a dial via a pointer needle. It is an essential monitoring device that helps ensure equipment operates in a safe, stable, and efficient state.

Pneumatic pressure gauges are typically categorized as analog (mechanical) gauges, which use a Bourdon tube mechanism to translate pressure into mechanical movement. They are valued for their simplicity, reliability, and ability to provide instantaneous readings without requiring an external power source.

Common pressure gauge types:

  • Pressure gauge: Displays positive pressure (above atmospheric pressure)

  • Vacuum gauge: Displays negative pressure (below atmospheric pressure)

  • Compound gauge: Displays both positive and negative pressure ranges

For most industrial pneumatic applications, standard pressure gauges (0–16 bar range) are the most commonly used type.

2. Working Principle – The Bourdon Tube Mechanism

The WAALPC W Series pressure gauge, like most industrial analog pressure gauges, operates on the Bourdon tube principle—a reliable and time‑tested mechanical method for pressure measurement.

The Bourdon Tube

At the heart of the gauge is a C‑shaped or curved metal tube with an oval or flattened cross‑section. One end of the tube is fixed (connected to the pressure inlet), while the other end is closed and free to move.

How It Works – Step by Step

  1. Pressure application: Compressed air enters the gauge through the port and flows into the Bourdon tube.

  2. Tube deformation: As pressure increases inside the tube, the oval cross‑section tries to become more circular. This cross‑sectional change causes the curved tube to straighten slightly.

  3. Mechanical transmission: The free (movable) end of the Bourdon tube is connected via a linkage to a sector gear and pinion mechanism. As the tube straightens, it pulls on this linkage, rotating the gear train.

  4. Pointer movement: The gear train rotates the pointer needle across the calibrated dial.

  5. Proportional indication: The amount of straightening is directly proportional to the applied pressure. Higher pressure = more straightening = greater needle deflection.

When pressure is released, the Bourdon tube elastically returns to its original curved shape, and the pointer returns to zero.

Why the Bourdon Tube Is Ideal for Pneumatic Applications

  • Proven reliability: The Bourdon tube mechanism has been the industry standard for over a century.

  • Wide pressure range: Covers the majority of pneumatic applications from low to medium pressures.

  • No power required: Fully mechanical—no batteries or external power source needed.

  • Cost‑effective: Simple construction translates to affordable pricing and low maintenance.

3. WAALPC W Series Pressure Gauge – Product Overview

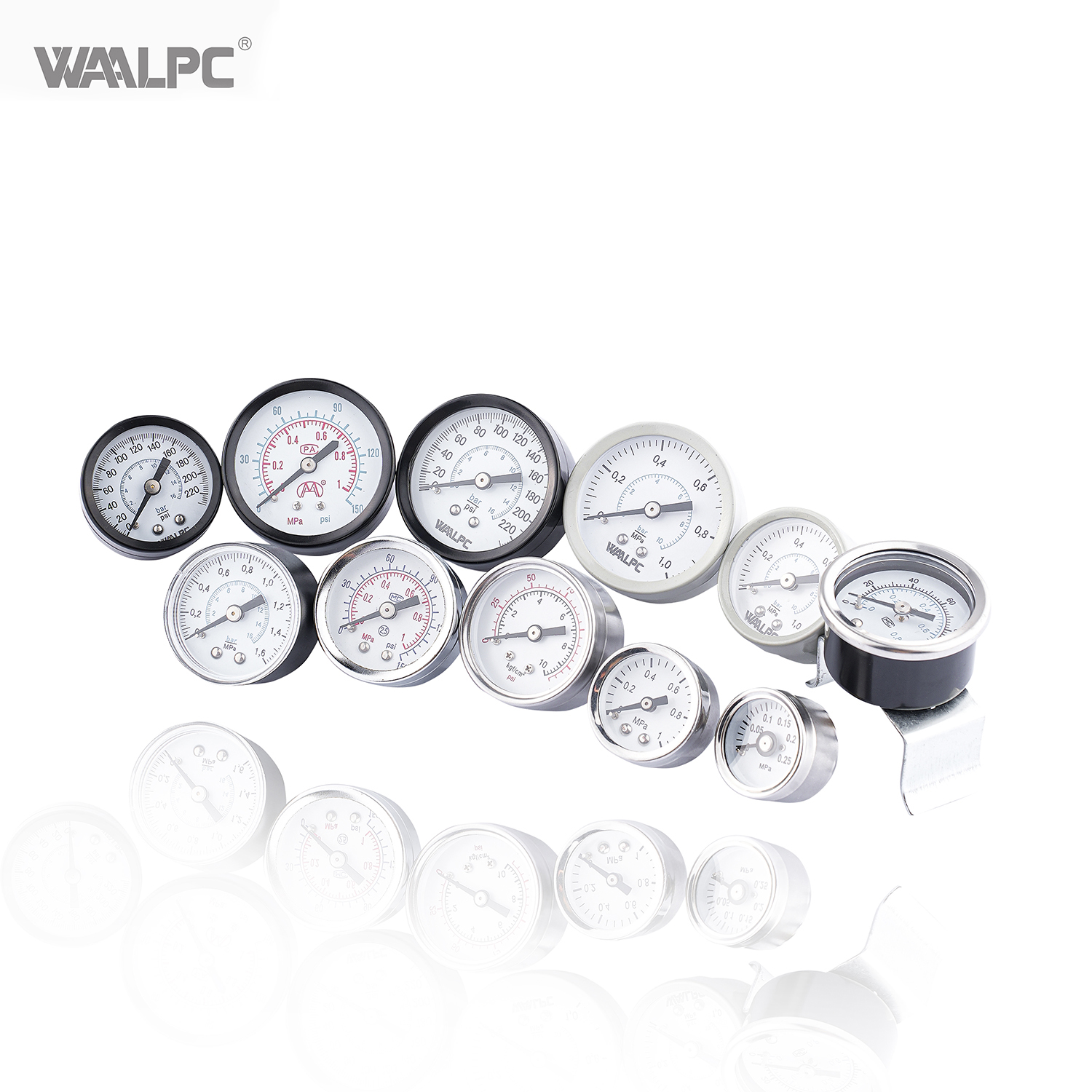

The WAALPC W Series pressure gauge is engineered specifically for pneumatic systems, offering a combination of accuracy, durability, and flexibility.

3.1 Key Features

  • Pneumatic‑specific design: Optimized for compressed air applications, delivering accurate and reliable performance.

  • High pressure capability: Rated up to 16 bar, suitable for demanding industrial conditions.

  • Durable construction: Available in stainless steel (SS304), iron, or plastic housing with a pressing bezel for corrosion and damage protection.

  • Flexible configurations: Multiple housing materials, gauge diameters, installation types, and thread options to suit various applications.

  • Customizable: Supports OEM orders—can be customized according to customer specifications.

  • Warranty: 1‑year warranty on all standard models.

3.2 Technical Specifications

Parameter

Specification

Model Series

W Series

Pressure Range

0–16 bar (approximately 0–232 PSI)

Housing Material

SS304 stainless steel / Iron / Plastic

Lens Material

Plastic (standard)

Gauge Diameter

40 mm, 50 mm, or 60 mm

Port Size

1/8“ or 1/4”

Thread Material

Brass

Installation Type

Bottom connection or back connection

Oil‑filled Option

Available (models with ”with oil“ designation)

Wetted Parts Material

Brass (standard)

3.3 Model Selection Guide

The W Series offers a comprehensive range of models organized by housing material, oil‑filling option, and installation type.

Model Nomenclature: The model code follows the pattern

Code Element

Meaning

Options

W1

Iron housing, plastic lens, without oil

W1001-Y40, W1002-Y50, W1003-Y60 (back) / W1011-Y40, W1012-Y50, W1013-Y60 (bottom)

W2

Plastic housing, plastic lens, without oil

W2001-Y40, W2002-Y50, W2003-Y60 (back) / W2011-Y40, W2012-Y50, W2013-Y60 (bottom)

W3

SS304 housing, without oil

W3001-Y40, W3002-Y50, W3003-Y60 (back) / W3011-Y40, W3012-Y50, W3013-Y60 (bottom)

W4

Full SS304 housing, without oil

W4001-Y40, W4002-Y50, W4003-Y60 (back) / W4011-Y40, W4012-Y50, W4013-Y60 (bottom)

W5

SS304 housing, with oil

W5001-Y40, W5002-Y50, W5003-Y60 (back) / W5011-Y40, W5012-Y50, W5013-Y60 (bottom)

W6

Full SS304 housing, with oil

W6001-Y40, W6002-Y50, W6003-Y60 (back) / W6011-Y40, W6012-Y50, W6013-Y60 (bottom)

Y40 = 40 mm diameter | Y50 = 50 mm diameter | Y60 = 60 mm diameter

Back connection: Pressure port on the rear of the gauge (panel‑mount applications)
Bottom connection: Pressure port on the bottom of the gauge (inline piping applications)

3.4 Oil‑Filled vs. Dry Gauges

Feature

Dry Gauge (Without Oil)

Oil‑Filled Gauge (With Oil)

Vibration resistance

Moderate

Excellent (oil dampens pointer flutter)

Pressure pulsation

Moderate resistance

Excellent (oil absorbs pulsation)

Reading stability

Good

Superior (steady pointer)

Operating temperature

Wider range

Limited by oil viscosity

Maintenance

Minimal

Oil may need replacement over time

Best for

Stable pressure, clean environments

High‑vibration, pulsating pressure applications

For applications with significant pressure pulsations (e.g., near reciprocating compressors) or high vibration environments, oil‑filled models (W5/W6 series) are recommended.

4. Selection Guide

4.1 Selection Criteria

When selecting a pressure gauge for your pneumatic system, consider the following factors:

Factor

Consideration

Pressure range

Ensure the gauge‘s maximum range (16 bar) exceeds your system’s maximum operating pressure by at least 25%

Gauge diameter

40 mm for compact panels; 50 mm for standard visibility; 60 mm for easy reading from a distance

Housing material

Plastic for cost‑sensitive applications; iron for general use; SS304 for corrosive or harsh environments

Installation type

Back connection for panel mounting; bottom connection for inline piping

Port size

1/8“ or 1/4” — match to your existing piping or fittings

Oil‑filled or dry

Dry for stable pressure; oil‑filled for high‑vibration or pulsating applications

Thread type

Confirm whether your system uses BSPT, NPT, or G (BSPP) threads

Important: Selecting an incorrect gauge may damage not only the gauge but also the target device.

4.2 Thread Compatibility

Pressure gauges are available with different thread standards. The WAALPC W Series offers both 1/8“ and 1/4” ports with BSPT (British Standard Pipe Taper) threads as standard.

Thread type notes:

  • BSPT (tapered): Provides a self‑sealing metal‑to‑metal seal when properly tightened with sealant

  • NPT (American tapered): Similar to BSPT but with a different thread angle (60° vs. 55°) and pitch—not interchangeable with BSPT

  • G / BSPP (parallel): Requires a sealing washer or O‑ring for sealing

Always verify the thread type required by your system before ordering.

4.3 Sizing Example

Application: Monitoring pressure on a pneumatic manifold with operating pressure of 8 bar, moderate vibration, panel‑mounted installation, 1/4“ BSPT piping.

Recommended model: W5001-Y50 (SS304 housing, oil‑filled, back connection, 50 mm diameter, 1/4” port)

Reasoning:

  • 16 bar range provides adequate headroom above 8 bar operating pressure

  • Oil‑filled mechanism dampens vibration effects

  • Back connection suits panel mounting

  • 50 mm diameter offers good readability

  • SS304 housing provides durability

5. Installation Guide

5.1 Pre‑Installation Checks

Before installing a pressure gauge:

  1. Verify the model: Confirm pressure range, diameter, port size, and thread type match your requirements.

  2. Inspect the gauge: Check the pointer is at zero (or against the stop pin), the lens is intact, and the thread is undamaged.

  3. Check the port: Ensure the process port is clean and free of debris, thread tape remnants, or dried sealant.

  4. Verify the seal: Ensure the gauge is in perfect condition before installation.

5.2 Step‑by‑Step Installation

  1. Depressurize the system: Close the inlet valve and vent all downstream pressure before installation.

  2. Apply thread sealant: For BSPT or NPT threads, apply PTFE tape only to male threads, leaving the first thread bare to prevent debris from entering the gauge.

  3. Thread the gauge: Hand‑tighten the gauge into the port, then use a wrench to tighten an additional 1–2 turns. Do not overtighten—this can damage the thread or distort the gauge housing.

  4. Position the gauge: For bottom‑connection gauges, ensure the gauge is vertical (dial facing up) for accurate readings. For back‑connection gauges, mount the gauge flush against the panel.

  5. Pressurize slowly: Gradually open the inlet valve while observing the gauge for any abnormal readings.

  6. Verify zero: After pressurization and depressurization, confirm the pointer returns to zero.

5.3 Installation Best Practices

  • Mount away from heat sources: Do not mount the gauge directly above high‑temperature vessels or pipes.

  • Avoid vibration: If possible, install the gauge away from high‑vibration equipment. Use oil‑filled gauges if vibration is unavoidable.

  • Maintain ambient temperature: For optimal accuracy and service life, operate pressure gauges within –20°C to +60°C ambient temperature.

  • Use a siphon tube for steam/hot media: If measuring hot media, install a siphon tube (pig tail) to protect the gauge from heat damage.

6. Maintenance and Calibration

6.1 Routine Maintenance

Frequency

Task

Daily

Visual inspection—check for physical damage, cracked lens, or abnormal readings

Monthly

Verify zero point—depressurize and confirm pointer returns to zero

Quarterly

Clean exterior—remove dust and debris with a soft cloth; check for leaks around the connection

Annually

Calibration check—compare gauge reading against a calibrated master gauge

6.2 Calibration

Pressure gauges should be calibrated periodically to ensure accuracy. The calibration frequency depends on:

  • Industry requirements: Some industries (e.g., pharmaceutical, food) require more frequent calibration

  • Gauge usage: Gauges subjected to frequent pressure cycling may require more frequent checks

  • Manufacturer recommendations: Follow the manufacturer‘s recommended calibration interval

Simple calibration check:

  1. Connect the gauge to a known pressure source with a certified master gauge in series

  2. Apply pressure at 25%, 50%, 75%, and 100% of the full scale

  3. Compare readings—if deviation exceeds the acceptable tolerance (±2–3% of full scale), the gauge requires recalibration or replacement

6.3 Common Issues and Solutions

Symptom

Possible Cause

Solution

Pointer does not return to zero

Bourdon tube damaged; internal mechanism stuck

Replace gauge or send for professional repair

Pointer fluctuates

Pressure pulsation; loose mechanism

Install oil‑filled gauge; check mechanism

Reading is consistently low/high

Gauge out of calibration; damaged Bourdon tube

Calibrate or replace gauge

Condensation inside lens

Moisture ingress; temperature cycling

Replace gauge; install with proper sealing

Leak at connection

Loose fitting; damaged thread; insufficient sealant

Tighten; re‑apply sealant; replace fitting

Lens cracked or damaged

Impact; over‑pressure

Replace gauge immediately

6.4 When to Replace a Pressure Gauge

  • Physical damage: Cracked lens, bent pointer, or damaged housing

  • Inaccurate readings: Calibration shows deviation beyond acceptable tolerance

  • Internal corrosion: Visible rust or corrosion on internal components

  • Sticking pointer: Pointer does not move smoothly or gets stuck

  • Leaking: External leakage from the gauge body (not the connection)

7. Application Scenarios

WAALPC W Series pressure gauges are used across a wide range of industries and applications:

7.1 Pneumatic Systems

  • FRL units: Monitoring inlet and outlet pressure on filter‑regulator‑lubricator assemblies

  • Compressor stations: Monitoring discharge pressure and system pressure

  • Pneumatic manifolds: Visual pressure indication at distribution points

  • Test benches: Pressure verification during component testing

7.2 Industrial Automation

  • Packaging machinery: Monitoring air pressure for grippers and actuators

  • Assembly lines: Pressure verification for clamping and positioning systems

  • Robotics: Air supply pressure monitoring

7.3 Process Industries

  • Food and beverage: Pressure monitoring in pneumatic conveying systems

  • Pharmaceutical: Cleanroom air pressure verification

  • Chemical: Corrosive environment monitoring (with SS304 housing)

7.4 Automatic Test Equipment

Pneumatic pressure gauges are widely used in automatic test equipment to monitor fixture clamping pressure in real time, ensuring the clamping force is neither too high (damaging the sample) nor too low (causing looseness).

8. Safety and Usage Precautions

8.1 Important Safety Rules

Rule

Reason

Never exceed rated pressure (16 bar)

Over‑pressure can damage the Bourdon tube or cause gauge failure

Depressurize before installation or removal

Compressed air can cause injury if released unexpectedly

Do not use in incompatible media

Gauge is designed for compressed air—other media may corrode internal components

Protect from impact

Mechanical shock can damage the Bourdon tube or mechanism

Keep within temperature limits

Extreme temperatures affect accuracy and can damage seals

8.2 Prohibited Applications

W Series pressure gauges should not be used for:

  • ❌ Corrosive or reactive gases without proper material selection

  • ❌ Liquid media (unless specifically rated for liquid service)

  • ❌ Applications exceeding 16 bar or the gauge‘s rated pressure

  • ❌ Extreme temperatures beyond –20°C to +60°C

9. Why Choose WAALPC W Series Pressure Gauges?

WAALPC W Series pressure gauges offer a compelling combination of quality, flexibility, and value:

  • Pneumatic‑specific design — optimized for compressed air applications

  • Wide pressure range — 0–16 bar covers most industrial pneumatic needs

  • Multiple configurations — 3 housing materials, 3 diameters, 2 installation types, oil‑filled or dry

  • Durable construction — SS304 housing options for corrosive environments

  • Competitive pricing — cost‑effective without compromising quality

  • OEM support — customizable according to customer requirements

  • 1‑year warranty — peace of mind on every purchase

  • Global availability — exported to over 40 countries worldwide

Conclusion

The pressure gauge is a small but critical component in any pneumatic system. It provides the visual feedback operators need to verify system performance, detect issues early, and prevent costly downtime.

The WAALPC W Series pressure gauge offers a versatile, reliable, and cost‑effective solution for pneumatic pressure monitoring. With a 16 bar pressure range, multiple housing materials (SS304, iron, plastic), three gauge diameters (40/50/60 mm), two installation types (bottom/back connection), and optional oil‑filled damping, the W Series provides a configuration for virtually any application.

Key takeaways:

  • Working principle: Bourdon tube mechanism — pressure straightens the tube, moving the pointer proportionally

  • Pressure range: 0–16 bar, suitable for most industrial pneumatic systems

  • Housing options: SS304 (corrosion‑resistant), iron (general purpose), or plastic (cost‑effective)

  • Diameter options: 40 mm (compact), 50 mm (standard), or 60 mm (easy reading)

  • Installation: Bottom connection (inline) or back connection (panel mount)

  • Oil‑filled option: Recommended for high‑vibration or pulsating pressure applications

By selecting the correct model for your application, following proper installation procedures, and performing routine maintenance, WAALPC W Series pressure gauges will provide years of reliable, accurate service.

For more information about WAALPC W Series pressure gauges or to discuss your specific application requirements, please contact our technical sales team or visit www.waalpc.com.

Inquire

GET IN TOUCH

Add: Hengkun Smart Industrial Park, No. 176, Golf Road, Yinhu Street, Fuyang District, Hangzhou City, Zhejiang Province, China 311400
Tel: +86-571-58835560
Mob: +86-13486112619
E-Mail:  tina@waalpc.com
Whatsapp: +86-13486112619
Our Subsidiary: Hangzhou Evershine Pneumatic Import & Export Co., Ltd.

QUICK LINKS

PRODUCT CATEGORY

SUBSCRIBE
Promotions, new products and sales. Directly to your inbox.
Subscribe
Copyright © 2024 Hangzhou Fuyang Waal Precision Machinery Co., Ltd.
