Pressure regulators (also called pressure-reducing valves or PRVs) are critical air preparation components in pneumatic systems. They ensure downstream equipment receives stable, clean air at precisely controlled pressure—protecting actuators, valves, and tools from damage due to pressure spikes or fluctuations. Here's a step-by-step breakdown of their operation:
Regulators function on a force-equilibrium mechanism:
Spring Force: Adjustable spring (compressed by turning the knob) pushes downward.
Diaphragm Force: Air pressure acts upward against a flexible diaphragm.
Poppet Valve: Linked to the diaphragm, this valve opens/closes the inlet based on force balance.
When forces equalize, the valve stabilizes at a set pressure (setpoint).
Component | Role |
Adjustment Knob | Compresses the control spring to set desired output pressure. |
Diaphragm | Flexes upward/downward in response to air pressure vs. spring force. |
Poppet Assembly | Opens/closes the inlet orifice to restrict/increase airflow. |
Relief Vent | Vents excess downstream pressure (relieving types only). |
Sensing Port | Monitors downstream pressure for real-time adjustment. |
Spring force = Diaphragm force → Poppet lightly seals the orifice.
Downstream pressure remains constant at the setpoint.
Pressure drop reduces upward force on the diaphragm.
Spring overcomes diaphragm → pushes poppet OPEN.
Inlet air flows downstream → pressure rises to setpoint.
Pressure rise lifts the diaphragm upward.
Diaphragm overcomes spring → pulls poppet CLOSED.
Relieving types: Excess air vents out via relief port.
Non-relieving types: Traps air until consumed downstream.
Diaphragm adjusts poppet position dynamically to maintain stable output, even if inlet pressure varies ±20%.
Droop (Proportional Band):
Slight output pressure drop under flow due to flow resistance. Precision regulators minimize droop <5%.
Lockup Pressure:
Minimum inlet pressure needed to hold setpoint (typically >1 bar above output).
Flow Capacity (Cv or Kv):
Maximum airflow a regulator can deliver without excessive droop.
Relieving vs. Non-Relieving:
Relieving types vent overpressure; non-relieving are used in hazardous environments.
Type | Best For | Key Trait |
General-Purpose | Air tools, cylinders | Relieving, ±10% accuracy |
Precision | Sensors, lab equipment | Droop <2%, fine adjustment knob |
Pilot-Operated | High-flow systems (Cv>2) | Uses downstream pressure to assist control |
Dome-Loaded | Remote pressure control | External air signal replaces spring |

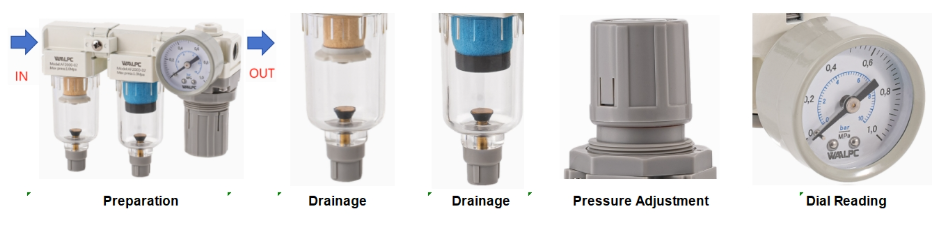

Placement: Install after filters/lubricators (FRL unit sequence: F→R→L).
Orientation: Mount vertically to prevent condensate pooling in sensing lines.
Filtration: Use 5-µm filters upstream—contaminants cause diaphragm wear or clogging.
Locknut: Secure adjustment knob after setting to prevent drift.
Without regulators, pneumatic systems suffer from:
Tool/Actuator Damage: Overpressure bursts seals or cylinders.
Inconsistent Performance: Pressure drops cause slow cycling or weak clamping.
Energy Waste: Excess pressure consumes unnecessary compressor power.
By balancing spring force against air pressure, regulators deliver the goldilocks zone of pneumatic control: just enough pressure for the job, nothing more. Whether in factory robots, medical devices, or construction tools, they silently enable precision, safety, and efficiency.
