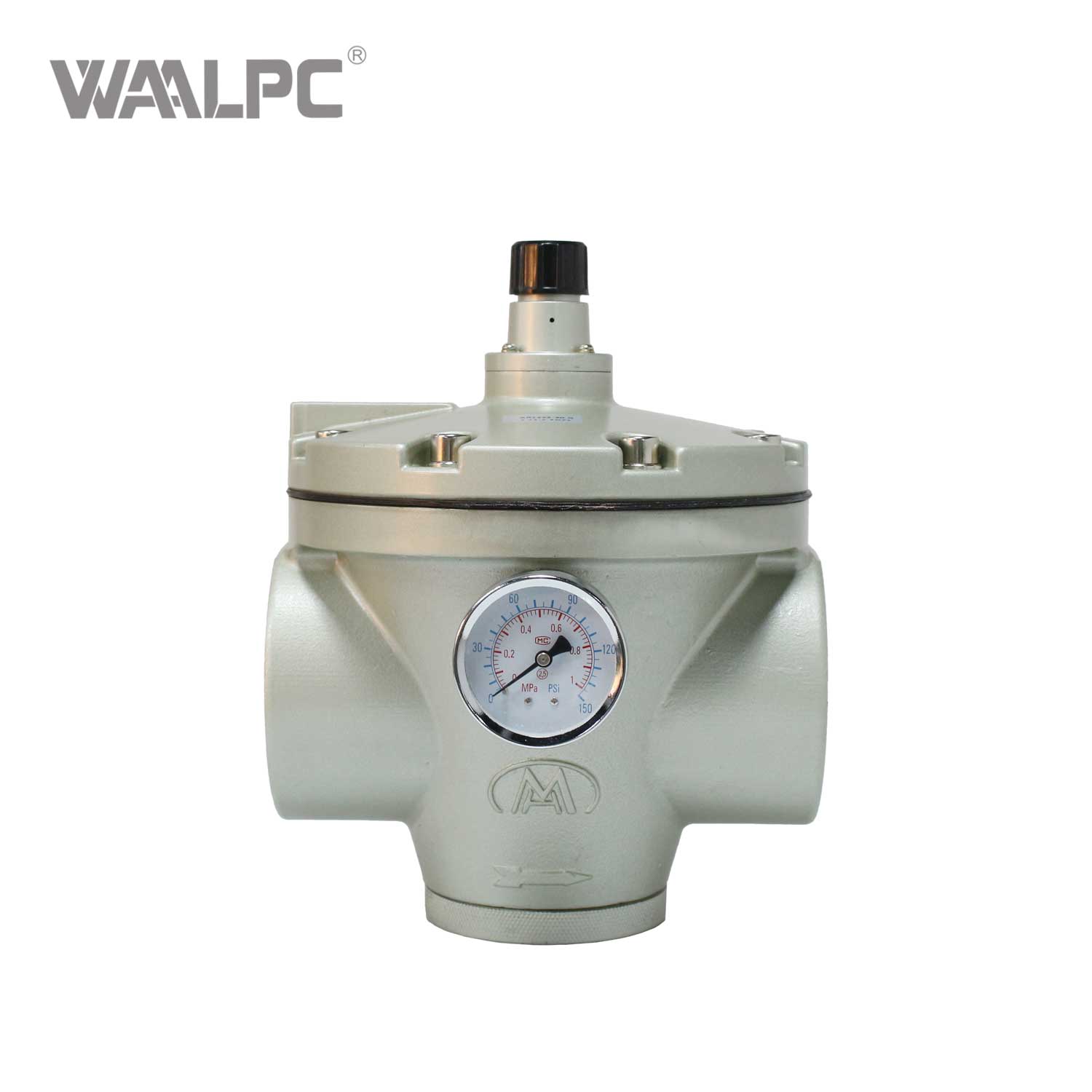

High Flow Air Source Pressure Regulator Heavy-Duty Pneumatic Control Valve

Air Pressure Reducing Valve High-flow Regulator Diecast Aluminium Compressed Air for Pneumatic Machinery

High Flow Air Source Pressure Regulator Heavy-Duty Pneumatic Control Valve


Size:	1 2
Availability:

Our High-Flow Air Source Products are engineered to deliver exceptional airflow capacity and efficiency for industrial systems demanding heavy-duty performance. Designed with oversized flow channels and advanced aerodynamic geometry, these components (e.g., regulators, valves, filters) ensure seamless air supply in high-demand applications, such as automotive assembly lines, energy plants, and large-scale pneumatic networks.

Model:
AR1225-30
Brand:
WAALPC
Code:
8421999000

Product Description

The High-flow Air Regulator Advantages

High-flow pressure regulating valves

1. Modular & Maintenance-Friendly Design

Tool-Less Assembly: Quick-release latches and modular components reduce downtime by 30% during maintenance, with replaceable stainless steel mesh filters (5–100μm precision) for easy contamination control.

2. Internal pilot and overflow ventilation holes

3. Light and compact structure, easy to install and use.
4. Press-in self-locking mechanism, which can prevent the set pressure from external interference.

5. Optimized Airflow: Reduced turbulence and pressure loss cut energy consumption by up to 15%, lowering operational costs for large-scale pneumatic networks.

The High-flow Air Regulator Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type name	Air Regulator
Model	AR825-15	AR925-20	AR1200-30
Port Size	G1½	G2	G3
Working medium	Air
Max. operating pressure	1.0MPa
Pressure Resistance	1.5MPa
Air consumption (for bleed hole)	5 L/min (ANR) (at maximum pressure)
Operating temperature range	-5~60℃ (No freezing)
Construction	Internal pilot relieving type (Pilot air is always bleeding)
Pressure gauge port size	1/4
Pressure regulating range	0.05~0.85Mpa
Pressure gauge	G46-10-02
Related flow	12000L/min	20000L/min	28000L/min
Weight	2500g	4500g	8000g

STRUCTURE

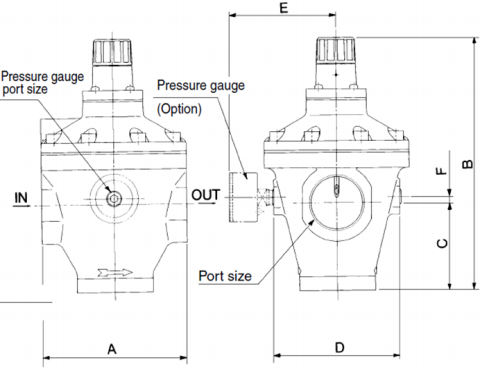

DIMENSION(MM)

Model	Port size		Pressure gauge port size	Dimension(mm)
Model	Port size		Pressure gauge port size	A B C D E F
AR825-15		1½	1/4	126	216	75	110	94.5	5
AR925-20		2	1/4	160	241	90	140	109.5	10
AR1200-30		3	1/4	210	274	125	190	140	25

Specification Download
