Maintenance And Solutions To Common Problems Of Pneumatic Pressure Gauges

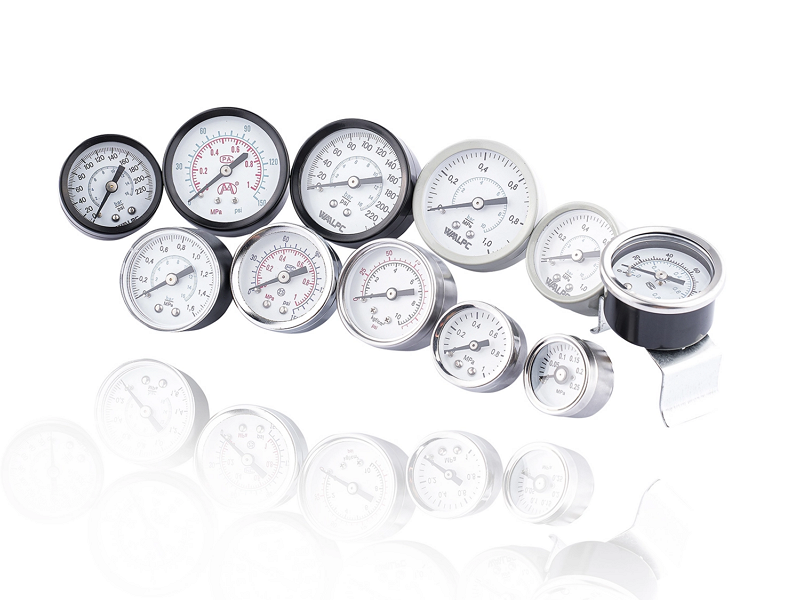

Pneumatic pressure gauges are indispensable monitoring tools in pneumatic systems. They are used to measure the pressure of compressed air in real time to ensure that the equipment operates in a safe and efficient state. However, due to long-term use or environmental factors, pneumatic pressure gauges may fail, affecting the stability of the production process. The following will analyze the maintenance points of pneumatic pressure gauges and solutions to common problems to help users extend their service life and improve system reliability.

Maintenance points of pneumatic pressure gauges

Prevention is better than cure. Regular maintenance is the key to ensuring the normal operation of pneumatic pressure gauges. First of all, it is crucial to keep the pressure gauge clean. Dust, oil and other impurities in the production environment may adhere to the dial or joints, affecting the accuracy of the reading. It is recommended to wipe the dial regularly with a soft cloth and avoid using corrosive cleaners. Secondly, check whether the installation position is stable. Vibration or shock may cause internal parts to loosen and affect the sensitivity of the pointer. In addition, the pressure gauge should be calibrated regularly, usually every 6 to 12 months, to ensure that its measured value is consistent with the actual pressure. For pressure gauges that are not used for a long time, they should be stored in a dry, dust-free environment to prevent moisture from corroding the internal components.

Common problems and solutions

1. The pointer does not return to zero

This is one of the most common problems with pneumatic pressure gauges, which may be caused by internal spring fatigue or mechanical parts getting stuck. The solution is to first check whether there is any residual external pressure, make sure the system is completely depressurized and then observe the pointer. If it still does not return to zero, tap the case to release possible jams. If the problem persists, it is recommended to replace the pressure gauge, because damage to internal parts is usually difficult to repair.

2. Inaccurate readings

When the value displayed by the pressure gauge deviates greatly from the actual pressure, it may be caused by calibration failure or internal diaphragm wear. Users can use a standard pressure source for calibration. If the deviation exceeds the allowable range, the diaphragm or the entire pressure gauge should be replaced. In addition, check the connecting pipes for leaks or blockages, which may also affect the readings.

3. Severe pointer jitter

Pointer jitter is usually caused by system pressure fluctuations or vibrations in the installation location. Solutions include installing a shock absorber or buffer tube in front of the pressure gauge to smooth out airflow fluctuations. At the same time, make sure the pressure gauge is installed away from vibration sources, such as away from compressors or heavy equipment.

4. Blurred or damaged dials

Blurred dials are mostly caused by humid environment or long-term exposure to strong light, while damage may be caused by external impact. During maintenance, the transparent cover can be replaced and ensure good sealing. For severely damaged pressure gauges, it is recommended to replace them directly to avoid the risk of misreading.

5. Preventive measures and long-term benefits

In addition to solving specific problems, preventive measures can significantly reduce the occurrence of failures. For example, in dusty or humid environments, protective covers can be added to pressure gauges to extend their service life. In addition, it is also important to choose a model suitable for the working pressure. Overload operation will cause accelerated wear of internal parts. For critical production lines, it is recommended to equip spare pressure gauges so that they can be quickly replaced in case of failure to reduce downtime losses.

Conclusion

The maintenance and problem solving of pneumatic pressure gauges are directly related to the stable operation of the pneumatic system. Through regular cleaning, calibration and reasonable installation, users can effectively avoid the occurrence of common failures. For problems such as pointer non-zeroing and reading deviation, timely targeted measures can quickly restore their functions. In the long run, scientific maintenance not only reduces maintenance costs, but also provides guarantees for the continuity of the production process and ensures efficient operation of the enterprise.
