Norgren G1/4'' G1/8'' Thread Industrial Pressure Regulator with 20bar Inlet Pressure for Pneumatic Systems

Norgren Type G1/4'' G1/8'' Thread Industrial Pressure Regulator with 20bar Inlet Pressure for Pneumatic Systems


Availability:

Quantity:



Inquiry Add to Basket

This pressure adjuster adopts the imported technology from UK, with good performance, great flux, and long service life, and with legerity structure and good-looking shape.

Model:
NAR200-R07
Brand:
WAALPC
Code:
8481100090

Product Description

1. Robust Construction for Harsh Environments

Corrosion-Resistant Materials: Constructed with a zinc alloy body and nitrile rubber seals , providing resistance to chemicals, moisture, and dust. This makes it suitable for use in food processing, marine, and chemical industries.

2. User-Centric Design

Tool-Free Maintenance: Disassembles without tools for quick cleaning or component replacement, reducing maintenance time by 30% compared to traditional regulators.
Compact Footprint: G1/4 thread and lightweight design (81.5g) , fitting into tight spaces in machinery or modular systems.
Integrated Gauge Port: Supports optional pressure gauge installation (1/8" NPT) for real-time monitoring.

3. Cost-Effective Performance

Energy Savings: Optimized flow design reduces air consumption by up to 25% compared to older models, lowering operational costs.

Long Service Life: Zinc alloy construction and robust seals minimize wear, extending product lifespan and reducing total ownership costs.

Technical Parameters

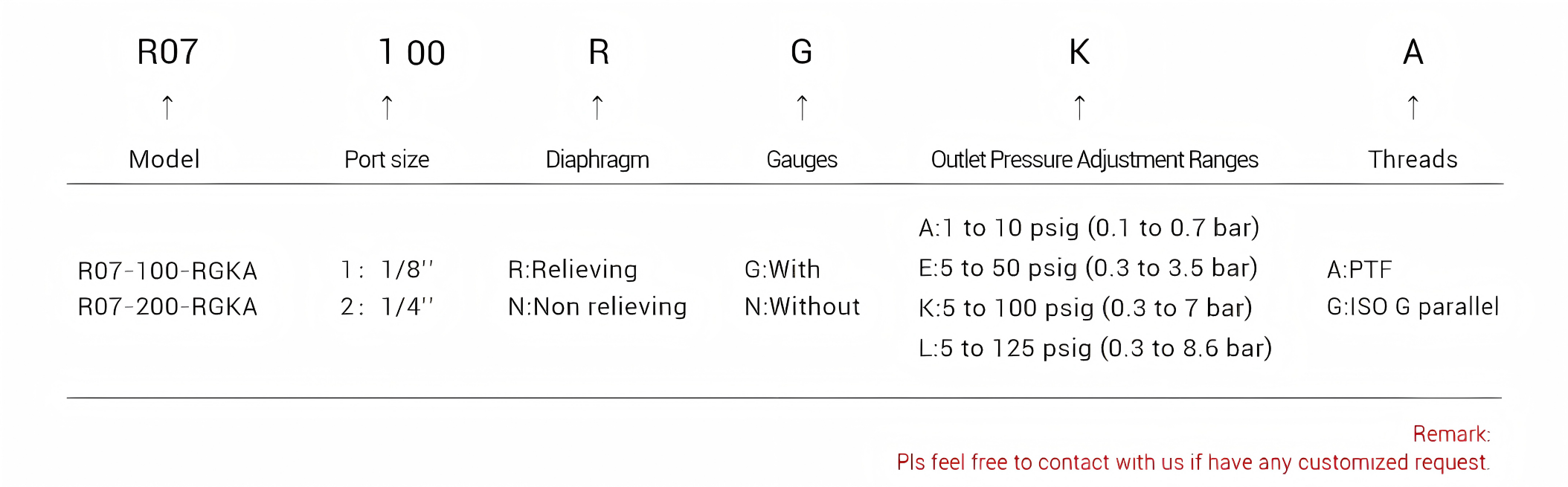

ORDERING CODE

Norgren Regulator detailed Page_ordering code

DATA SHEET

Model	R07-100-RGKA	R07-200-RGKA
Port Size	G1/8	G1/4
Flow+scfm(dm³/s)	14(6.5)	15(7)
Weight(kg)	0.31(0.19)	0.31(0.19)

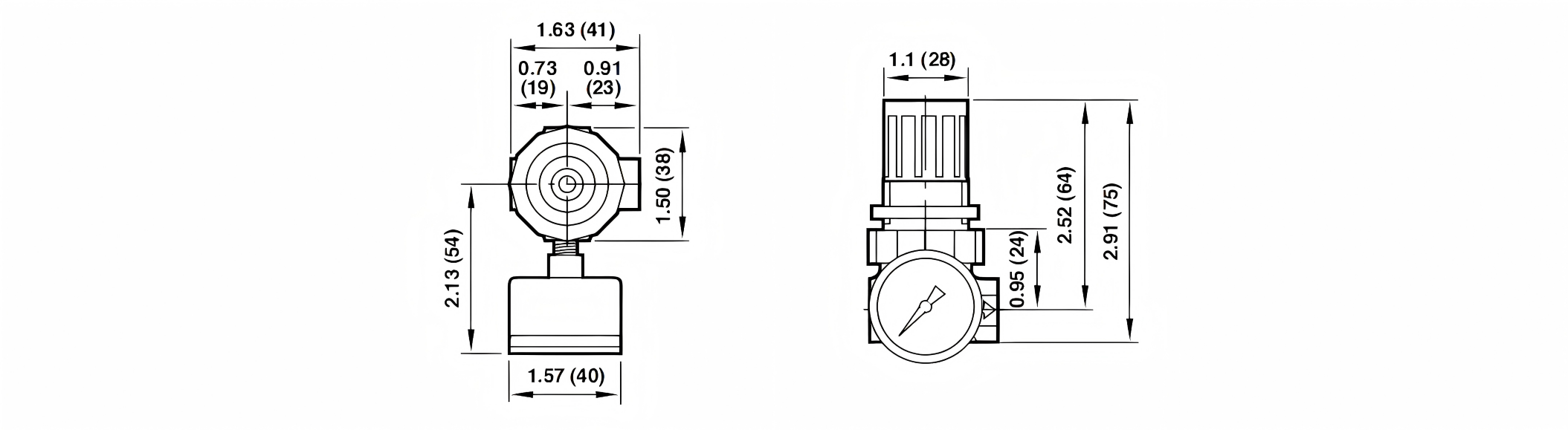

STRUCTURE

Item	Type	Part number
Service kit	Relieving	3407-02
	Non relieving	3407-01

Specification Download

Norgren Regulator detailed Page.png
