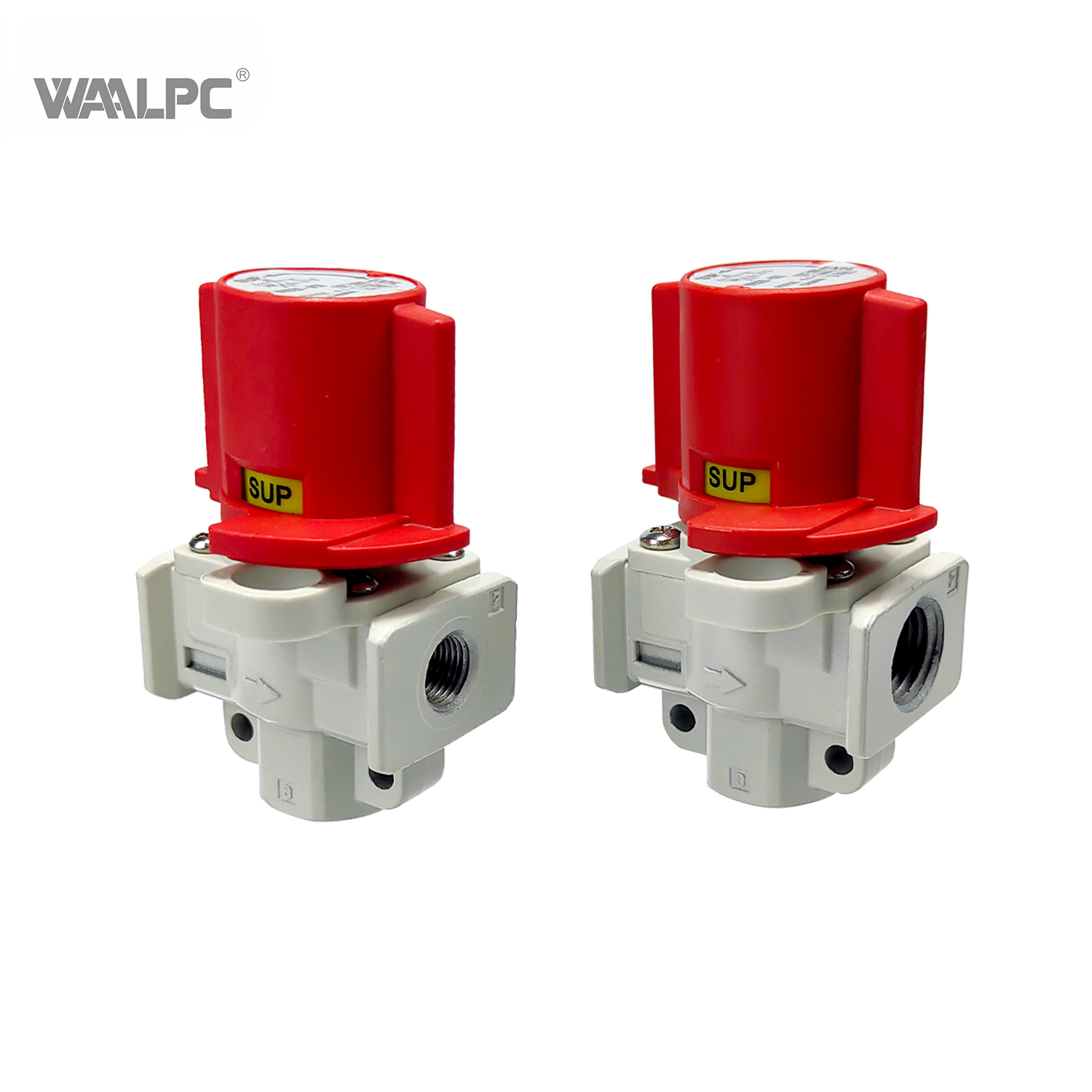

The Residual Pressure Relief Valve is a critical safety component designed to automatically release residual pressure in hydraulic or pneumatic systems, ensuring operational safety and preventing equipment damage caused by overpressure. Ideal for industrial, automotive, and energy applications, this valve guarantees reliable pressure management in high-demand environments.

Applications:
Hydraulic Systems: Protects pumps, cylinders, and actuators from pressure spikes.
Pneumatic Compressors: Safeguards air tanks and lines in manufacturing and automotive systems.
Oil & Gas Pipelines: Prevents overpressure risks during shutdowns or maintenance.
Industrial Machinery: Ensures safety in presses, CNC machines, and robotic systems.

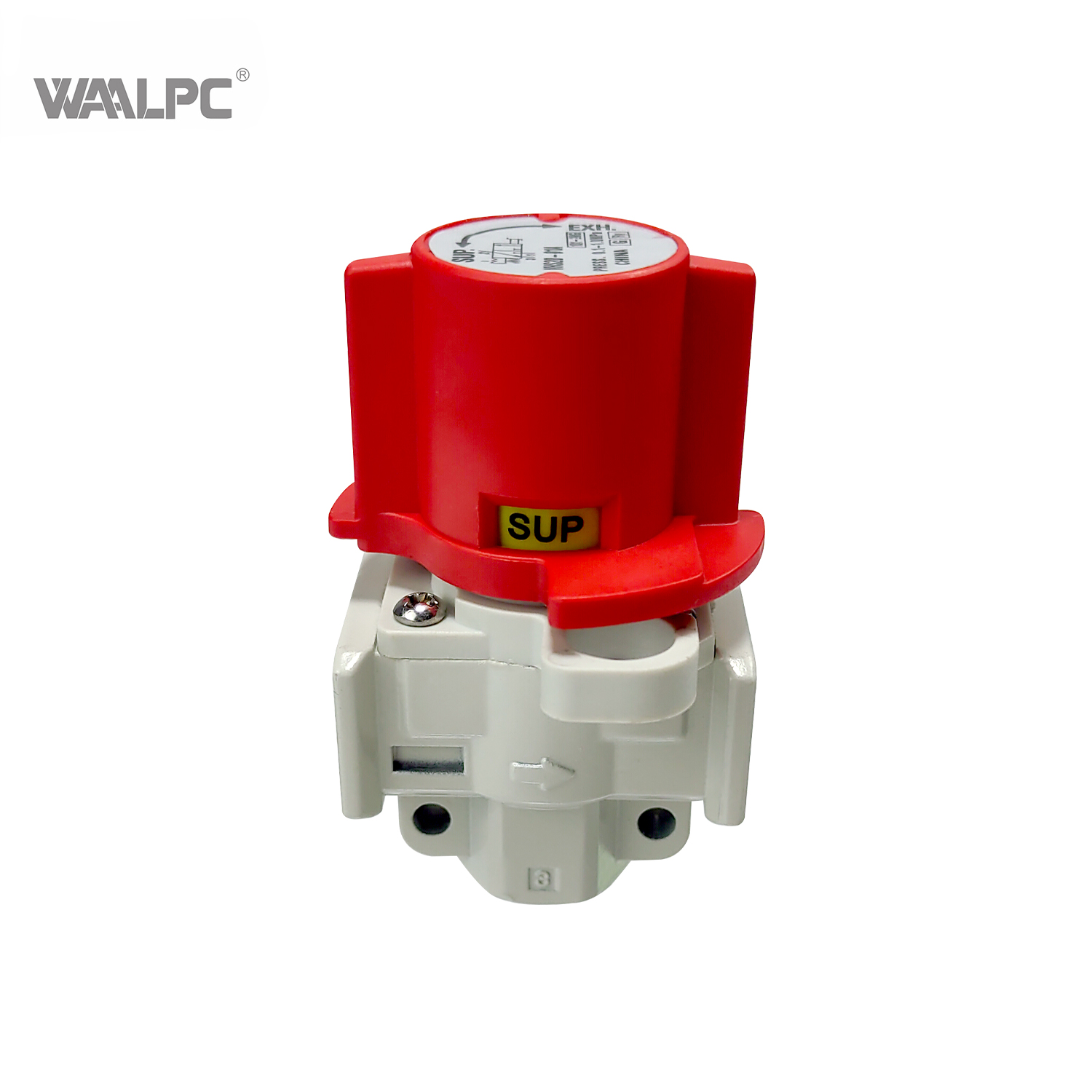

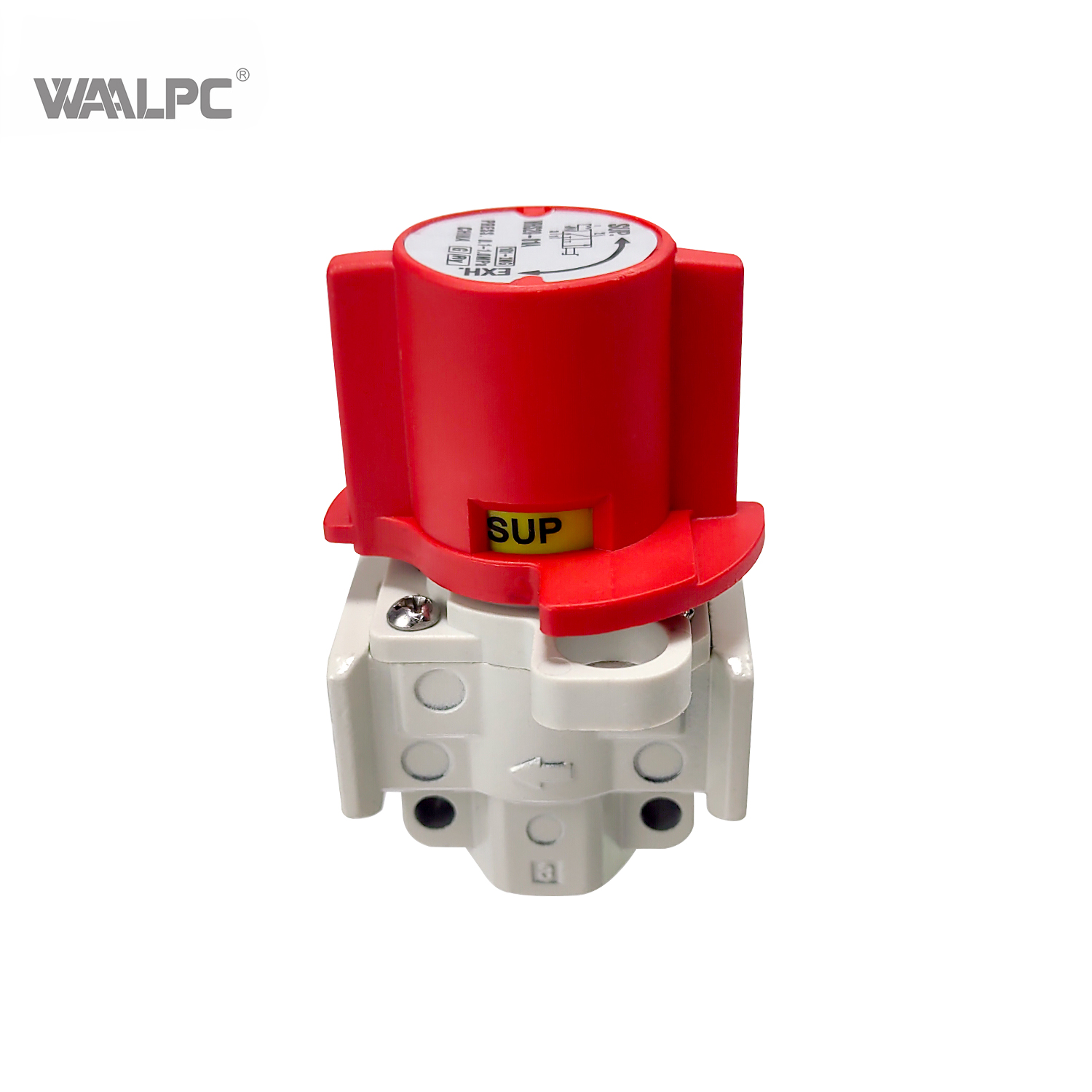

Model:
VHS20-01A
Brand:
WAALPC
Code:
8481400000

Product Description

Residual Pressure Relief Valve Product Advantages

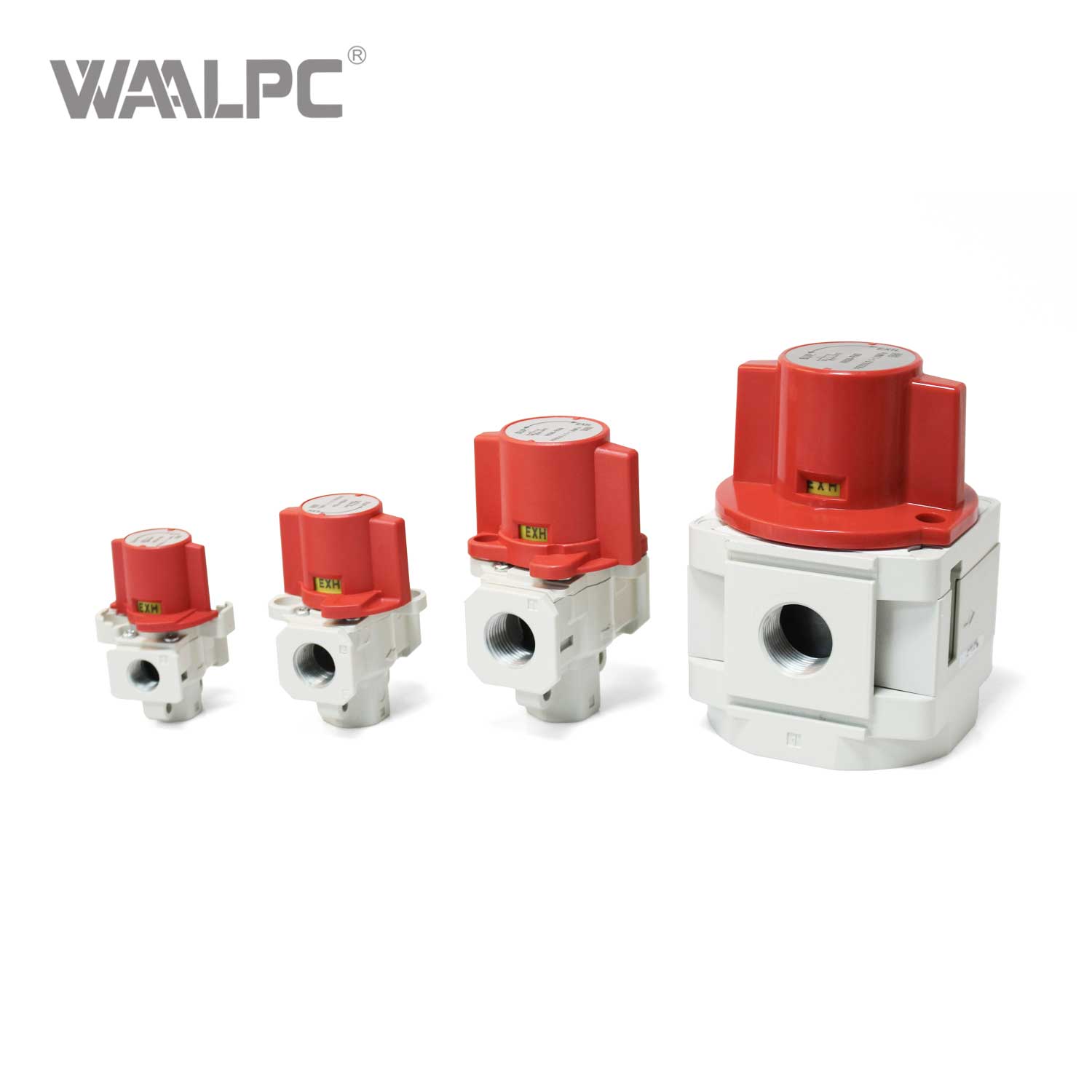

VHS20Residual pressure relief valves

1. Enhanced Safety & Risk Mitigation

Automatically vents residual pressure post-system shutdown, eliminating hazards during maintenance or component replacement. Prevents accidental activation of equipment caused by trapped pressure.

2. Wide Compatibility & Versatility

Supports multiple port sizes (1/4", 3/8", 1/2") and thread standards (NPT, BSP) for seamless integration into existing pipelines. Suitable for hydraulic systems, compressed air lines, oil/gas pipelines, and industrial machinery.

3. Zero Residual Pressure Assurance

Ensures complete pressure drainage, protecting seals, hoses, and valves from stress damage. Reduces downtime by enabling safe and immediate maintenance.

Residual Pressure Relief Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

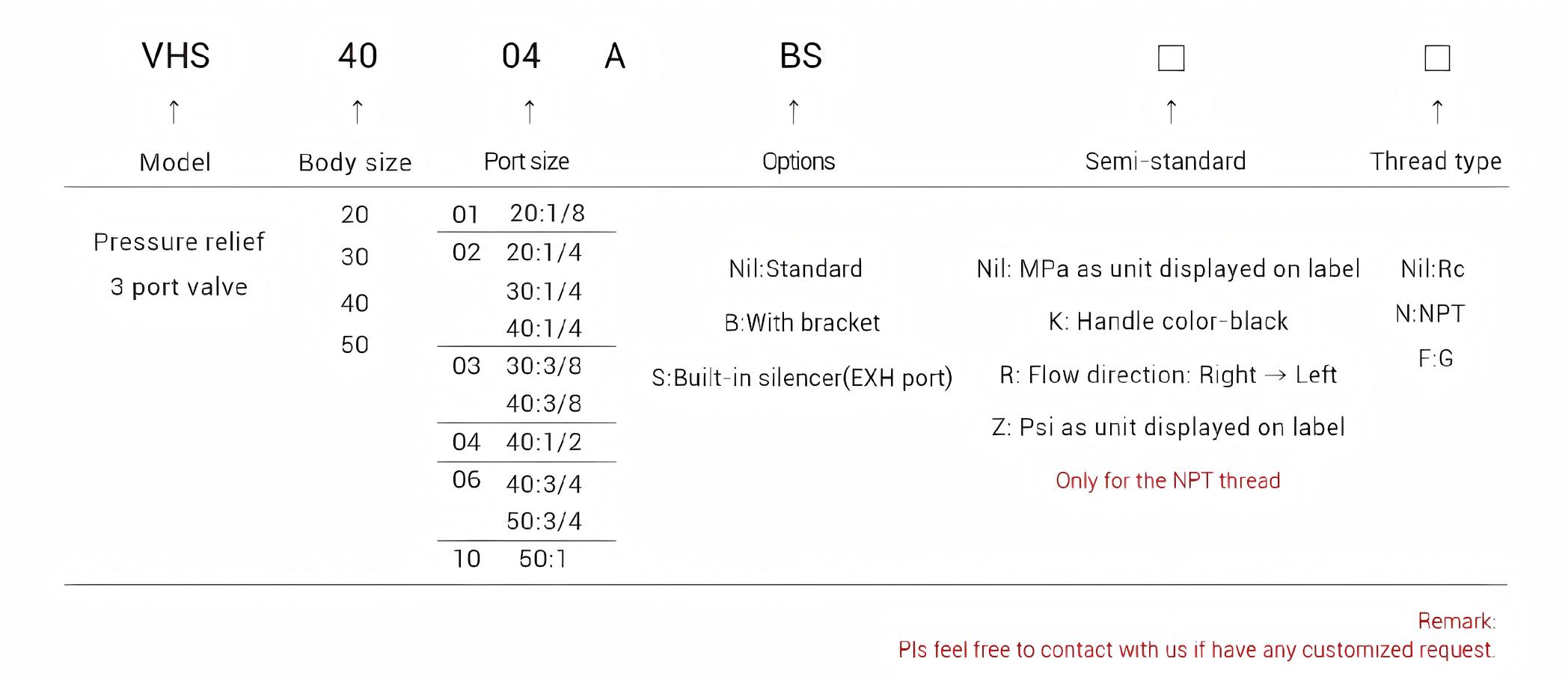

Technical Parameters

Specifications

Model		VHS20	VHS30	VHS40	VHS40-06	VHS50
Working medium		Clean air (40um filteration)
Working temperature		-5 to 60℃ (No freezing)
Proof pressure		1.5Mpa
Working pressure range		0.1 to 1.0Mpa
Handle switching angle		90℃
Paint color (Standard)		Handel: Red, Body: White
Weight	A(Handle, bonnet: Flame resistant PBT)	76g	127g	247g	293g	532g
	B(Handel, bonnet: Aluminum)	92g	156g	301g	349g	630g

Option/Accessory Type

A spacer or spacer with bracket is required if the valve is combined with modular F.R.L. Please order it separately. VHS type can be ordered from How to Order of modular F.R.L. combination.

Pressure relief 3 port valve	Spacer part no.	Spacer with bracket part no.	Applicable air preparation equipment
VHS20	Y200-A	Y200T-A	AC20-A, B
VHS30	Y300-A	Y300T-A	AC25-A, B, AC30-A, B
VHS40	Y400-A	Y400T-A	AC40-A, B
VHS40-06	Y500-A	Y500T-A	AC40-06A, B
VHS50	Y600-A	Y600T-A	AC50-B, AC55-B, AC60-B

*New VHS series compatible with old spacer Y200(T) to Y600(T)

Flow rate characteristics

vhs flow rate characteristics

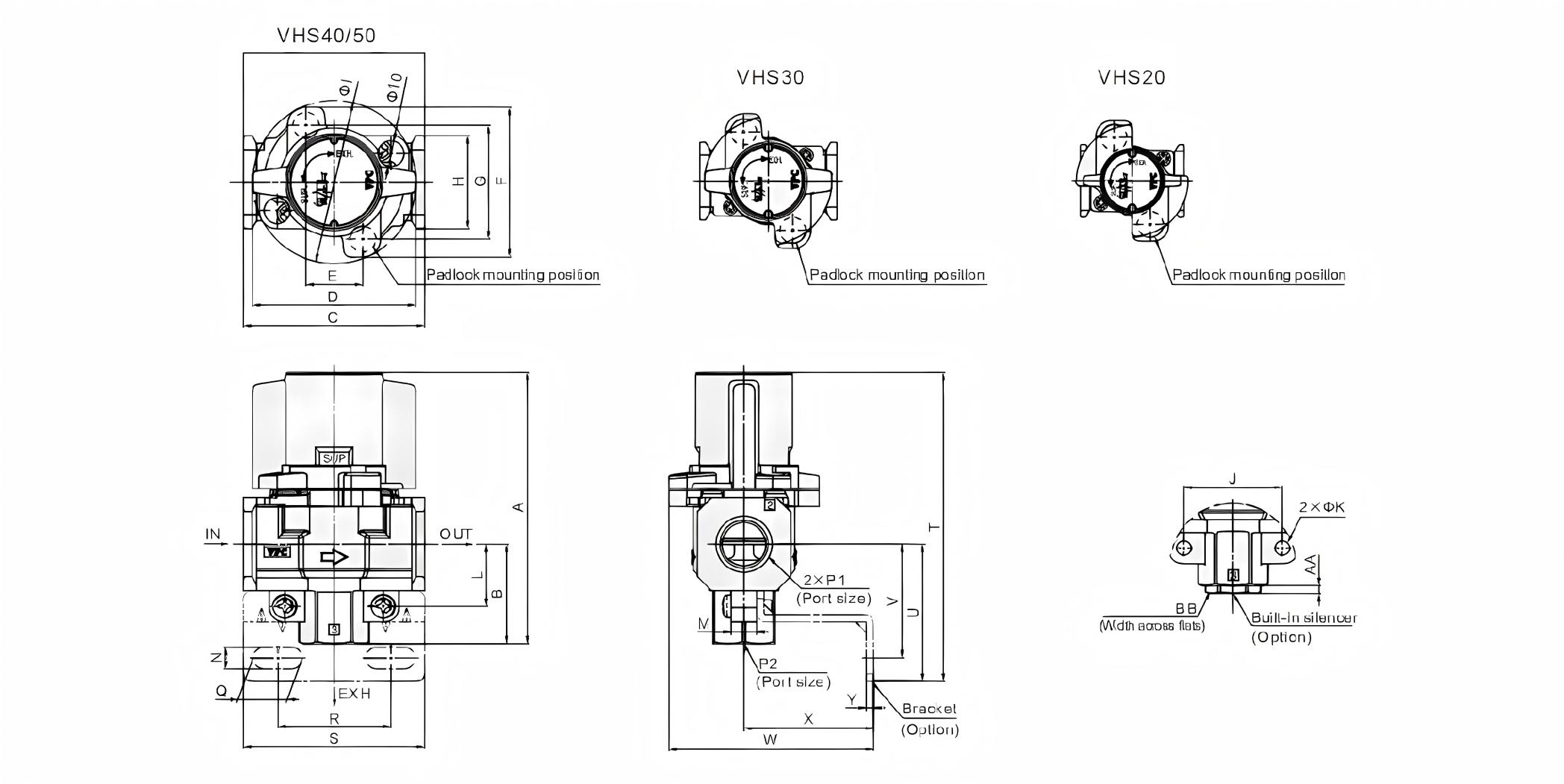

Main Dimensions

Specification Download

WAAL-VHS Series Pressure Relief 3 Port Valve with Locking Holes.pdf
