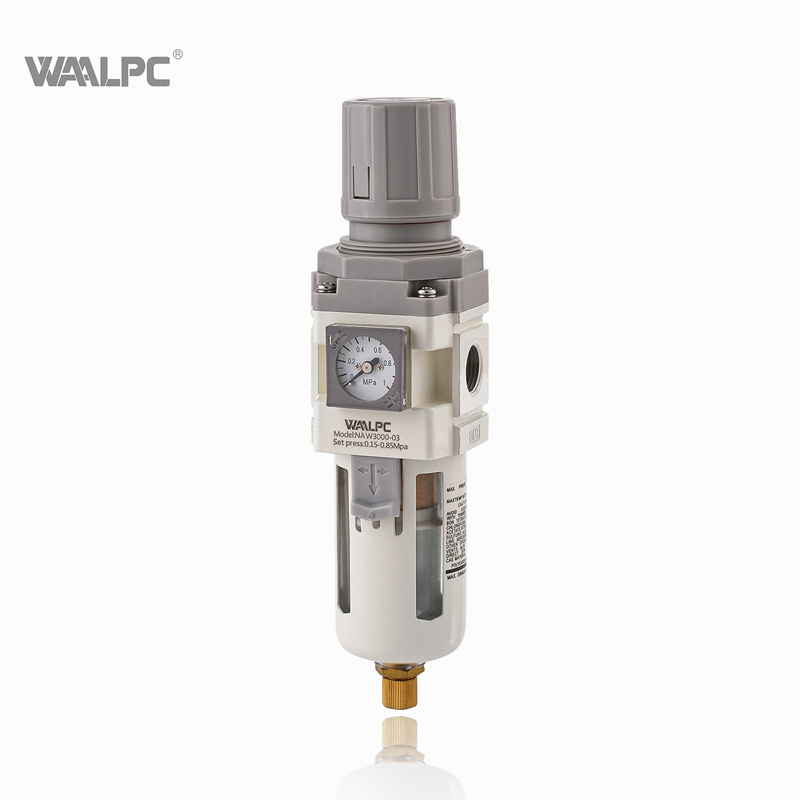

Pneumatic Compressed Air Filter Regulator with built in Gauge Pressure Reducing Valve Auto Drain automation industry NAW3000 white SMC3/8'' 1/4''


Color:	Black∨ange White
Availability:

Quantity:



Inquiry Add to Basket

Air filter regulator device is used to process the air source from the air compressor.

It includes two parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting

the air source pressure.

The product is in reasonable design and easy to adjust. It can meet all requirements of pneumatic system.

Filter adopts novel vane design with high division efficiency and dierential pressure discharge water automatically.

Regulator valve adopts balanced inlet structure with the advantages of stable pressure,high precision, and quick reaction

Model:
NAW3000
Brand:
WAALPC
Code:
8421999000

Product Description

Product Advantages

SMC 1/4" 3/8'' NAW3000 Air Filter Regulator manufacturer

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

6. Built in gauge instead of external gauge, save space for install.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Filter&Regulator
Model	NAW1000-M5	NAW2000-01	NAW2000-02	NAW3000-02	NAW3000-03	NAW4000-03	NAW4000-04	NAW4000-06	NAW5000-06	NAW5000-10
Port Size (G)	M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover	NAW1000-2000（W/O）			NAW3000-5000（ W）
Drain Type	Manual drain, auto drain and differential pressure drain (optional)
Grade Of Filtration	5µm , 25µm, 40µm
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa（ 145Psi）
Pressure Resistance	1.5MPa（ 215Psi）
Operating Temperature Range	5-60 ℃
Filter Cup Capacity	10	15	15	20	20	45	45	45	130	130
Pressure Gauge	Y40-01				Y50-02
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight	300g	370g	370g	640g	640g	1260g	1260g	1310g	1890g	1890g

STRUCTURE

NAW1000~5000 size

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
NAW1000	M5	25	109.5	50.5	25	26	25	28	30	4.5	6.5	40	2	20.5	28
NAW2000	G1/8-G1/4	40	164.5	78	40	56.8	30	34	43.5	5.4	15.4	55	2.3	33.5	40
NAW3000	G1/4-G3/8	53	211	92.5	53	60.8	39	40	46	6.5	8	53	2.3	42.5	56
NAW4000	G3/8-1/2	70	262	112	70	70.5	49.2	54	53.5	8.5	10.5	70	2.3	52.5	73
NAW4000-06	G3/4	75	267	114	70	70.5	49.2	54	53.5	8.5	10.5	70	2.3	52.5	73
NAW5000	G3/4-G1	90	336	116	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5	90
