You are here: Home » Products » Air Source Treatment » Stainless Steel Series » 5μm 40μm 20Bar 2MPa Air Source Treatment 1'' Pneumatic High Pressure 316 Stainless Steel SS Air Filter for Automation Industry

Product Category

SFRL200 5um 4um 20Bar 1'' OEM 1.5'' NPT PT G Air Source Treatment 316 Stainless Steel F. R. L Combination for Anti-corrosion Environment

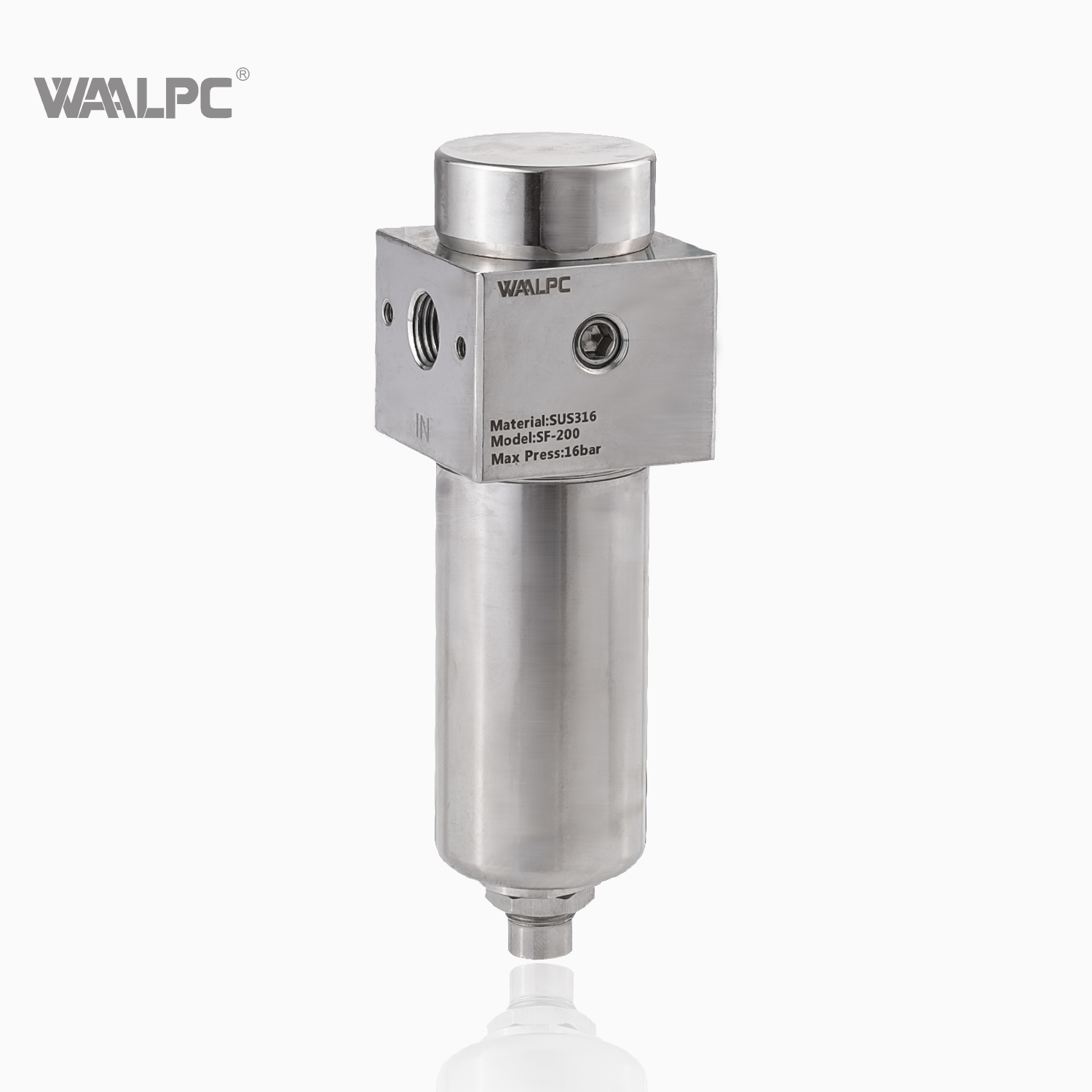

5μm 40μm 20Bar 2MPa Air Source Treatment 1'' Pneumatic High Pressure 316 Stainless Steel SS Air Filter for Automation Industry

5μm 40μm 20Bar 2MPa Air Source Treatment 1'' Pneumatic High Pressure 316 Stainless Steel SS Air Filter for Automation Industry


Material:	Stainless Steel
Availability:

Quantity:



Inquiry Add to Basket MIC

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

Model:
SF200
Brand:
WAALPC

Product Description

Product Advantages

G1/2 Stainless Air Filter manufacturer

1.SUS316 stainless steel

2.High pressure, corrosion, high&low temperature ,acid and alkali resistant.

3.Effective and fast removal of water and particles.

4. High flow rate.

5.Oil spray in mist ensure good lubrication for machines, extend long lifetime

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-Name	Air Filter
Model	SF200	SF400	SF400	SF600	SF600
Port Size（G）	G1/4	G3/8	G1/2	G3/4	G1
Max Flow Rate(L/Min)	1900	2450	3030	9600	9600
Filter Cup Capacity	105cc	110cc	110cc	110cc	110cc
Grade of Filtration	5μm, 40μm
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa（870Psi）
Operating Temperature Range	-40~100℃
Drain Type	Differential pressure drain(Drain below 0.05MPa)
Material	SUS316 stainless steel
Accessories	Mounting bracket, screw x2
Weight	1240g	1630g	1600g	3900g	3800g

SS Air Filter

Specification Download

WAALPC Stainless Steel Series Air Source Treatments .pdf

Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.
What to do if there is a problem with the product?

We will give quick response and analyse reason of any customer complaint,we usually make replacement to customers. And we can discuss more detail depend on different requirement.

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
