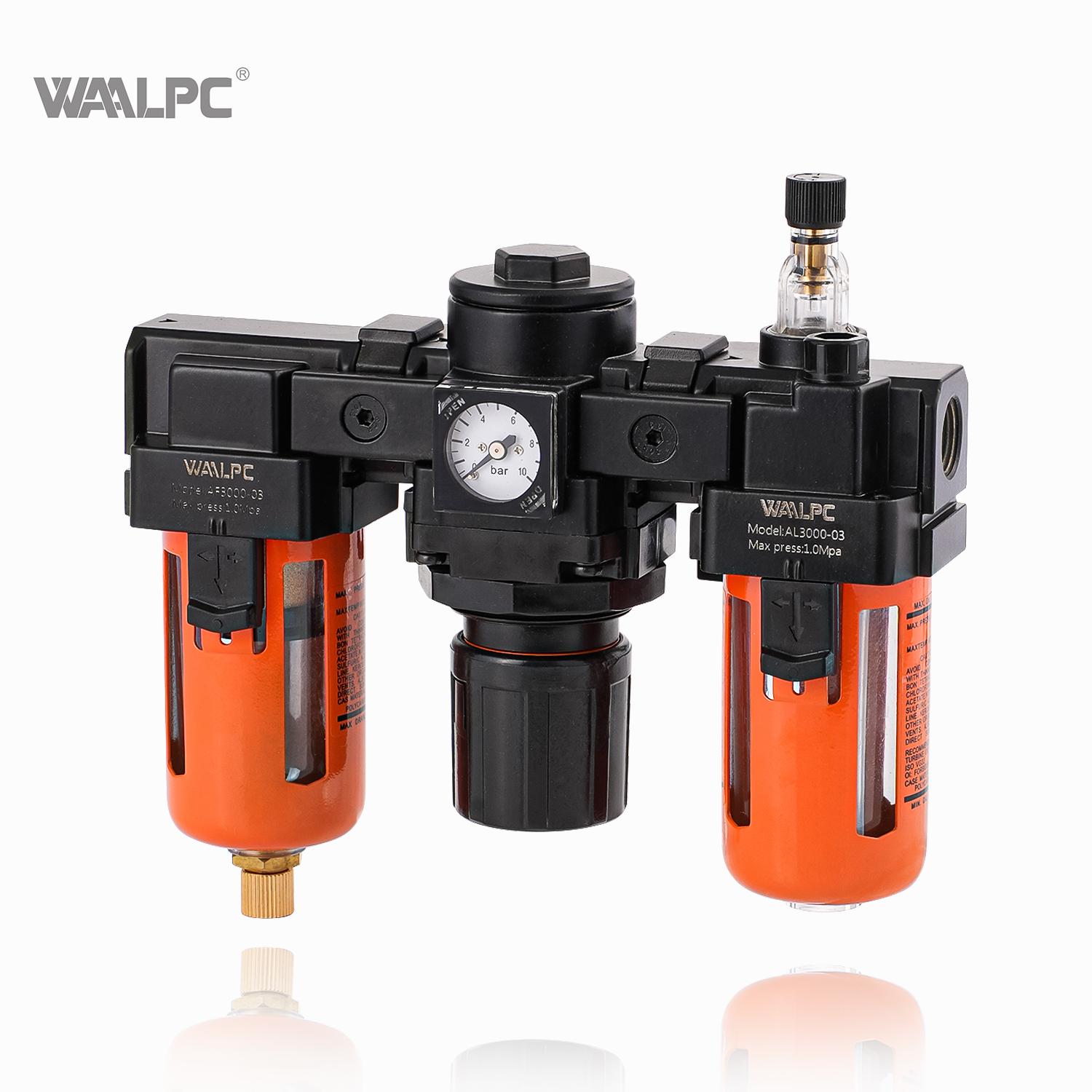

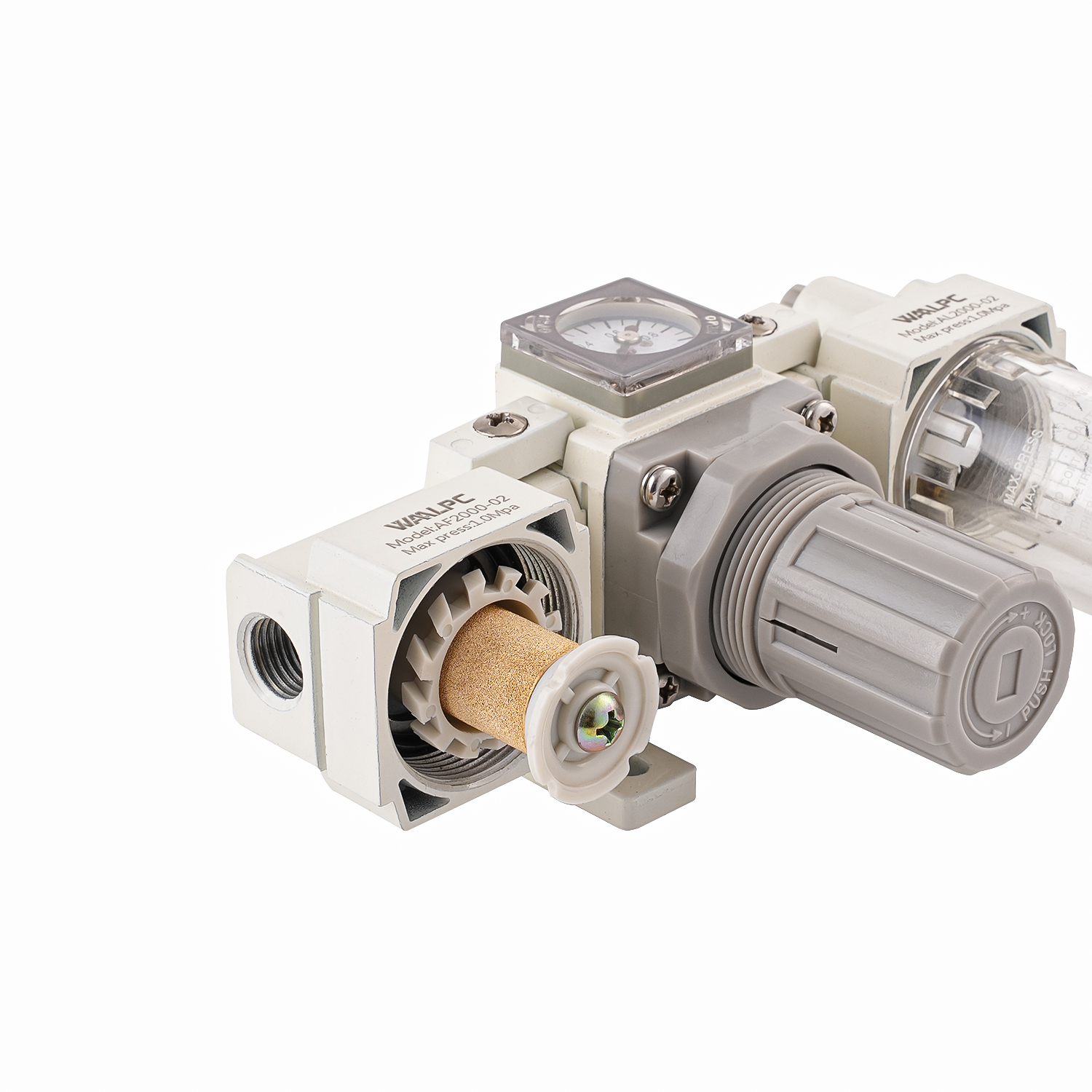

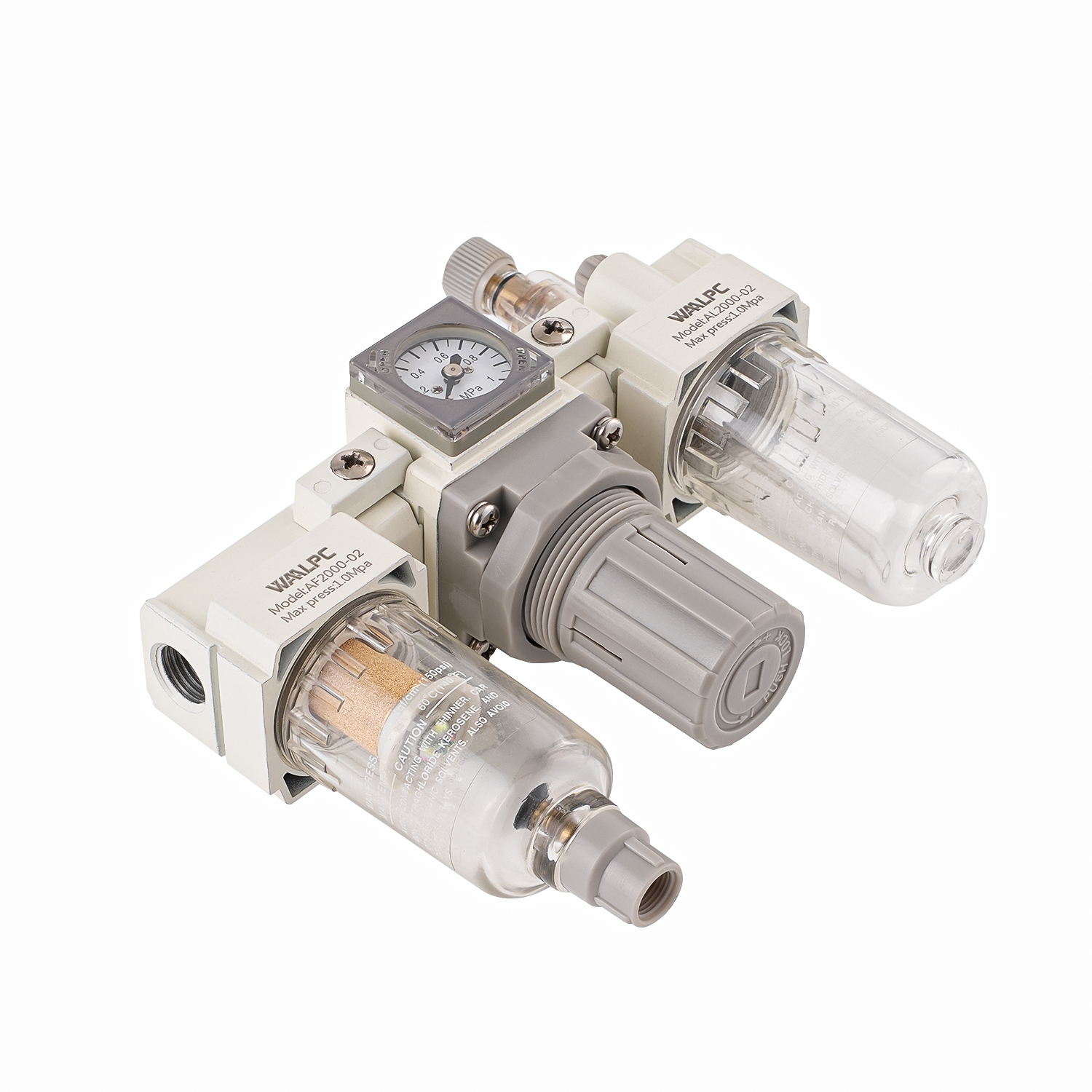

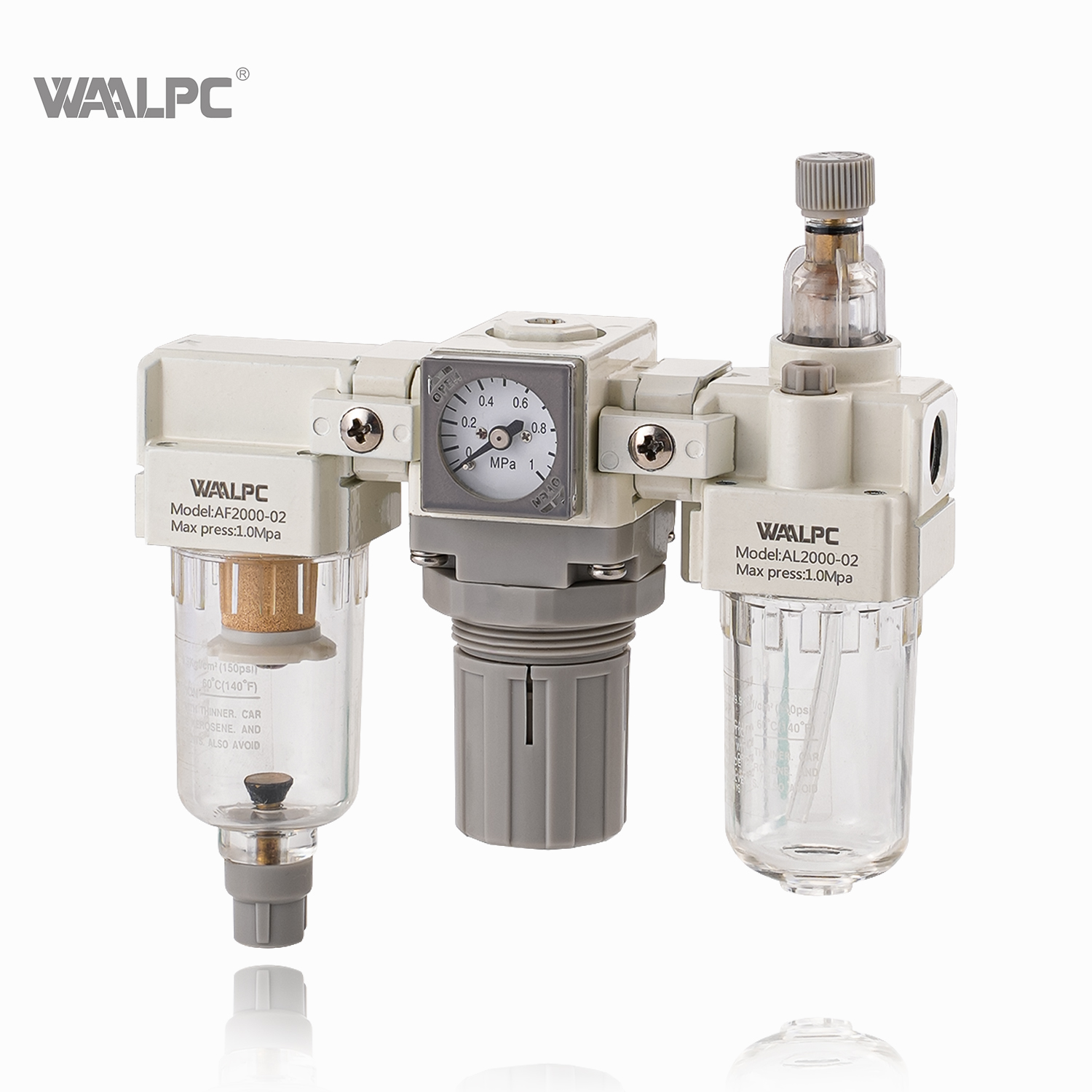

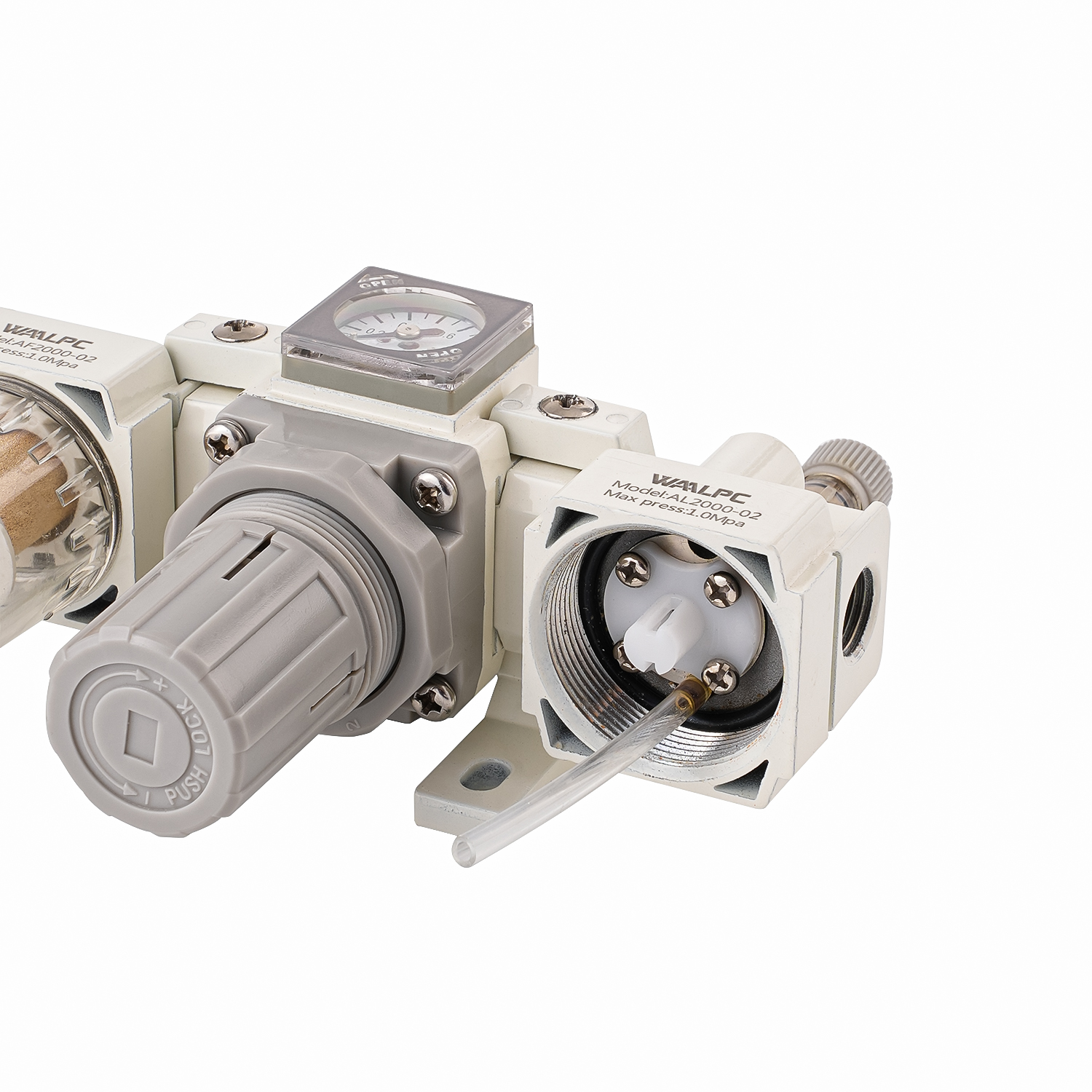

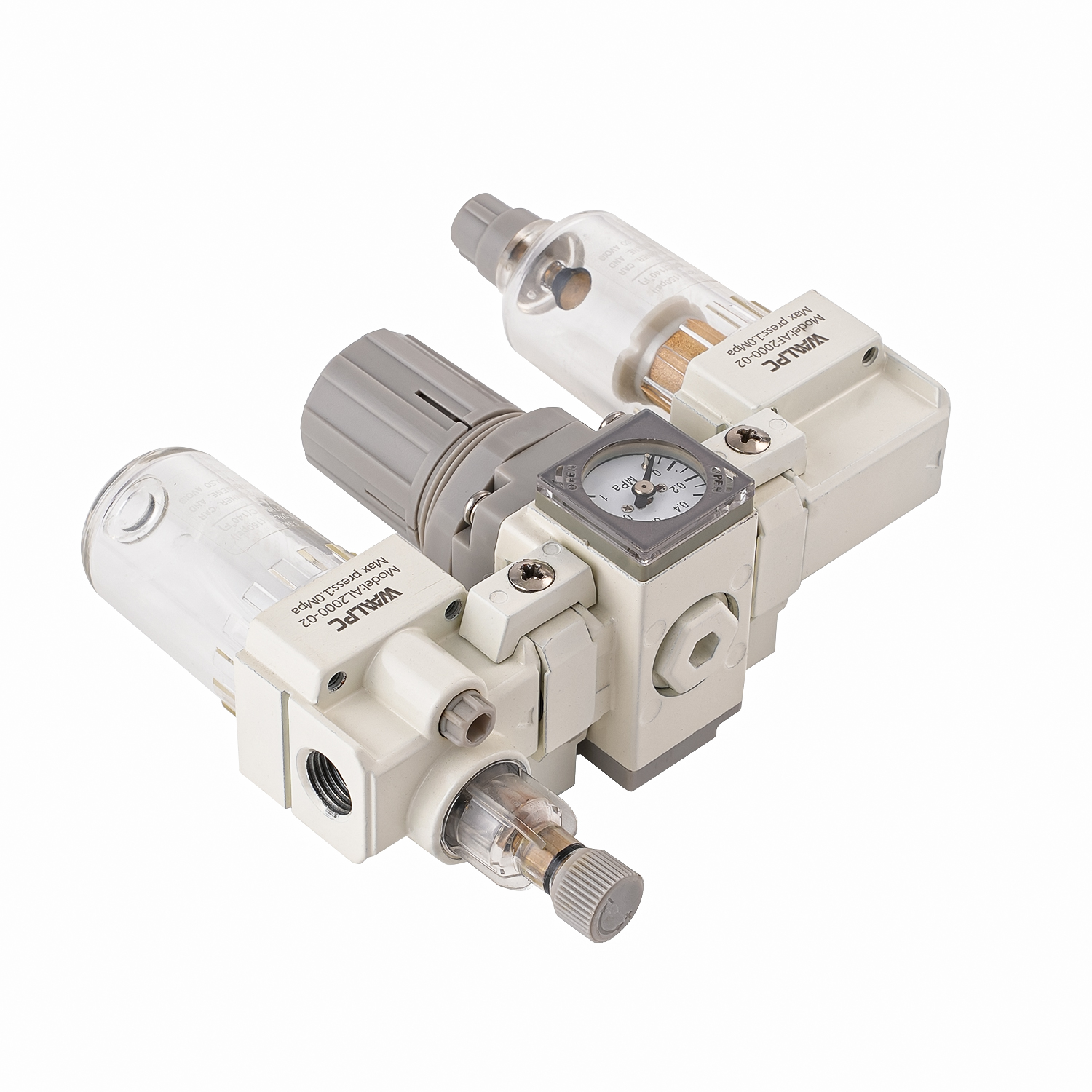

NAC2000 white SMC 1/4 1/8 in NPT Frl Pressure Regulating Valve Trap Filter Lubricator Air Regulator Moisture Oil Separator Auto Darin built in gauge Compressor

SMC Frl Pressure Regulating Valve Trap Filter Lubricator Air Regulator Moisture Oil Separator Auto Darin Built in Gauge Compressor


Color:	Black∨ange White
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

Model:
NAC2000
Brand:
WAALPC
Code:
8421999000

Product Description

Product Advantages

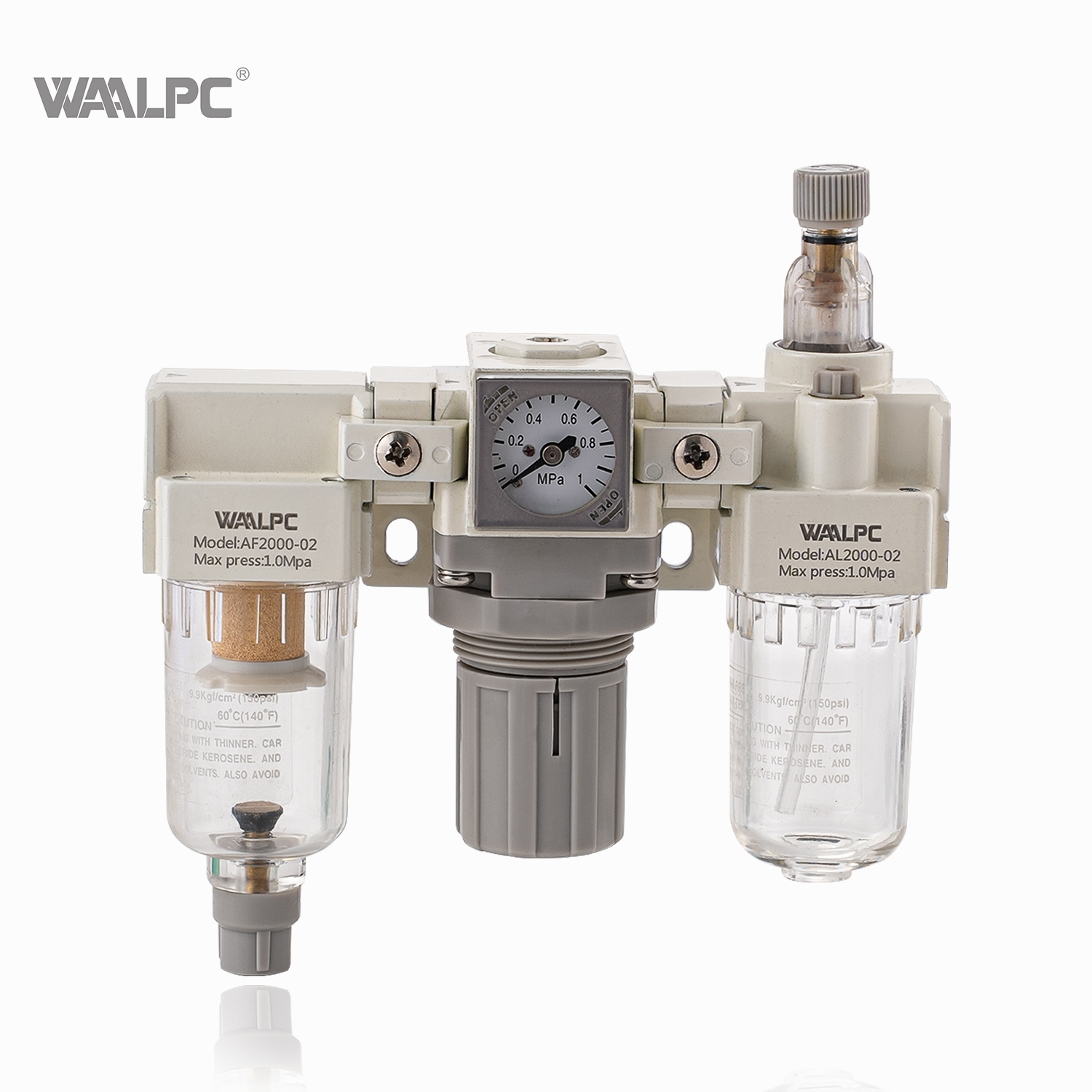

NAC2000-02

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

6. The filter precision includes 5µm and 40µm(optional).

7. Extend the life of the equipment: Filter out particles in the air, reduce wear and tear on the equipment, and extend the life of the equipment.
8. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
9. Stable output pressure: The pressure regulating valve can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
10. Improve system reliability: Through purification and lubrication, the wear of pneumatic components is reduced and the reliability of the system is improved.
11. High pressure regulation accuracy: It can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
12. Reduced Maintenance: Pneumatic components will need less maintenance due to reduced wear and corrosion.
13. Port size available: M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

14. Built in gauge instead of gauge external, save space for install.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

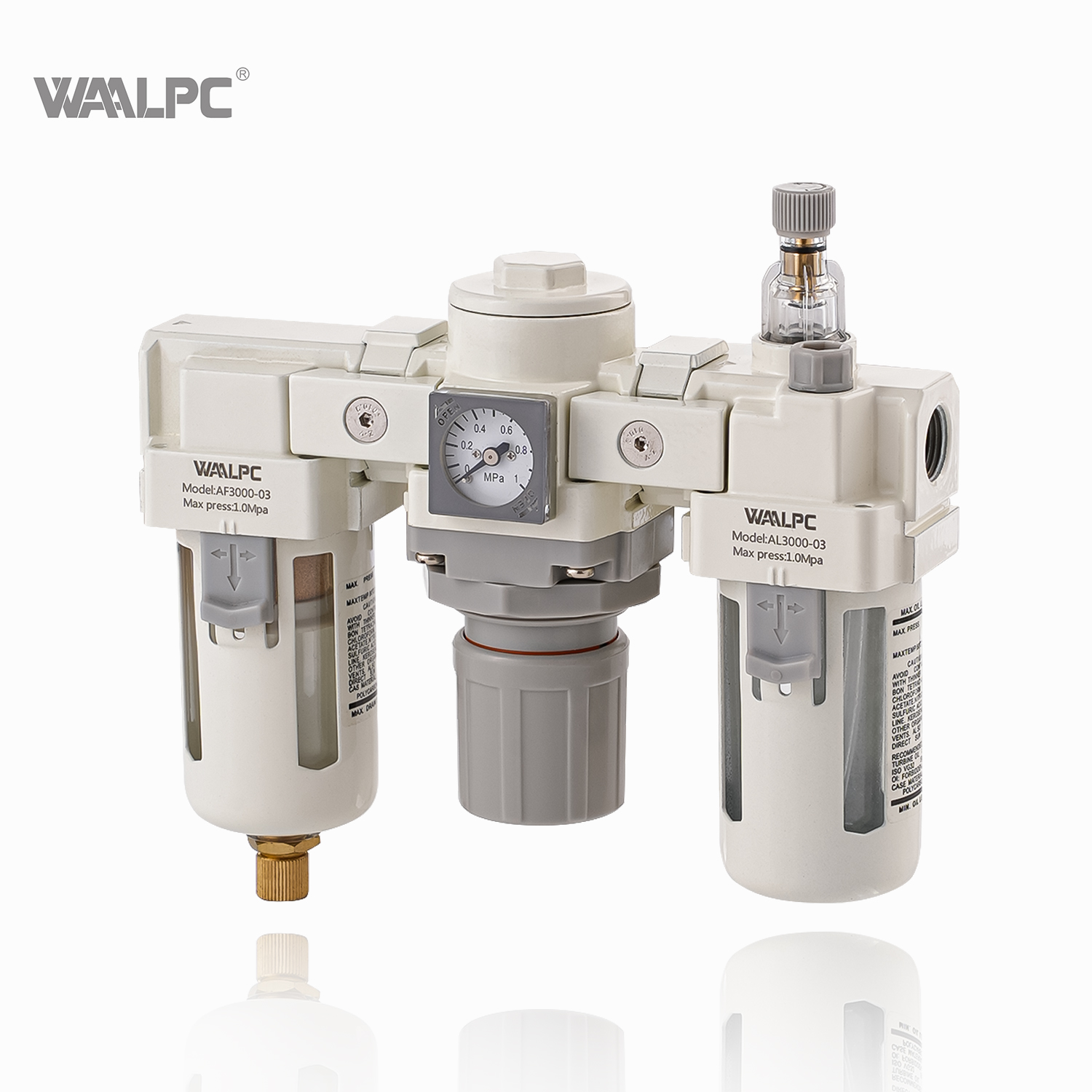

Technical Parameters

DATA SHEET

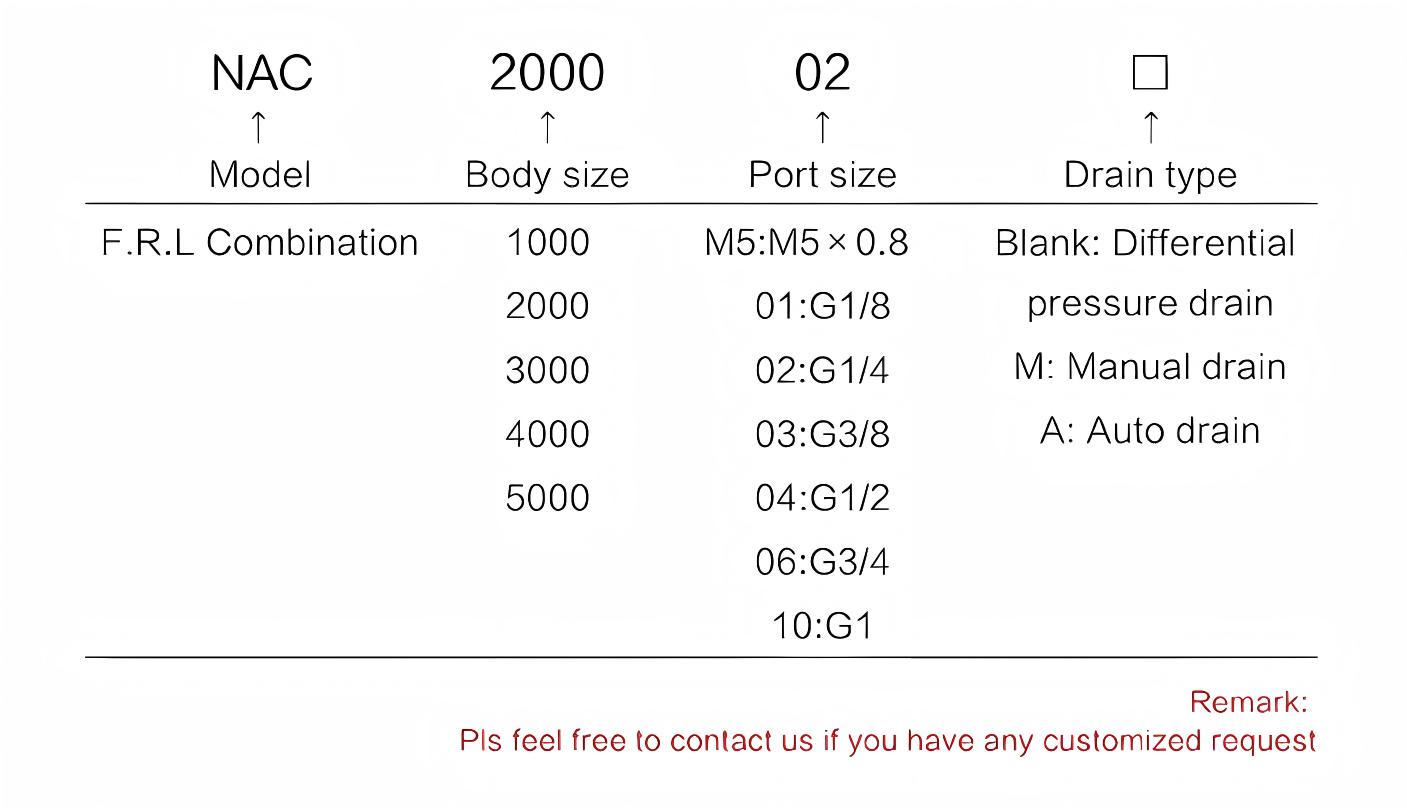

Type-name		F.R.L combination
Model		NAC1000-M5	NAC2000-01	NAC2000-02	NAC3000-02	NAC3000-03	NAC4000-03	NAC4000-04	NAC4000-06	NAC5000-06	NAC5000-10
Port Size (G)		M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover		NAC1000-2000（W/O）			NAC3000-5000（ W）
Drain Type		Manual drain, auto drain and differential pressure drain (optional)
Grade Of Filtration		5µm , 25µm, 40µm
Working Medium		Air
Pressure Regulating Range		0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure		1.0MPa（ 145Psi）
Pressure Resistance		1.5MPa（ 215Psi）
Operating Temperature Range		5-60 ℃
Filter Cup Capacity		10	15	15	20	20	45	45	45	130	130
Lubricator Cup Capacity		10	15	15	20	20	45	45	45	130	130
Recommended Oil		Oil for turbine 1 ISOVG32
Pressure Gauge		Y40-01				Y50-02
L-type Bracket		L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material		Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight		500g	570g	570g	1100g	1100g	2100g	2100g	2250g	3750g	3750g
Components	Filter	NAF1000-M5	NAF2000-01	NAF2000-02	NAF3000-02	NAF3000-03	NAF4000-N03	AF4000-04	NAF4000-06	NAF5000-06	NAF5000-10
	Regulating Valve	NAR1000-M5	NAR2000-01	NAR2000-02	NAR3000-02	NAR3000-03	NAR4000-03	AR4000-04	NAR4000-06	NAR5000-06	NAR5000-10
	Lubricator	NAL1000-M5	NAL2000-01	NAL2000-02	NAL3000-02	NAL3000-03	NAL4000-03	AL4000-04	NAL4000-06	NAL5000-06	NAL5000-10

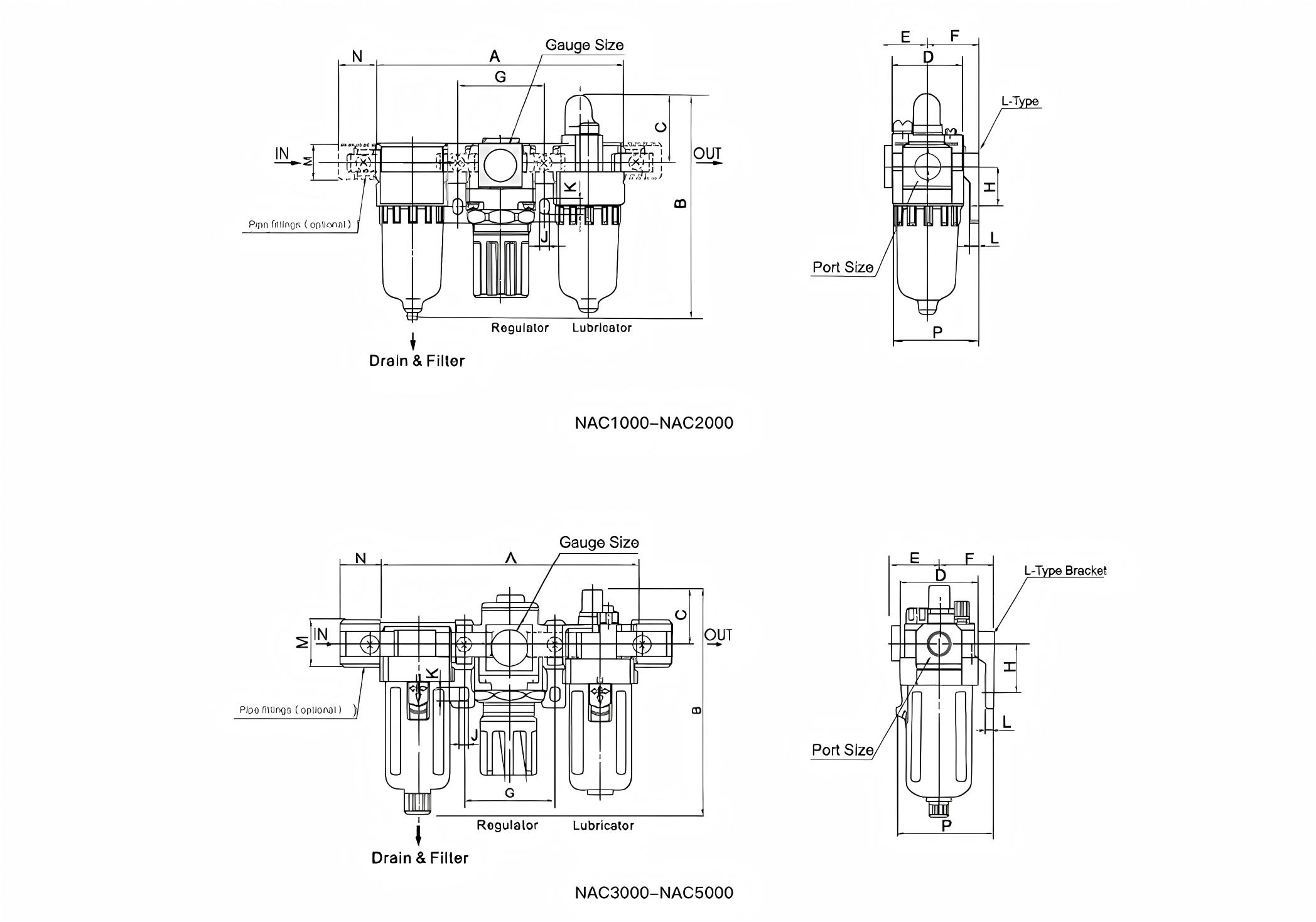

STRUCTURE

NAC1000~5000 size

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
NAC1000	M5	91	84.5	25.5	25	26	25	33	20	4.5	7.5	5	17.5	16	38.5
NAC2000	1/8-1/4	140	125	38	40	56.8	30	50	24	5.5	8.5	5	22	23	50
NAC3000	1/4-3/8	181	156.5	38	53	60.8	41	64	35	7	11	7	34.2	26	70.5
NAC4000	3/8-1/2	238	191.5	41	70	65.5	50	84	40	9	13	7	42.2	33	88
NAC4000-06	3/4	153	193	40.5	70	69.5	50	89	40	9	13	7	46.2	36	88
NAC5000	3/4-1	300	271.5	48	90	75.5	69.8	105	50	12	16	10.5	55.5	40	115

Specification Download
