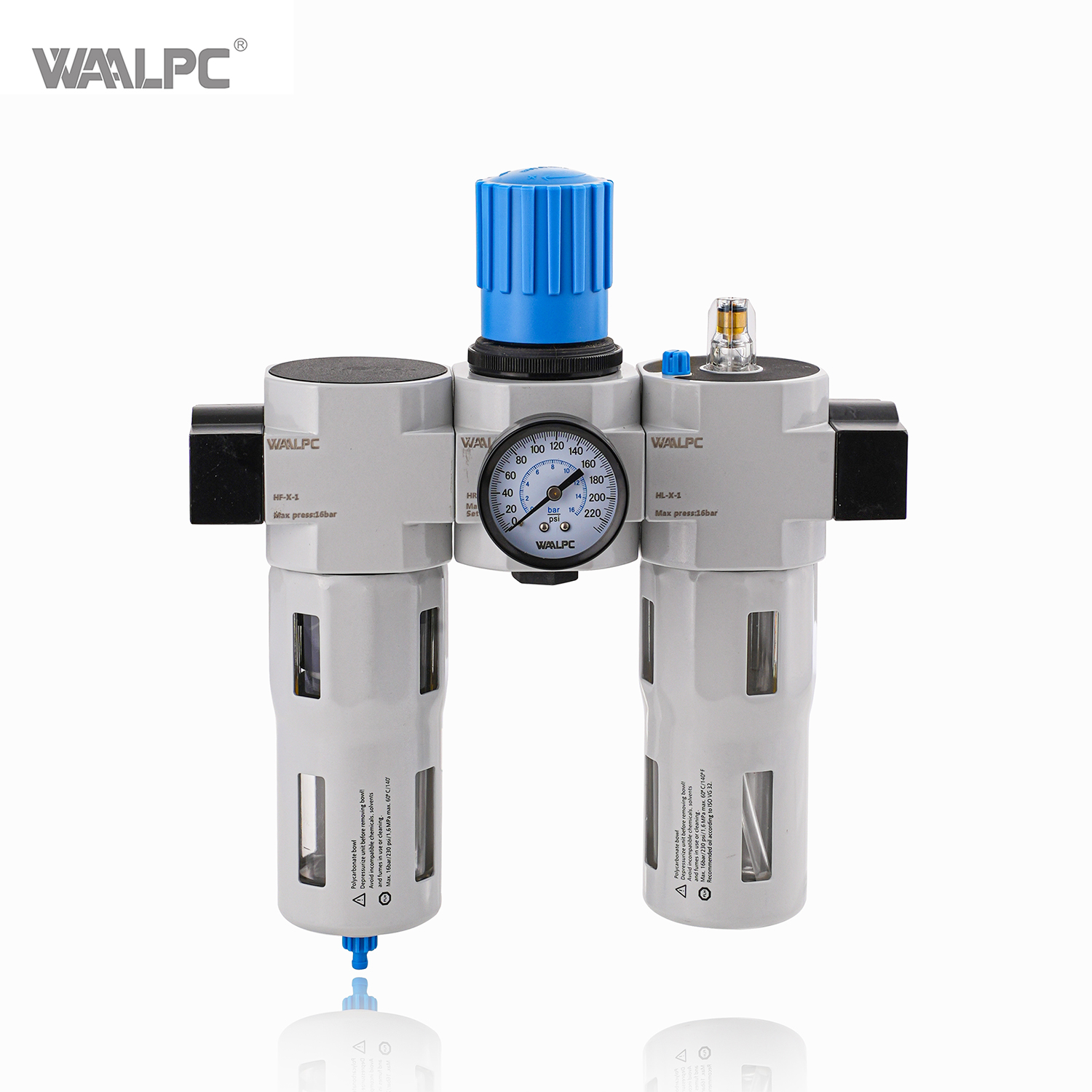

HC-MAXI Customized high-quality pneumatic components for industrial automation Air filters Lubricators Regulators FRL combinations

Automation Customized High Quality Pneumatic Components Air Filter Lubricator Regulator FRL Combination


Size:	Mini Middle Max
Availability:

Quantity:



Inquiry Add to Basket

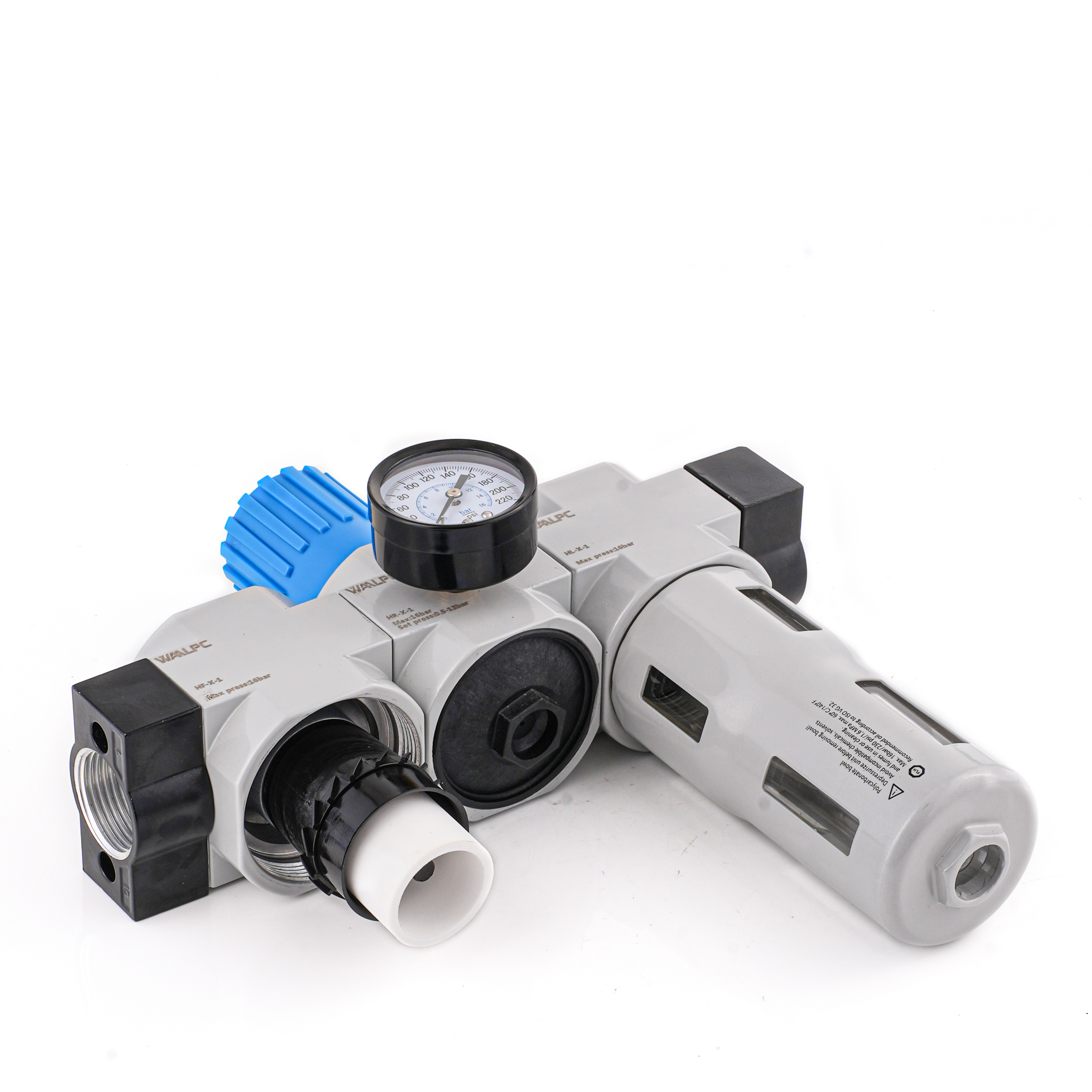

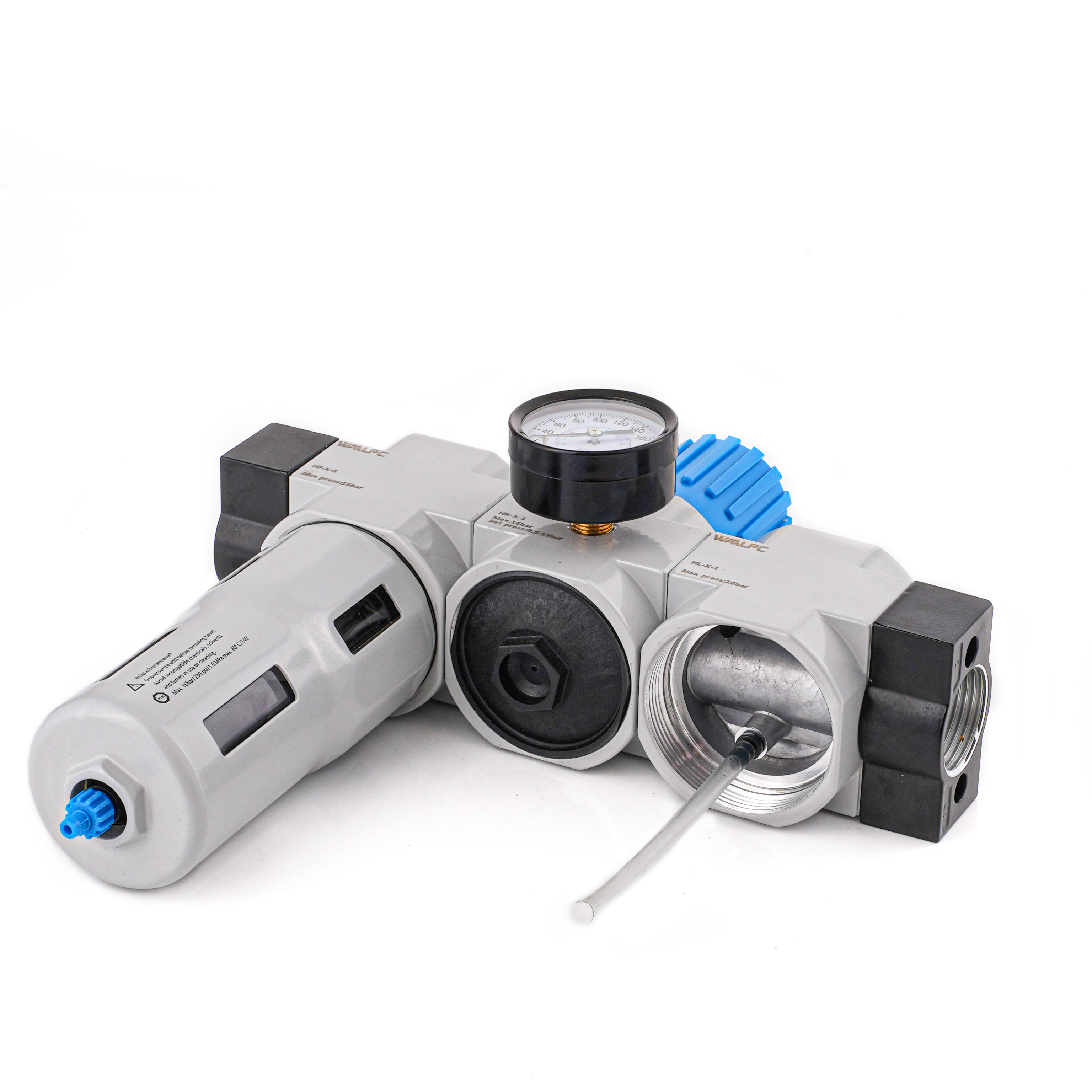

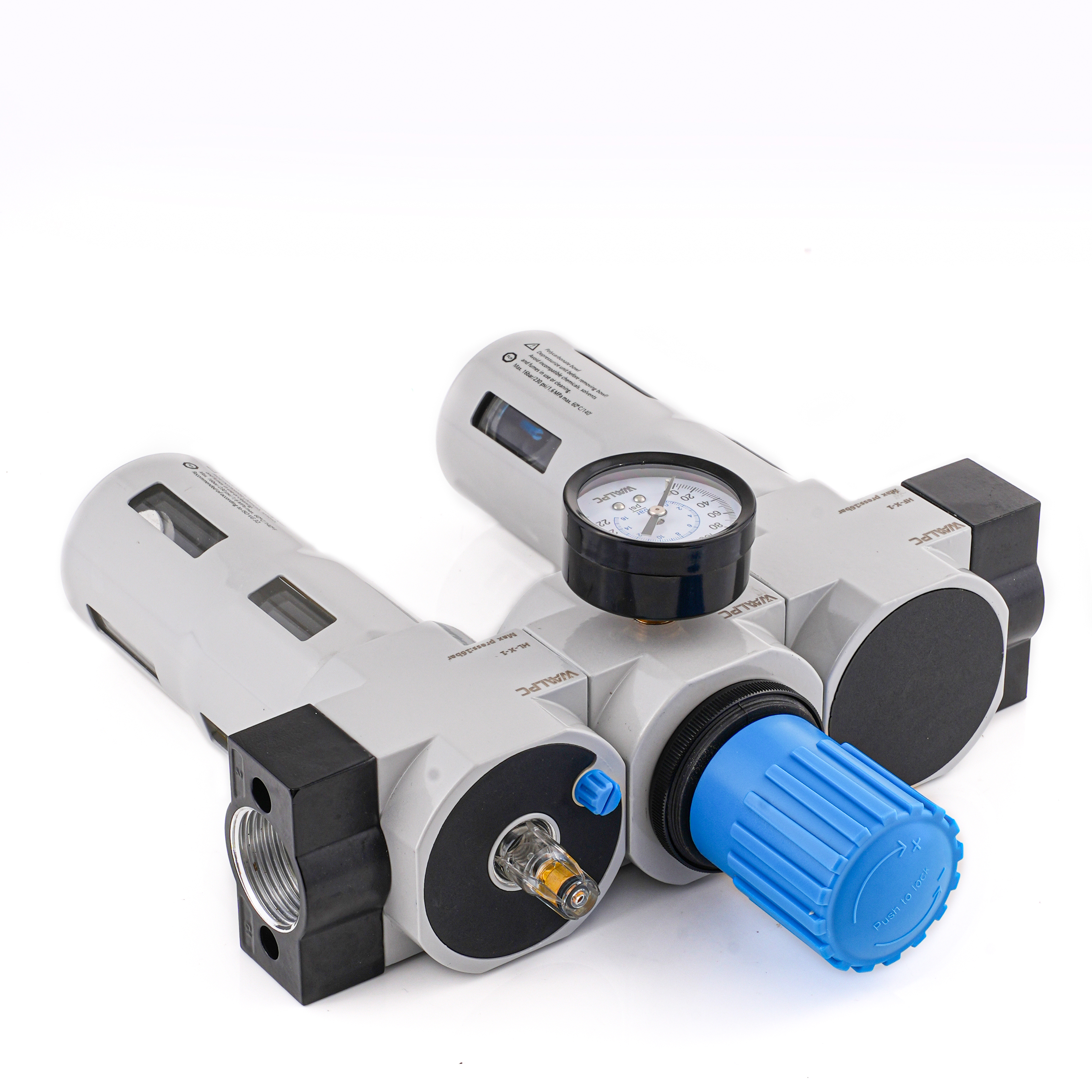

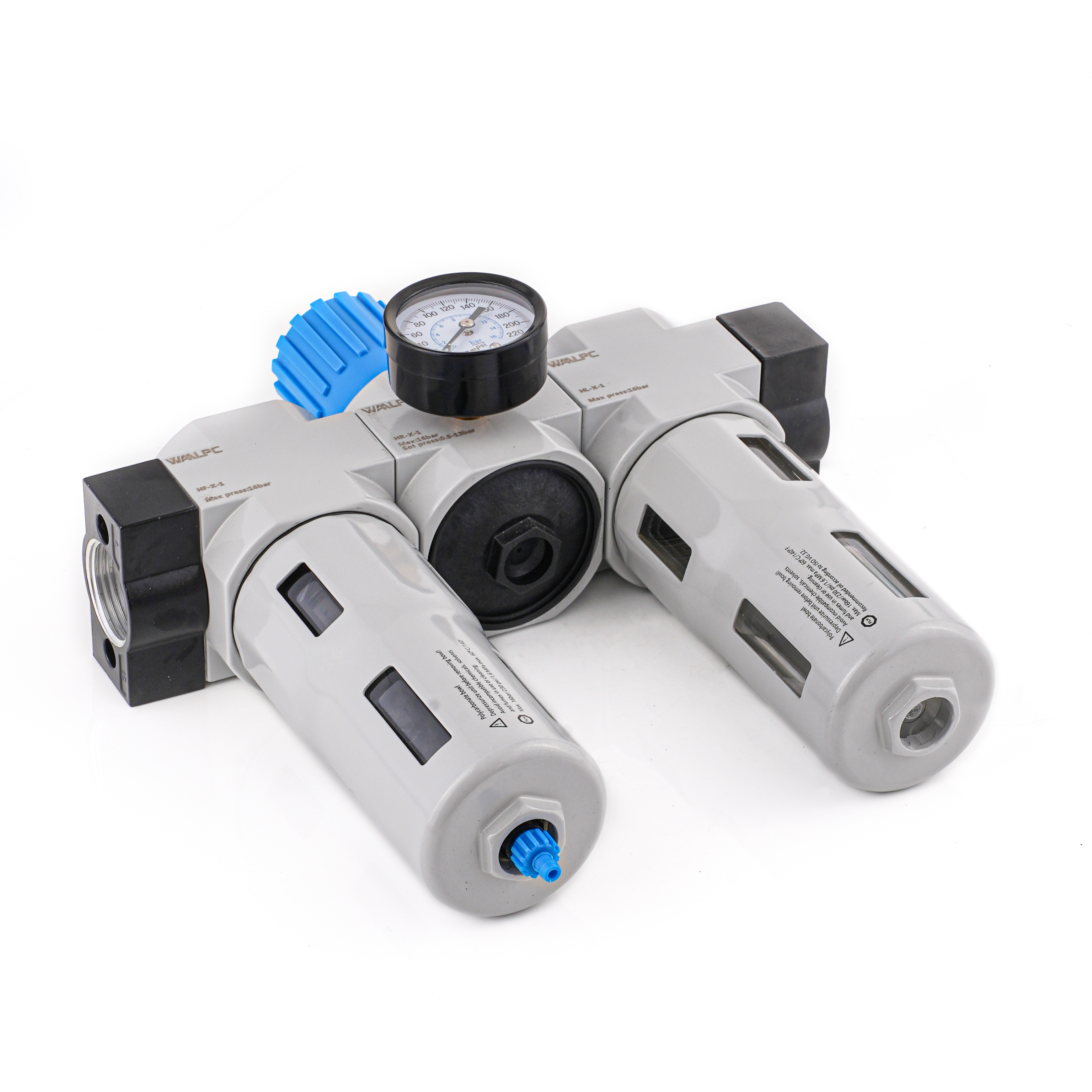

1.Aluminum alloy body;
2.5um copper filter element filtering out water, oil and particles in the air efficiently;
3.Lubricator without oil leakage, stable, durable and leak-proof;
Precise pressure regulation, stable and self-locking;
4.Manual, auto and differential pressure drainage are available.
5. Strong pressure resistance, pressure resistance up to 1.6MPA.
6. The whole material is made of aluminum alloy, which has stable performance and durability.
7. The diaphragm has good resistance to oil and heat.
8. Double pressure scale, MPA / BAR reading is convenient and the display is more accurate.

Model:
HC-MAXI
Brand:
WAALPC
Code:
8481100090

Product Description

Product Advantages

Filter and regulation three-unit combination

1.The series HC is consisted of filter, regulator and lubricator, each unit can be ordered separately. 2.The air filter with water separate cleans the compressed air of fluid oil, condensation and dirt particles, for special application, the standard 40μm filter element may easily be replaced by a 5μm filter element.

3. The regulator maintain inputting constant operating pressure despite fluctuation in line pressure & the amount of air consumed.

4. The proportional lubricator adds a regulated quantity of oil to the filtered air, the oil-mist content proportional to the flow and oil can be added during operation. The oil drip rate is controlled by the adjustable bolt. Normally, 1 to 12 drops /1000L of the air is sufficient.

5. Different thread type can be offered according to customers' requirements, e.g.: PT, NPT etc.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

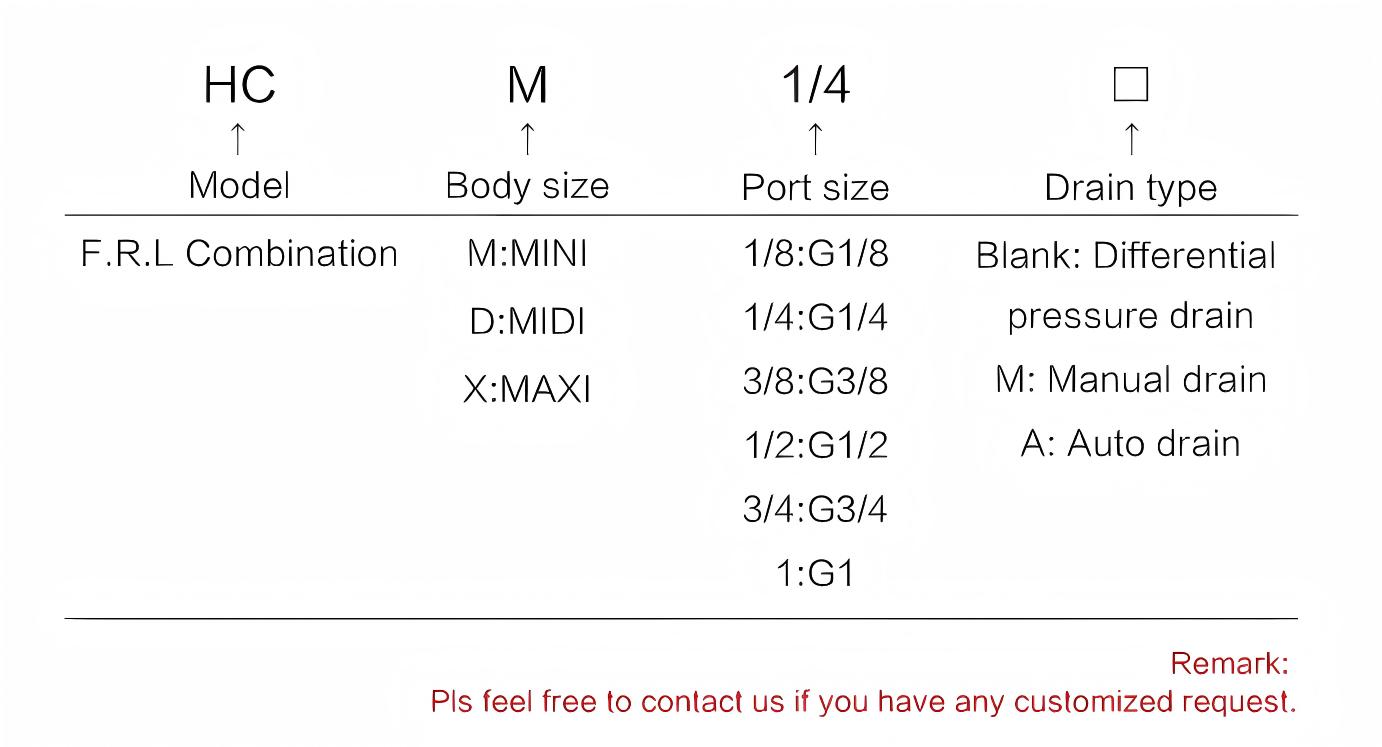

Technical Parameters

DATA SHEET

Type-name		F.R.L combination
Model		MINI			MIDI				MAXI
		HC-1/8	HC-1/4	HC-3/8	HC-1/4	HC-3/8	HC-1/2	HC-3/4	HC-3/4	HC-1
Components	Filter	HF-1/8	HF-1/4	HF-3/8	HF-1/4	HF-3/8	HF-1/2	HF-3/4	HF-3/4	HF-1
	Pressure Regulator	HR-1/8	HFR-1/4	HR-3/8	HR-1/8	HR-3/8	HR-1/2	HR-3/4	HR-3/4	HR-1
	Lubricator	HL-1/8	HL-1/4	HL-3/8	HL-1/4	HL-3/8	HL-1/2	HL-3/4	HL-3/4	HL-1
Port Size (G)		1/8	1/4	3/8	1/4	3/8	1/2	3/4	3/4	1
Cup Protective Cover		With cup protective cover
Drain Type		Manual drain, differential pressure drain and auto drain
Grade of Filtration		5µm, 40µm
Working Medium		Filter compressed air
Structure Features		Sintered filter with moisture clutch; MINI, MIDI: Diaphragm type pressure reducing valve; MAXI: piston type pressure reducing valve; Oil mist automatic variable throttling type.
Installation Type		Pipe installation or foot pedal installation
Operating Pressure		0.5-12bar,0.5-7bar
Input Pressure		Differential pressure drain: 1-16bar, manual drain valve: 1-16bar, auto drain valve: 1.5-12bar
Min. Fogging Flow Rate		3L/min			6L/min				10L/min
Operating Temperature Range		0-60 ℃
Filter Cup Capacity		22ml			43ml				80ml
Lubricator Cup Capacity		22ml			43ml				80ml
Recommended Oil		ISO VG32 or equivalent grade oil
Pressure Gauge		Y40-01			Y50-02
Material		Housing: Die cast zinc; Filter cup and oil cup: PC; Metal protective cover: aluminum alloy; Sealing: nitrile rubber; Pressure regulating hand wheel: POM

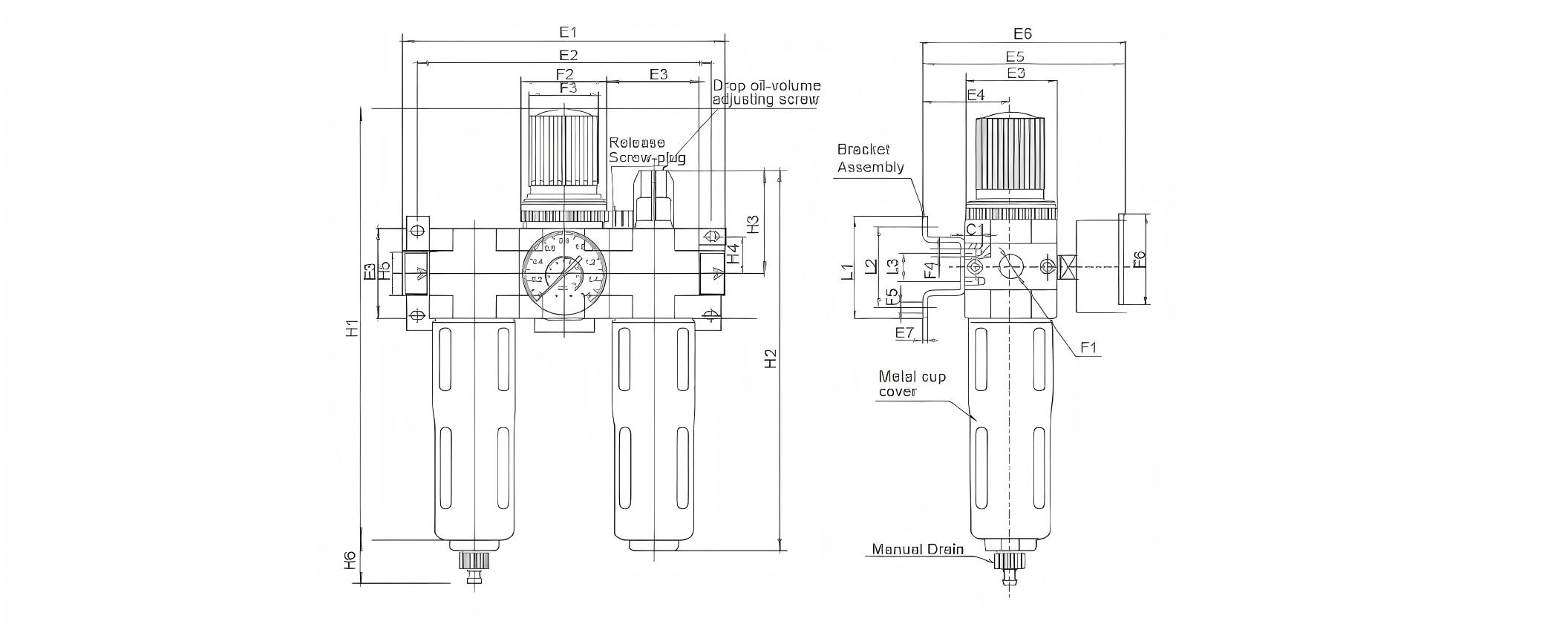

STRUCTURE

Filter and regulation three-unit combination

Model	E1	E2	E3	E4	E5	E6	E7	F1	F2
HC-MINI	143	132	40	39	76	95	2	G1/8,G1/4,G3/8	M39*1.5
HC-MIDI	193	180	55	47	93	112	3	G3/8,G1/4,G1/2,G3/4	M52*1.5
HC-MAXI	247	220	66	53	104	124	3	G3/4,G1	M52*1.5

Model	F3Φ	F4	F5Φ	F6Φ	L1	L2	L3	H1	H2	H3	H4	H5	H6
HC-MINI	31	M4	4.5	41	44	35	11	194	169	69	17.5	20	15
HC-MIDI	50	M5	5.5	352	71	60	22	250	206	97	24.5	32	15
HC-MAXI	50	M5	5.5	53	71	60	22	272	226	80	24.5	32,40	15
