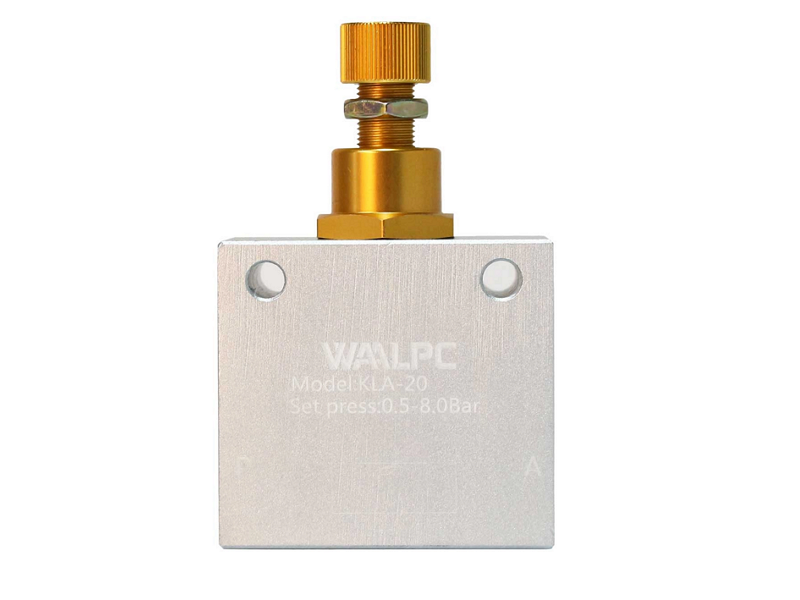

Pneumatic Throttle Valve Installation Guide

Pneumatic throttle valve is a common flow control element, widely used in pneumatic systems, which can be used to adjust the air flow speed and optimize the operating efficiency of equipment. Correct installation of pneumatic throttle valve can not only improve the stability of the system, but also extend the service life of the equipment. This article will introduce the installation guide of pneumatic throttle valve in detail and help you understand how to choose the right product to ensure the efficient operation of the pneumatic system.

1. Preparation before installation

Before installing the pneumatic throttle valve, you need to do the following preparations:

Confirm the model and specifications: Select a throttle valve that matches the pneumatic system, including parameters such as interface size, flow range and working pressure.

Check the pneumatic circuit: Make sure that the pneumatic pipeline is clean and free of impurities to avoid foreign matter affecting the normal operation of the throttle valve.

Determine the installation direction: Some pneumatic throttle valves have a one-way throttling function. You need to pay attention to the fluid flow direction and connect the inlet and outlet correctly.

2. Installation steps of pneumatic throttle valve

Choose a suitable installation location

Pneumatic throttle valves are usually installed near actuators (such as cylinders) to accurately control the air flow speed.

Avoid installing in high temperature, high humidity or dusty environments to avoid affecting the service life.

Connecting pipes

Use matching pneumatic connectors or hoses to ensure a firm connection and prevent leakage.

When tightening the threaded interface, it is recommended to use sealing tape or O-rings to enhance the sealing effect.

Adjusting the flow rate

Adjust the air flow rate by rotating the adjusting nut or knob of the throttle valve until the ideal working speed is reached.

When adjusting for the first time, it should be rotated slowly to avoid sudden changes in flow rate causing shock to the system.

Fixing and inspection

Ensure that the throttle valve is firmly installed and will not loosen due to changes in air flow pressure.

Perform ventilation test to check for leaks and observe whether the equipment runs smoothly.

3. Maintenance and precautions after installation

Regularly check whether the throttle valve is blocked. If the air flow is not smooth, remove it and clean the internal impurities.

Avoid overload, ensure that the pneumatic system works within the rated pressure range, and avoid damage to the internal components of the throttle valve.

When not in use for a long time, the air circuit should be exhausted to prevent internal water or oil from affecting the use effect.

Conclusion

The correct installation of the pneumatic throttle valve is a key link to ensure the normal operation of the pneumatic system. Choosing the right product, following the standard installation steps, and performing regular maintenance can effectively improve the system stability and work efficiency. If you are looking for a high-quality pneumatic throttle valve, it is recommended to choose a professional pneumatic component manufacturer to obtain more reliable products and services.
