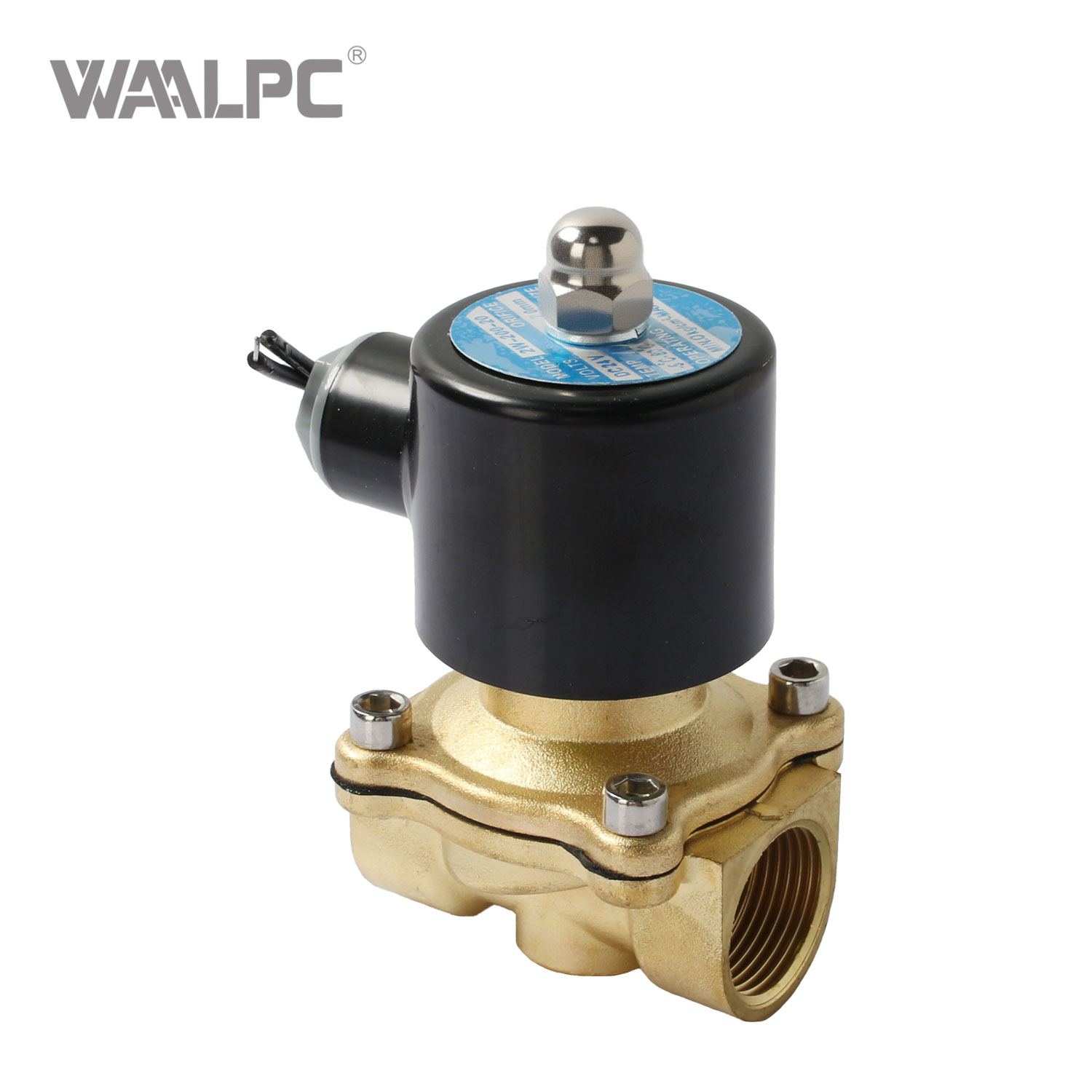

Solenoid valves are electromechanically operated devices that control fluid flow (liquids, gases, or vapors) by converting electrical signals into mechanical motion. When energized, an electromagnetic coil generates a magnetic field that moves a plunger to open or close the valve orifice. This enables rapid on/off control, directional switching, or pressure regulation in automated systems. Key structural components include the coil, core tube, plunger, seals, and valve body—each engineered for specific pressure ratings, temperatures, and media compatibility.
Zero External Leakage: Unlike valves with exposed stems, solenoid valves seal the plunger within a magnetic enclosure, eliminating risks in handling toxic or corrosive fluids.
Controlled Internal Leakage: Precision-machined seals minimize internal seepage (<0.1% industry standard), critical for chemical processing and fuel systems
Response times as low as 3–15 ms (direct-acting types), ideal for high-cycle automation.
Low power consumption (typically 4W–20W); latching variants consume energy only during state changes.
Miniature designs (e.g., 1/8” NPT ports) fit space-constrained applications like robotics or medical devices.
Simple electrical interfaces (e.g., 24V DC/110V AC) enable seamless PLC integration.
Media Sensitivity: Unsuitable for viscous fluids (>50 cSt) or slurries; requires filtration for particulates.
Binary Control: Primarily suited for on/off applications; proportional models exist but offer limited precision vs. servo valves.
Table: Solenoid Valve Application Profiles
Industry | Function | Key Requirements | Examples |
Oil & Gas | Safety shutoff, flare control | ATEX certification, IP67 rating | TIEFENBACH explosion-proof switches |
Manufacturing | Pneumatic actuator control | High cycle life (>10M operations), 100Hz frequency | CNC machine coolant valves |
Energy | Hydrogen refueling, steam lines | High pressure (≤10,000 psi), 150°C tolerance | KNKE high-pressure valves |
Water Treatment | Backwash, chemical dosing | Corrosion resistance (brass/316SS bodies) | Filtration system control valves |
HVAC/R | Refrigerant flow, zone control | Low leakage, -40°C to +120°C operation | Chiller and compressor units |
Smart Valves
Embedded sensors monitor coil temperature, stroke time, and seal wear, enabling predictive maintenance. Wireless connectivity (IoT) integrates valves into Industry 4.0 ecosystems.
Material Advancements
Seals: Perfluoroelastomer (FFKM) replaces NBR for extreme chemical/thermal stability.
Bodies: Lead-free brass (RoHS-compliant) and super alloys (e.g., Hastelloy) for corrosive media.
Regional Growth
Asia-Pacific: Fastest-growing market (CAGR 5.2%), fueled by Chinese manufacturing expansion.
North America: Leads revenue (2024: $1.16B) due to energy and automation investments.
Table: Material Compatibility Guide
Media | Recommended Body | Seal Type | Pressure Limit |
Compressed Air | Anodized aluminum | NBR | 150 psi |
Chlorinated Water | EPDM | 145 psi | |
Hydraulic Oil | Carbon steel | FKM | 5,000 psi |
Natural Gas | Forged brass | PTFE | 1,450 psi |
Pressure Ranges: Pilot-operated valves for low ΔP (≥0.04 MPa); direct-acting for vacuum/high ΔP.
Voltage Stability: AC coils tolerate ±10% fluctuations; DC coils require regulators for >±5% variance.
Environmental Ratings: IP65/IP67 for washdown areas; ATEX for explosive atmospheres.
Orient coils vertically (±5° tilt) to prevent armature binding.
Use upstream filters (40 μm) for particulate control; bypass loops for critical systems.
Tariff Impacts: U.S. duties on Chinese valves (up to 25%) disrupt supply chains, accelerating regional production in Southeast Asia.
Efficiency Demands: Regulations like ISO 22000 push development of low-wattage coils (<4W) and leak-tight designs.
Next-Gen Technologies: Digital twins for valve simulation and additive manufacturing for complex geometries.
Projected Growth: Global solenoid valve market to reach $5B by 2035, with industrial automation and renewable energy (e.g., hydrogen electrolyzers) as key drivers.
Industrial solenoid valves remain indispensable in achieving precise, reliable fluid control across sectors. Advancements in materials, smart capabilities, and ruggedized designs will expand their role in sustainable and automated industrial systems. As global manufacturing evolves, these components will continue to underpin efficiency and safety in fluid power architectures.
