AW2000-02A Waalpc China SMC Type 1/4 Pneumatic Air Filter Pressure Regulator Frl Unit 5um 25um 40um with Auto Drain

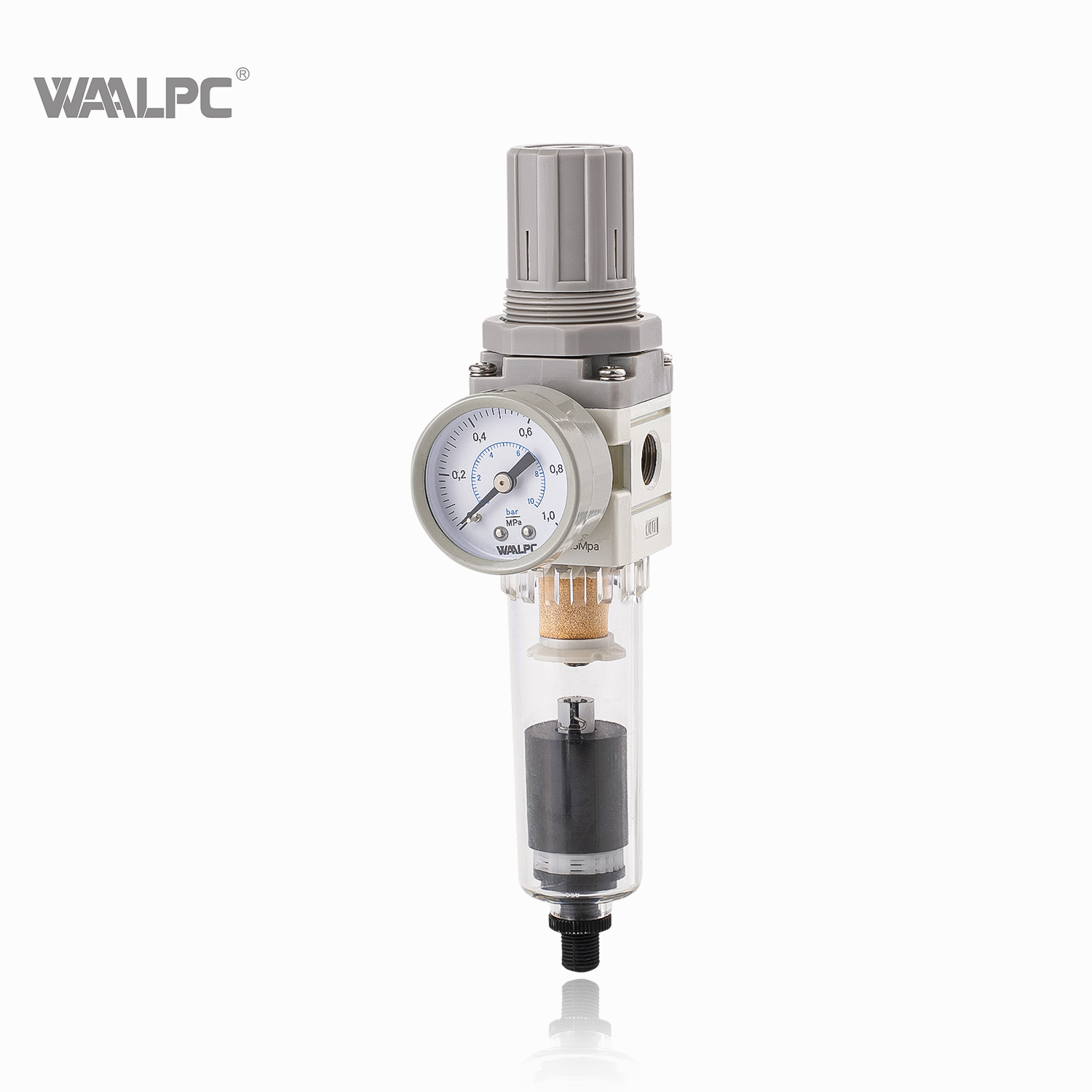

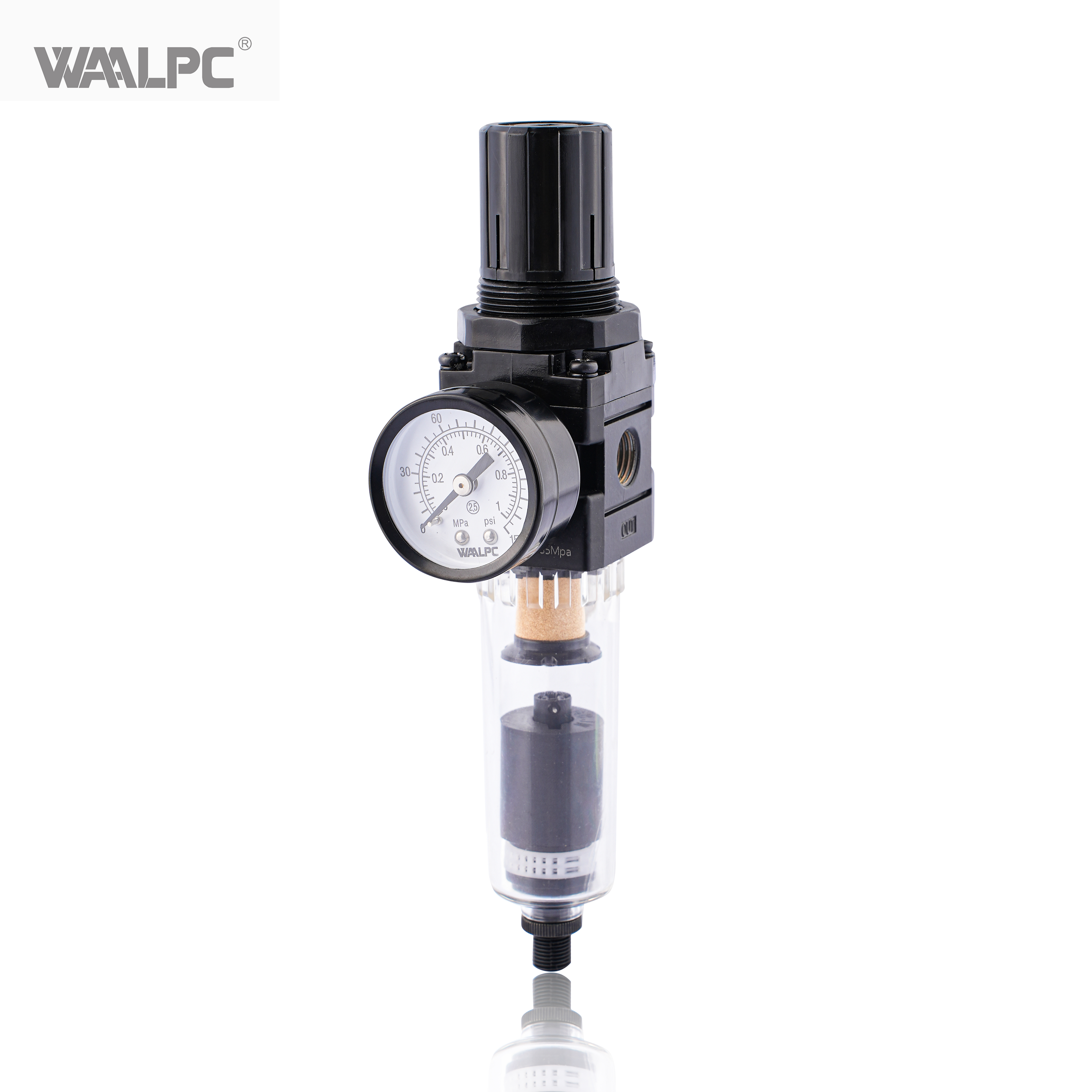

SMC 1/4 Pneumatic High-pressure Filter Regulator Reducing Valve Unit 5um 25um 40um with Auto Drain


Color:	Grey Black
Availability:

Quantity:



Inquiry Add to Basket

Air source treatments are key components in pneumatic systems. They are mainly used to process compressed air to ensure that it is clean, dry and stable to improve system efficiency and equipment life. The following are its main components and functions:
1. Air filter
Function: Remove moisture, oil and solid particles from compressed air.
Importance: Prevent pollutants from damaging pneumatic components and ensure the normal operation of the system.

2. Air pressure regualtor
Function: Regulate the pressure of compressed air to keep it stable.
Importance: Avoid pressure fluctuations from damaging the equipment and ensure stable operation of the system.

3. Air lubricator
Function: Add an appropriate amount of lubricating oil to the compressed air to reduce friction and wear of pneumatic components.
Importance: Extend equipment life and improve operating efficiency.

Model:
AW2000-02A
Brand:
WAALPC

Product Description

Product Advantages

Pneumatic Air Filter Regulator

1. Prepare air for all types of compressed air tools and equipment

2. Compressed air with filters to remove solid particles and condensate

3. Regulator valves accurately maintain air pressure over a wide flow range

4. Protect your pneumatic tools for longer lifespan

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-name	Filter&Regulator
Model	AW2000-01A		AW2000-02A	AW3000-02A	AW3000-03A	AW4000-03A	AW4000-04A	AW4000-06A	AW5000-06A	AW5000-10A
Port Size (G)	1/8		1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover	AW1000-2000（W/O）			AW3000-5000（ W）
Drain Type	auto drain
Grade Of Filtration	5µm, 25µm, 40µm
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa（ 145Psi）
Pressure Resistance	1.5MPa（ 215Psi）
Operating Temperature Range	-5-60 ℃
Pressure Gauge	Y40-01					Y50-02
Material	Housing: Aluminum die-casting molding; Container cup: PE; bowl guard: iron
Filter Cup Capacity	15		15	20	20	45	45	45	130	130
L-type Bracket	L20		L20	L30	L30	L40	L40	L50	L50	L60
Weight	370g		370g	640g	640g	1260g	1260g	1310g	1890g	1890g

Pneumatic Air Filter Regulator AW2000-02A

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AW1000	M5	25	109.5	50.5	25	26	25	28	30	4.5	6.5	40	2	20.5	28
AW2000	G1/8-G1/4	40	196	78	40	56.8	30	34	43.5	5.4	15.4	55	2.3	33.5	40
AW3000	G1/4-G3/8	53	217	92.5	53	60.8	39	40	46	6.5	8	53	2.3	42.5	56
AW4000	G3/8-1/2	70	265	112	70	70.5	49.2	54	53.5	8.5	10.5	70	2.3	52.5	73
AW4000-06	G34	75	270	114	70	70.5	49.2	54	53.5	8.5	10.5	70	2.3	52.5	73
AW5000	G3/4-G1	90	339	116	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5	90

Specification Download

AW2000-3000-02A.pdf
