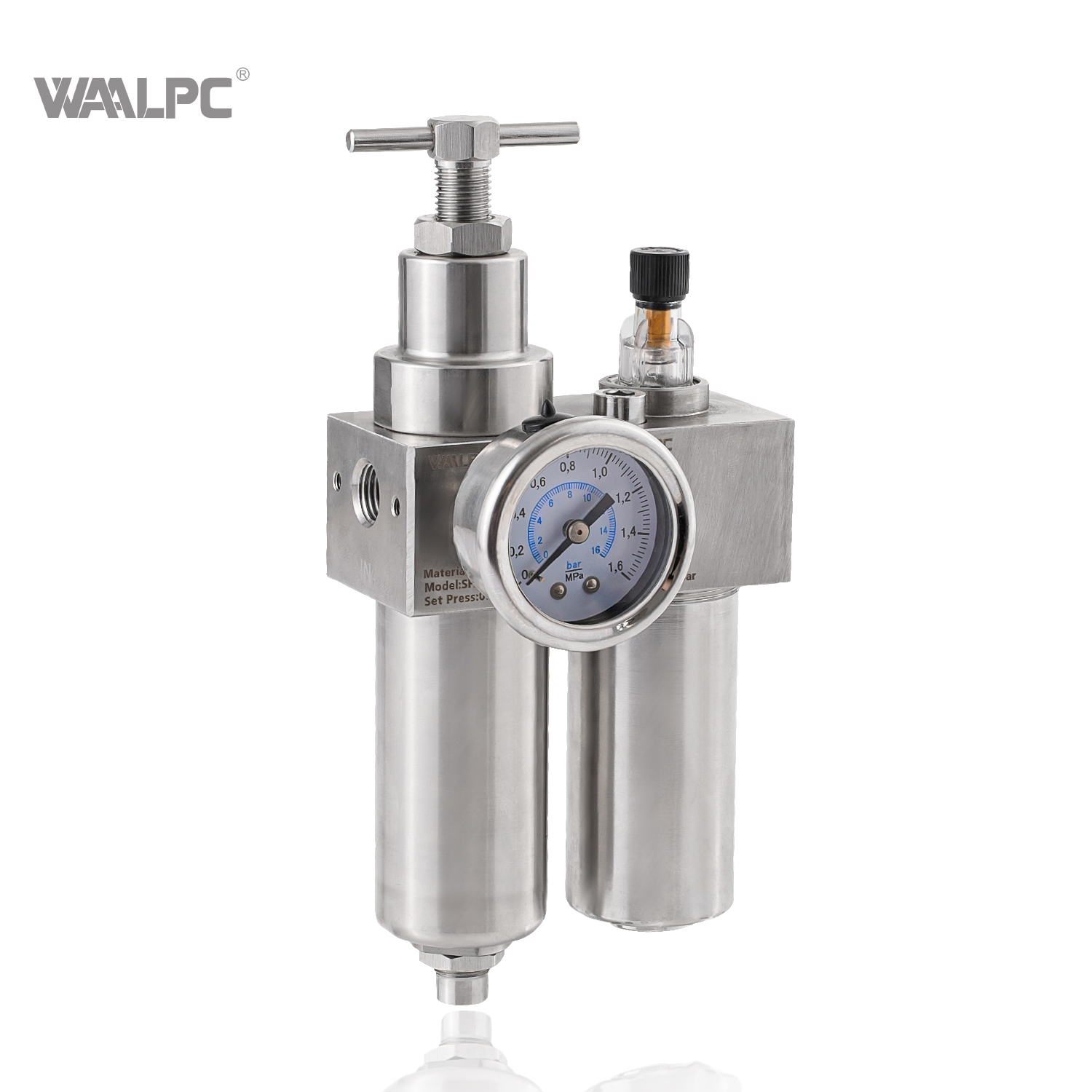

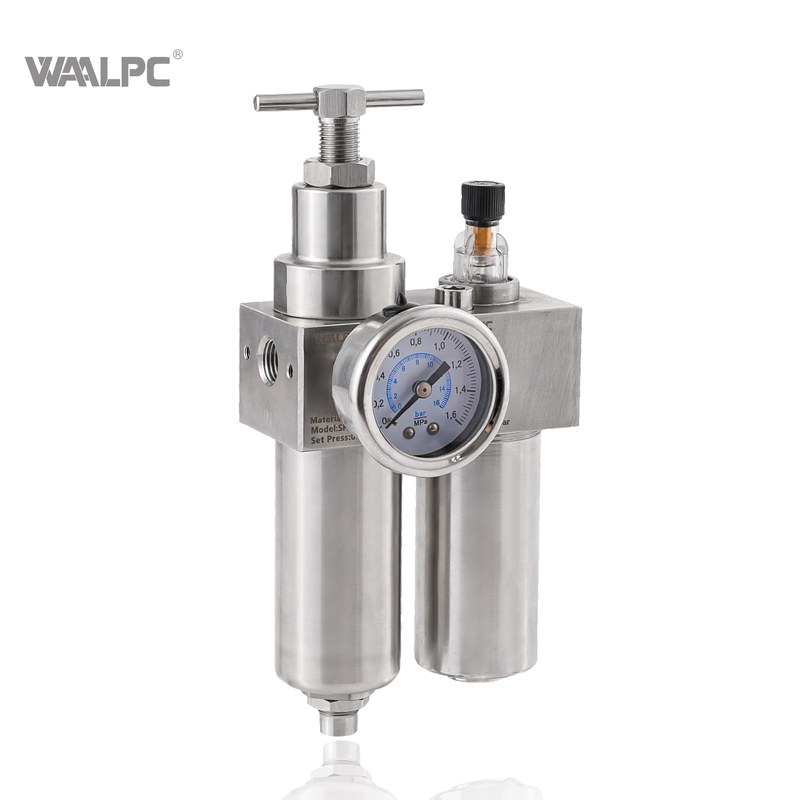

SFRL200 5um 4um 20Bar 1'' OEM 1.5'' NPT PT G Air Source Treatment 316 Stainless Steel F. R. L Combination for Anti-corrosion Environment

5um 4um 20Bar 1'' OEM 1.5'' NPT PT G Air Source Treatment 316 Stainless Steel SS FRL Combination for Anti-corrosion Environment


Material:	Stainless Steel
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

Model:
SFRL200
Brand:
WAALPC

Product Description

Product Advantages

3/8" Stainless Steel FRL Combination OEM

1.SUS316 stainless steel

2.High pressure, corrosion, high&low temperature ,acid and alkali resistant. 3.Effective and fast removal of water and particles.

4. High flow rate.

5.Oil spray in mist ensure good lubrication for machines, extend long lifetime

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-Name FR.L Combination
Model	SFRL200	SFRL400	SFRL400	SFRL600	SFRL600
Port Size（G）	G1/4	G3/8	G1/2	G3/4	G1
Max Flow Rate(L/Min)	1850	2200	2500	7600	8000
Filter Cup Capacity	125cc	130cc	130cc	200cc	200cc
Lubricator Cup Capacity	105cc	110cc	110cc	220cc	220cc
Regulator construction	Piston
Grade of Filtration	5μm, 40μm,
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa（870Psi）
Operating Temperature Range	-40~100℃
Drain Type	Differential pressure drain(Drain below 0.05MPa)
Material	SUS316 stainless steel
Accessories	Pressure gauge, Mounting bracket, screw x2
Weight	2640g	3840g	3830g	7840g	7800g

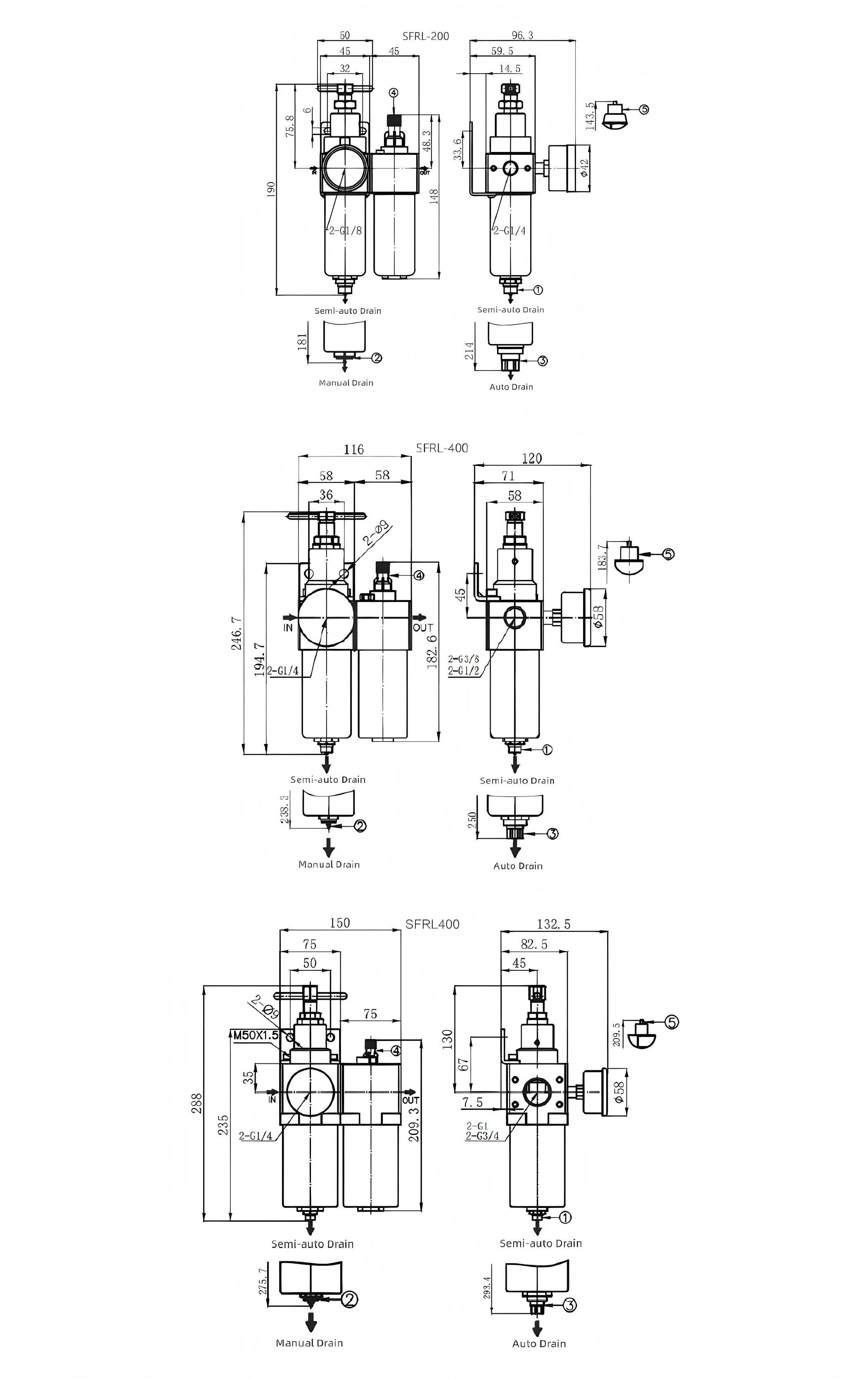

FRL Combination SFRL200 FRL Combination SFRL400

Specification Download

WAALPC Stainless Steel Series Air Source Treatments .pdf
