SMC Solenoid Valve 3 Position 5 Way Air Hand Lever Operated Valve Pneumatic YSY7120-02 1/4"NPT


Function:	Two-position single electric control Two-position double electric control Three-position mid-sealed type Three-position mid-leak type Three-position mid-pressure type
Availability:

Quantity:



Inquiry Add to Basket

SMC Series SY7120 Solenoid Valve

SMC alternative SY3120 solenoid valve is suitable for operating single acting or double acting pneumatic cylinders in pneumatic driven automation systems. Compact design, low consumption, 2 positions and 3 positions is optional. Connection type has DIN connector and lead wire type. Multiple solenoid valves can be mounted in air solenoid manifold, with more control options.

Model:
YSY7120-02
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

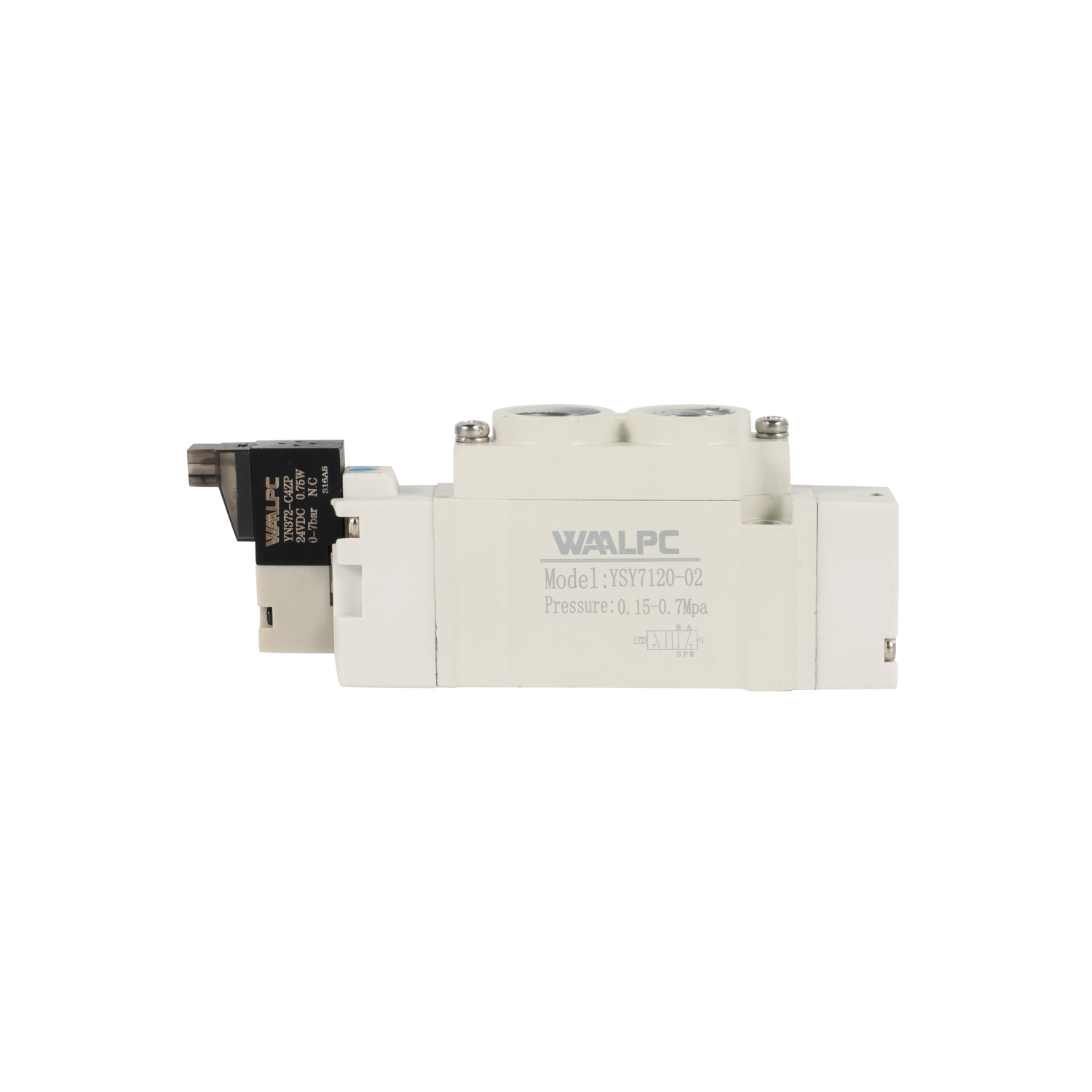

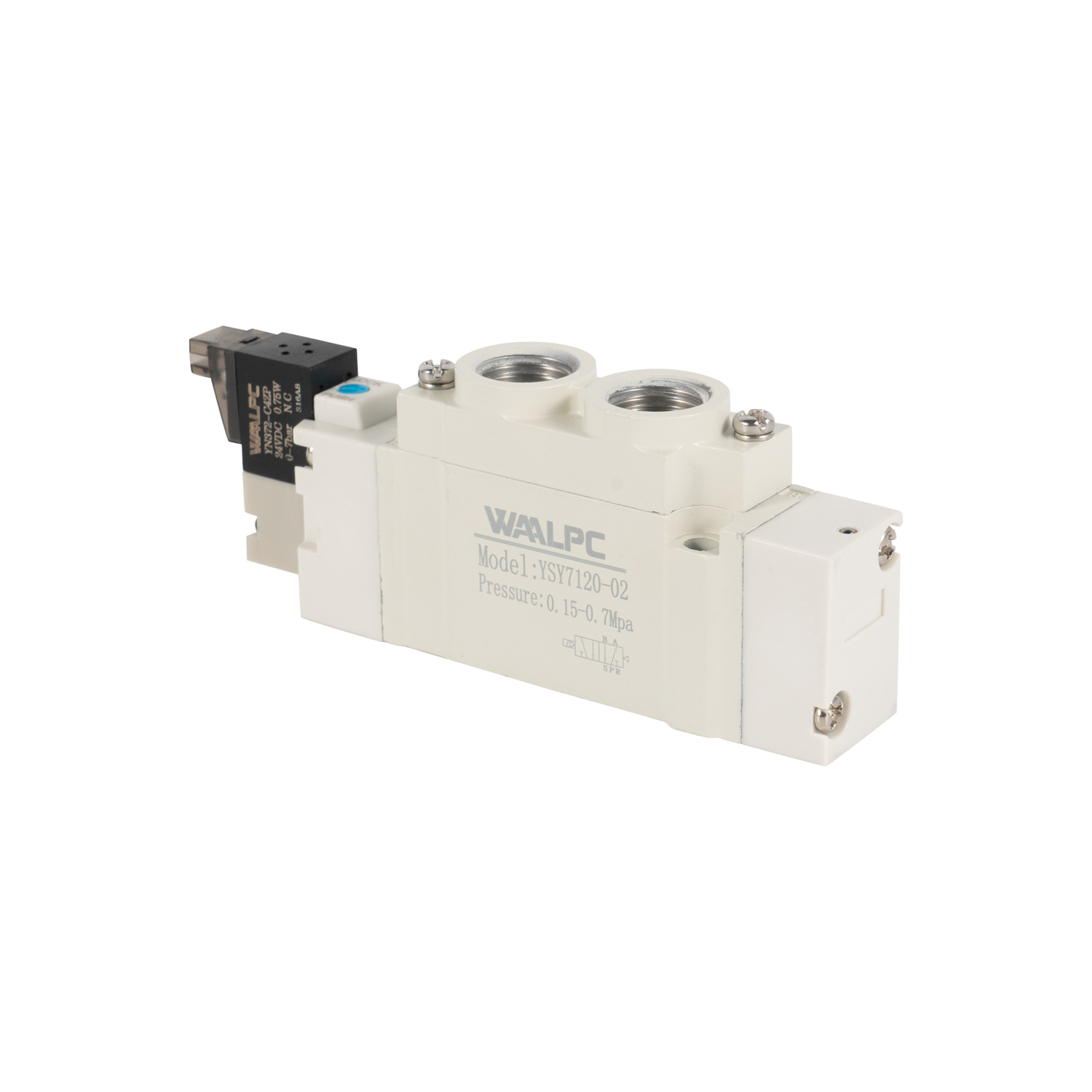

YSY7120 solenoid valve

1.Pilot-oriented mode:Internal pilot or external pilot.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Affiliated manual devices are equipped to facilitate installation and debugging.
7.Several standard voltage grades are optional.
8.Integrate with the manifold to save installation space.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

ORDERING CODE

YSY -7 1- 20- 5 L Z D- 02

① ② ③ ④ ⑤ ⑥ ⑦

Symbol	Content
①	YSY7000 series
② Function	1: Two-position single electric control, 2: two-position double electric control, 3: three-position mid-sealed type, 4: three-position mid-leak type,5: three-position mid-pressure type
③ Voltage	5: DC24V, 6: DC12V, V: DC6V, 3: AC110V, 4: AC220V
④ Wire Lead-out Method	L: 90 right-angled line length 300mm, M: 180 horizontal line length 300mm, X: direct lead type
⑤ Indicator Light	Z: With indicator light and over voltage protection Blank: Without indicator light
⑥ Manual Operation Mode	D: Rotary locking type when the turning tool is pressed down, Blank: No
⑦ A. B Interface Thread	02: G1/4

DATA SHEET

Valve Position Function

Two-position five-way, Three-position

five-way (mid sealed, mid leak,mid pressure)

Medium and Ambient Temperature

-5℃~50℃ (but not frozen)

Operating Method

Cut-off

Working Medium

Filtered compressed air (filter accuracy

grade meets IS08573-15.4.4) or inert

gas

Installation Method

Free Installation

Maximum Operating Frequency

15HZ

Nominal Flow

370L/min(P-A)

Response Time

≤12ms

Voltage

DC6V, DC12V, DC24V, AC110V, AC220V

Work Cycle

100% continuous operation

Voltage Tolerance

± 10%

Electrical Connections

Socket or direct lead

Power Consumption

0.4W

Lubrication

Unnecessary

Experimental Life

70 million times

STRUCTURE

YSY7120 solenoid valve SIZE

Specification Download

Solenoid Valve -YSY series.pdf
