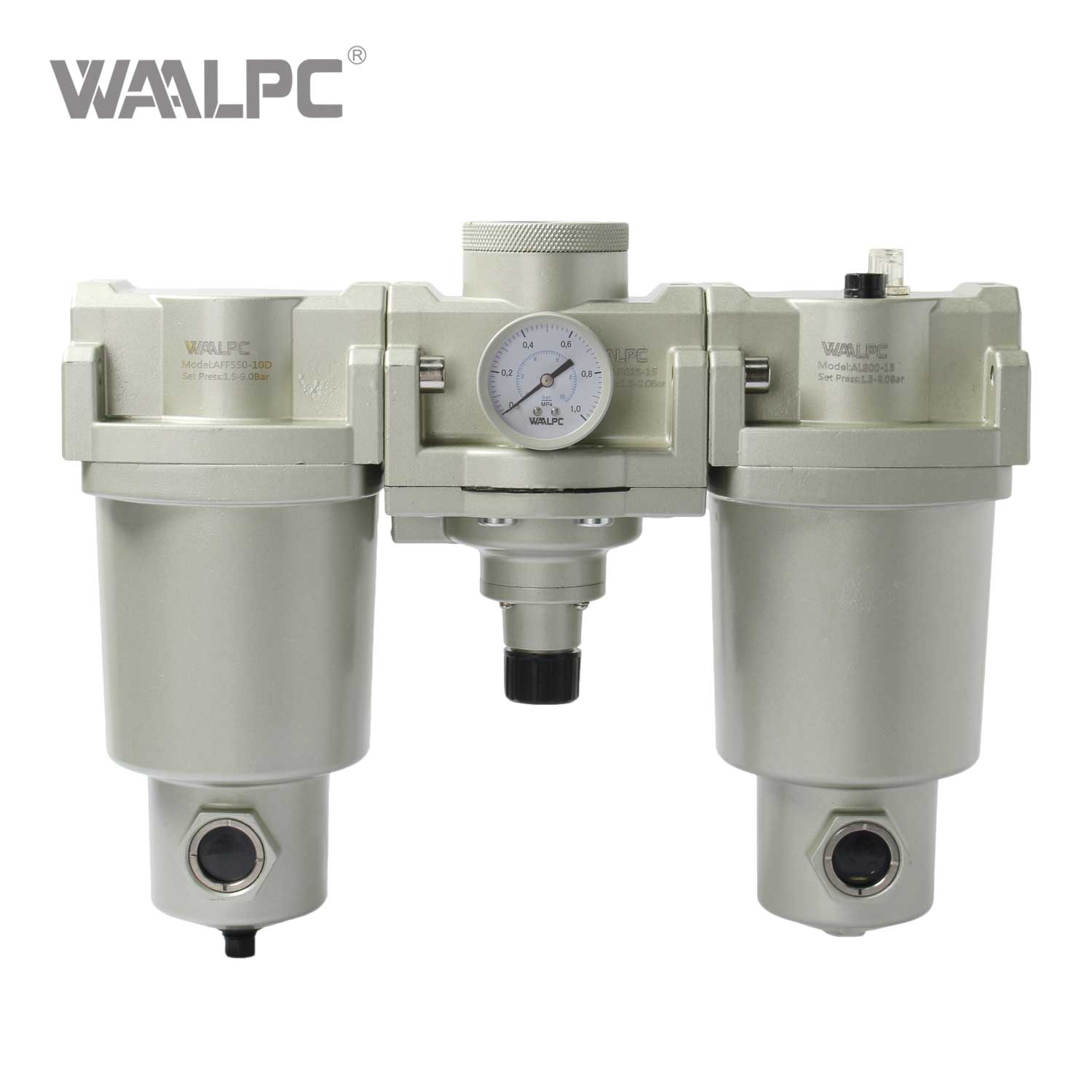

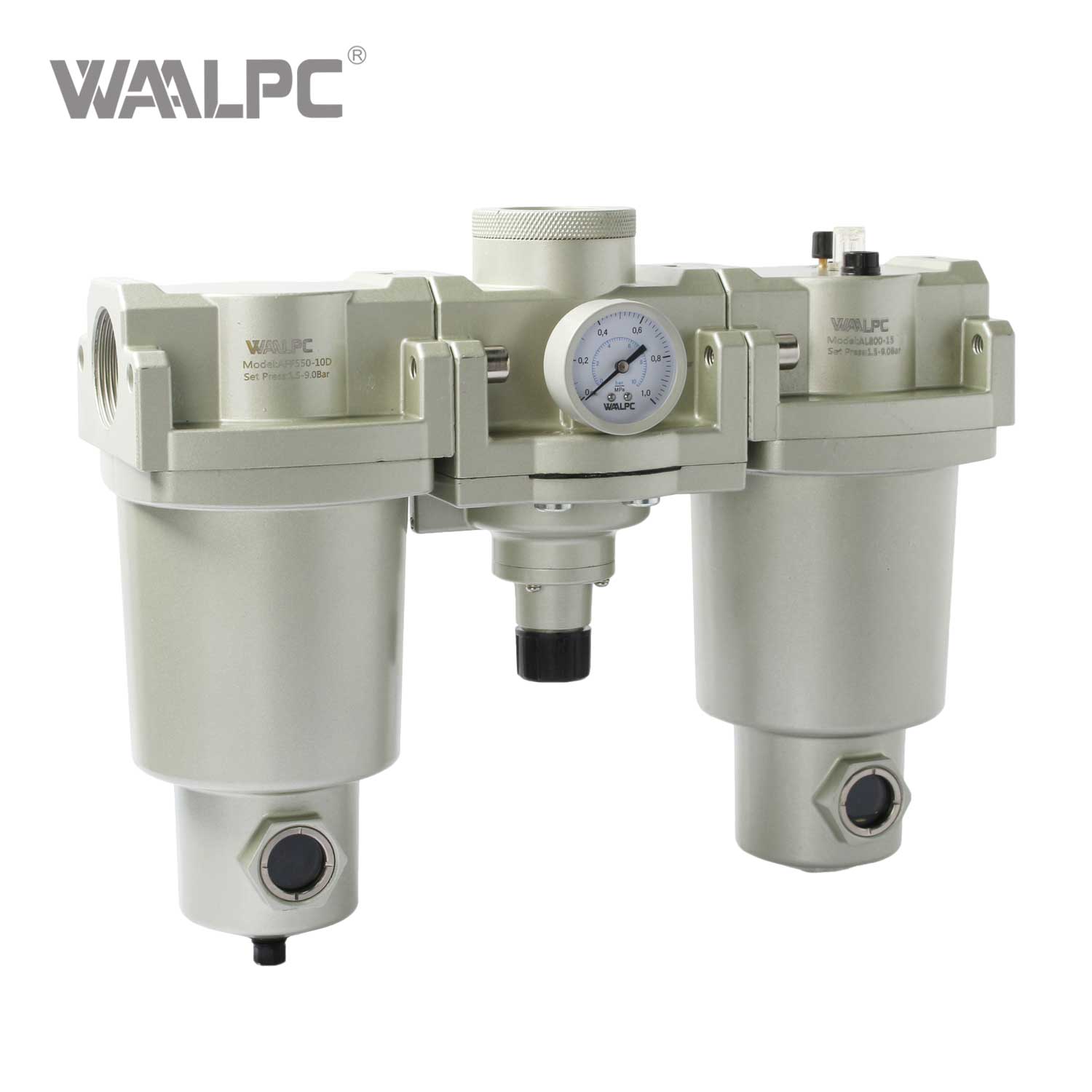

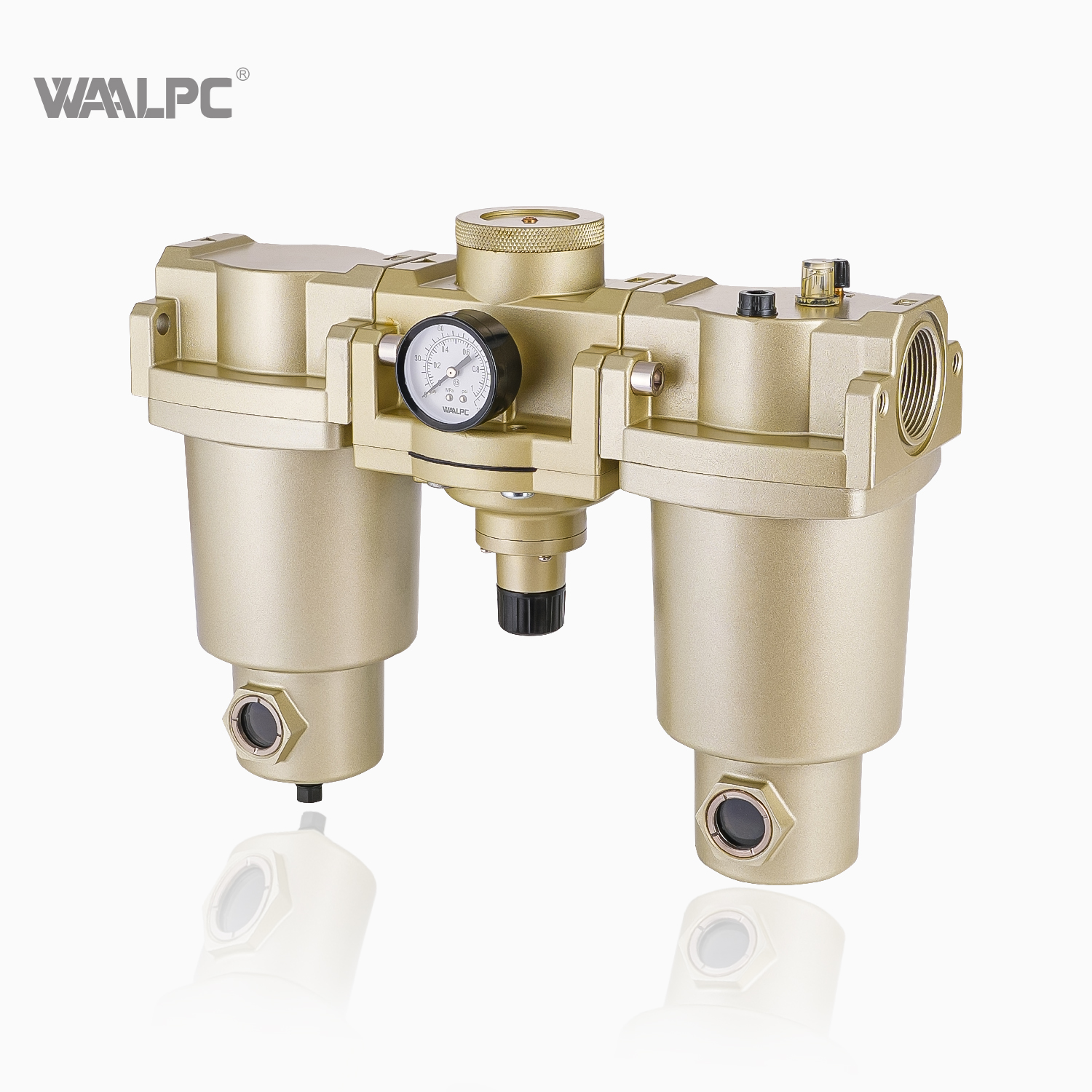

Air Pressure Regulator Valve Trap Filter Lubricator 1-1/2'' NPT High Flow Frl Moisture Oil Separator for Pneumatic Machinery

Air Pressure Regulator Valve Trap Filter Lubricator 1-1/2'' NPT High Flow Frl Moisture Oil Separator for Pneumatic Machinery


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

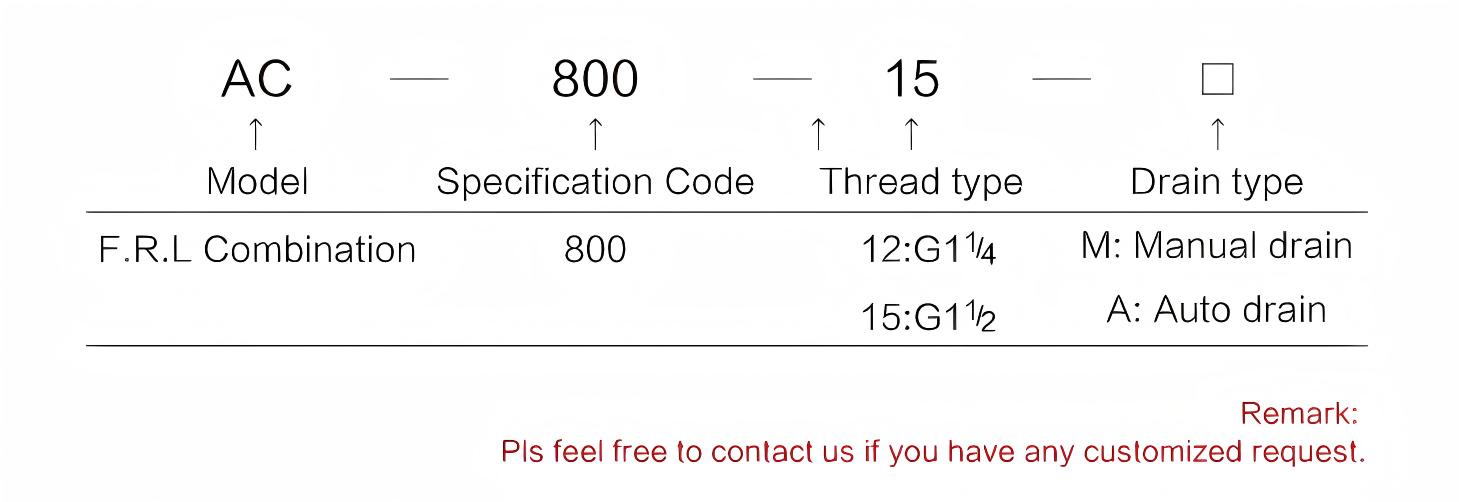

Model:
AC8000-15
Brand:
WAALPC
Code:
8421999000

Product Description

Product Advantages

High flow 1-1/2" AC8000-15 Air Filter Regulator lubricator manufacturer

1. Large diameter, large flow, pressure reduction without reducing flow

2. Internal pilot and overflow ventilation holes

3. Small pressure loss,high efficiency of water separation

4. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

5. The filter precision includes 5µm 25µm and 40µm(optional).

6. Extend the life of the equipment: Filter out particles in the air, reduce wear and tear on the equipment, and extend the life of the equipment.
7. Improved equipment efficiency: Clean air improves the efficiency of equipment operation.
8. Stable output pressure: The pressure regulating valve can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
9. Improve system reliability: Through purification and lubrication, the wear of pneumatic components is reduced and the reliability of the system is improved.
10. High pressure regulation accuracy: It can accurately adjust the output pressure to ensure the normal operation of downstream equipment.
11. Reduced Maintenance: Pneumatic components will need less maintenance due to reduced wear and corrosion.
12. Port size available: 1-1/4'',1-1/2''.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type name		F.R.L Combination
Model		AC8000-12	AC8000-15
Port Size		G1-1/4	G1-1/2
Working Medium		Air
Grade of Filtration		Standard 25 µm (Option: 50, 10 µm)
Rated flow		12000L/min	20000L/min
Max . Operating Pressure		1.0MPa
Pressure Resistance		1 .5MPa
Operating Temperature Range		-5~60℃ (No freezing)
Pressure Regulating Range		0.05-0.85Mpa
Recommended Oil		Turbine oil Class 1, ISO VG32
Construction		Internal pilot relieving type (Pilot air is always bleeding)
Pressure gauge		G46-10-02
Components	Filter	AF8000-12	AF8000-15
	Regulator	AR8000-12	AR8000-15
	Lubricator	AL8000-12	AL8000-15

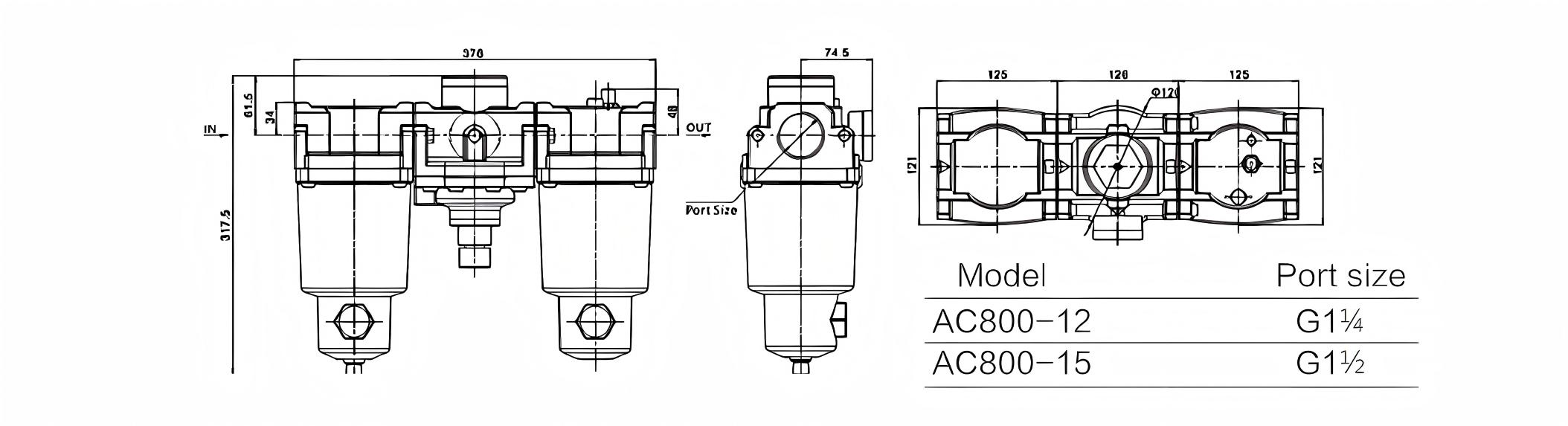

STRUCTURE

High flow pressure AC8000-15 size

Specification Download

High Flow Air Source Treatments.pdf
