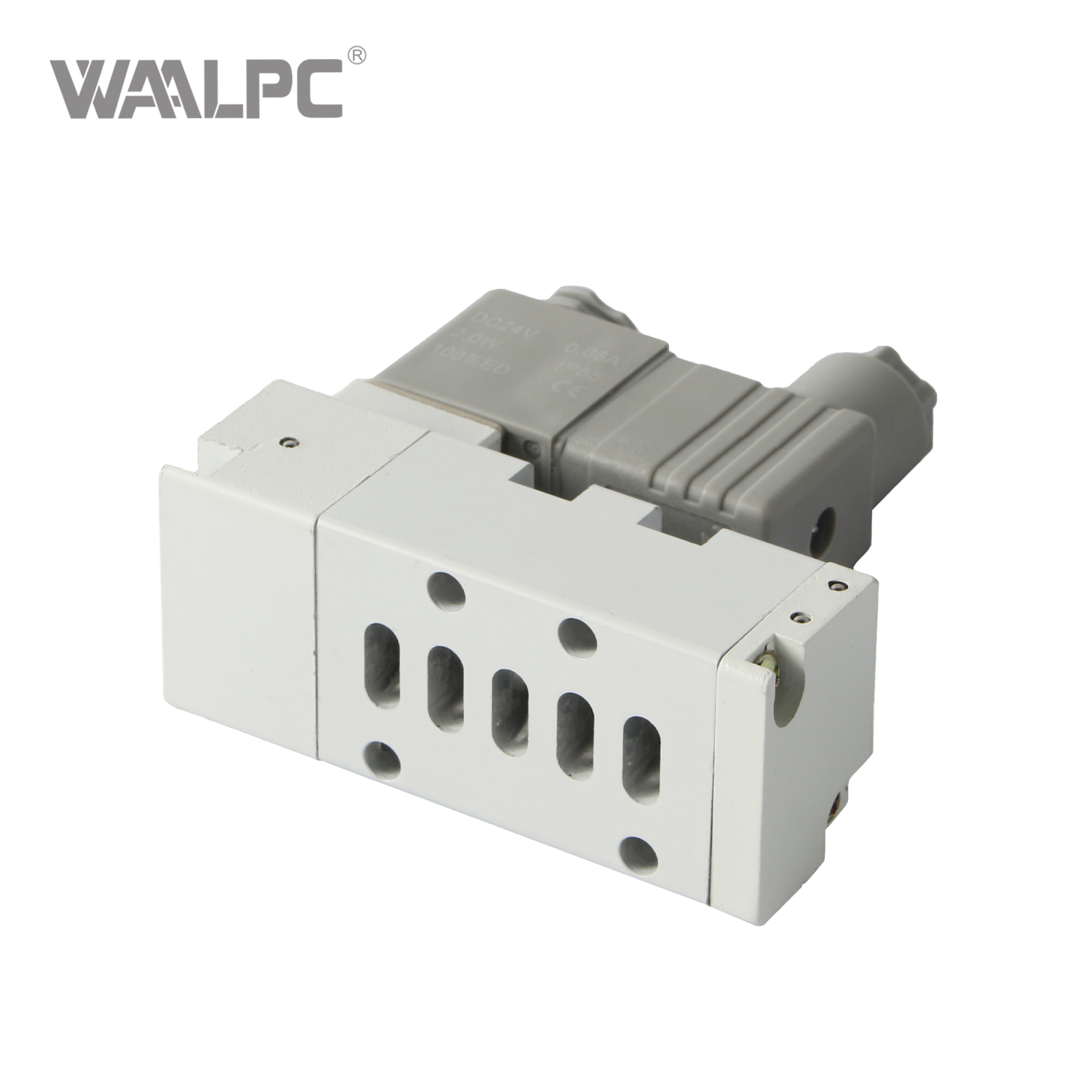

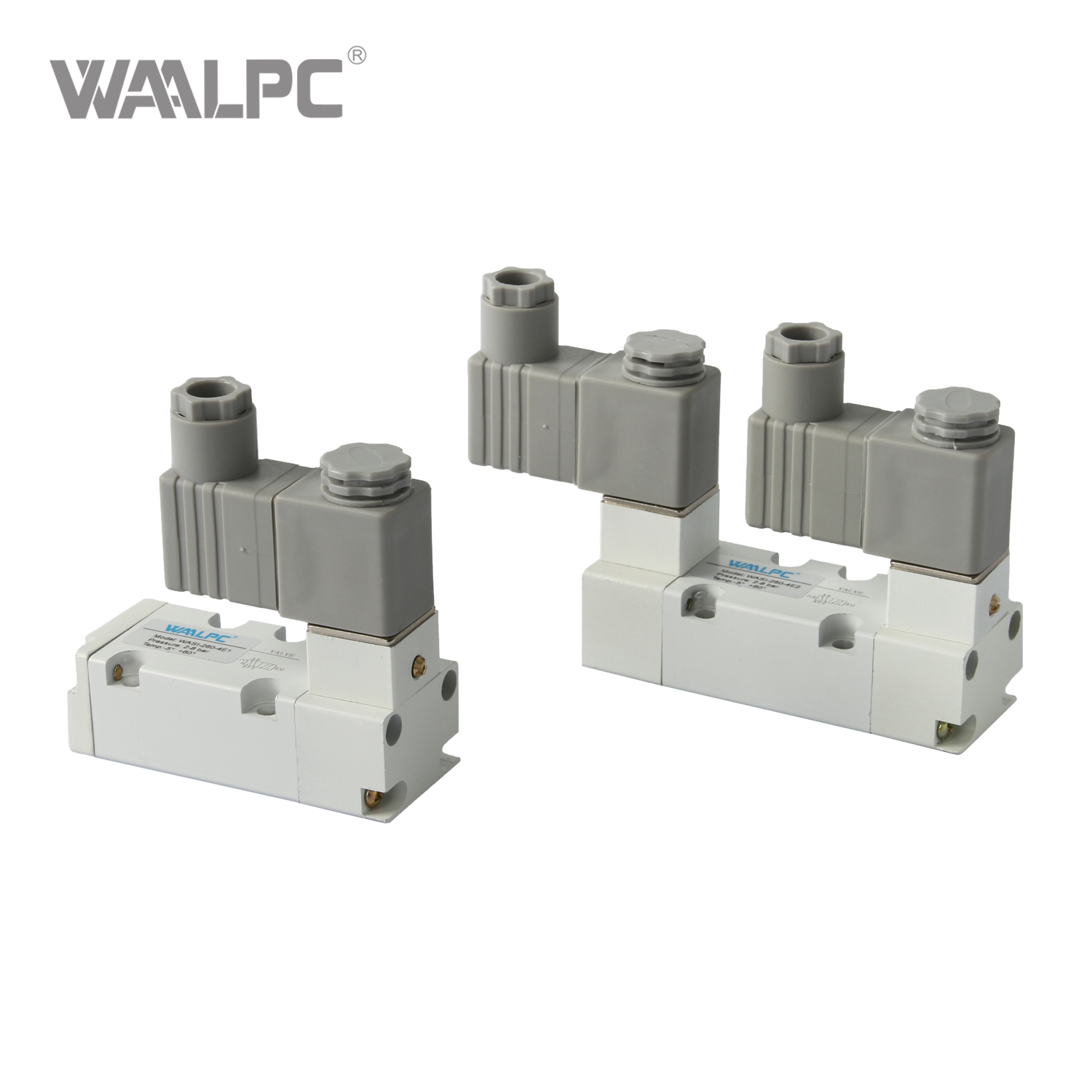

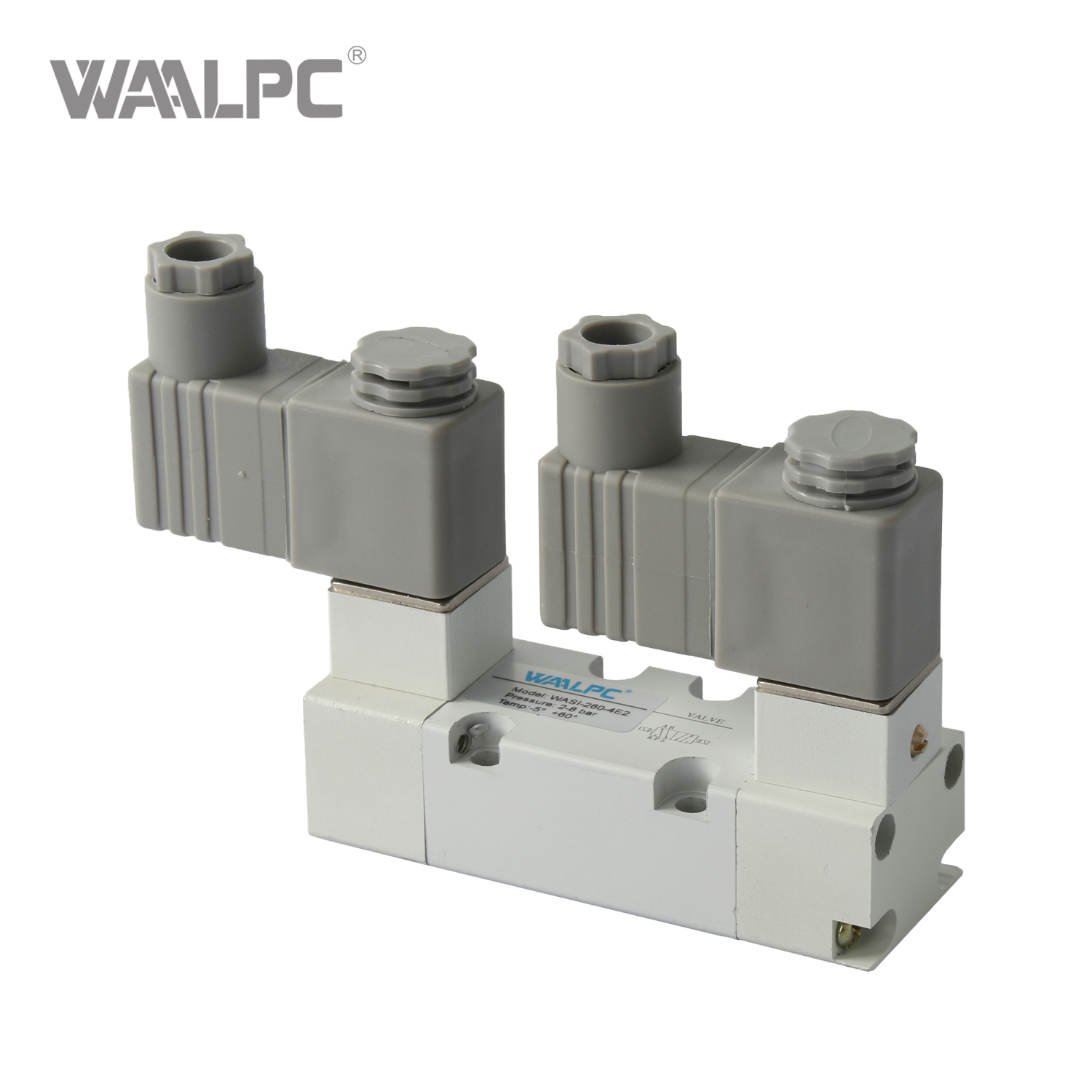

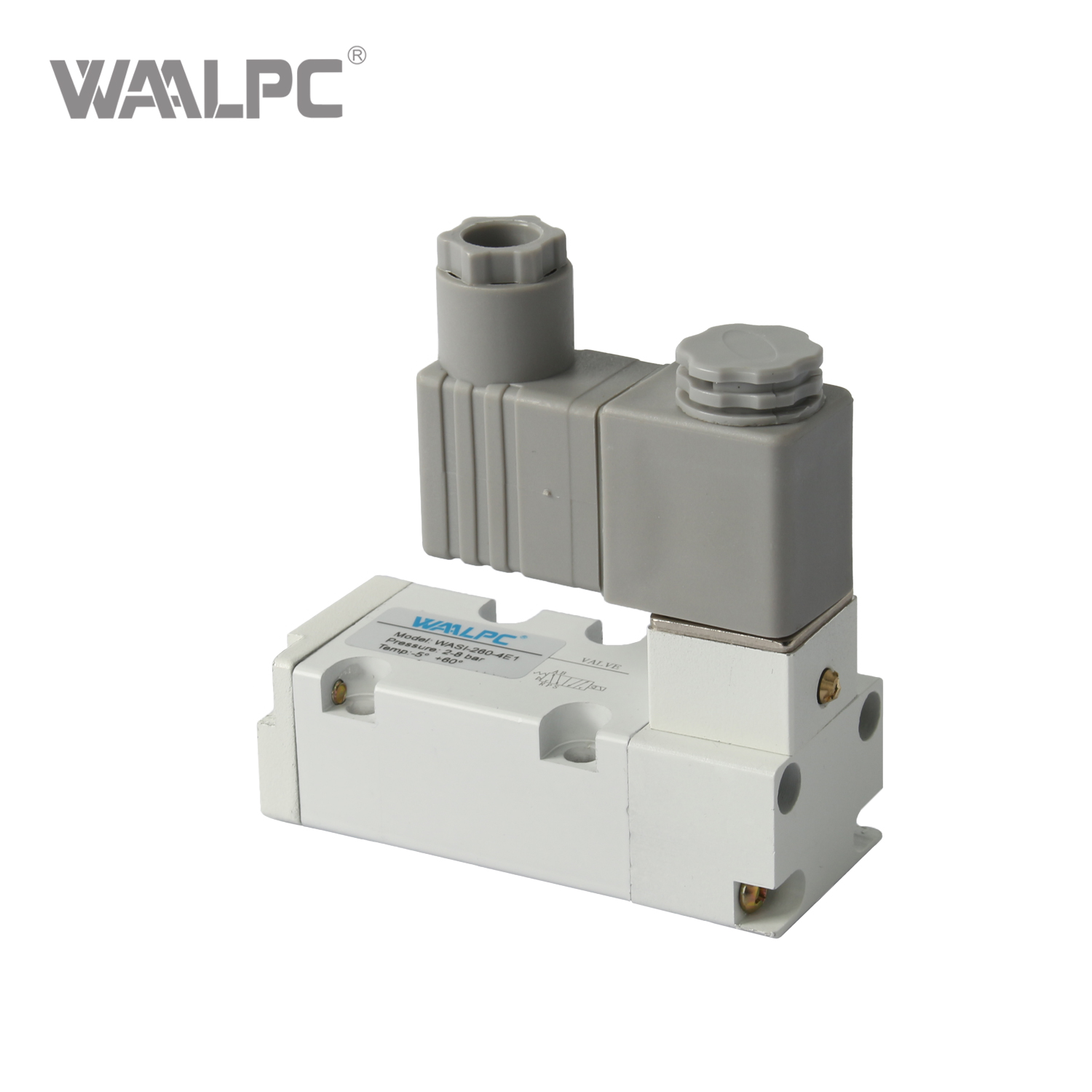

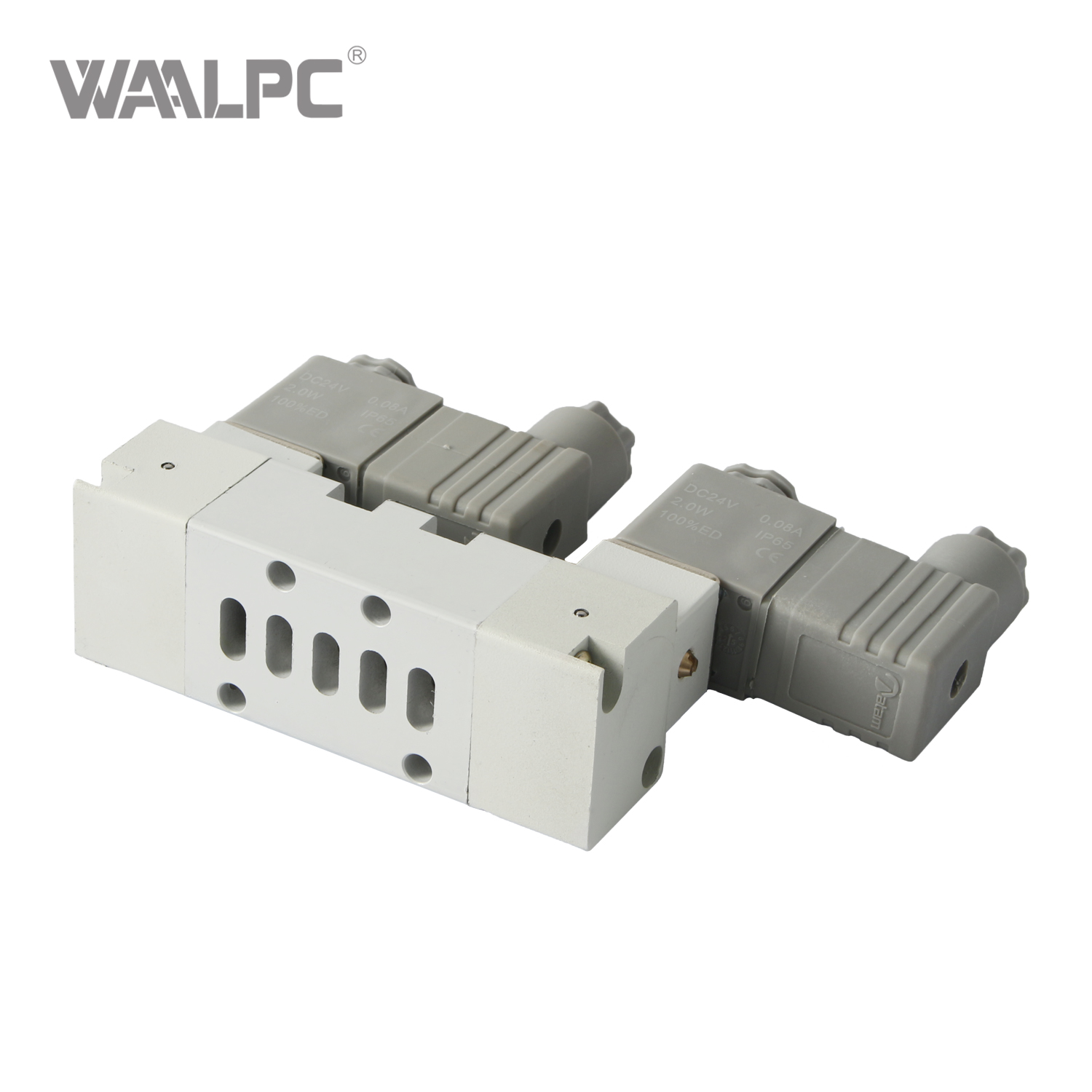

Wasi Explosion-Proof Solenoid Valve NC 2/2 Way ATEX Certified for Oil And Gas


Availability:

Quantity:



Inquiry Add to Basket

The AIRTAC Type WASI Series is a specially designed 2-position 5-way solenoid valve developed specifically for floor cleaning machines, scrubbers, and sweepers . These valves are engineered to control the flow of water or detergent solution in cleaning equipment, providing reliable and precise fluid management for various cleaning functions such as solution dispensing, vacuum shut-off, and squeegee lifting.

Model:
WASI
Brand:
WAALPC
Code:
8481202090

Product Description

Specialized for Cleaning Equipment – Specifically engineered for floor scrubbers, sweepers, and industrial cleaning machines, ensuring optimal performance in these applications.
2/3-Way Functionality – Available in 2-position 3-way configurations, providing versatile control for various cleaning functions including solution flow control and vacuum shut-off.
Low Power Consumption – Features low wattage coils for energy-efficient operation, ideal for battery-powered cleaning equipment.
Compact and Lightweight – Space-saving design allows easy integration into tight spaces within cleaning machines without compromising performance.

Technical Parameters

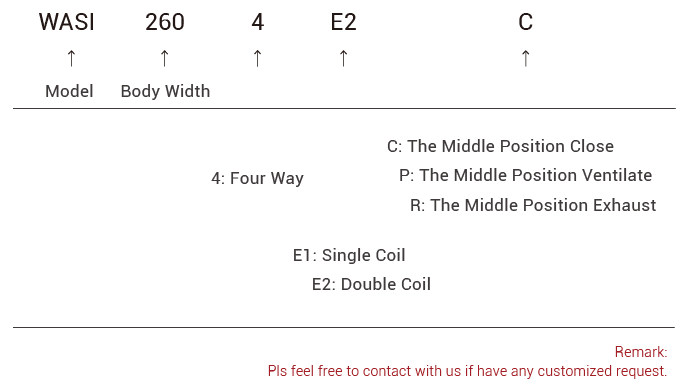

ORDERING CODE

wasi solenoid valve

DATA SHEET

Model	4E1	4E2	4E2 C.P.R
Valve type	5 port 2 position		5 port 3 position
Medium	Air
Pressure Range	0.2~0.7MPa		0.3~0.7MPa
Proof Pressure	1.0MPa
Effective Orifice	22mm2		20mm2
Reponse Time	40ms
Ambient Temperature	-5~+50℃(No freezing)
Voltage	AC110V, 220V(50/60), DC24V
Power Consumption	AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W
Available Consumption	±10%
Insulation Class	F class

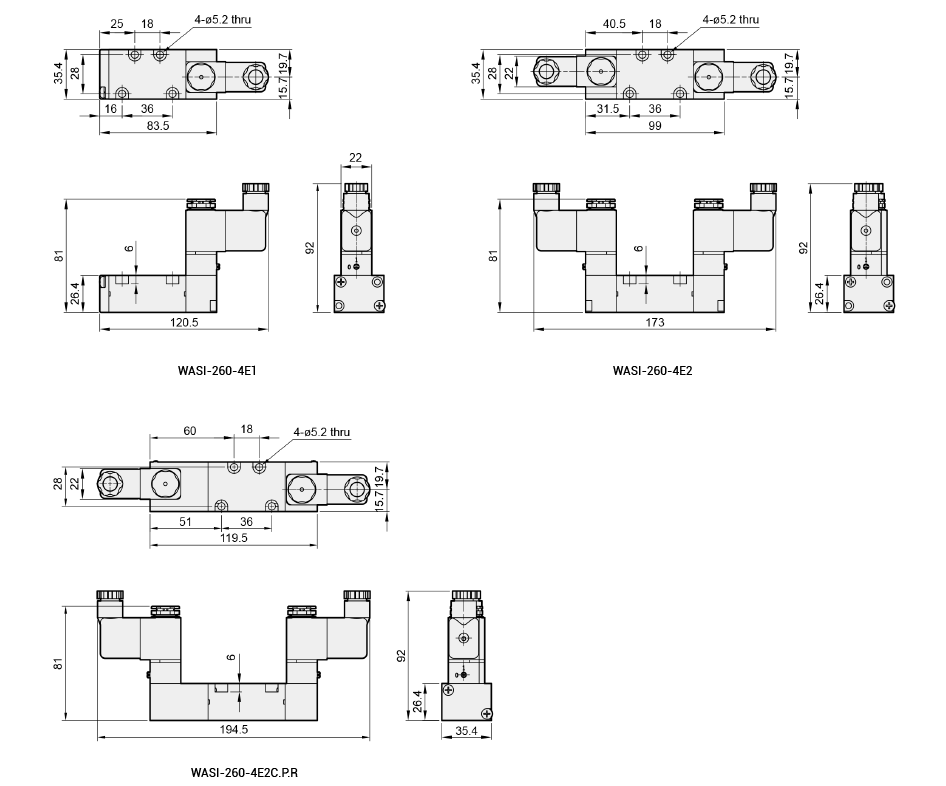

STRUCTURE&DIMENSION(MM)

wasi solenoid valve

Specification Download

WASI Series Solenoid Valve.png
