10mm Mini Solenoid Valve 90° Degree Right for COLOSIO Socks Knitting Machine 376-4ZP 2/2 Way COMPLETT


Socket connection method:	Z: 90 right angle type S: 180° horizontal type X: direct lead type
Availability:

Quantity:



Inquiry Add to Basket

10mm Direct Acting Solenoid Valve 376 Series
Solenoid valves are widely used in fluidic systems to control the flow of fluids.
By using solenoid actuation, these valves can be conveniently controlled by simple electrical switches, even in remote locations.
Solenoid valves offer fast and reliable switching, long service life, high reliability, low control power and a compact design, making them the ideal choice for many flow(air or liquid) precise control applications.
WAAL offers 10mm miniature solenoid valves in many designs and different powers, so as to fit the installations where limited space and high frequency working are required.

It is widely used in the textile industry, sock knitting machines, respirators, oxygen generators, medical industry & electronic industry and so on. It has the advantages of compact structure and taking little space,conventient installation,sensitiveness,stable performance,and so on. Moreover,it is protected by two potents.

Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Model:
376-4ZP
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

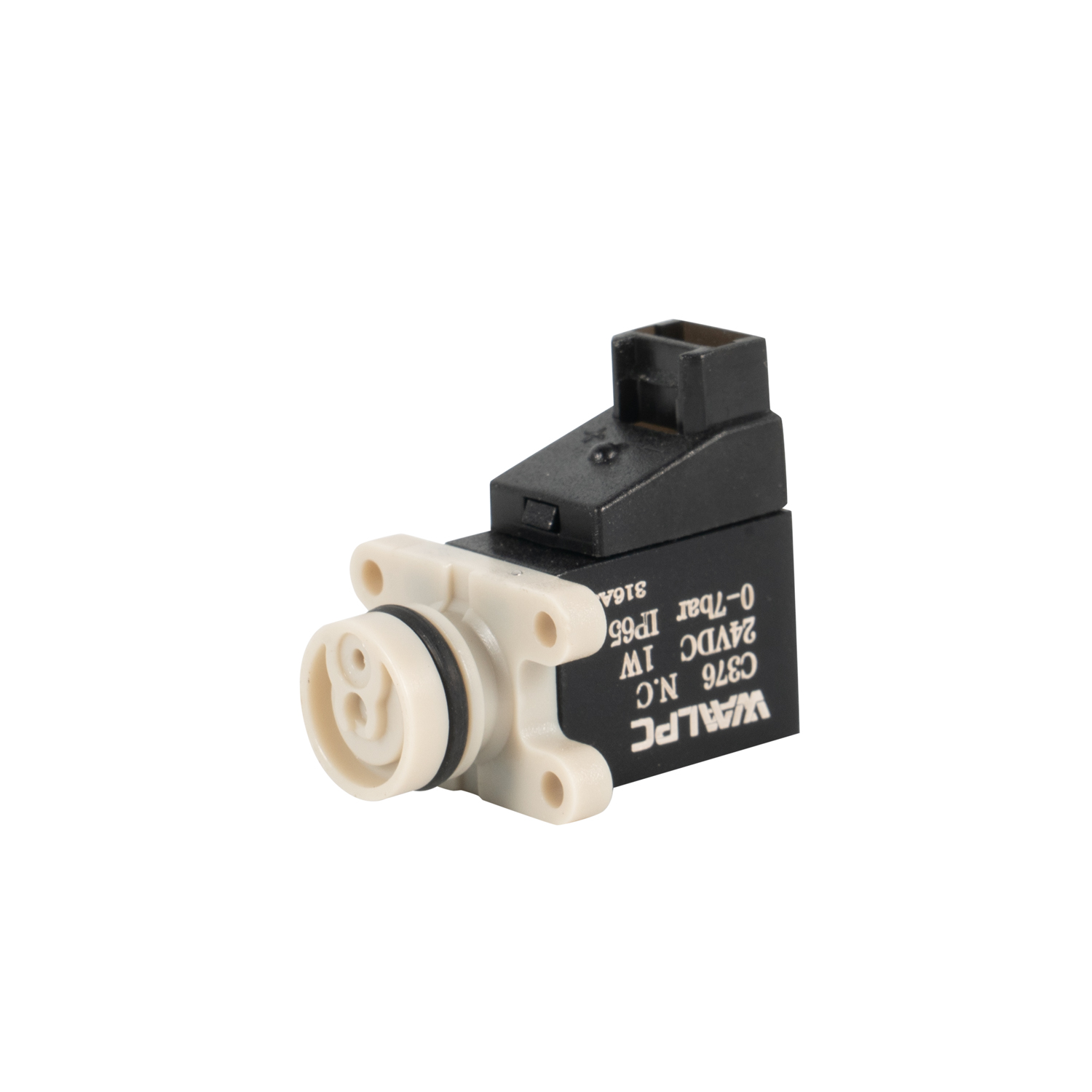

376-4ZP-N.C-1W solenoid valve

1.Pilot-oriented mode:Internal pilot or external pilot.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Affiliated manual devices are equipped to facilitate installation and debugging.
7.Several standard voltage grades are optional.
8.Integrate with the manifold to save installation space.
9.direct-acting miniature solenoid valves can be mounted with a plate connection or used directly with a single valve seat.
10.It can control the operation of single-acting cylinders with high frequency, and can also be used as pilot valves for high-flow valves.
11.There are a variety of power and diameter to meet different requirements, can be combined into a vacuum, vacuum destruction unit, normally closed (NC) and normally open (NO) two functions.

12. Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

ORDERING CODE

376 - 4 X 口 A 口- L

① ② ③ ④ ⑤ ⑥ ⑦

Note: When the item is "blank", it will be omitted automatically, as stated above: 376-4XA-L

Symbol	Content
①	376 series
② Voltage	2: DC12V, 4: DC24V, 6: DC6V, 3: AC110V, 5: AC220V

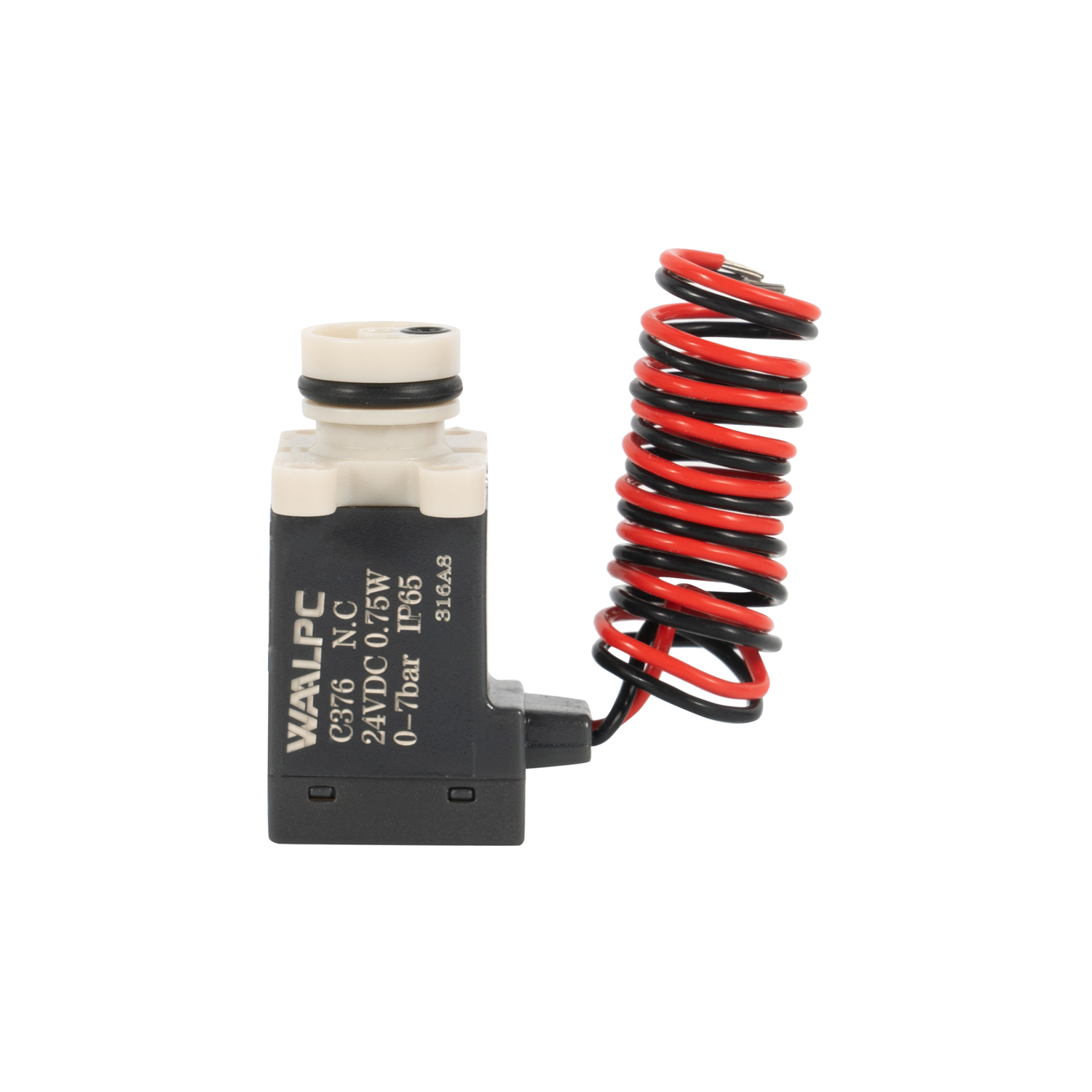

③ Connection Method	X: direct lead type, Z: 90 right angle type, S: 180 horizontal type
④ Circuit Board Type	Blank: wireless circuit board, P: with two-way indicator, G: with light with over voltage protection circuit, J: with energy-saving module
⑤ Wiring Length	Blank: no wiring, A: cable length 125mm, B: cable length 300mm, C: special requirements
⑥ Plug Type	Blank: no plug, 1: A1, 2: A2, 3: A3, 4: A4, 5: A5, 6: A6, 7: A7, 8: A8, 9: A9
⑦ Coil Power	Blank: 0.75W, L: 1W, H: 0.3W (with energy-saving module), T: Special power

DATA SHEET

Valve Position Function

Two-position two-way, Two-position three-way

Operating Pressure

0-0.7Mpa (0.8mm diameter), -100kpa -0.3Mpa (1.5mm, 2.0mm diameter)

Operating Method

Cut-off

Medium and Ambient Temperature

-5 ℃ - 50 ℃ (but not frozen)

Installation Method

Free installation

Working Medium

Filtered compressed air (grade of filtration) or inert gas

Orifice Size

0.6mm

Response Time

Open <8ms, close <10ms

Nominal Flow

14L/min (at 6bar)

Manual Device

Voltage

DC6V, DC12V, DC24V, AC110V, AC220V

Work Cycle

100% continuous operation

Voltage Tolerance

±10%

Electrical Connections

Socket or direct lead

Power Consumption

0.75W, 1W, 0.3W

(with energy-saving module type)

IP Level

IP50, IP65 (direct lead type)

STRUCTURE

376-4ZP solenoid valve size

Specification Download

Solenoid Valve -331~378 series.pdf
