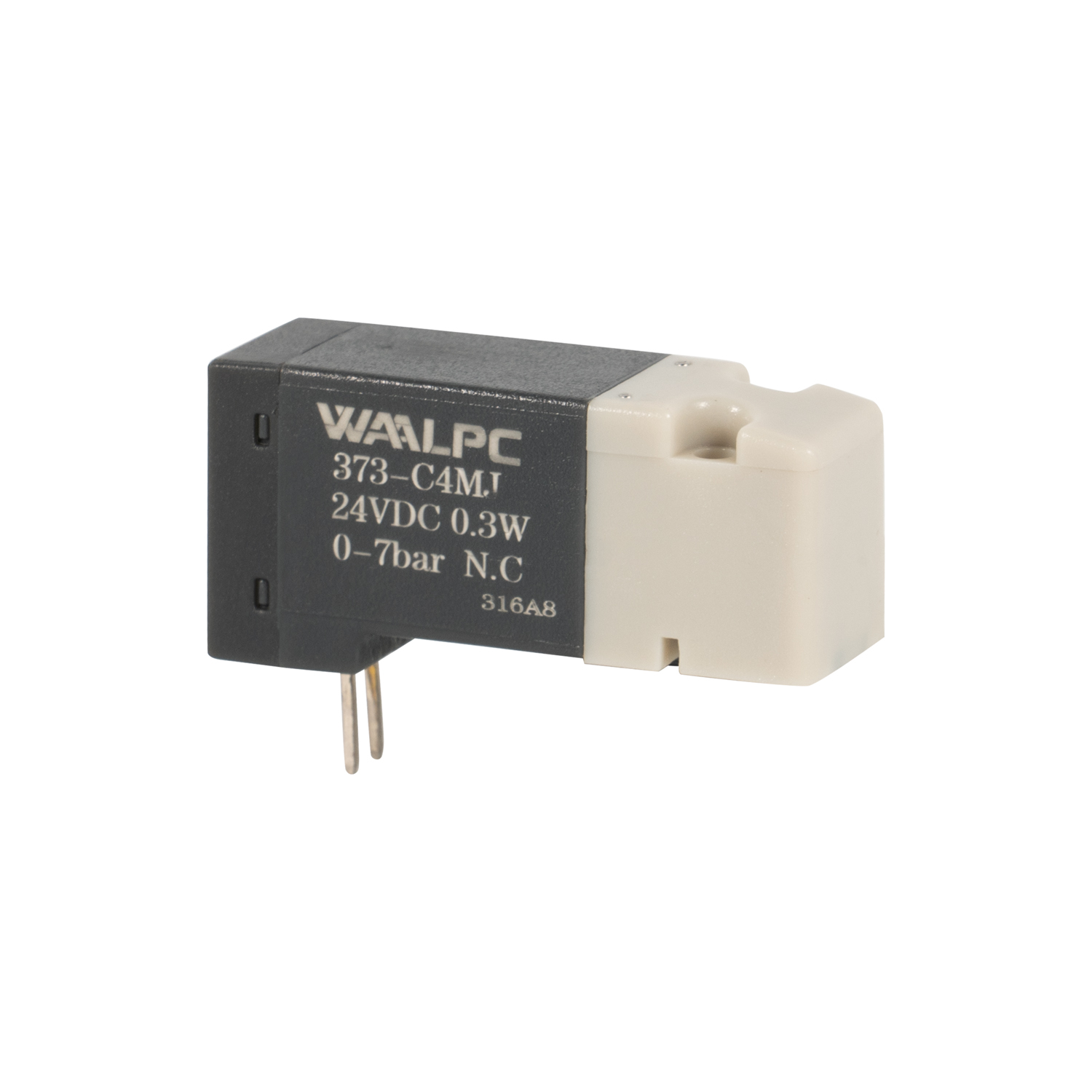

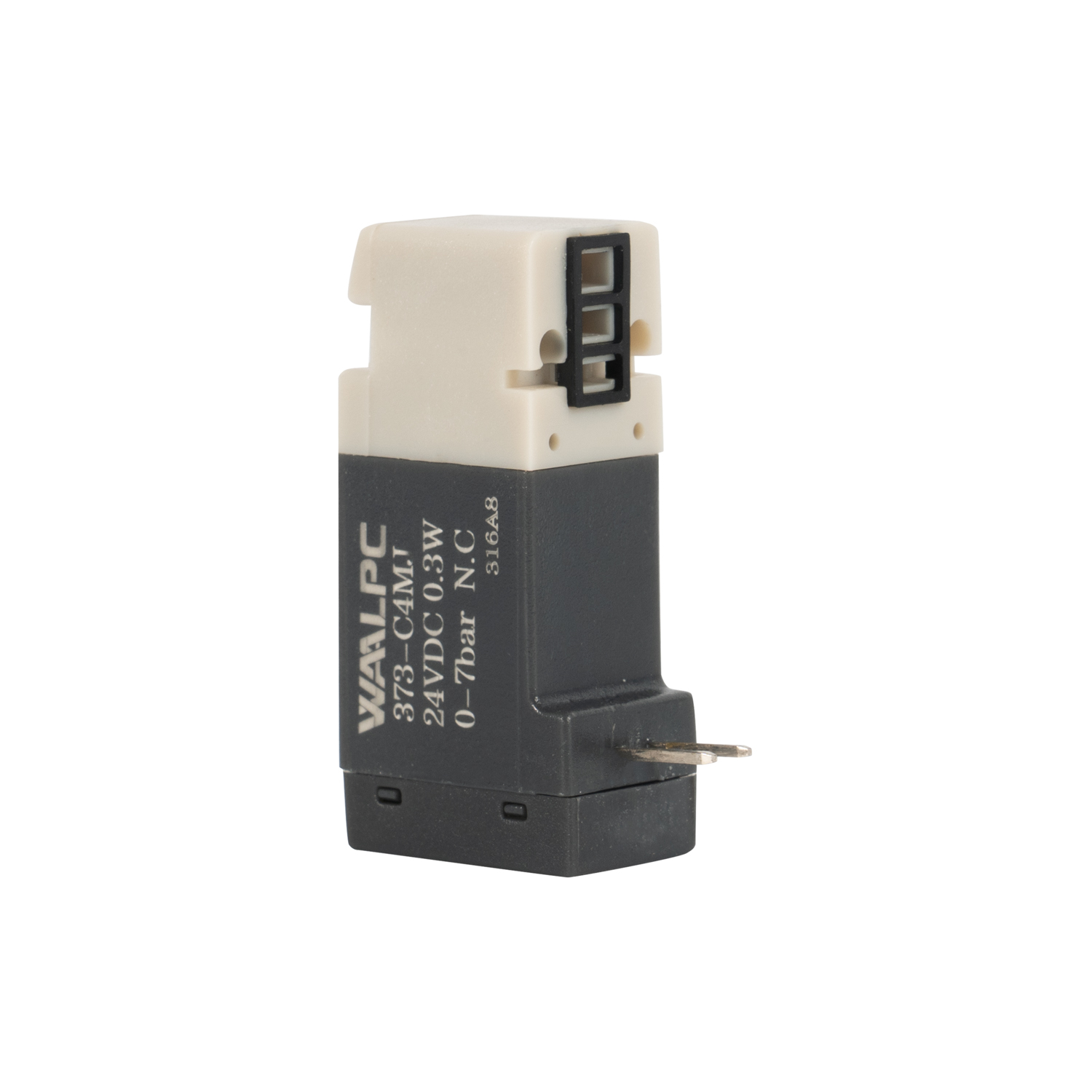

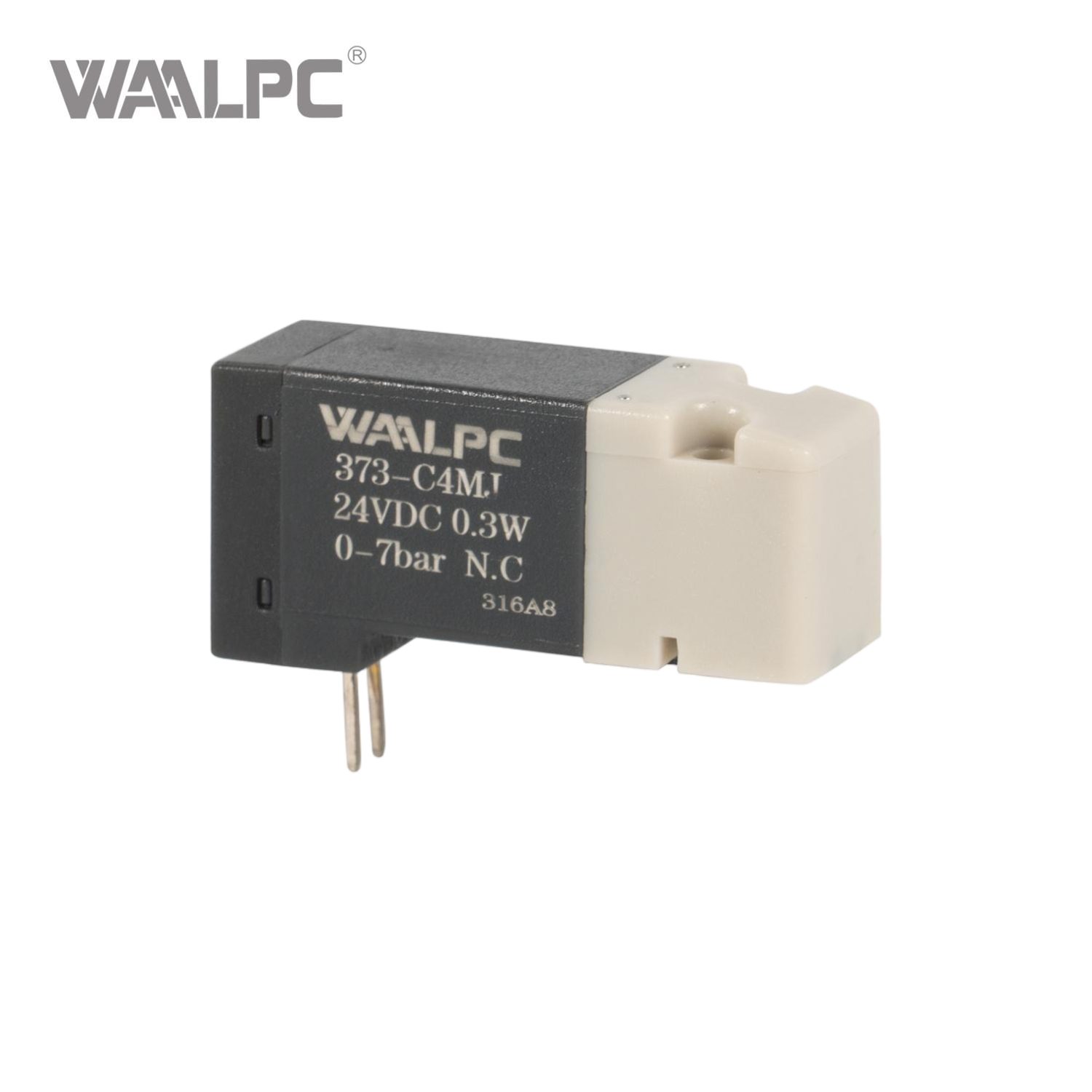

10mm Solenoid Valve 373-C4MJ 2/2 3/2 way normally closed (NC) Mini for medical oxygen generators


Socket connection method:	M: center pin type S: 180° horizontal type X: direct lead type
Availability:

Quantity:



Inquiry Add to Basket

10mm Direct Acting Solenoid Valve 373 Series
Solenoid valves are widely used in fluidic systems to control the flow of fluids.
By using solenoid actuation, these valves can be conveniently controlled by simple electrical switches, even in remote locations.
Solenoid valves offer fast and reliable switching, long service life, high reliability, low control power and a compact design, making them the ideal choice for many flow(air or liquid) precise control applications.
WAAL offers 10mm miniature solenoid valves in many designs and different powers, so as to fit the installations where limited space and high frequency working are required.

It is widely used in the textile industry, sock knitting machines, respirators, oxygen generators, medical industry & electronic industry and so on. It has the advantages of compact structure and taking little space,conventient installation,sensitiveness,stable performance,and so on. Moreover,it is protected by two potents.

Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Model:
373-C4MJ
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

373-C4MJ solenoid valve

1.Pilot-oriented mode:Internal pilot or external pilot.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Affiliated manual devices are equipped to facilitate installation and debugging.
7.Several standard voltage grades are optional.
8.Integrate with the manifold to save installation space.
9.direct-acting miniature solenoid valves can be mounted with a plate connection or used directly with a single valve seat.
10.It can control the operation of single-acting cylinders with high frequency, and can also be used as pilot valves for high-flow valves.
11.There are a variety of power and diameter to meet different requirements, can be combined into a vacuum, vacuum destruction unit, normally closed (NC) and normally open (NO) two functions.

12. Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

ORDERING CODE

373- C 4 S P 口口口 - L

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Symbol	Content
①	373 series
② Function	C: normally closed (NC), O: normally open (NO)
③ Voltage	6: DC6V, 2: DC12V, 4: DC24V, 3: AC110V, 5: AC220V
④ Socket Connection Method	Z: 90°right angle type, S: 180°horizontal type, X: direct lead type, L: left pin type, M: center pin type
⑤ Circuit Board Type	P: with two-way indicator light, G: with light with protection circuit, Blank: without circuit board, J: with energy-saving module (only DC12V DC24V)
⑥ Wiring Length	Blank: no wiring, A: cable length 125mm, B: cable length 300mm, C: special requirements
⑦ Plug Type	Blank: no plug, 1: A1, 2: A2, 3: A3, 4: A4, 5: A5, 6: A6, 7: A7, 8: A8, 9: A9, T: special socket
⑧ Exhaust Type	Blank:three-hole self-exhaust
⑨ Coil Power	Blank: 0.3W, L: 0.75W, H: 1W, T: special power

DATA SHEET

Valve Position Function

Two-position two-way, two-position

three-way, normally closed (NC) or

normally open (NO)

Operating Pressure

0-7ba, -100kpa (special instructions are

required when using vacuum)

Way of Working

Cut-off

Medium and Ambient Temperature

-5 ℃ - 50 ℃ (but not frozen)

Installation Method

Free installation

Working Medium

Filtered compressed air (filter accuracy

grade meets IS08573-15.4.4) or inert

gas

Orifice Size

0.7mm, 0.9mm. 1.5mm (two-position

two-way)

Response time

Open <8ms, close <10ms

Nominal flow

35L/min (at 6bar)

Manual device

Without

Voltage

DC12V, DC24V, AC110V, AC220V (or

other voltage)

Work Cycle

100% continuous operation

Voltage Tolerance

± 10%

Electrical Connections

Pins, sockets or direct lead

Power Consumption

0.75W, 1W (without energy-saving

module type), 0.3W (with energy-saving

module type)

Protection Level

IP50, IP65 (direct lead type)

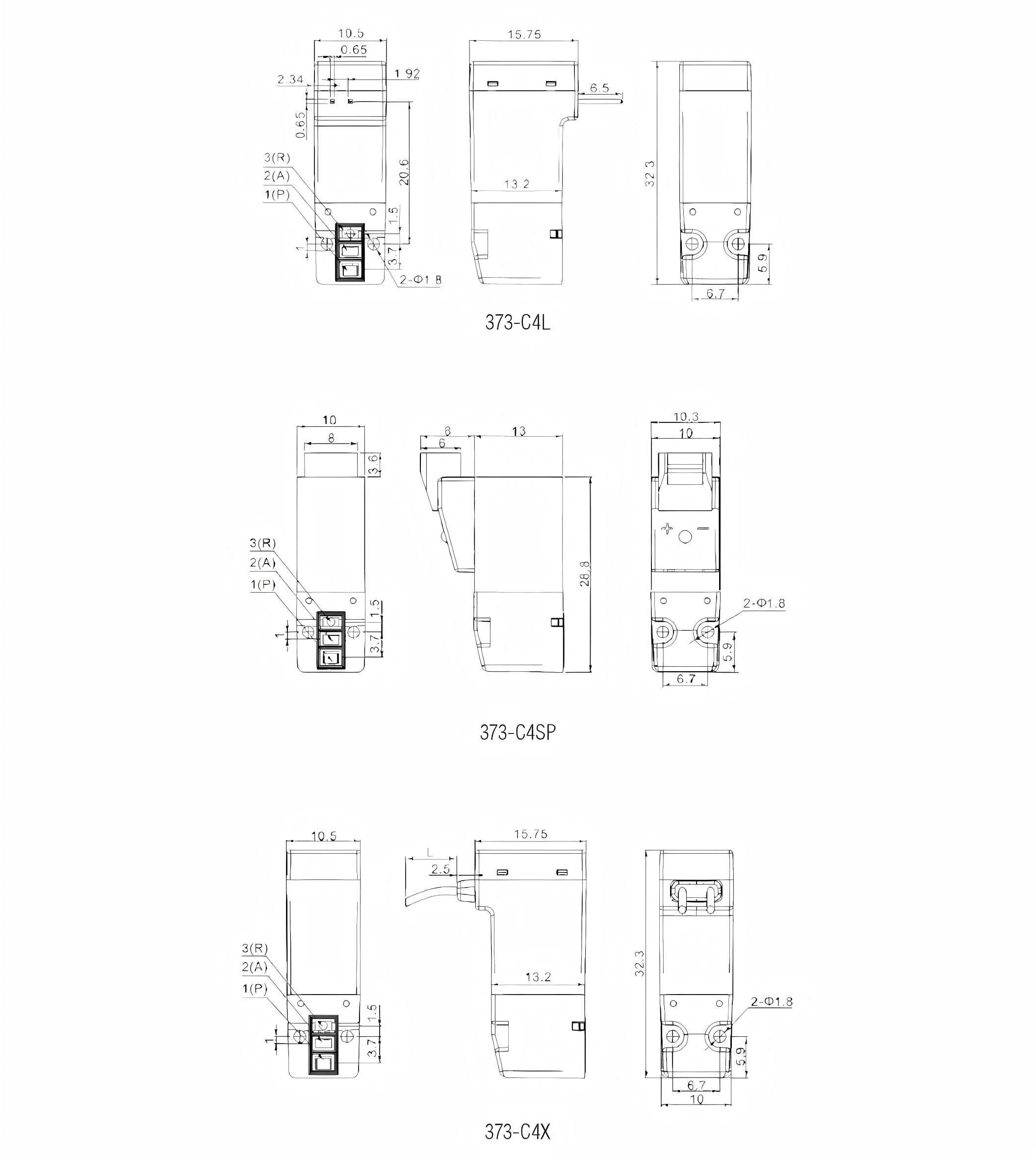

STRUCTURE

373-C4MJ- solenoid valve size

Specification Download

Solenoid Valve -331~378 series.pdf
