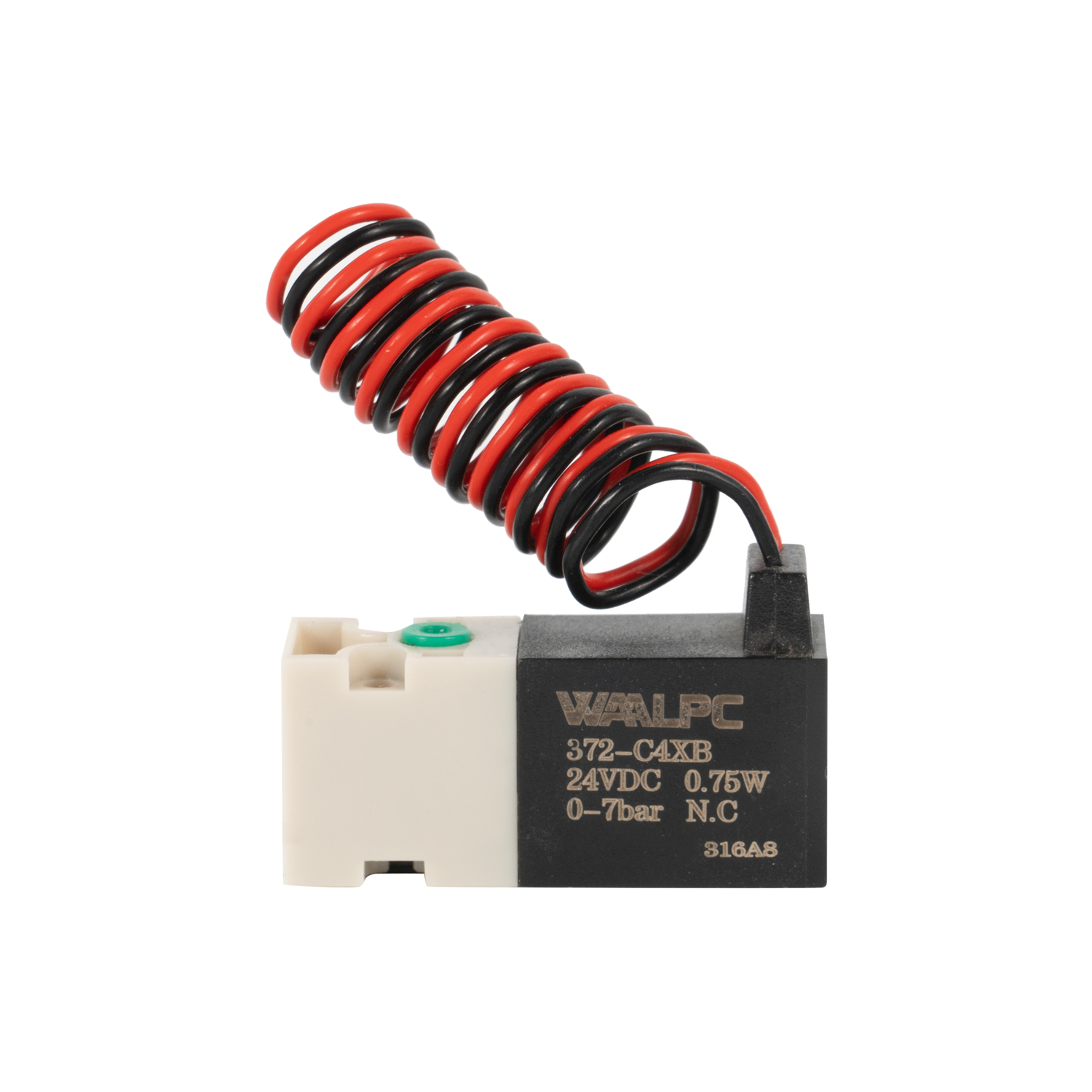

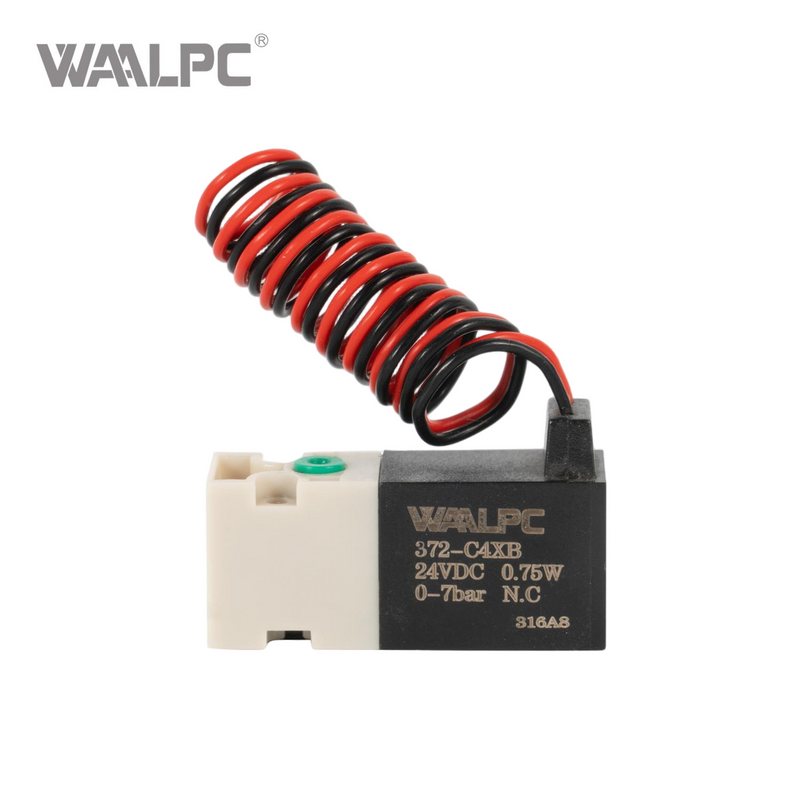

Mini 10mm Solenoid Valve 2/2 2/3 Way 372-C4XB METALWORK Type Normally Closed (NC) for Textile, Healthcare, Semiconductors


Socket connection method:	Z: 90° right Angle Type S: 180° horizontal type X: direct lead type
Availability:

Quantity:



Inquiry Add to Basket

10mm Direct Acting Solenoid Valve 372 Series
Solenoid valves are widely used in fluidic systems to control the flow of fluids.
By using solenoid actuation, these valves can be conveniently controlled by simple electrical switches, even in remote locations.
Solenoid valves offer fast and reliable switching, long service life, high reliability, low control power and a compact design, making them the ideal choice for many flow(air or liquid) precise control applications.
WAAL offers 10mm miniature solenoid valves in many designs and different powers, so as to fit the installations where limited space and high frequency working are required.

It is widely used in the textile industry, sock knitting machines, respirators, oxygen generators, medical industry & electronic industry and so on. It has the advantages of compact structure and taking little space,conventient installation,sensitiveness,stable performance,and so on. Moreover,it is protected by two potents.

Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Model:
372-C4XB
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

372-C4XB solenoid valve

1.Pilot-oriented mode:Internal pilot or external pilot.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Affiliated manual devices are equipped to facilitate installation and debugging.
7.Several standard voltage grades are optional.
8.Integrate with the manifold to save installation space.
9.direct-acting miniature solenoid valves can be mounted with a plate connection or used directly with a single valve seat.
10.It can control the operation of single-acting cylinders with high frequency, and can also be used as pilot valves for high-flow valves.
11.There are a variety of power and diameter to meet different requirements, can be combined into a vacuum, vacuum destruction unit, normally closed (NC) and normally open (NO) two functions.

12. Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

ORDERING CODE

372- C 4 S P 口口- L

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Symbol	Content
①	372 series
② Function	C: normally closed (NC) O: normally open (NO)
③ Voltage	4: DC24V, 2: DC12V,3: AC110V, 5: AC220V
④ Socket Connection Method	Z: 90°right angle type, S: 180°horizontal type, X: direct lead type
⑤ Circuit Board Type	P: with two-way indicator light, G: with light with protection circuit, Blank: without circuit board, J: with energy-saving module (only DC12V DC24V)
⑥ Wiring Length	Blank: no wiring, A: wiring length 125mm, B: wiring length 300mm, C: special requirements
⑦ Plug Type	Blank: no plug, 1: A1, 2: A2, 3: A3, 4: A4, 5: A5, 6: A6, 7: A7, 8: A8, 9: A9
⑧ Exhaust Type	Blank: two-hole self-exhaust, F: three-hole valve plate exhaust
⑨ Coil Power	Blank: 0.75W, L: 0.4W, H: 1W, T: special power
⑩ Forced Lock Button	Blank: No, Q: Yes

DATA SHEET

Valve Position Function

Two-position two-way, two-position

three-way, normally closed (NC) or

normally open (NO)

Operating Pressure

0-6bar (NO), 0-7bar (NC), -100kpa (NC,

NO two functions)

Way of Working

Cut-off

Medium and Ambient Temperature Working Medium

Response Time

-5 ℃ - 50 ℃(but not frozen)

Installation Method

Free installation

Working Medium

Filtered compressed air (grade of

filtration meets IS08573-15.4.4) or

inert gas

Orifice Size

0.6mm, 0.8mm, 1.0mm (large flow,

two-way type)

Response Time

Open <6ms, close <8ms

Nominal Flow

14L/min (0.4W, 6bar time), 18L/min

(0.75W, 6bar time)

Manual Device

Push-button manual switch or

push-button and locking manual

switch

Voltage

DC12V, DC24V, AC110V, AC220V (or

other voltage)

Work Cycle

100% continuous operation

Voltage Tolerance

± 10%

Electrical Connections

Socket or direct lead

Power Consumption

0.4W, 0.75W (large flow type), 1W

special power (customized)

IP Level

IP50, IP65 (direct lead type)

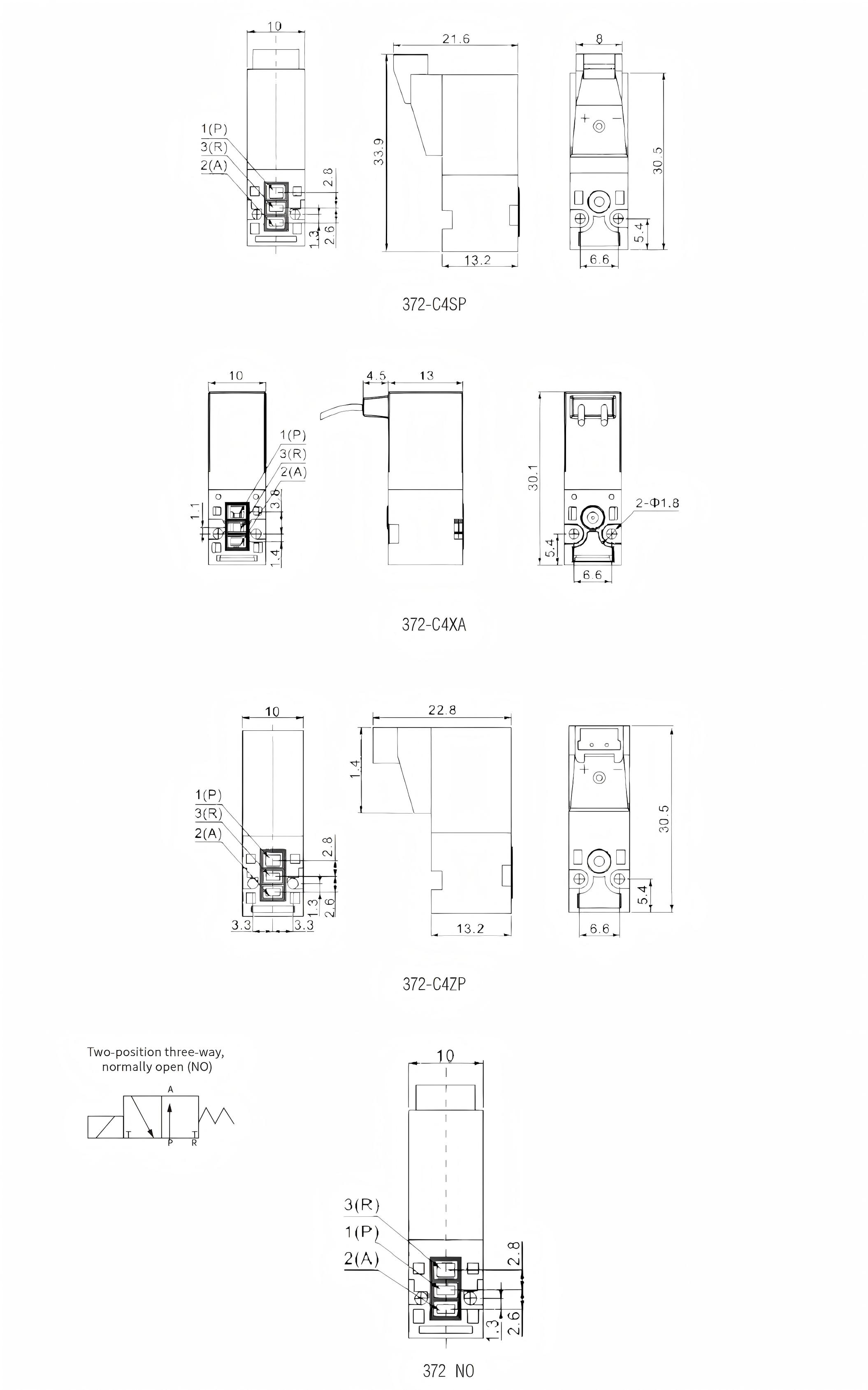

STRUCTURE

372-C4XB solenoid valve-size

Specification Download

Solenoid Valve -331~378 series.pdf
